In modern low-voltage overhead power distribution systems, safe and standardized installation is the foundation of stable circuit operation and construction safety. Overhead Insulation Piercing Connection relies on LV insulation piercing connectors (LV IPCs) to create quick branch taps on aerial bundled cables, allowing electricians to make service connections without stripping the insulation or cutting the main line.
Professional auxiliary holding tools play an irreplaceable role in ensuring accurate positioning, preventing component rotation and boosting the safety & efficiency of all Overhead Insulation Piercing Connection jobs. When an IPC is tightened by hand without proper support, the connector body can rotate with the bolt, the piercing teeth can dig into the cable at an angle, and the final torque can be applied to a misaligned joint — all of which weaken the electrical contact and shorten the service life of the tapping point.
A dedicated holding tool eliminates these risks by locking the connector firmly in the correct orientation while the torque nut is tightened. Among supporting tools matched for LV IPCs, the JTN-7-13 holding tool has earned wide market recognition for reliable clamping performance and high-safety insulation design.
The LV IPC Holding Tool JTN-7-13 is a dedicated dielectric holding tool exclusively built for Overhead Insulation Piercing Connection and insulation piercing connectors for one-core LV ABC. It firmly locks LV insulation piercing multi-tap connectors in place during overhead cable construction, stopping connectors from shifting or spinning when tightening bolts. Rated for 1000V AC circuits, this integrated shock-proof tool is a mandatory fitting for all LV ABC cable laying, overhead line wiring and street light Overhead Insulation Piercing Connection projects.

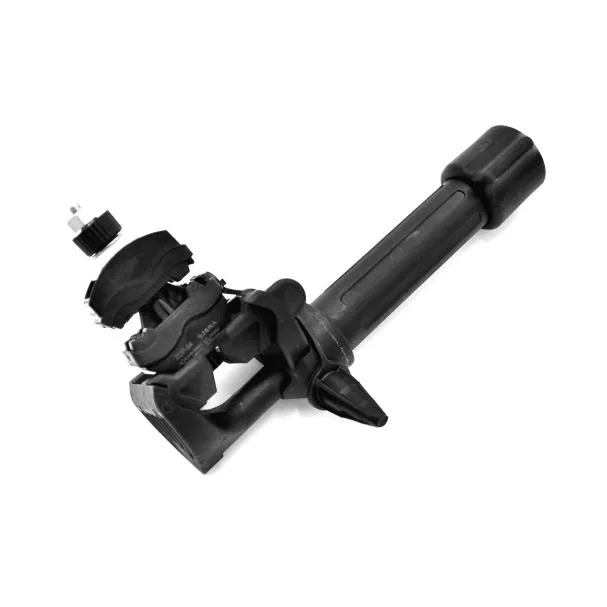

The working principle is simple but critical: the tool holds the IPC body in a rigid clamp while the electrician applies the calibrated torque to the shear-head nut. Because the connector cannot rotate or tilt, the piercing teeth enter the cable insulation perpendicular to the conductor, which is exactly the geometry required for a full-depth, uniform contact. Without this support, even a skilled operator can induce slight rotation that distorts the piercing path and creates a high-resistance joint. The JTN-7-13 holding tool removes that variable from field work and turns every tapping point into a repeatable, standard-quality installation
Customized for Hex 13 series low voltage insulation piercing connectors, the JTN-7-13 holding tool adopts a stable clamping mechanism and integrated insulation shockproof structure, perfectly fitting all Overhead Insulation Piercing Connection work conditions. With dielectric strength up to 1000V AC, it fully satisfies safety standards for low-voltage overhead power construction. Made of premium metal and composite raw materials, the tool maintains steady performance in extreme temperatures ranging from -40 ℃ to 50 ℃, covering cold northern winters, tropical humid climates and hot desert regions where LV grid renovation projects are carried out.
The tool is built from carefully selected materials, each chosen for a specific function:
The stainless steel and brass shaft mechanism delivers smooth, corrosion-free operation of the clamping handle, the fiberglass-reinforced polymer body and moving clamp provide electrical insulation, mechanical strength and UV resistance for years of outdoor service, and the aluminum IPC holder grips the connector securely without damaging its housing. The one-piece design is shock-proof and impact-resistant, so the tool can be carried on site, dropped on poles or stored in toolboxes without loss of function
The IPC Holding tool JTN-7-13 is engineered around a simple, well-defined working sequence that standardizes every IPC installation:
This seven-step method ensures that every connector is aligned at 90° to the cable axis before the shear-head bolt is torqued, which is the single most important condition for consistent piercing depth and contact pressure. Field crews trained on this procedure produce uniform tapping quality across the whole project, and the mandatory perpendicular position protects both the connector teeth and the cable insulation from damage.
| Product code | Application | Dielectric strength |
|---|---|---|
| JTN-7-13 | Low voltage insulation piercing connectors: Hex 13 models | 1000 V AC |
Specially matched with Jera full range LV IPCs for standard Overhead Insulation Piercing Connection__ — the clamping profile is designed around the Hex 13 connector family, so the tool seats each connector correctly without adapters or adjustments.
The single most important rule in IPC installation is that the connector must approach the cable at 90° to the conductor axis. When a connector is tightened at an angle, the piercing teeth cut a longer, shallower path through the insulation and may not reach the conductor core at full depth, leaving a partial contact that generates heat under load. The JTN-7-13 makes the correct position physically unavoidable: the connector is clamped rigidly in the tool, the tool is aligned perpendicular to the cable, and the torque nut is then tightened without any possibility of the connector rotating or drifting. This turns a skill-dependent operation into a mechanical procedure that any trained crew member can repeat with identical results, which is why utilities and EPC contractors standardize on holding tools for large-scale LV ABC projects.
The JTN-7-13 holding tool is designed to deliver safe, accurate and efficient Overhead Insulation Piercing Connection across all kinds of low-voltage power networks. Its superior insulation and solid clamping capacity fit multiple construction scenarios:
Across all these scenarios, the JTN-7-13 delivers the same result: a connector held perfectly still and perpendicular while the shear-head torque is applied. That consistency directly translates into lower rework rates, fewer hot joints and longer service life for the LV network, while the dielectric body keeps every operation safe
As a professional manufacturer of LV IPCs and matched installation tools for Overhead Insulation Piercing Connection, Jera Line provides factory-direct supply. Without middlemen, we offer competitive prices, stable production capacity and punctual delivery schedules for all project orders. Standard tool items are kept in stock, supporting reliable lead times for distributors and EPC contractors.
2. Complete Supporting Product Range
Jera Line supplies a full portfolio of LV insulation piercing connectors and matching holding tools for all specifications of Overhead Insulation Piercing Connection. Customers can purchase all required connectors and auxiliary tools in one-stop procurement, reducing multi-supplier coordination, part-matching risks and logistics costs.
We own an independent in-house laboratory to carry out comprehensive mechanical, insulation and aging tests on every tool. All JTN-7-13 products pass strict inspection to meet overhead power construction standards. The laboratory runs maximum tensile strength tests on a tensile testing machine, plus high and low-temperature cycling tests with temperature and humidity aging equipment, verifying the tool's dielectric insulation, clamping strength and environmental durability before shipment. Our internal R&D team keeps optimizing tool structure for easier Overhead Insulation Piercing Connection. Material incoming inspection is enforced before mass production, so only verified stainless steel, brass and UV-resistant polymer batches enter the assembly line.
Jera Line offers flexible customized services to meet unique project demands. We support custom product development, laser marking and branded carton stickers printed with customer logos, allowing distributors to build their own brand around a verified installation tool.
Founded in 2012, Jera Line has built stable long-term cooperation with clients in over 30 countries covering Europe, Asia, the Middle East, Africa and South America. Our IPC products and supporting holding tools for Overhead Insulation Piercing Connection receive consistent positive feedback for reliable quality. The multilingual sales-technical team understands local LV grid practices, tender document requirements and cross-border shipping procedures.
The JTN-7-13 LV IPC holding tool is an indispensable safety auxiliary fixture for low-voltage overhead distribution construction, delivering outstanding insulation protection, solid clamping force and great environmental adaptability.
By locking the connector perpendicular to the cable during shear-head torquing, it guarantees consistent piercing depth, uniform contact pressure and long-term joint reliability — the exact quality parameters that decide whether a tapping point serves for decades or fails prematurely. Its 1000V AC dielectric design protects operators working near energized lines, while the -40 ℃ to 50 ℃ operating range and UV-resistant one-piece construction make it a durable companion for field crews in every climate zone.
As a trusted manufacturer of Overhead Insulation Piercing Connection and matched installation tools for overhead insulation piercing connection, Jera Line supplies durable, standard-compliant products customized for global power market demands. Please feel free to contact us for more product details. We look forward to receiving your inquiry and building long-term win-win cooperation.
