Suspension clamp PS1500 analogs ES1500 Assembly

In modern low-voltage overhead ABC aerial bundled cable distribution systems, reliable cable suspension hardware plays a critical role to secure cable routing, absorb line vibration and extend overall grid service life. Exposed continuously to outdoor conditions such as strong wind-induced aeolian vibration, intense UV radiation, drastic temperature shifts and atmospheric contamination, poorly-designed suspension hardware will cause cable slippage, polymer cracking, metal corrosion and premature fitting failure. These defects further result in unexpected power outages and raise long-term operational and maintenance costs for power utilities, municipal authorities and network operators.

Suspension clamp assemblies represented by PS-1500 are widely used for supporting single-core LV ABC cables on utility poles across European and global distribution markets. However, original OEM PS-1500 units often come with relatively high unit prices, and global supply-chain constraints sometimes create long lead-times for bulk orders. Many installers, distributors and EPC contractors are therefore seeking cost-effective drop-in analog alternatives for PS-1500 suspension clamp, requiring full dimensional interchangeability, equivalent mechanical strength and outdoor ageing resistance without compromising field-proven performance.

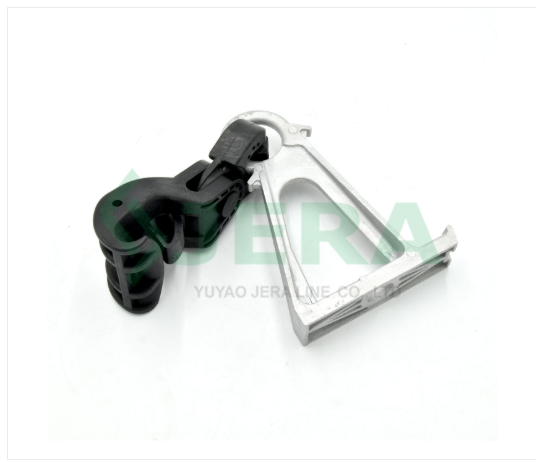

Jera Line ES-1500 suspension assembly is a fully interchangeable analog solution, built for 16-95 mm² one-core overhead ABC cable applications. It matches the installation dimensions, deflection-angle tolerance and mechanical performance benchmarks of the well-known PS-1500 suspension clamp assembly, which means no modification to poles, cables or auxiliary mounting parts is needed during replacement or new-build deployment. This blog explains product definition, official technical parameters, structural features, real-world application scenarios and key advantages of sourcing ES-1500 assembly as your PS-1500 replacement for low-voltage overhead distribution projects.

What Is PS-1500 Suspension Clamp?

PS-1500 is a well-known complete suspension clamp assembly for low-voltage one-core ABC overhead power lines.

• Conductor application range: 16-95 mm² single-core LV aerial bundled cables.
• Rated minimum breaking load: 8 kN.
• Main composition: UV-resistant polymer suspension clamp body plus cast aluminum alloy anchoring bracket.
• Typical usage: Suspending insulated neutral messenger cables on poles and walls, allowing line deflection angles for overhead distribution routes.
• Core strengths: Pre-assembled unit, tool-friendly installation, outdoor weather-resistant construction, widely deployed in European and global LV overhead projects.

Alternative of PS-1500 Suspension Clamp — Jera Line ES-1500 Assembly

Jera Line ES-1500 suspension assembly serves as a direct mechanical and dimensional analog for PS-1500 suspension clamp. It is purpose-built for suspending LV-ABC lines with insulated neutral messenger onto poles, towers or wall mounting points. The assembly tolerates cable deflection angles up to 30° towards the pole and up to 50° away from the pole, matching the working envelope of original PS-1500 hardware.

This generous angular capacity handles real-world route deviations on distribution networks, eliminating the need for extra intermediate fittings at minor line-angle poles and expanding its usability for both straight-line segments and moderate-angle turning sections within overhead grid layouts.

No cable jacket stripping is required during installation, protecting cable insulation and lowering on-site working hours. Stripping cable insulation at height introduces multiple risks, including accidental conductor damage, water ingress into cable cores and increased chances of field-installation errors; by keeping the outer cable sheath intact, ES-1500 preserves the factory-integrated insulation layer and greatly cuts down aerial-working time for linemen.

Supplied as a complete pre-assembled unit combining UV-resistant polymer suspension clamp and corrosion-resistant aluminium anchoring bracket, this hardware removes the burden of separate-part assembly on-site. Installers can mount the whole assembly directly without modifying existing poles, cable layouts or auxiliary accessories, whether for brand-new network build-outs or retrofitting projects where legacy PS-1500 units need replacement.

Its internal clamping geometry softly grips the insulated neutral messenger, absorbing wind-induced aeolian vibration and minimising sheath abrasion over decades of outdoor service. Every batch goes through in-house tensile strength validation to meet the 8 kN minimum breaking-load requirement, delivering equivalent mechanical reliability as the original reference product for global low-voltage ABC distribution deployments.

Technical Specification

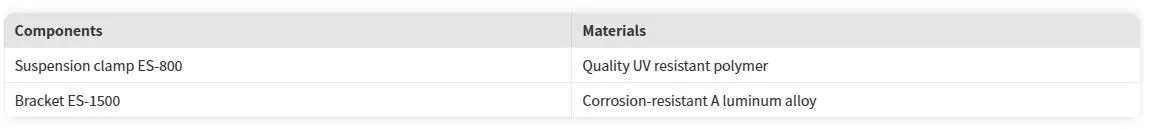

Components & Material

ES-1500 suspension assembly consists of two core functional parts: suspension clamp body and aluminum anchoring bracket Jera Line.

Features

ES-1500 Assembly is supplied as one complete unit (clamp body + aluminum bracket), functioning as a full-assembly analog for the PS-1500 complete suspension set, rather than merely a separate replacement clamp part. Every mating interface and connecting dimension is engineered to match the original reference assembly for seamless field swap-out.

• Full Dimensional and Performance Compatibility: Full dimensional and performance compatibility as PS-1500 analog, enabling direct drop-in field replacement. No extra adapters, pole modification or cable re-adjustment are required when retrofitting existing overhead networks or deploying brand-new distribution lines.
• Pre-Assembled Complete Unit: Pre-assembled complete unit to reduce field assembly work and cut maintenance-related costs. All critical sub-components are factory-matched and pre-joined before delivery, removing manual part-assembly steps performed at height and lowering human-error risks during overhead installation.
• Compact Ergonomic Profile: Compact ergonomic profile for fast, efficient pole-mount installation. Its streamlined shape avoids bulky protrusions that could catch wind or surrounding vegetation, and fits well in confined pole-mount working spaces for linemen operating with basic hand-tools.
• Dual-Material Construction: UV-stable polymer clamp body plus anti-corrosion cast aluminum bracket for long-term outdoor exposure. The specially-formulated polymer resists UV photo-degradation and cracking under continuous solar irradiation, while the cast-aluminum bracket delivers excellent corrosion resistance for inland, suburban and general urban atmospheric conditions.
• Wide Cable Coverage: Suitable for 16-95 mm² single-core LV ABC aerial bundled conductors. This broad cross-section range covers most mainstream single-core self-supporting ABC cables used across residential, municipal and industrial low-voltage distribution projects.
• 8 kN Minimum Breaking Load: Delivers high mechanical strength for overhead span loads. It safely bears combined forces from cable dead-weight, wind gusts and occasional ice coating, offering sufficient mechanical safety margin for real-world overhead operating conditions.
• Rigorous In-House Mechanical Testing: Rigorous in-house lab mechanical tensile testing is completed according to overhead fitting evaluation criteria. Each production batch undergoes sampling tensile-load validation to verify minimum breaking-load performance, confirming compliance with expected overhead hardware requirements before shipment.
• Outdoor Ageing Resistance: Resists line vibration, solar UV radiation and temperature fluctuation across diverse climate zones. The articulated hinge-type structure absorbs aeolian wind-induced vibration and accommodates thermal expansion-contraction cycles, mitigating sheath abrasion and fatigue damage for multi-decade outdoor service life.
• Factory-Direct Supply: Factory-direct supply from China, with competitive bulk pricing and sample support available for pre-order field performance verification, allowing customers to validate real-world fitting performance before committing to large-volume project orders.

Applications of Jera Line ES-1500 Assembly

Jera Line ES-1500 suspension assembly, as PS-1500 equivalent hardware, is designed for low-voltage overhead distribution projects requiring secure cable suspension and angle adaptability. Its 16-95 mm² cable coverage fits multiple installation environments:

• Urban & Rural LV ABC Overhead Distribution Networks: Perfect for intermediate-pole suspension of single-core aerial bundled cables, accommodating regular line deflection angles without additional modification.
• Municipal Street-Lighting Overhead Circuits: Works alongside street-light power take-off fittings, reliably supporting ABC service cables exposed to wind vibration along traffic routes.
• Industrial and Commercial Power Distribution: Provides stable suspension for overhead trunk cables serving factory zones and commercial park overhead distribution infrastructure.
• Residential Grid Expansion Projects: Ideal for new residential area overhead network roll-out and existing grid renovation, replacing legacy PS-1500 suspension hardware.
• Renewable Energy Overhead Micro-Grids: Suited for overhead cable suspension for ground-mount and rooftop PV-connected LV ABC distribution lines.
• Overhead Line Retrofit & Maintenance Works: Pre-assembled design enables rapid replacement during field repair jobs, without dis-assembling separate clamp and bracket components.

Why Choose Jera Line as Your Suspension Assembly Supplier?

• Direct Factory Supply & Cost Efficiency: Founded in 2012, Yuyao Jera Line is a professional manufacturer for overhead LV ABC cable accessories. Complete injection-molding, alloy casting and assembly production lines are operated in-house. All molds for ES-1500 suspension assembly are independently engineered by internal R&D teams. Removing intermediate traders brings competitive ex-works bulk pricing for global distributors and EPC contractors. Standard ES-1500 assemblies keep stock to guarantee 7-15 working-day lead-times for bulk orders.
• Comprehensive Overhead Hardware Portfolio: Jera Line maintains a full catalogue of overhead fittings, including different-range suspension clamps, tension anchor clamps, insulation piercing connectors, stainless-steel banding and matching pole-mount brackets. Customers can source complete sets of ABC overhead hardware for every utility project from one single supplier, simplifying procurement management and lowering cross-supplier logistics expenses.
• Advanced R&D and Manufacturing Capability: Jera Line's on-site laboratory performs full mechanical tensile strength test, material validation and environmental ageing test for each batch of ES-1500 assemblies. Product performance meets overhead fitting testing requirements. Continuous material and structural optimisation improves long-term outdoor service performance. Raw-material inspection is implemented before mass production to avoid inferior raw-material input.
• OEM and ODM: Flexible customisation options are available for project-specific needs: laser customer logo marking on bracket or clamp bodies, custom carton packaging, and special-parameter adjustments upon technical assessment. Free pre-order product samples can be provided for field verification before large-volume purchasing.
• Global Experience: Jera Line's overhead cable hardware has been exported to over 60 countries covering Europe, Asia, Middle East, Africa and South America. Multilingual sales-technical teams understand local overhead grid norms, tender requirements and cross-border logistics, offering end-to-end support for customers switching over from PS-1500 original parts to Jera Line ES-1500 analog assemblies.

Conclusion

Selecting qualified overhead suspension clamp assembly is critical to guarantee safe cable supporting and long service life for LV-ABC overhead distribution networks. Poor-quality suspension hardware will become hidden danger for whole power grid. This article introduces Suspension clamp PS-1500 analogs ES-1500 Assembly, a proven drop-in replacement for LV-ABC overhead distribution networks.

Inferior-quality suspension clamps may result in insufficient breaking strength, polymer UV brittleness or bracket corrosion, bringing hidden risk of cable drop-off and power-supply failure for utility projects, and causing expensive after-sales maintenance for power operators.

Jera Line ES-1500 Assembly, as reliable PS-1500 analog suspension clamp set, offers pre-tested, high-strength overhead suspension hardware complying with international utility-fitting standards. Every batch undergoes mechanical tensile test inside Jera Line's in-house laboratory to verify the 8 kN minimum breaking-load performance, ensuring stable operation under wind sway, cable dead-weight and long-term outdoor UV ageing. Its pre-assembled structure saves plenty of on-site working time for installation teams.

Whether you require product datasheets, pre-order samples or formal project quotation, please feel free to get in touch with our sales team. We look forward to building stable long-term win-win business cooperation with global partners across power-utility, municipal engineering and new-energy industries.

Request your free sample to test interchangeability against PS-1500.
