Model No. :

ES-1500

Description:

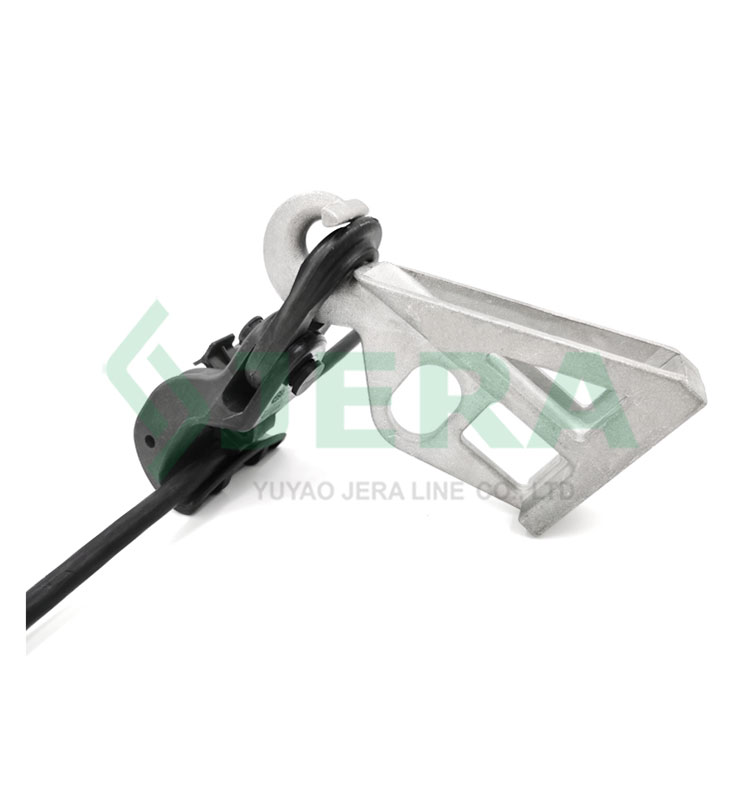

Overhead cable suspension assembly, ES-1500 also called ABC cable suspension clamp set is designed to suspend and attach LV-ABC lines with the insulated neutral messenger to the towers poles or walls, for angles up to 30° towards the pole and up to 50° away from the pole.

  • Product detail
  • Specification
  • Video
  • Inquiry

Key Features

  1. Easy operation, no need other tools
  2. UV resistant plastic and aluminum alloy guarantee long period life
  3. Can be attach on pole with stainless steel strap or bolts
  4. Wide range cable application, 10-95mm2
  5. Clamp will not damage the insulation of cables during application
  6. High mechanical strength
  7. Fair price
ABC Cable Suspension assembly, ES-1500 ABC Cable Suspension assembly, ES-1500

SPECIFICATION

Overhead Cable Suspension assembly ES-1500

Analogs: ESF54/70, ES 54-14, ES 1500 25-95

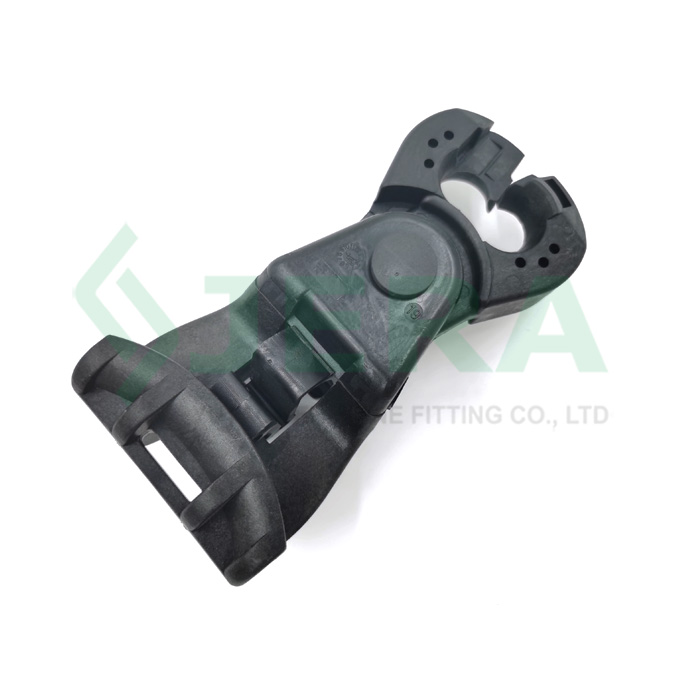

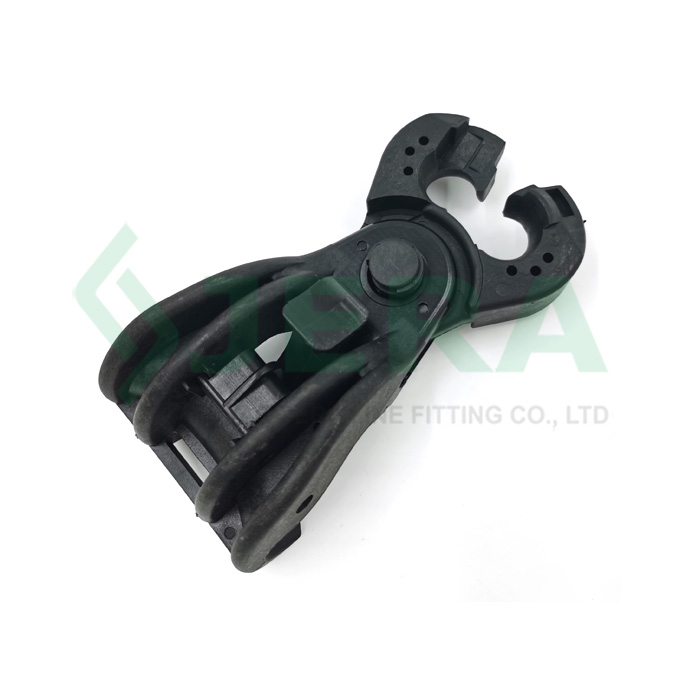

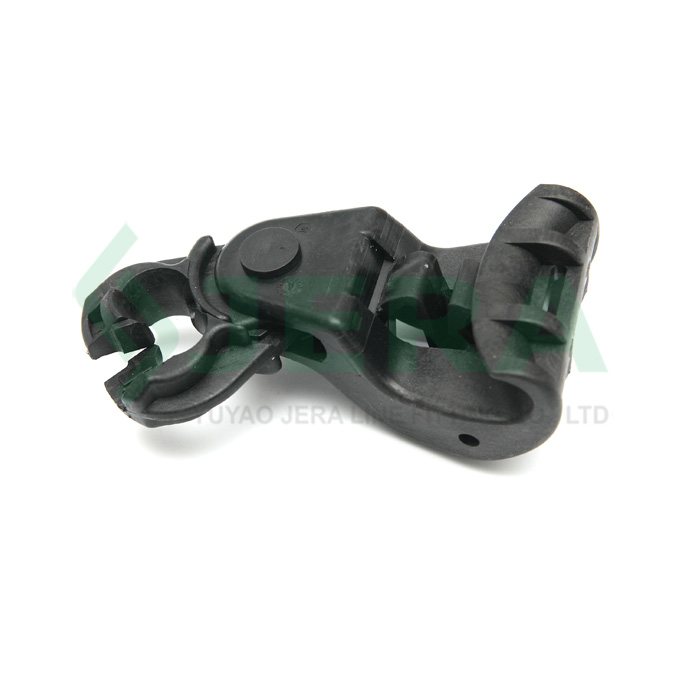

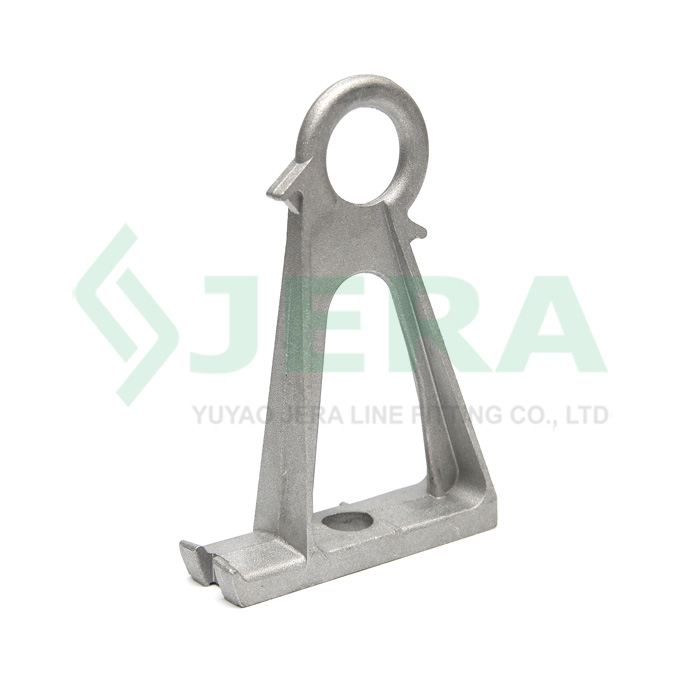

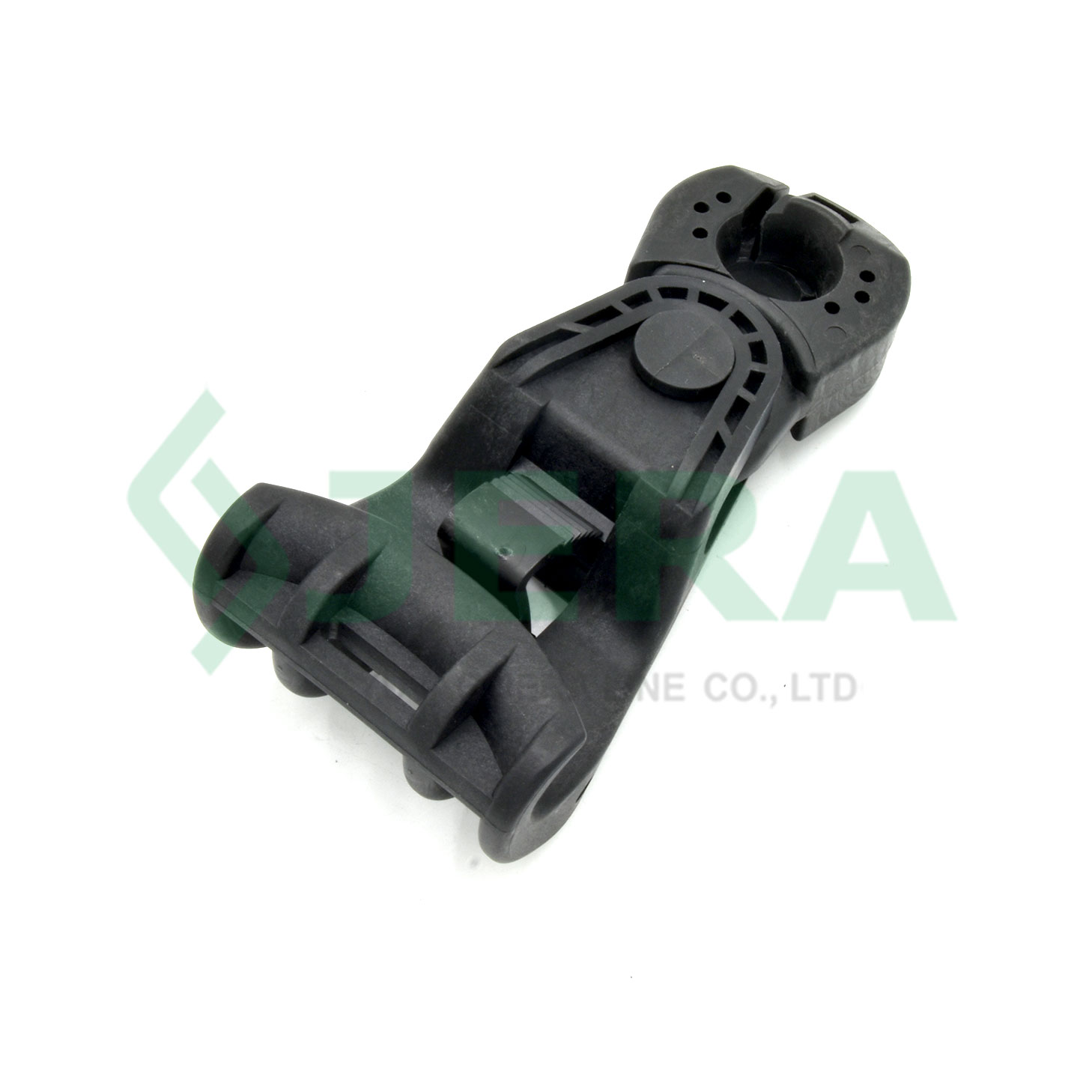

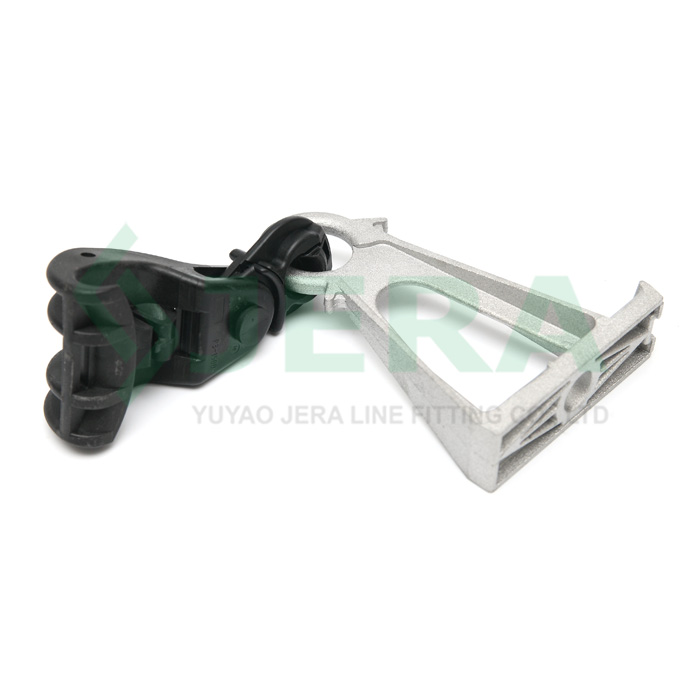

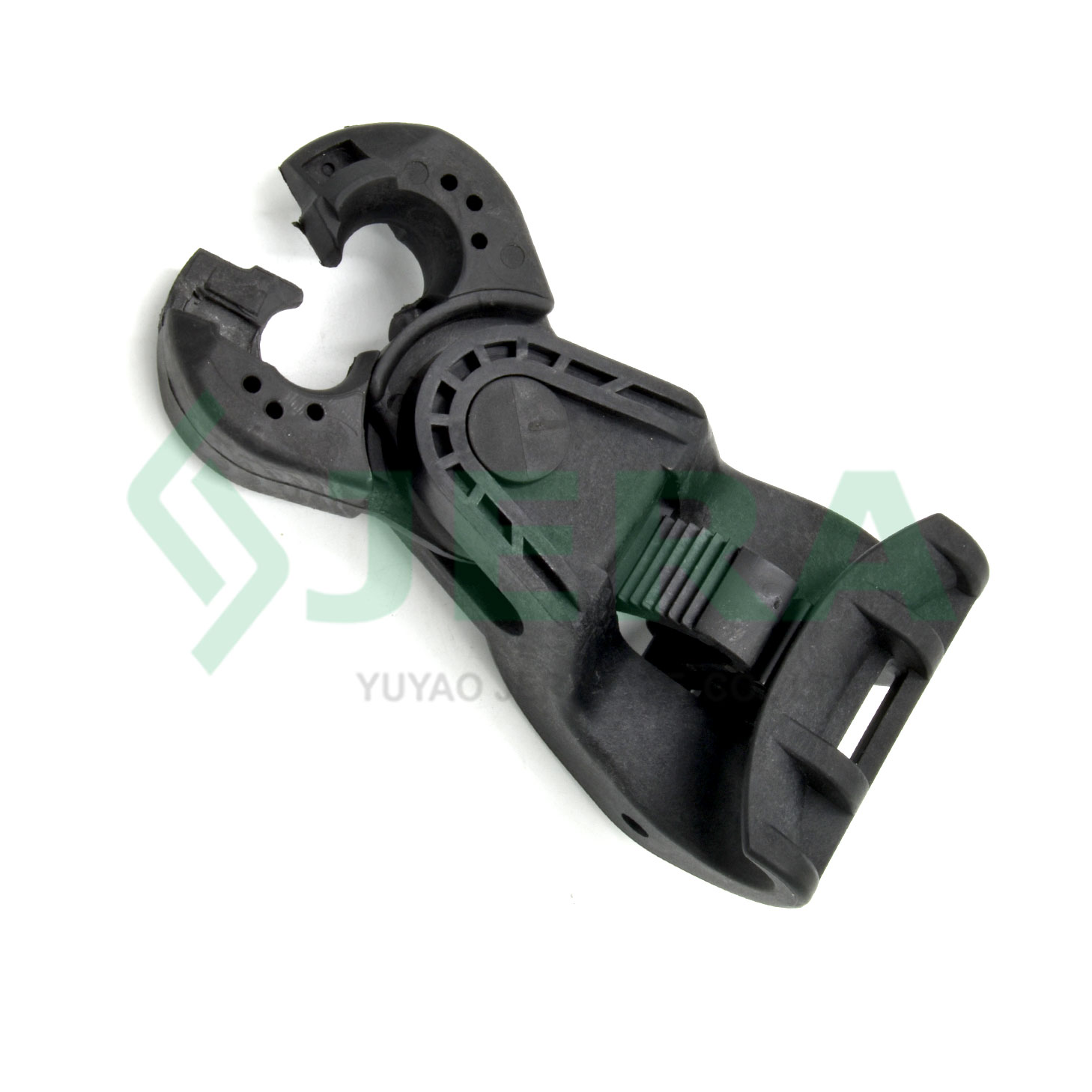

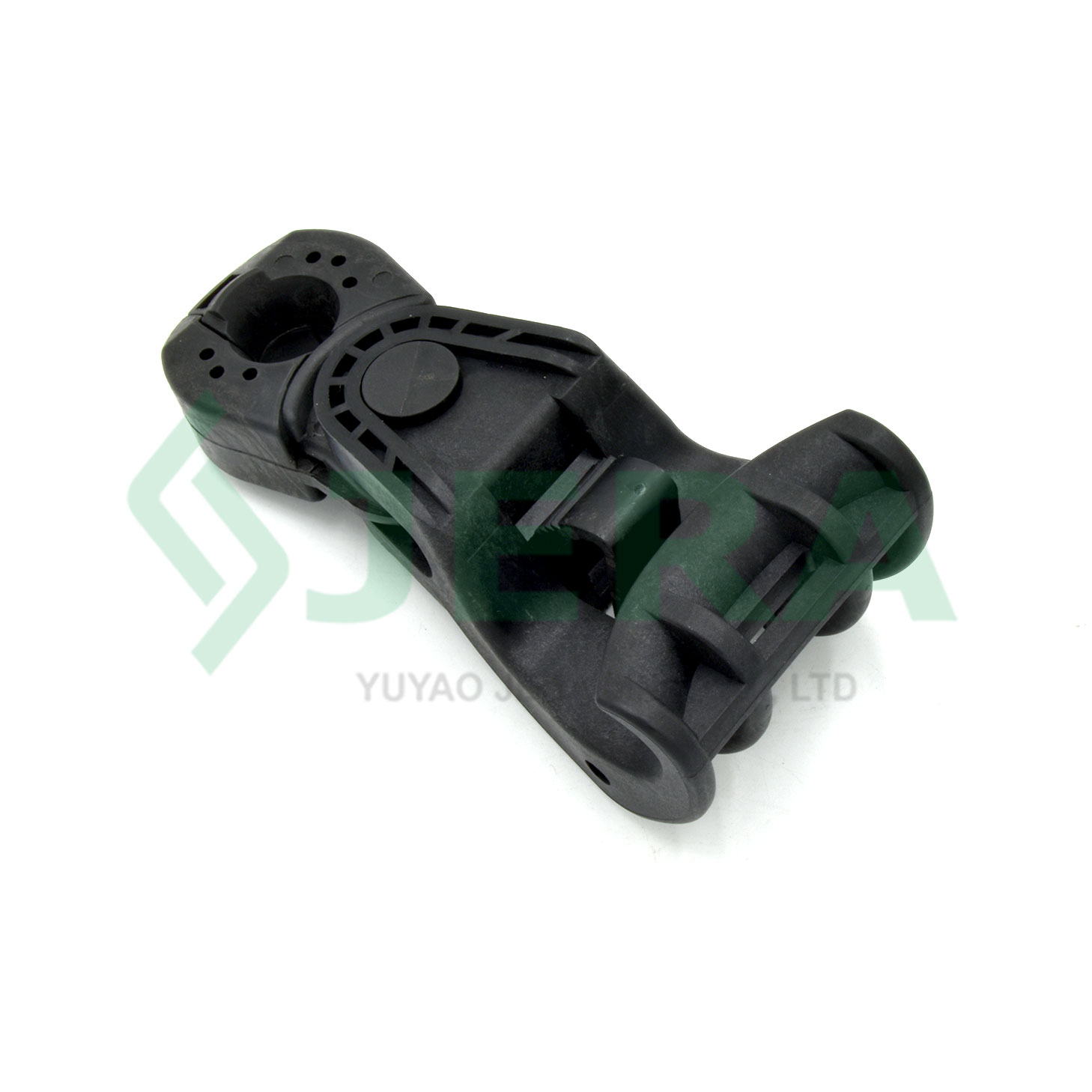

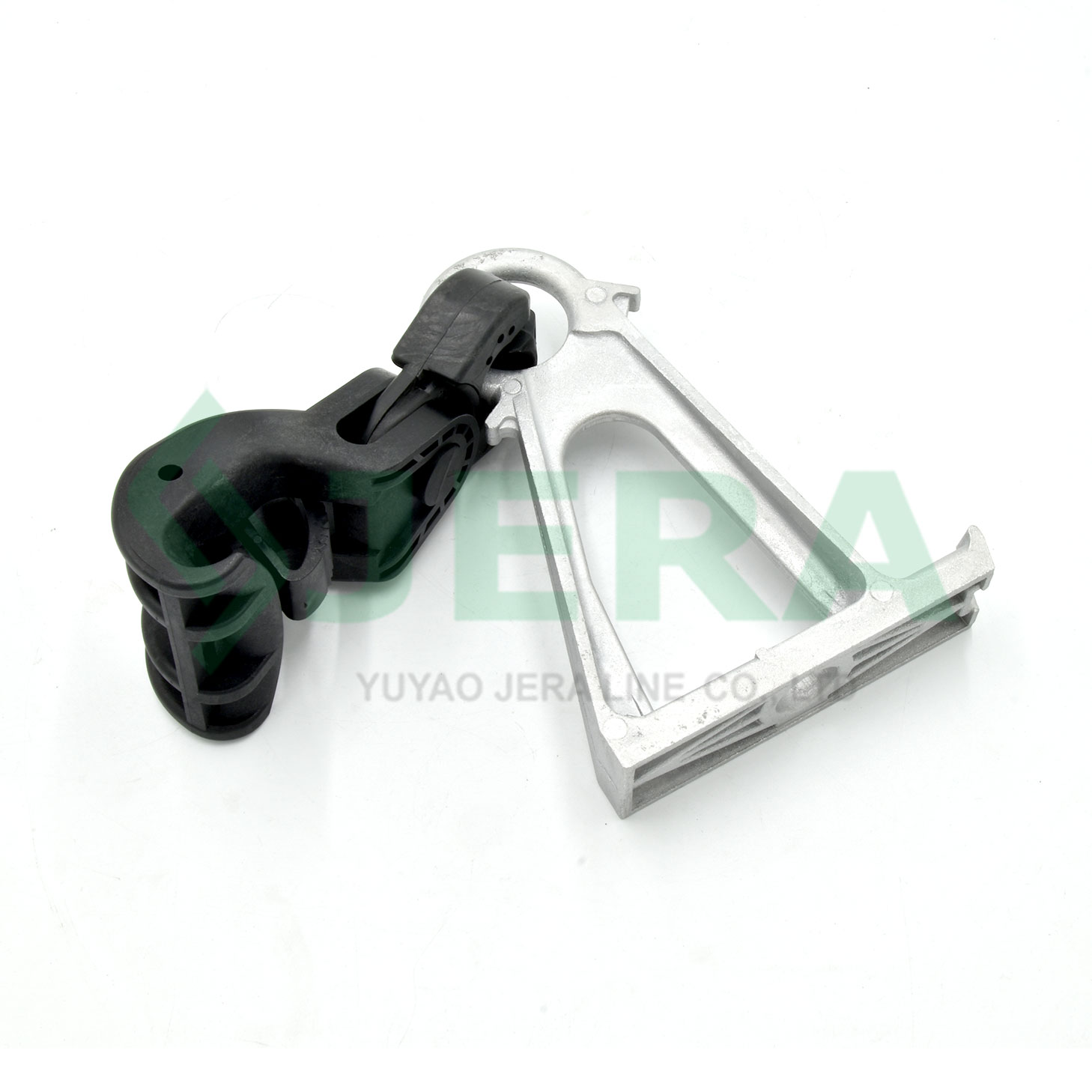

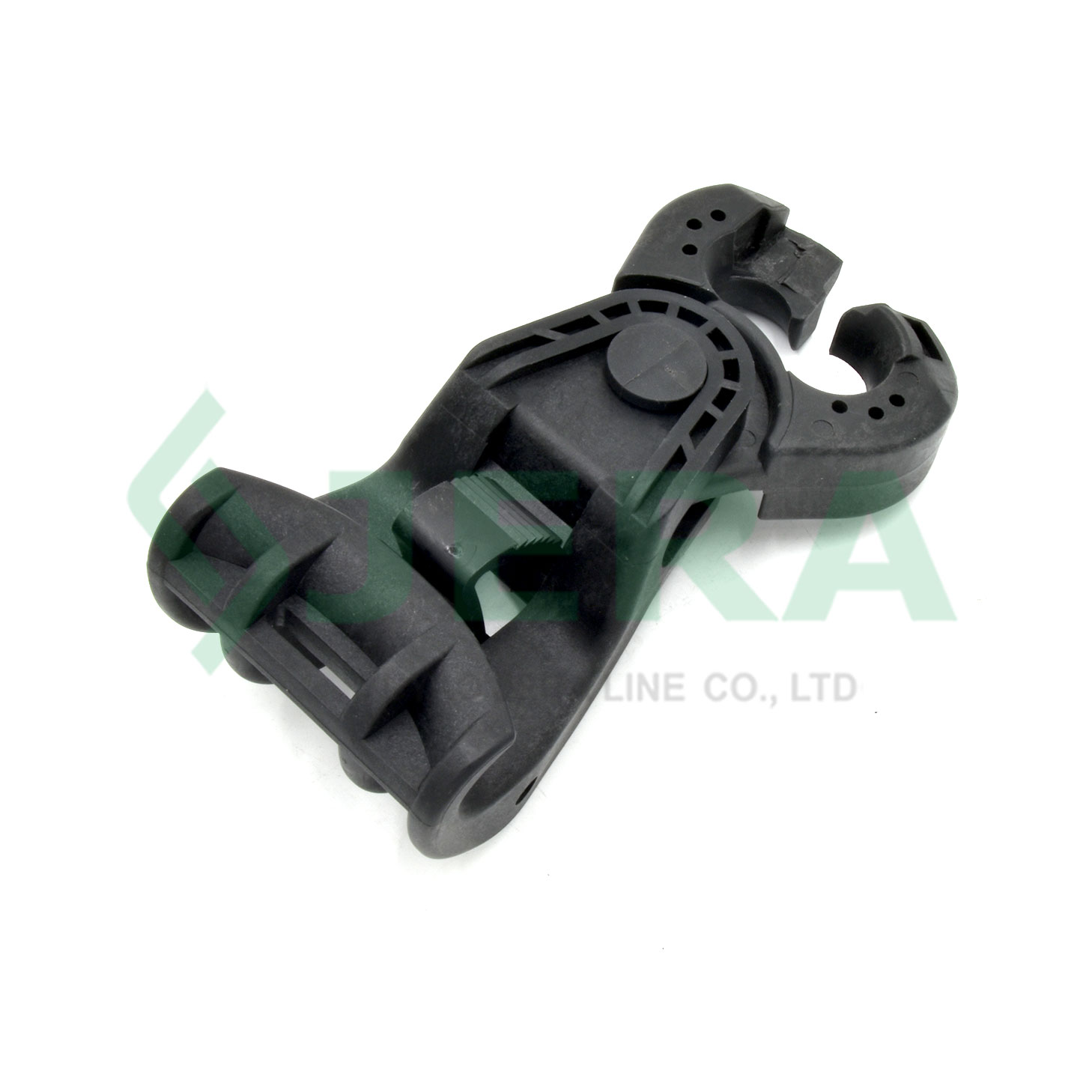

This low voltage cable suspension assembly is consist of suspension clamp and anchoring bracket. Suspension clamp is made of high quality UV resistant plastic processed by injection technology. Anchoring bracket is made of aluminum alloy with superior mechanical strength. All the materials are weather proof which ensure long time usage under various weather conditions.

The installation of this LV suspension assembly is very easy, suspension clamp with a adjustable clip to hole cable from 10-95mm2 insulated messenger easily by hand. And anchor bracket can be attached on pole by stainless steel straps or pole bolts.

read more

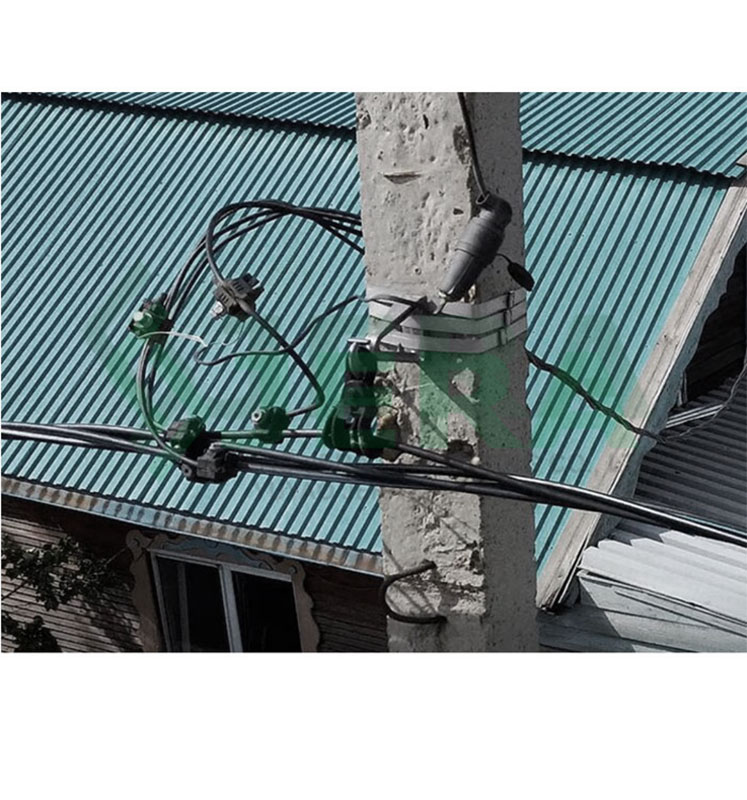

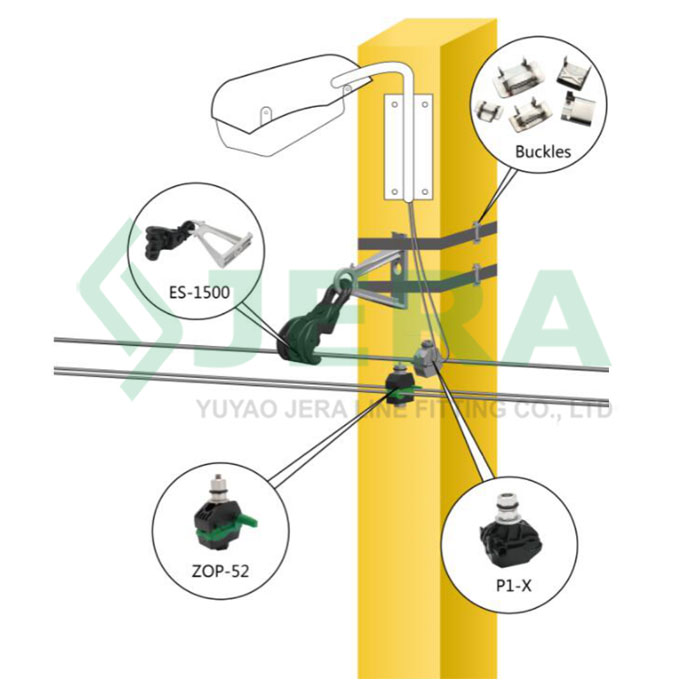

APPLICATION

aerial suspension clamp

Jera line is operating according to ISO9001:2015, we have our own inner laboratory to do inspections during daily production and new products developments. We care about pre-sales service and after-sales service and we provide a full range of product for aerial ftth deployment which allow us to sell product to over 40 counties.

Jera is a direct factory who supply low accessories for electrical line branching and jointing. For other products like tension clamps, insulation piercing connectors,cable lugs and dead end grips please find these in our product range.

Welcome to contact us for more details about this aerial abc cable suspension assembly.

read more

Manufacturing

    app

Watch Our Factory Video

Technical Specification

Product code

Cable size, mm2

MBL, kN

Weight. kg

ES-1500(Al+Pl)

10 – 95

8

0.36
