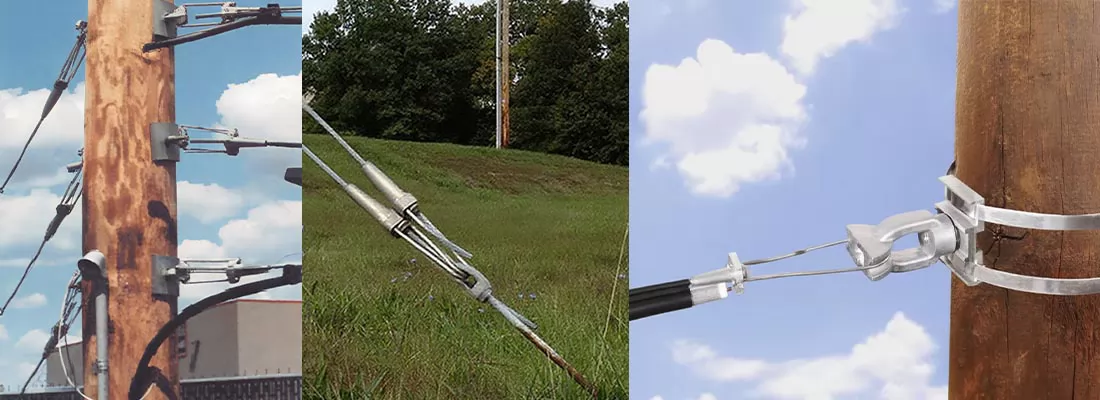

The steel guy wire dead end is designed to support both ends of self supporting multi-pair drop wire that uses a solid galvanized steel messenger wire that is integrated into the jacket in a figure 8 configuration Used to splice galvanized steel messenger mid-span of a service drop. The material is suitable for outdoor cables, for harsh environment usage.
Technical specification
Product code
Conductor diameter, mm
MBL,KN
PA-09.1
2.0-2.5
5

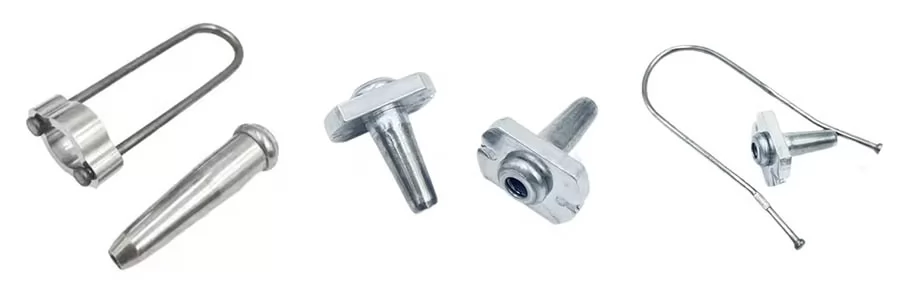

Components and materials
A strand vise is designed to attach onto the cable using a finger-trap principle. Strand vises dead endsare typically made of galvanized stainless steel, providing high physical and mechanical strength suitable for outdoor applications. The galvanization protects the vise from rust and chemical destruction, making it durable in various environmental conditions.
Components
Materials
Body
Aluminum Alloy 6065
Wirebail
Steel

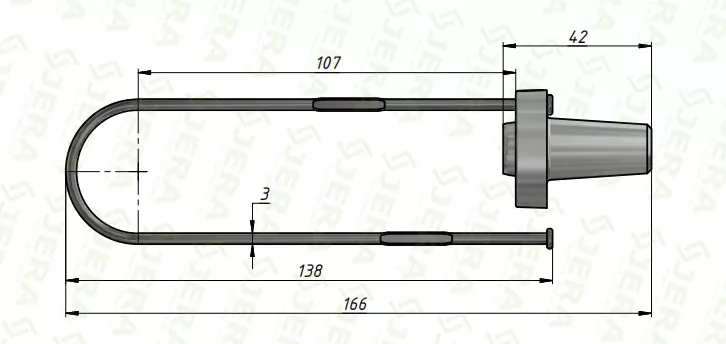

Dimensions
Test
The strand vise was designed to make it compatible with a wide range of industrial strands. It can support a broad range of wires thanks to its universal bale design.

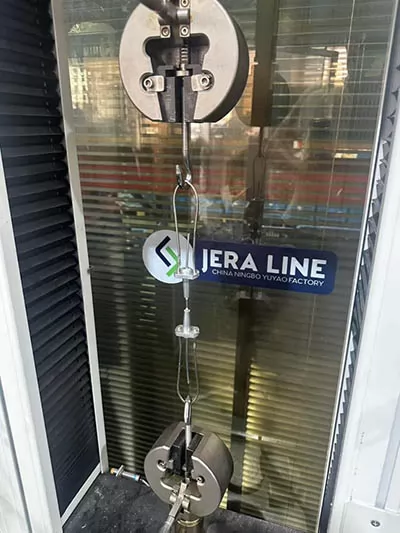

Jera Line has the in-house laboratory with Tensile Strength Test machine to test the maximum amount of tensile( pulling).
