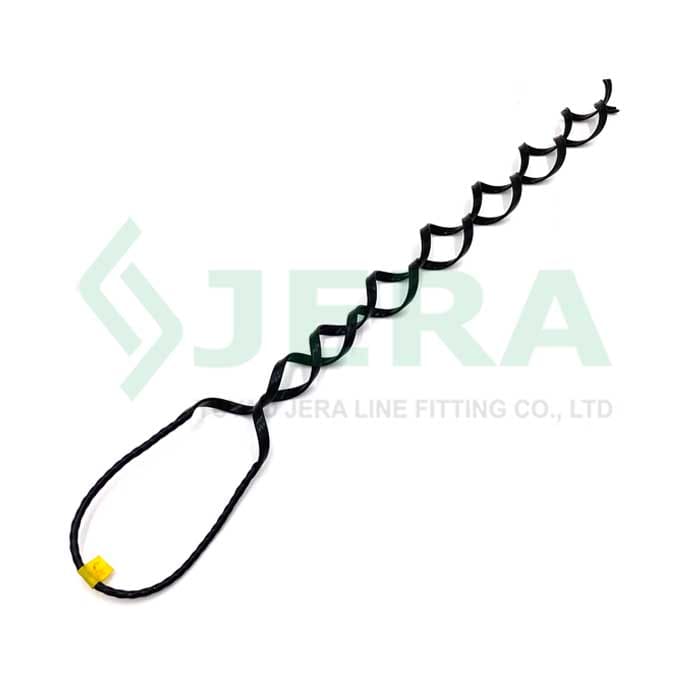

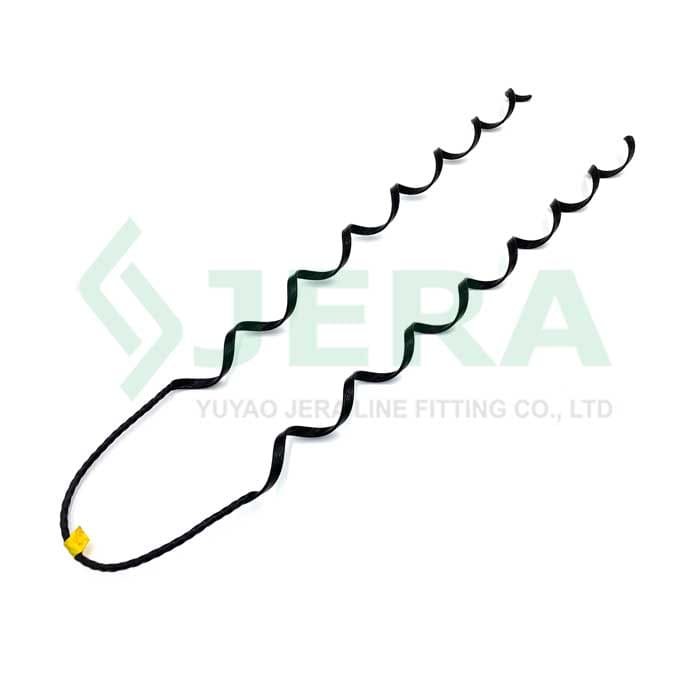

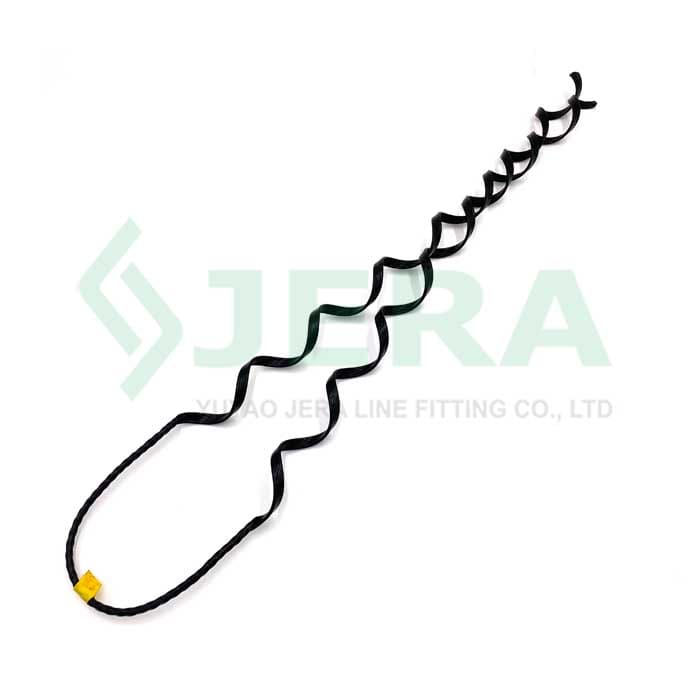

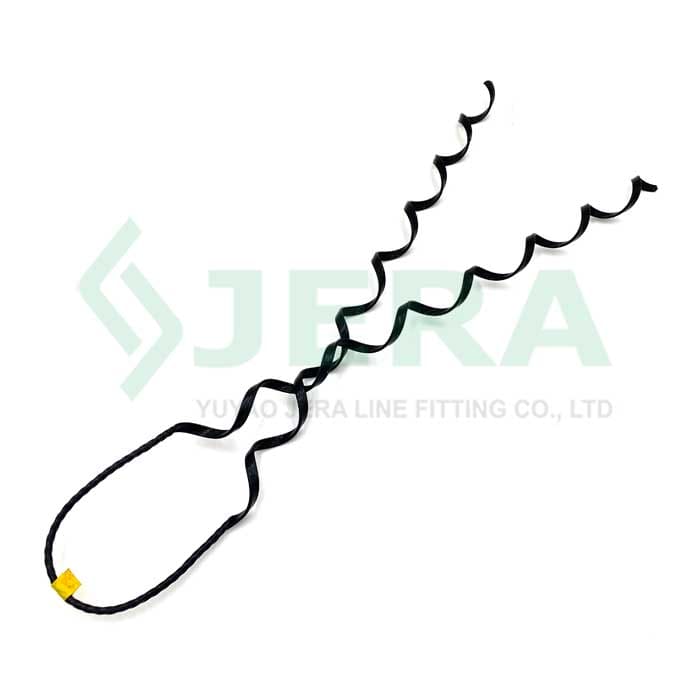

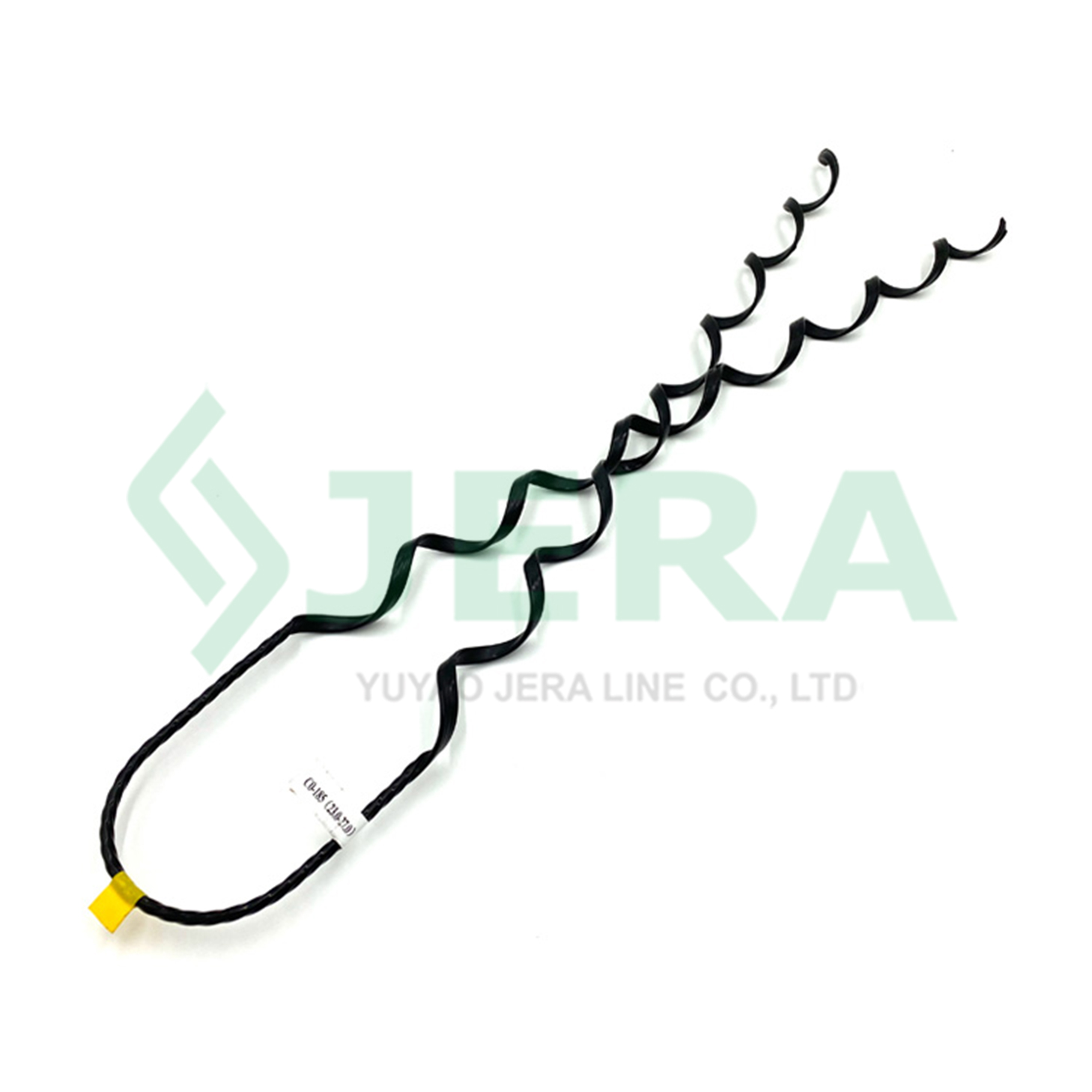

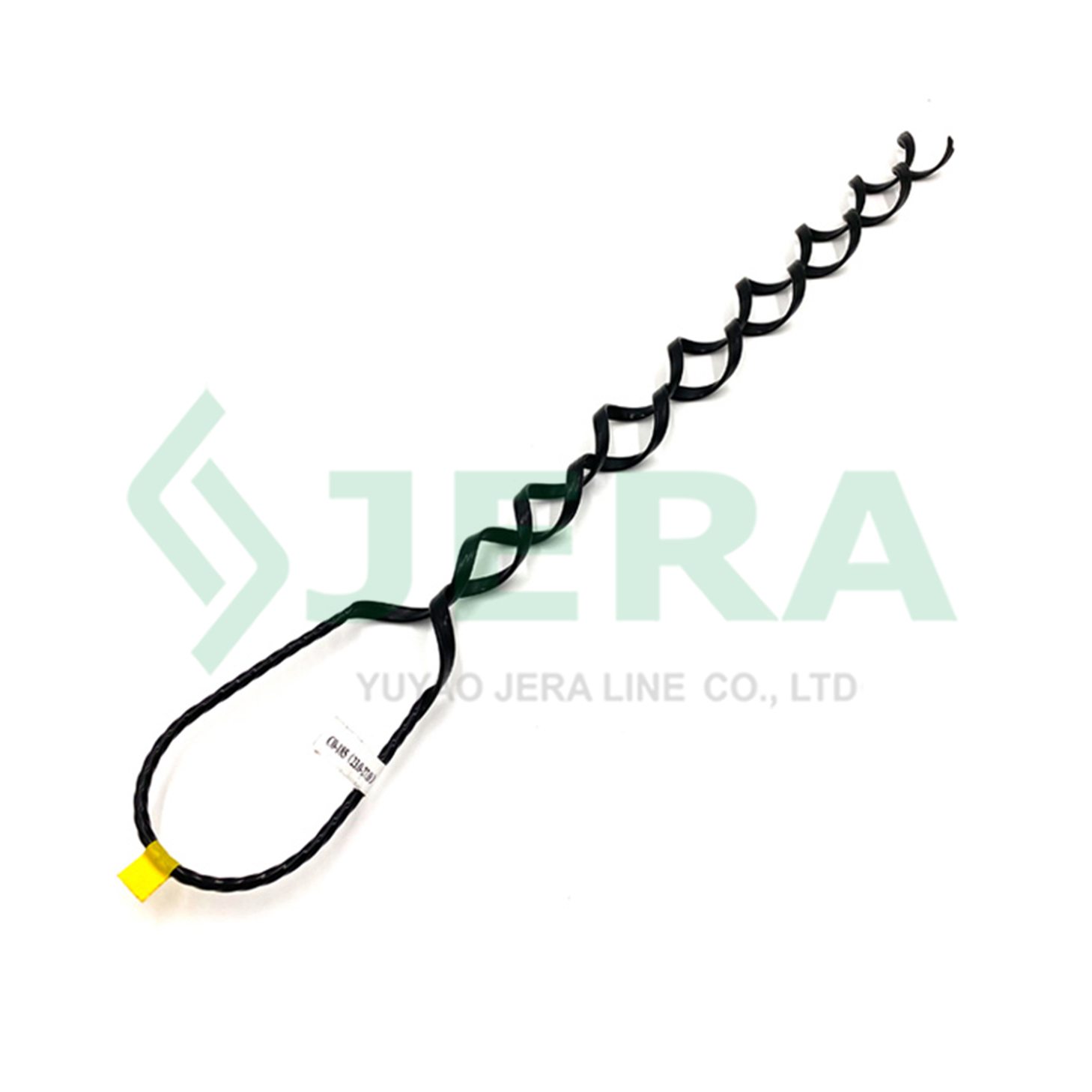

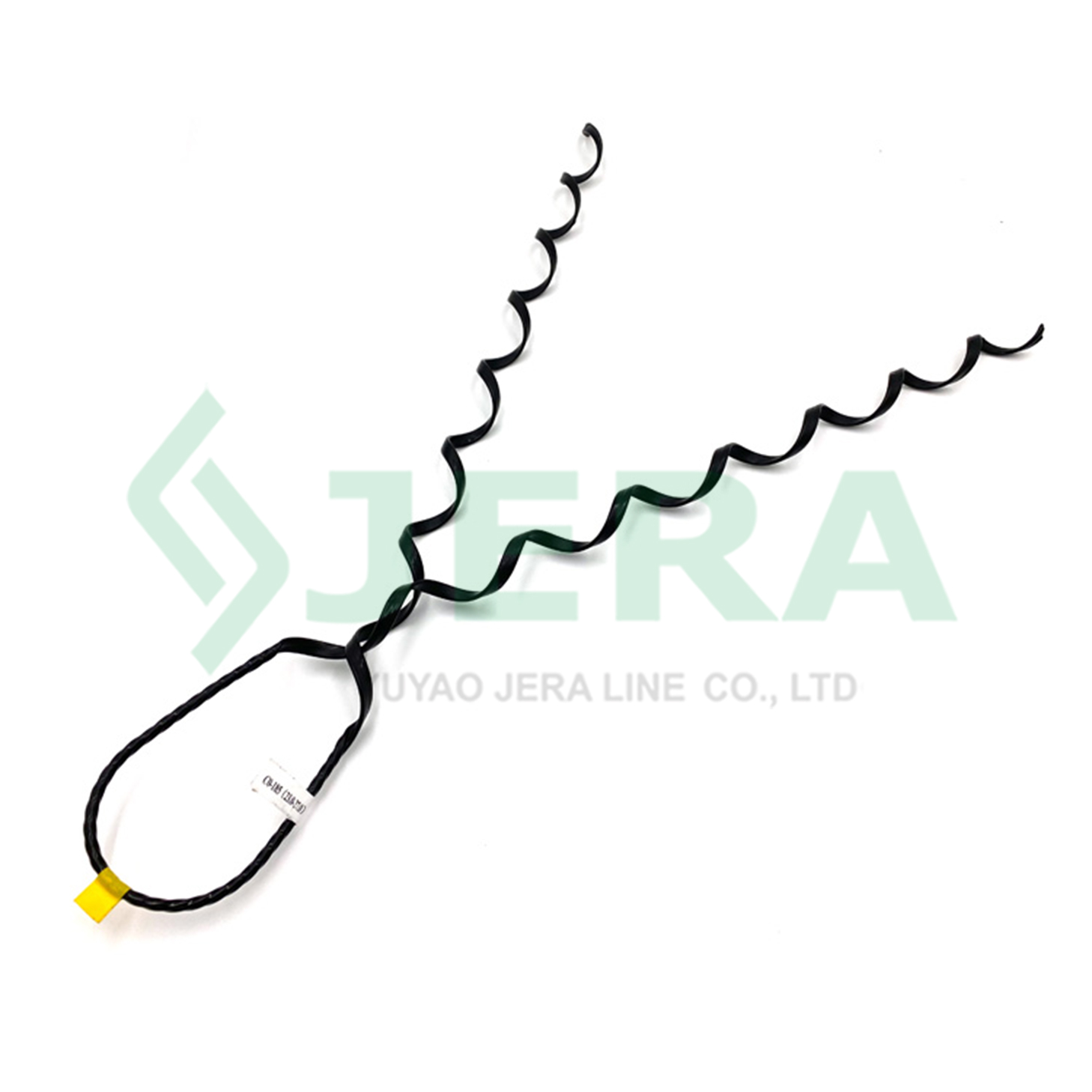

Polymer covered coated tie CO185 (23-27)

Polymer covered coated tie CO185 (23-27)
Polymer covered coated tie CO185 (23-27)
Polymer covered coated tie CO185 (23-27)
Polymer covered coated tie CO185 (23-27)
Polymer covered coated tie CO185 (23-27)
Polymer covered coated tie CO185 (23-27)
Polymer covered coated tie CO185 (23-27)
Polymer covered coated tie CO185 (23-27)
Model No. :

CO185

Description:

Coated tie CO185 either called Preformed insulator ties is developed for fixing plastic jacked conductors on neck insulator during overhead MV or HV electrical distribution line.

The preformed coated tie is a light weight product, but provide superior mechanical strength and resiliency during conductor motion and cyclic loading conditions.

  • Product detail
  • Specification
  • Video
  • Inquiry

Key Features

  1. Hand or hot sticks installation
  2. High strength steel wire and surface coated by polymer
  3. Developed for tying conductors to porcelain insulation neck
  4. UV resistant Polymer guarantee long period usage
  5. Fair price
Polymer covered coated tie CO185 (23-27) Polymer covered coated tie CO185 (23-27)

SPECIFICATION

Preformed insulator ties

Product analogs: CO35, CO240, SO115.5085, SO115.9573, SO115.150

Coated side tie CO185 main body is made of high strength steel wire and overall surface covered by UV resistant polymer coating. Which ensure the insulativity and provide physical tensile strength.

Jera Line has an on-site laboratory, which performs essential tests, in accordance with European quality inspection standards. For electrical power cable related products, they are mentioned in EN 50483-4, NFC 33020, and IEC 61238-1.

Polymer covered tie CO185 is suitable for power cable size 23-27mm diameter. It’ s usually applied in pairs, and installed in opposite to each other. Can be installed as both top and side on insulator as coated side tie or coated top tie.

read more

APPLICATION

Polymer covered tie

Jera line is operating according to ISO9001:2015, We insist on reinvesting in production and R&D no less than 70% of EBITDA, that allows us to satisfy customers from more than 40 countries – worldwide.

We supply a wide range product for low voltage line construction, our product includes low voltage tension clamps, suspension clamps, anchor brackets, stainless steel banding, dead end guy grips, insulation piercing connectors, bolt mechanical lugs, cable connectors etc.

Welcome to contact us for more information about this coated ties price.

read more

Manufacturing

    app

Watch Our Factory Video

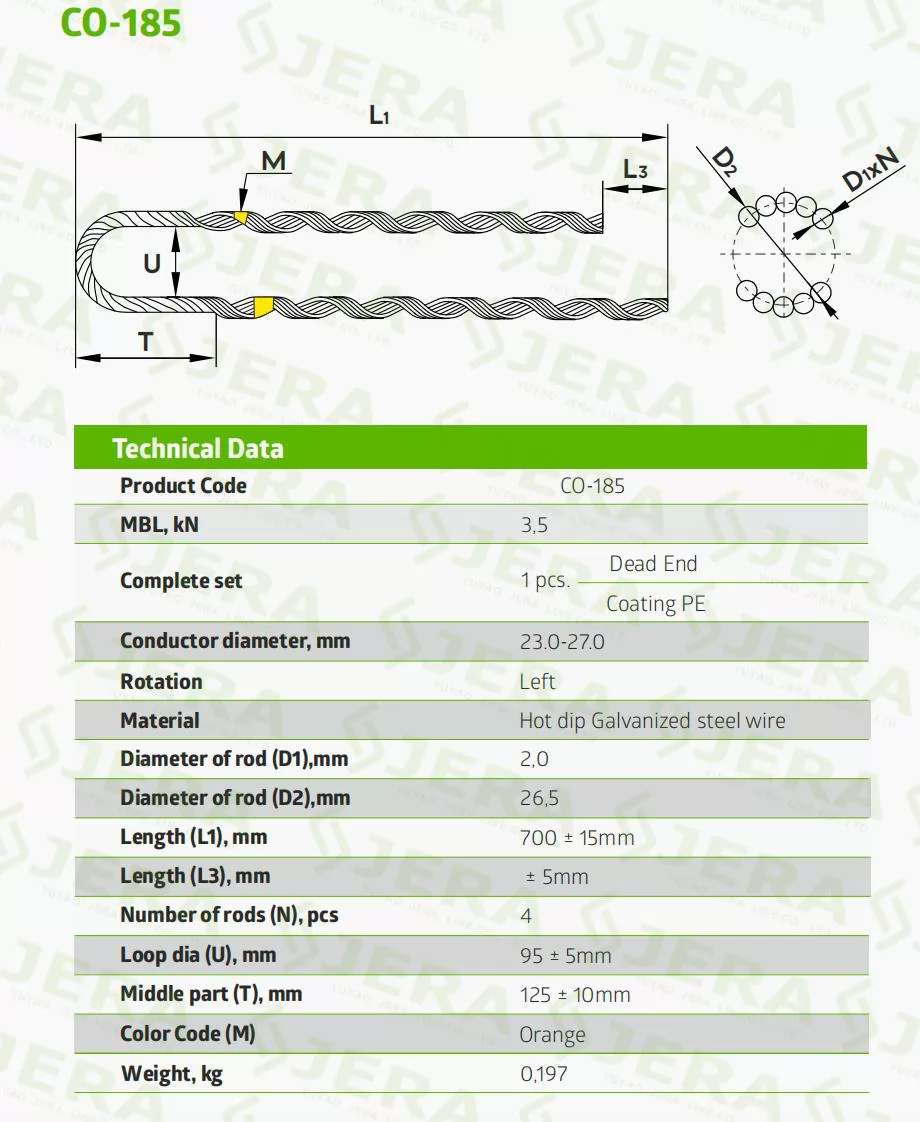

Technical specification

Type

Applied cable diameter, mm

Mark color

CO185

23 – 27

Yellow
