The CSJ-O-36-3-50-95 Cold Shrink MV Cable Jointing Kit is designed for reliable jointing of 3-core medium voltage XLPE cables (50–95 mm²) across a wide range of electrical distribution environments. Engineered for fast, heat-free installation and long-term performance, it is suitable for both indoor and outdoor MV cable jointing in harsh operating conditions.
Main application:
• Medium Voltage Distribution Networks
• Substation and Transformer Connections
• Industrial and Commercial Facilities
• Underground and Direct Burial Cable Systems
• Urban and Rural Electrification Projects
Technical specification
Product code
CSJ-O-36-3-50-95
Conductor cross-section（mm2）
50-95
Insulation outer diameter（mm）
31.3-36
Voltage rating
0.4 kV to 36 kV
Cable type
3-core XLPE/EPR, armored or unarmored
Material
UV-stable silicone rubber
Installation method
Cold shrink
Operation method
–40 °C to +90 °C
Environmental protection
IP-rated sealing, UV and moisture resistant
Components and Materials

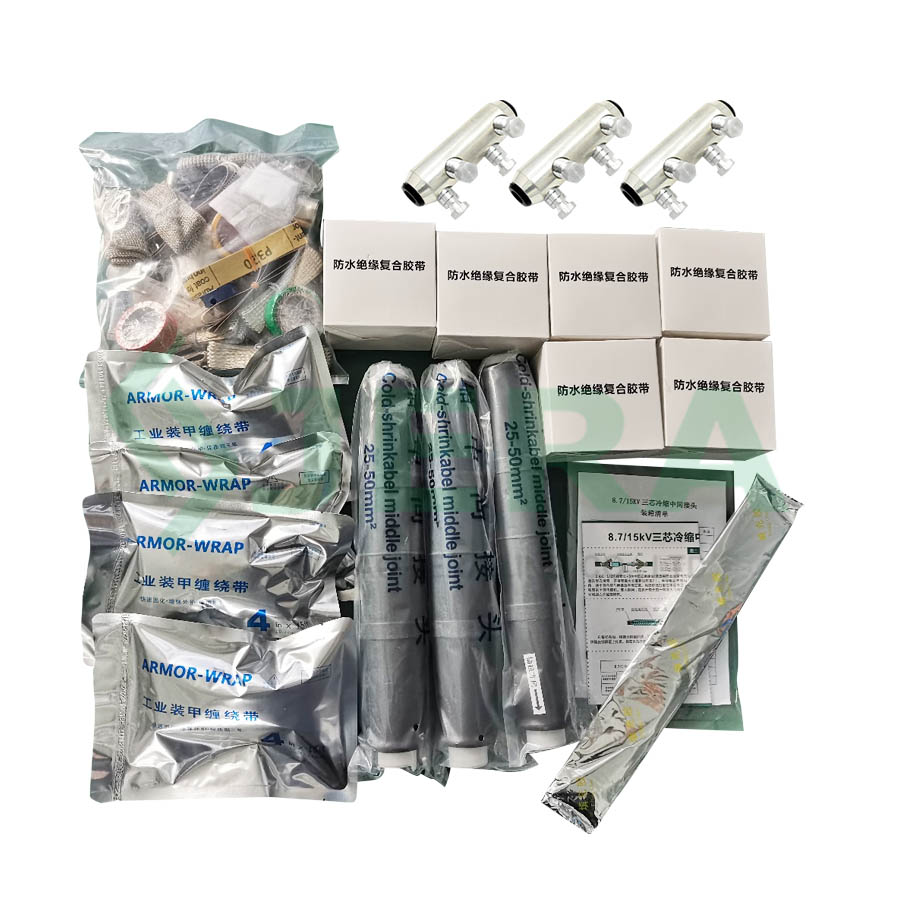

The CSJ-O-36-3-50-95 Cold shrink Medium voltage cable joint kits for XLPE cables is produced by a direct factory--Jera Line, it’s engineered for reliable, heat-free jointing of 3-core 50–95 mm² XLPE MV power cables. Each kit includes pre-assembled, factory-tested components made from premium materials to ensure excellent electrical performance, sealing, and long-term service life.
The materials consists of the following main part:
Components
Materials
Cable Connector Set
CCBVzT-36-4-16-95（3 pcs)
Accessories
Cold Shrink Tubes and accessories bag
Dimensions
Test
Jera Line is a MV underground cable joint manufacturer in China, the mechanical bolted connector had been approved by the third party laboratory according to IEC-61238 standard.
To guarantee reliability, Jera Line operates its own in-house laboratory, equipped with advanced testing machines to conduct:
