The MV cold shrink termination kit CST-O-36-3-50-95 for 3 core cables are widely used across power distribution networks where reliable sealing, insulation, and mechanical performance are essential. Their heat-free installation makes them suitable for challenging field conditions and confined spaces.
Main application:
• Utility distribution Medium voltage 3-core XLPE cable terminations
• Indoor and outdoor MV switchgear
• Transformer and substation connections
• Industrial electrical distribution networks
Technical specification
Product code
CST-O-36-3-50-95
Conductor cross-section（mm2）
50-95
Insulation outer diameter（mm）
31.3-36
Voltage rating
0.4 kV to 36 kV
Cable type
3-core XLPE/EPR, armored or unarmored
Material
UV-stable silicone rubber
Installation method
Cold shrink
Operation method
–40 °C to +90 °C
Environmental protection
IP-rated sealing, UV and moisture resistant

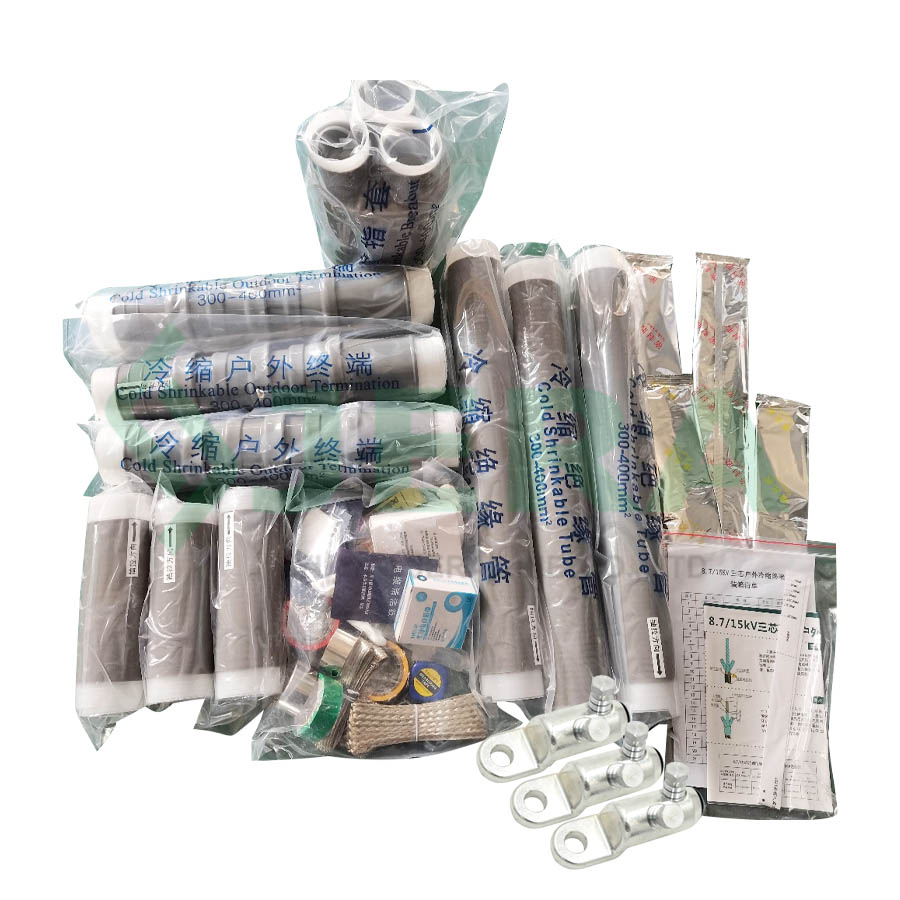

Components and Materials
Jera Line is a direct factory who produce MV coldshrink tube termination set in China. The MV Cold Shrink Termination Kit CST-O-36-3-50-95 is engineered for high-performance termination of 3-core medium voltage XLPE cables. Manufactured using premium silicone rubber, the cold shrink tube automatically contracts onto the cable to deliver superior sealing, insulation, and long-term electrical stability—without requiring heat or special tools.
The materials consists of the following main part:
Components
Materials
Cable Lug Set
CLBVzT-36-2-16-95 （3 pcs)
Accessories
Cold Shrink Tubes and accessories bag

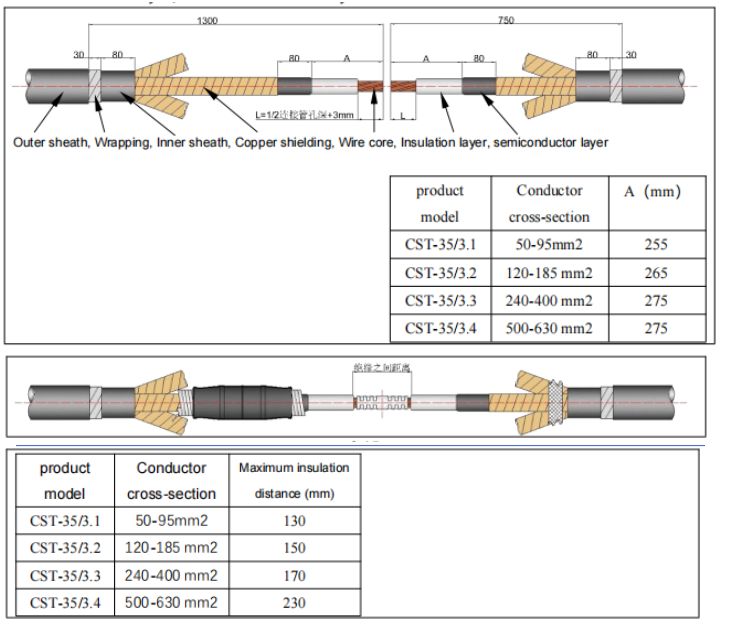

Dimensions
Test
Jera Line is a Electrical cable termination kit supplier in China, the mechanical lugs had been approved by the third party laboratory according to IEC-61238 standard.
