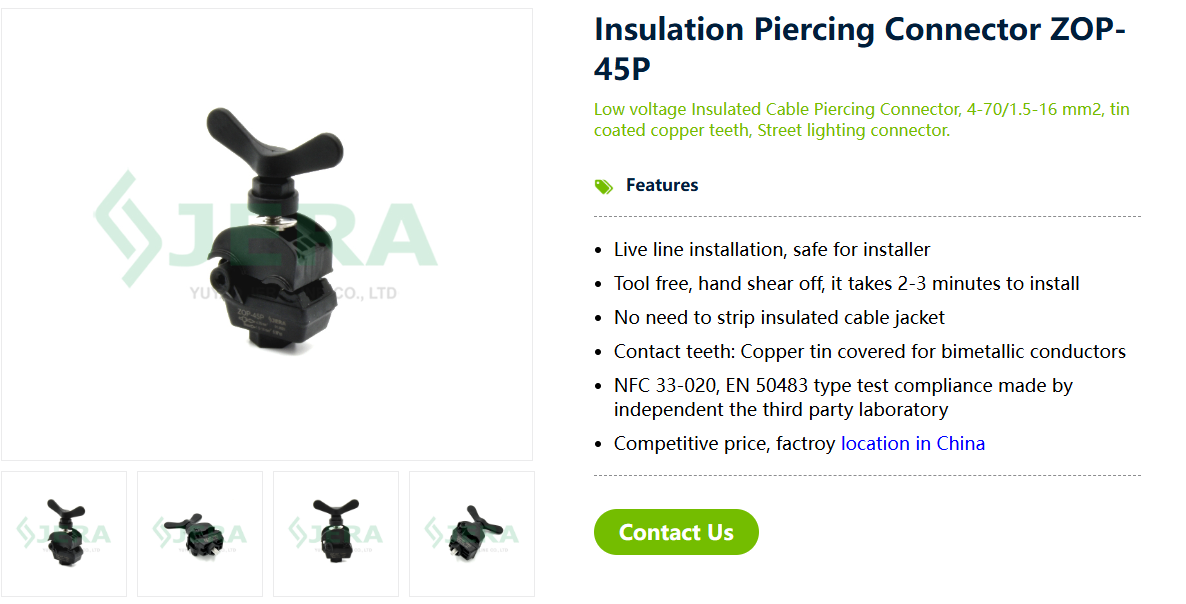

Connector, Insulation Piercing Type — ZOP-45P
TAP: No.10 AWG – No.4 AWG | RUN: No.10 AWG – No.6 AWG
The ZOP-45P Insulation Piercing Connector (IPC) is designed to provide a reliable, safe, and quick connection between insulated conductors without the need to strip cable insulation.
It ensures stable electrical performance and mechanical strength for low-voltage overhead distribution networks, street lighting, and building wiring applications.
Manufactured by Jera Line at our direct factory in China, this connector delivers exceptional durability and cost efficiency.

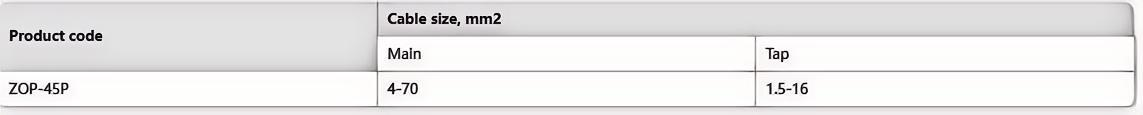

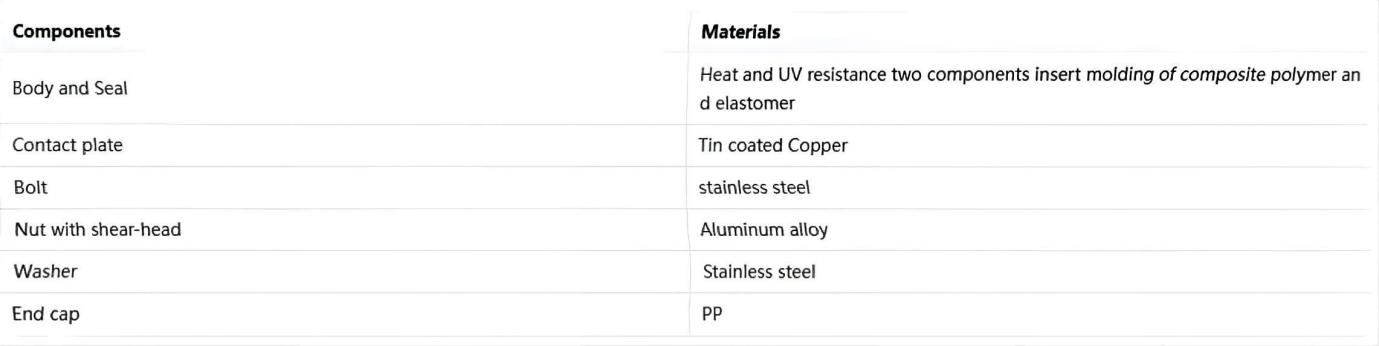

Technical Specification
Why the Insulation Piercing Connector ZOP-45P Stands Out: Core Specs That Matter
The insulation piercing connector ZOP-45P is built for small-to-medium conductor sizes, making it versatile for a wide range of low-voltage applications. Its key specifications are tailored to solve common contractor pain points:
-
Dual Conductor Compatibility: Works flawlessly with both copper (Cu) and aluminum (Al) conductors. No more juggling separate connectors for different metal types—this one does it all, cutting down on inventory costs and storage clutter.
-
Precision Size Ranges:
-
Tap (Branch) Conductors: #10 AWG to #4 AWG (6-16mm2). Perfect for powering branch circuits like lighting fixtures, EV charger outlets, or small electrical panels.
-
Run (Main) Conductors: #10 AWG to #6 AWG(6-25mm2). Ideal for main lines that distribute power across your project site.
-
Tool-Free Installation: Forget hauling around specialized crimpers or torque wrenches. The Insulation Piercing Connector ZOP-45P features a hand shear-off design—simply position the connector, apply manual pressure, and it pierces the insulation and secures the connection in seconds. This is a game-changer for on-site work, especially in tight spaces or during time-sensitive repairs.
-
Rugged Durability: Built to withstand the elements, the Insulation Piercing Connector ZOP-45P uses UV-resistant and anti-corrosion materials. Whether it’s exposed to harsh sunlight, rain, or temperature fluctuations, this connector won’t degrade over time. Plus, it meets strict NFC 33-020 standard—a mark of quality that ensures compliance for projects with rigorous safety requirements.
-
Time Savings: Stripping conductors can add hours to a project. With the ZOP-45P, that step is gone—installations are faster, and crews can move on to the next task sooner.
-
Reduced Waste: Damaged conductors from over-stripping are a common frustration. The insulation piercing connector ZOP-45P’s piercing design avoids this, so you don’t have to cut and rework wires.
-
Quality Compliance: Connector, Insulation Piercing Type -zop-45P comply with NFC 33-020 and durable materials mean you won’t have to worry about code violations or premature failures. This is especially important for projects where safety and long-term reliability are non-negotiable.
Why Choose Jera Line as Your Insulation Piercing Connector Supplier?
OEM and ODM: Jera Line, we provide Customization Options per project requests, we can do product development, laser marking and carton box stickers based on customer logos.
Direct factory with production facility: Jera Line integrated the essential production equipment and technologies required for manufacturing power cable connectors, which includes a plastic injection moulding workshop, a moulding and tooling workshop, an assembly workshop. Benefiting from this, Jera Line has the capability to manufacture products and meet the shipping date.
Excellent Product Quality: Jera Line’s IPCs undergo strict testing to ensure durability and reliability. Products comply with international standards EN-50483-4 and NF C 33 020, and have passed the third-party type test conducted by an independent laboratory.
