Distance Bracket, BIC 50.95

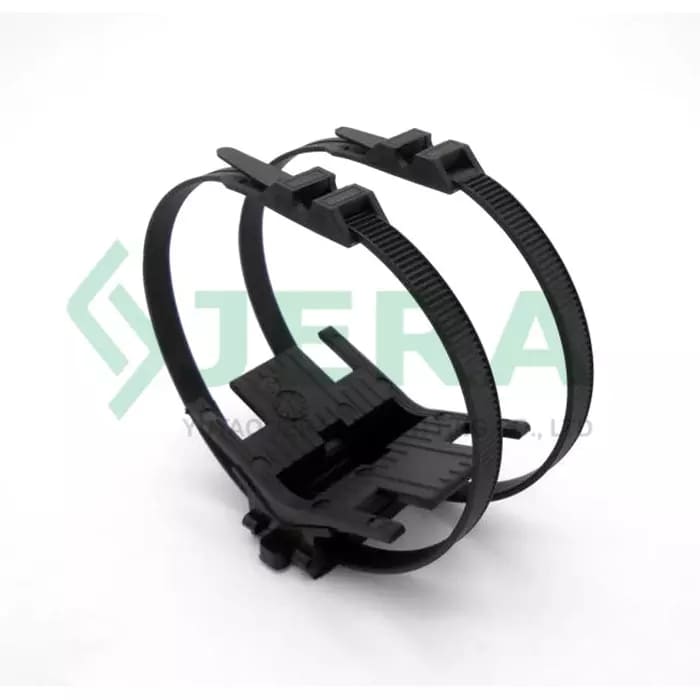

Distance Bracket, BIC 50.95 also called abc cable bracket is designed to secure low voltage ABC cable during installation on pole in service electrical lines.Usually it used at down lead routes of low voltage electrical line constructions.

Features

Fully dielectric
UV resistant polymer, durable
Appropriate for a wide range cable diameter
Applied in low voltage line constructions

DESCRIPTION

TEST

REVIEW

Application

Cable bracket BIC, is intended to be used with low voltage ABC cable during its installation on pole or wall at service electrical lines. Distance pole bracket used at down lead routes of electrical cable line.

Technical specification

Product codes	Cable diameter, mm2	Nylon tie width, mm	Nylon tie length, mm
BIC 50.95	50-95	9	360

Components and materials

Cable bracket BIC is made of UV resistant polymer. The clamp is fully dielectric, and fixate the ABC cable without damaging. Two nylon cable ties of different sizes, help to fixate a wider range of cable diameters.

Cable bracket BIC 15.50 can be fasten to pole by stainless steel strap or stainless steel tie. In addition, bracket BIC 15.50 can be fasten to wall by anchors or screws.

Low voltage ABC cable clamps design allows withstand reliable loads without cable slip and its damage, guarantee well outdoor usage.

Cable bracket BIC 15.50, is supplied either separately or together as assembly with other needed overhead cable line accessories that are in Jera product range. Such as stainless steel strap, buckles, suspension hooks, nylon cable ties.

Test

Pigtail Pole Bolt, PB-16-300 have passed the voltage tests, tension test. All the brackets meets the criteria of NF C 33042 and EN 50-483.We have our own interior laboratory to do inspection during daily production, which ensure our product meet the requirement for aerial electrical line components standards.
