How to install the analogs for IPC TTD 351 FA?

The insulation piercing connector TTD351FA is specifically made for low-voltage electrical systems. It is designed to pierce insulation of the conductors cleanly while creating a gas-tight, corrosion-resistant and durable connection.

Jera Line produces a wide range of insulation piercing connectors  with multi-type teeth for different cable sizes, the voltage range up to 36KV.

The Equivalents of TTD 351 FA Made by Jera Line

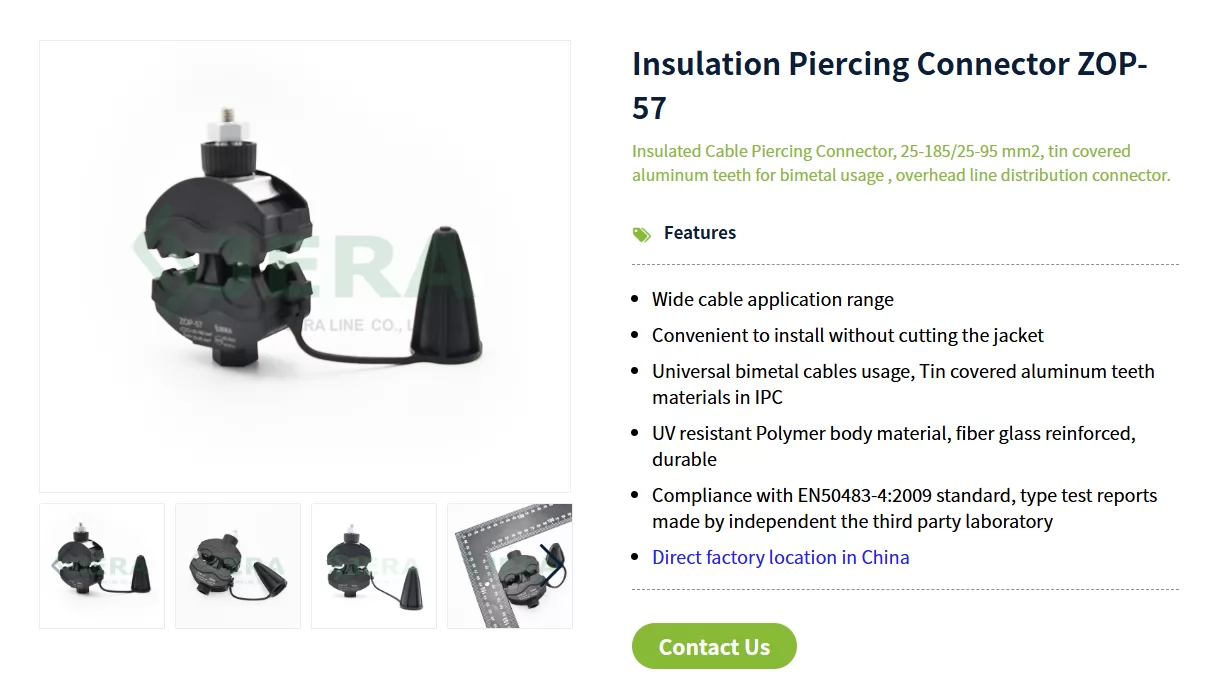

Jera Line produces an insulation piercing connector, the ZOP-57, which perfectly matches the functionality of the TTD351FA.

• Comparison Sheet:

• Key Features:

1. IPC TTD351FA analog ZOP-57 is for low-voltage overhead power line
2. Wide cable size range application
3. The application is for both Aluminum and Copper cables
4. Jera Line’s insulation piercing connectors comply with EN-50483-4 and NF C 33 020
5. Jera Line use stainless steel materials on insulation piercing connectors bolts and washers, which is better for corrosion.
6. Jera Line is a direct manufacturer based in China, offering competitive prices

• Application:

1. Residential Electrical Wiring
2. Commercial Building Infrastructure
3. Renewable Energy Installations
4. Street Outdoor Infrastructure
5. Urban power system or rural electric facility renovation

• Tests:

Not only has the ZOP-57 passed the third-party tests of EN-50483-4 and NF C 33 020, but it has also undergone tests in Jera Line’s in-house laboratory, which includes:

Short - circuit (SC) overcurrent test: simulates the stress endured by power lines during weather-related incidents and other scenarios.

temperature & humidity aging test: Testing the aging condition of Insulation Piercing Connectors (IPCs) under high-temperature, low-temperature and humid environments.

How to install the insulation piercing connector ZOP-57?

To installation ZOP-57 IPC connector in overhead lines, here are the steps:

• Step1: Prepare the tools and inspect the insulation piercing connector
• Step2: Insert the conductor into the IPC, ensure that the conductor fits securely into the piercing teeth of the IPC.
• Step3: Tighten the connector by using a routine wrench JTN-11-13. Make sure the shear head bolt has been sheared off.
• Step4: Verify the connection, ensure the IPC is securely attached to the cable and that there are no loose parts.

Why Choose Jera Line as Your Insulation Piercing Connector Supplier?

• Reliable and Stable Quality

Jera Line produces IPCs according to international standards such as EN-50483, NF C 33 020, and conducts a series of basic tests in its own in-house laboratory to control quality during the manufacturing process.

• Organized Production

Jera Line organizes production in an orderly manner to ensure that the product quality and production cycle meet customer requirements.

• Wide Range of IPCs

Jera Line develops and produces a wide range of IPCs for medium-voltage and low-voltage cable line usage, which includes:

LV Outdoor Light Cable Connectors

LV Overhead Line Accessories

LV Overhead Line Protection Accessories

MV Overhead Line Accessories

MV Overhead Hot Line Earthing Accessories

• Cost-Effective

Jera Line produces over 95% of its products on-site, with over 5,000 m² of facility space. This ensures Jera Line has the capability to offer competitive prices while the quality is guaranteed.

• Professional Sales Team

A professional sales team can help reduce a project's lead time, offering efficient advice and excellent services to customers.

Conclusion：

Jera Line is a leading manufacturer specializing in LV and MV electrical systems accessories, with the IPC as its core product. To purchase cost-effective and reliable-quality products, please contact us. Our samples are available for quality checking upon request.
