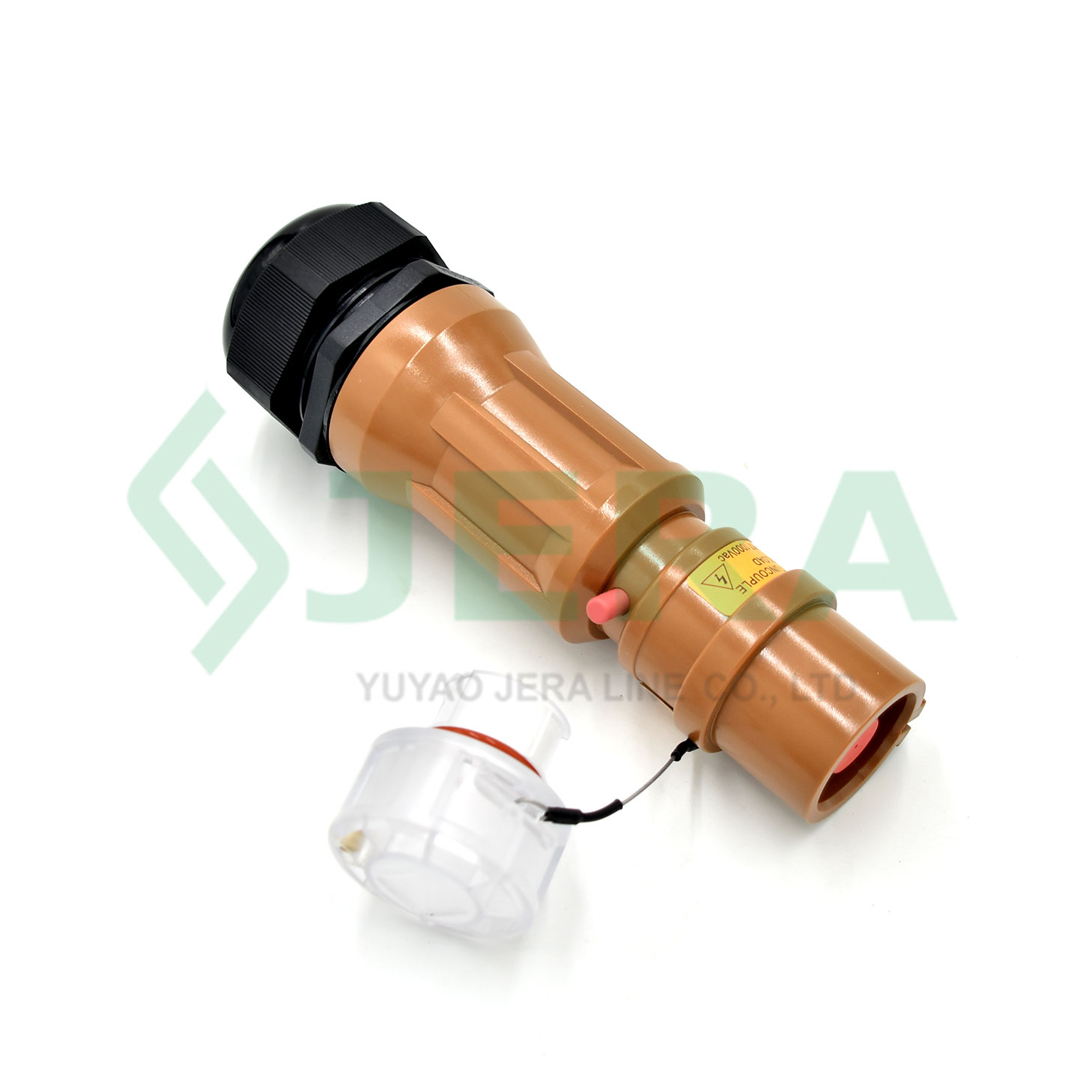

Industrial connectors power lock for LV EU Standard 400A Plug L1-Brown (PL-L1-M-400A-EU-Z)

Industrial connectors power lock for LV, IP67 waterproof, EU Standard 400A Plug, 1000Vac, CE certificate

Features

High current capacity: From 400A to 800A ratings
IP67 waterproof and dustproof protection
Colour-coded keyed locking system – prevents mismating
Finger-safe design (IP2X) for shock protection
Flame-retardant (UL94-V0) materials
Reinforced housing for superior impact resistance
Factory location in China

DESCRIPTION

TEST

REVIEW

Application

Industrial power lock connectors are designed to provide safe, fast, and reliable low-voltage (LV) power connections in demanding industrial environments. Featuring a robust locking mechanism, these connectors ensure secure engagement, prevent accidental disconnection, and support continuous power delivery in critical applications.

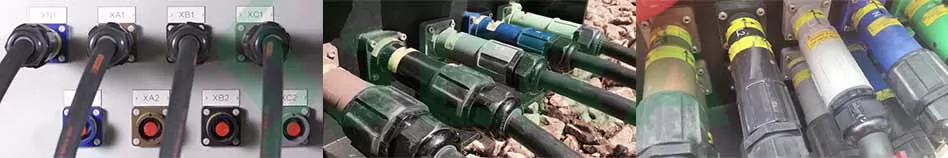

Typical Application:

• Industrial power distribution systems

• Temporary and mobile power supplies

• Manufacturing facilities and automation lines

• Data centers and backup power systems

• Events, rental equipment, and portable generators

• Renewable energy and energy storage systems

Technical specification

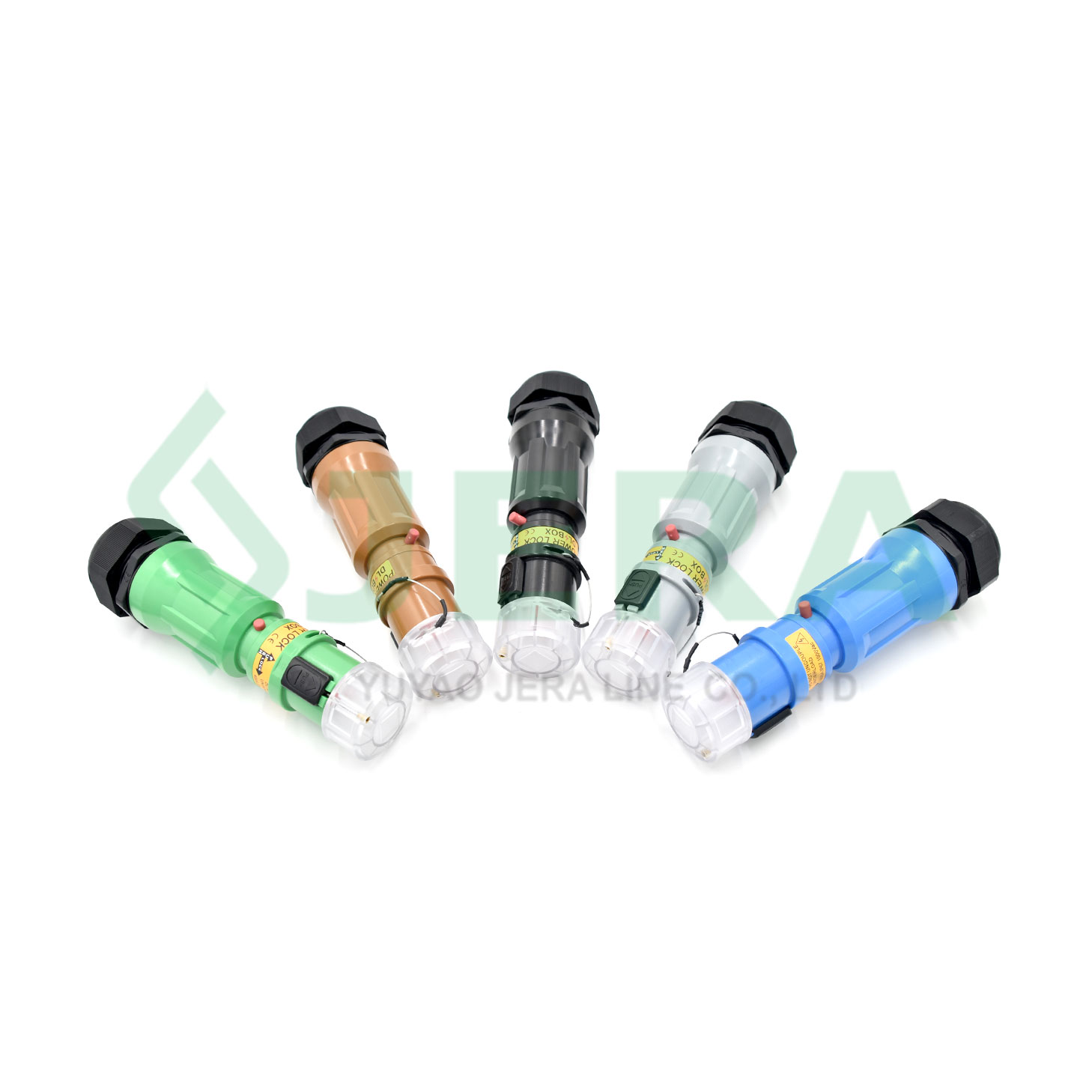

Model	Color	Capacity	Voltage	Operating temperature	Size of Strand head	Docking dust proof level
EU Standard 400A Plug L1 – Brown (PL-L1-M-400A-EU-Z)	Brown	400A	1000V	-45-85°C	M50	IP67
EU Standard 400A Plug L2 – Black (PL-L2-M-400A-EU-H)	Black	400A	1000V	-45-85°C	M50	IP67
EU Standard 400A Plug L3 – Grey (PL-L3-M-400A-EU-H)	Grey	400A	1000V	-45-85°C	M50	IP67
EU Standard 400A Plug N – Blue (PL-N-M-400A-EU-L)	Blue	400A	1000V	-45-85°C	M50	IP67
EU Standard 400A Plug E – Green (PL-E-M-400A-EU-L)	Green	400A	1000V	-45-85°C	M50	IP67

Components and Materials

Jera Line is a industrial power connectors factory, these power connectors are designed for heavy duty, harsh environment plugs and sockets that are used to safely connect electrical power supply up to 800A.

The product included the following parts:

Component	Description
Connector housing	impact resistance and flame retardant plastic
Locking Mechanism	Brass and stainless steel
Power contact	Brass (up to 400 A), silverplated · Copper (up to 660 A), silver plated
Material seals	Neoprene
Material springs/release pin	Austenitic steel
Material contact retaining pin	PA

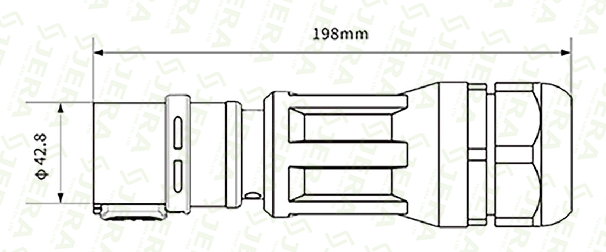

Dimensions

Test

Industrial power lock connectors for low-voltage applications are subjected to comprehensive testing to ensure electrical safety, mechanical reliability, and long-term performance in demanding industrial environments. Testing is carried out in accordance with relevant IEC and international standards for industrial connectors.
