Model No. :

ICL-2-70-240

Description:

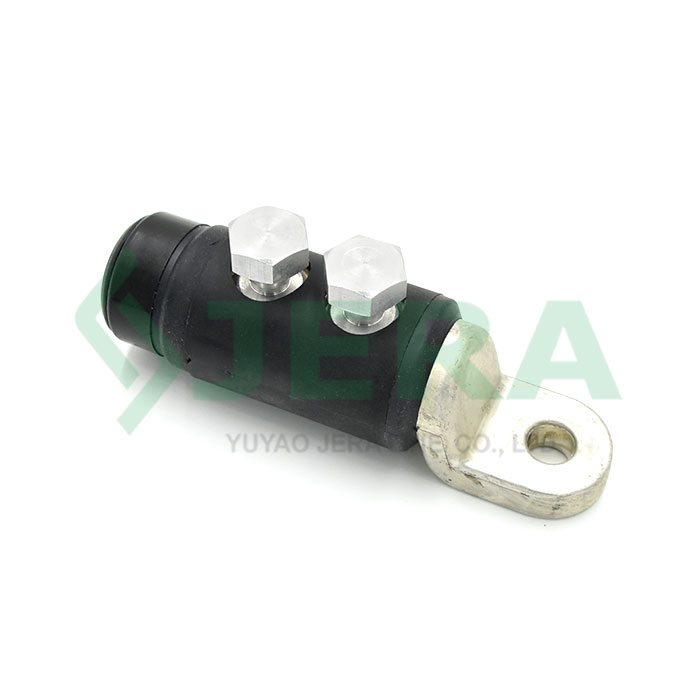

Mechanical terminal lug ICL-2-70-240 with 2 shear-off head bolts, also called Aluminum cable lug, is designed for termination of cables and conductors.

This mechanical shear head lug often used for electrical distribution on the power lines of 1kV. This cable lug is used for aluminum or copper cable. The installation is easy by screwing with the shear-head. It can be applied for electrical power grid, Electrical networks underground and buildings.

  • Product detail
  • Specification
  • Video
  • Inquiry

Key Features

  • Easy and convenient installation
  • Tinned aluminum alloy body
  • Wide range application for electrical cables
  • Two zones of shearing off head bolt
  • Manufacture according to the standard: EN50483-4:2009
  • Electrical resistant ribbon materials prevent the connection from short-circuits.
  • bolt lug supplier/factory direct price
Insulated Mechanical terminal lug, ICL-2-70-240 Insulated Mechanical terminal lug, ICL-2-70-240

SPECIFICATION

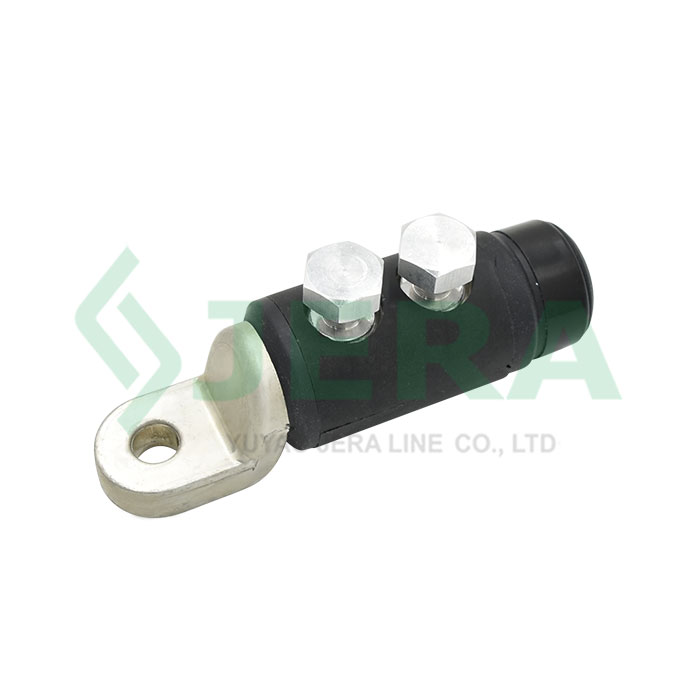

Aluminum cable lug

Product analogs: aluminum mechanical lug excentric CLB-V-25-50

Mechanical shear head lug ICL-2-70-240 is made up of special aluminum alloy without coating body and bolt. The body and bolt can be brass also if the customer required.

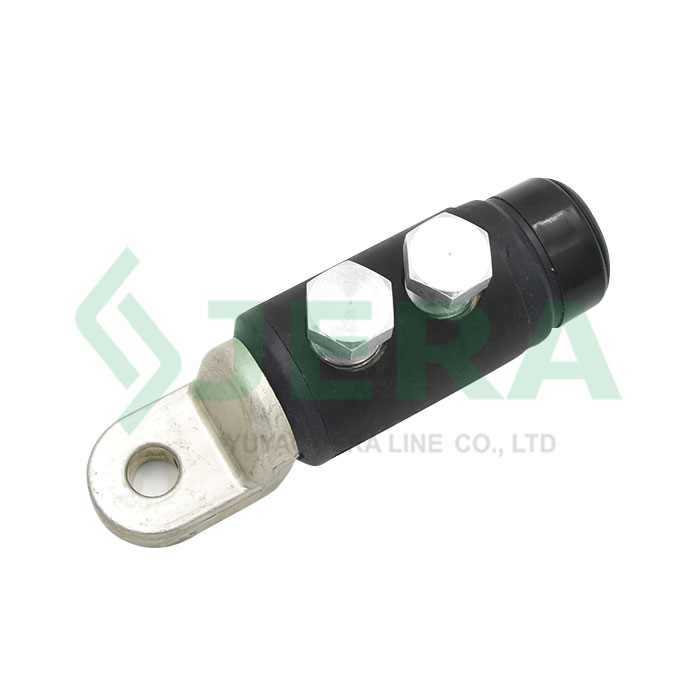

This shear-off-head bolt lugs mostly used for the aluminum cable, copper cable and other cable has the cross section 7-240 mm2. This 2 bolts cable lugs has good performance of environment protection and long-term usage features.

read more

APPLICATION

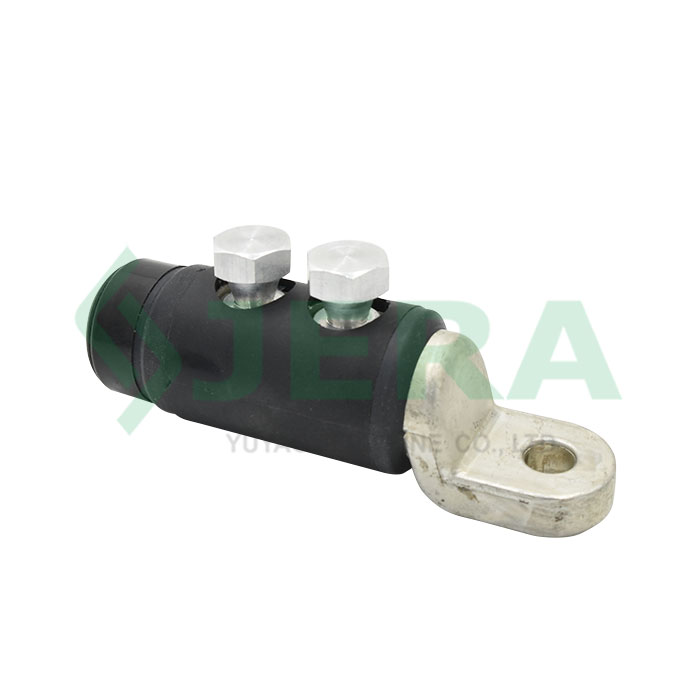

!mechanical shear head lug ICL-2-70-240

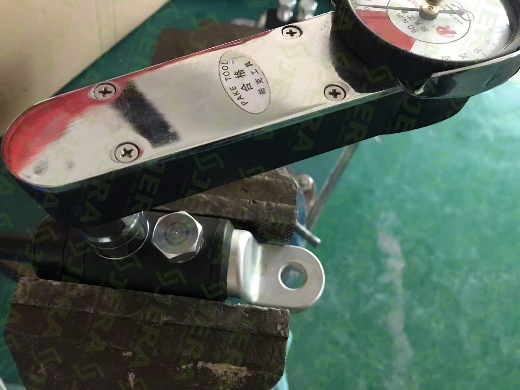

Shear-off-head bolts lug is tin covered. Inner jointing grease guarantee sustainable electrical contact.The required tension force is achieved by shearing off the bolt head with the hex key and tighten the bolt.

Jera line is operating according to ISO9001:2015, we care about product quality and cost-effective. As a mechanical shear head lug factory, produce the ICL-2-70-240 and sells to over 40 countries worldwide.

Welcome to contact us for more information about this mechanical shear head lugs price.

read more

Manufacturing

    app

Watch Our Factory Video

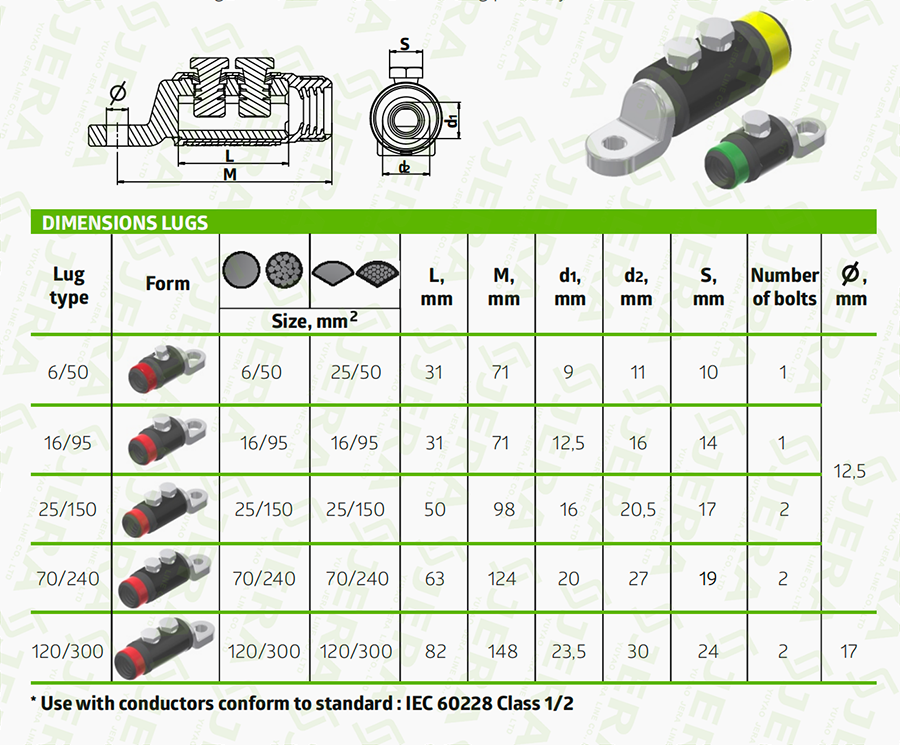

Technical specification

Product code

Cable diameter, mm2

Size bolt, M/ hex size

No. of bolts

Available bolt materials

Applicable cables

ICL-2-70-240

70-240

14/14

2

Aluminum uncoated, tin coated, brass

Copper, Aluminum
