IPC Connector End Cap MZ-400

Low voltage IPC insulated end cap MZ-400, also called IPC sealing cap developed to prevent the low voltage cable conductor system from short circuit in electrical distribution lines.

Features

End cap is easily installed
Wide application range for 185 to 400 mm² cable.
Standards compliant to NFC 33020 and EN 50483‑4.
Color options — available in black, green, blue and red.
Competitive pricing

DESCRIPTION

TEST

REVIEW

Application

The IPC Connector End Cap MZ-400 is a matched sealing accessory for large-cable size of insulation piercing connectors, It isolates exposed cable conductors thoroughly to eliminate hidden short-circuit risks in long-term outdoor operation.
Below areas are its application:

l Large-Scale Rural Electrification & Grid Renovation: For rural overhead LV networks using thick 185–400 mm2 aluminum ABC cables, MZ-400 seals unused tap ports of big IPCs and avoids conductor short-circuit failure .

l Industrial Park Heavy-Duty LV Trunk Lines Perfect for factory overhead power trunk lines with large cross-section conductors, delivering stable insulation protection for branch tap terminals.

l Ground-Mounted Distributed PV Microgrid Overhead Lines Matches large-size piercing connectors for PV station grid-connected cables.

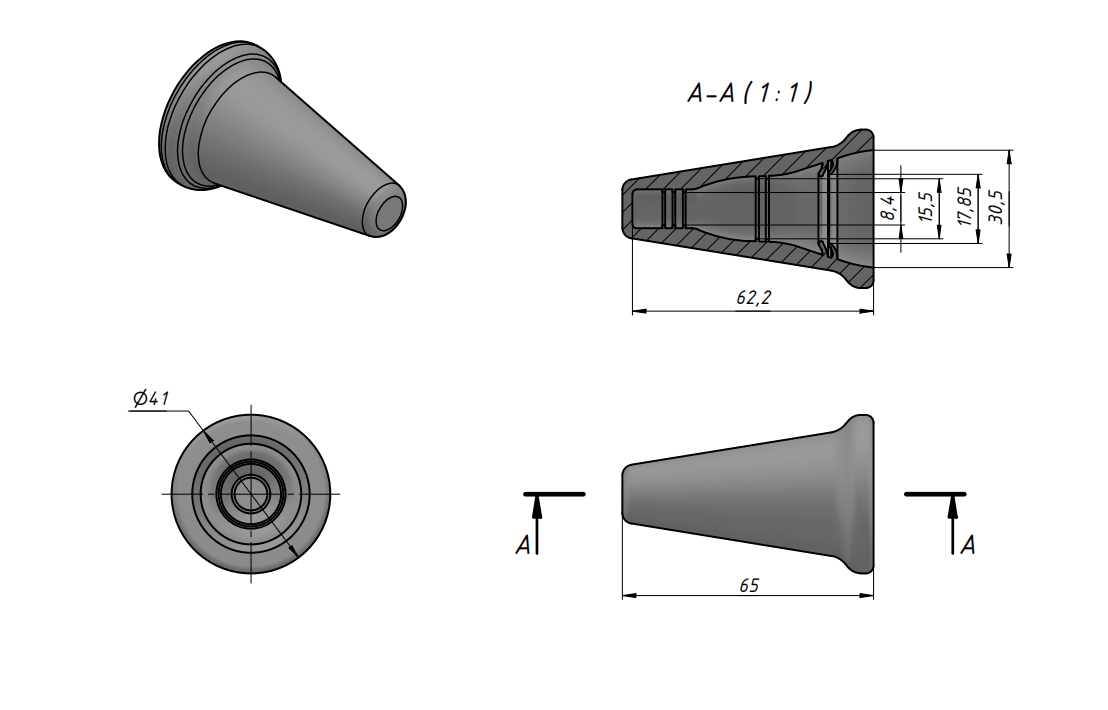

Technical specification

Product code	Recommended cross section (mm2)	Material
MZ-400	185-400	UV resistant elastomeric polymer

Components and materials

The IPC Connector End Cap MZ-400 is independently developed and mass-produced by Jera Line, a direct cable accessories factory based in China. This insulated sealing cap adopts integrated injection molding structure with the following raw material configuration: UV resistant elastomeric polymer
