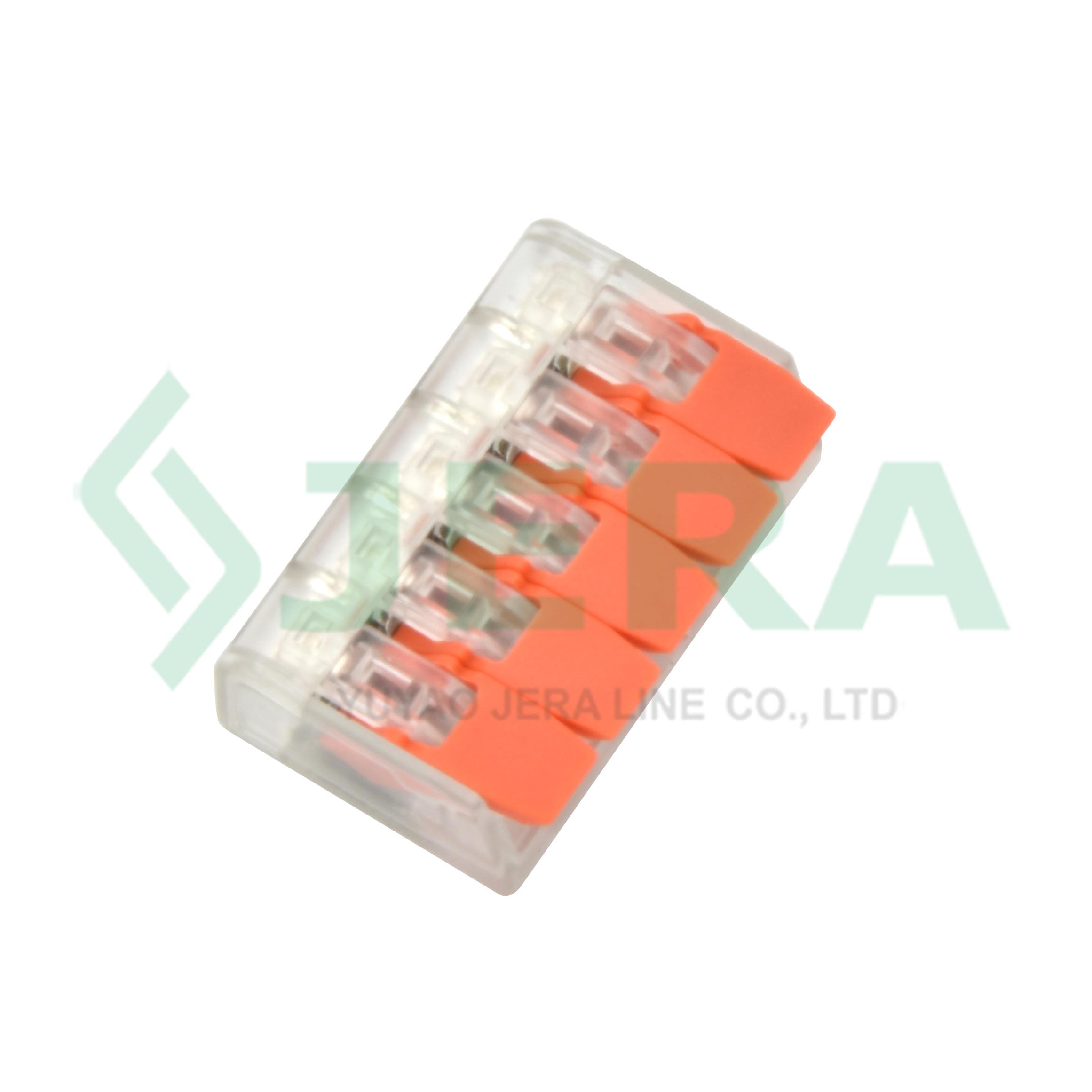

The PCT Series lever connectors require less force to be opened, enabling fast connection of wires – without the use of any tools.
It can be connected any combination of solid, stranded and flexible copper wires faster and more reliably, with size up to 2.5mm2 for 5 conductors.
They are made of high quality transparent PC allowing visual inspection of cable insertion.
Key application field:
• Electrical Installations
• Circuit Distribution & Management
• Control Panels & Automation
• Lighting Systems
Technical specification
Product code
Nominal voltage
Rated surge voltage
Nominal current
Application Wire sizes
Strip length
PCT-415
600V
4kV
20A
2.5 mm² / 11 AWG
11 mm / 0.43 in.
Components and Materials
Jera Line is a direct factory location in China, is the manufacturer of 5-way lever connector, is a global manufacturer specializing in terminal block for LV. Our products are developed, tested, and manufactured under strict quality systems to meet international standards and customer‑specific requirements's'ss.
The Lever nut connector PCT-413 221 series connectorconsists of the following main part:
Components
Materials
Body
Polyphthalamide, Polyamide

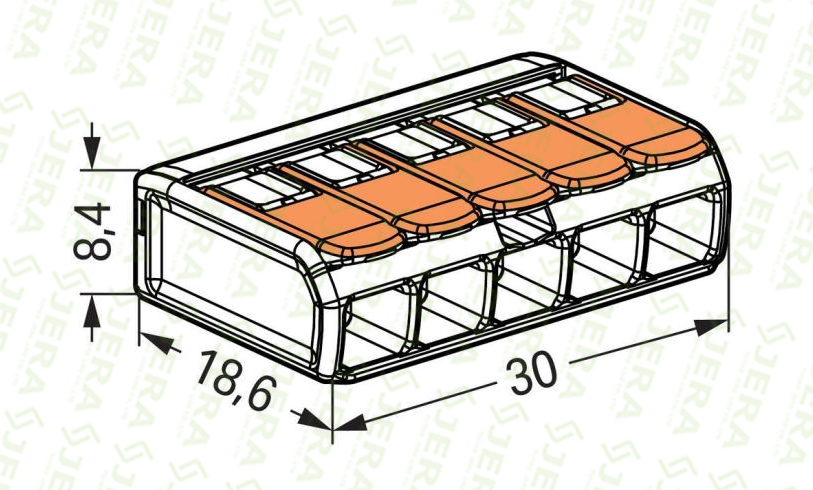

Dimensions
PRODUCT VIDEO
