low voltage powerlock connector EU Standard 400A Plug L2 – Black (PL-L2-M-400A-EU-H)

low voltage powerlock connector plug, IP67 water and dust proof, EU Standard 400A, CE certificate

Features

Current Rating: 400A continuous load capacity
IP67 waterproof and dustproof protection
Color coding follows EU standards
Finger-safe design (IP2X) for shock protection
Flame-retardant (UL94-V0) materials
Mechanical locking system
Factory location in China

DESCRIPTION

TEST

REVIEW

Application

Jera Line low voltage secure locking power connector are used for safe, high-current single-pole connections in temporary and permanent power distribution systems. Typical applications include event power supply, industrial installations, utility distribution, renewable energy integration, and emergency backup systems

Typical Application:

• Event & Entertainment Industry

• Industrial Power Distribution

• Utility & Infrastructure

• Data centers and backup power systems

• Renewable Energy Integration

• Emergency & Backup Power

Technical specification

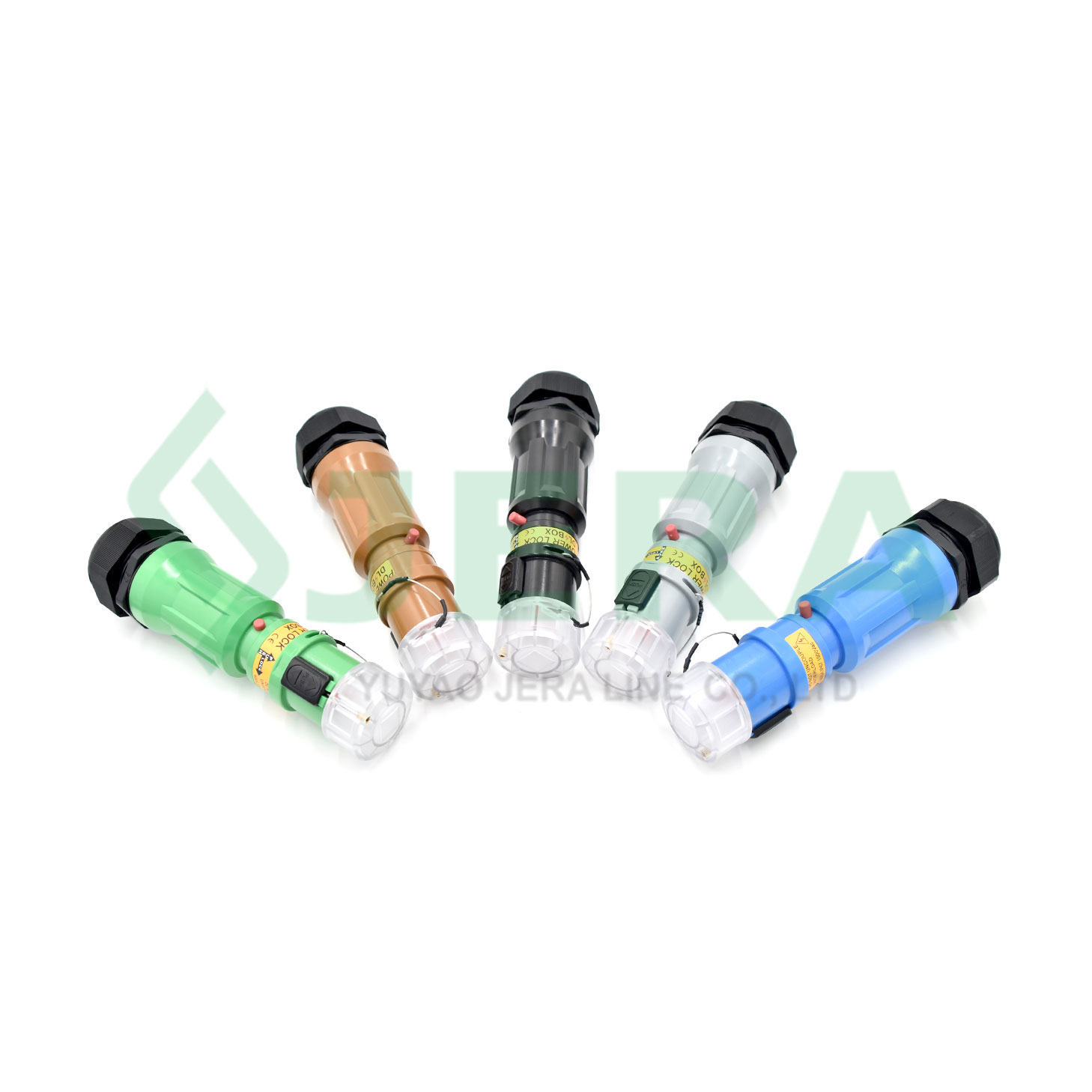

Model	Color	Capacity	Voltage	Operating temperature	Size of Strand head	Docking dust proof level
EU Standard 400A Plug L1 – Brown (PL-L1-M-400A-EU-Z)	Brown	400A	1000V	-45-85°C	M50	IP67
EU Standard 400A Plug L2 – Black (PL-L2-M-400A-EU-H)	Black	400A	1000V	-45-85°C	M50	IP67
EU Standard 400A Plug L3 – Grey (PL-L3-M-400A-EU-H)	Grey	400A	1000V	-45-85°C	M50	IP67
EU Standard 400A Plug N – Blue (PL-N-M-400A-EU-L)	Blue	400A	1000V	-45-85°C	M50	IP67
EU Standard 400A Plug E – Green (PL-E-M-400A-EU-L)	Green	400A	1000V	-45-85°C	M50	IP67

Components and Materials

Jera Line is the low-voltage locking power connector manufacturer in China, the power locking connector combines robust polymer insulation, precision-machined copper contacts, stainless steel locking hardware, and silicone sealing to deliver safe, reliable, and durable high-current connections in industrial, utility, and event power applications.

The product included the following parts:

Component	Description
Connector housing	impact resistance and flame retardant plastic
Locking Mechanism	Brass and stainless steel
Power contact	Brass (up to 400 A), silverplated · Copper (up to 660 A), silver plated
Material seals	Neoprene
Material springs/release pin	Austenitic steel
Material contact retaining pin	PA

Dimensions

Test

Jera Line low voltage EU Standard 400A Powerlock connector undergoes electrical, mechanical, and environmental testing to meet IEC 61238-1-3:2018 and EU safety standards, ensuring reliable performance in industrial, utility, event, and renewable energy applications.

Jera line also has in house laboratory, which allow us to do Environmental performance validation such as UV test and temperature & humidity aging test.
