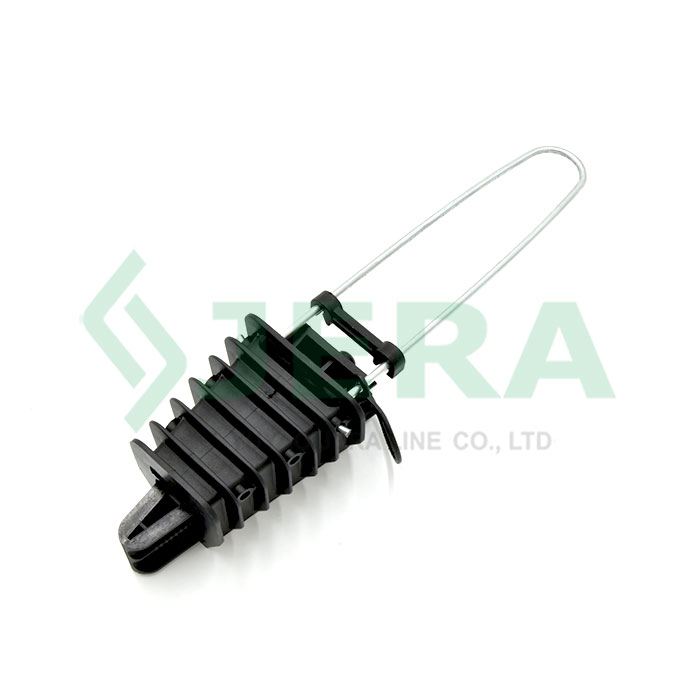

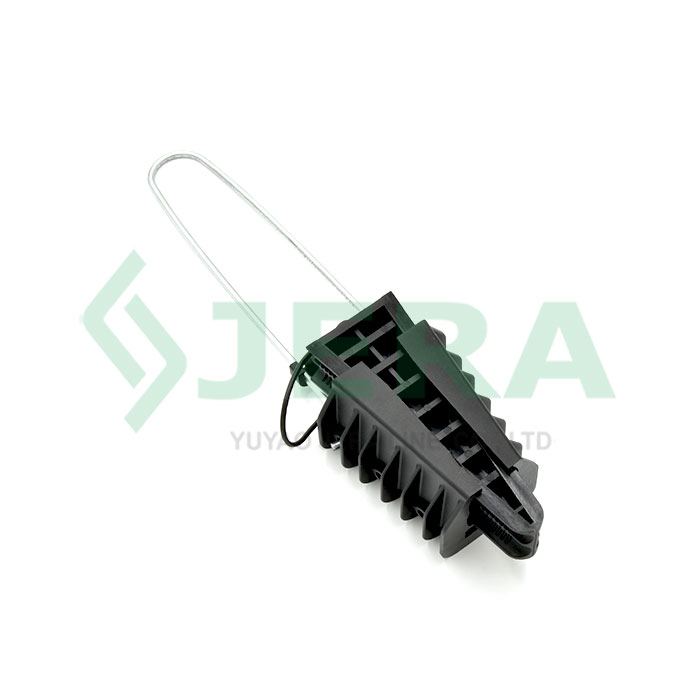

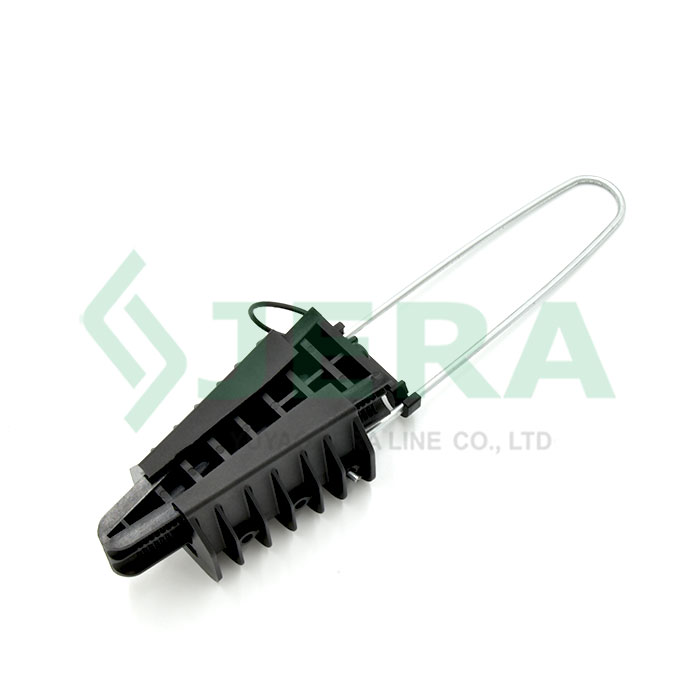

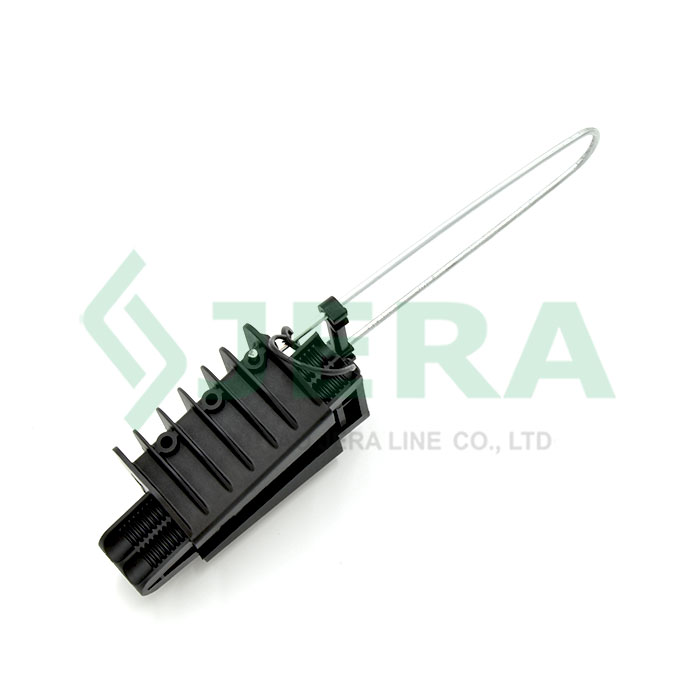

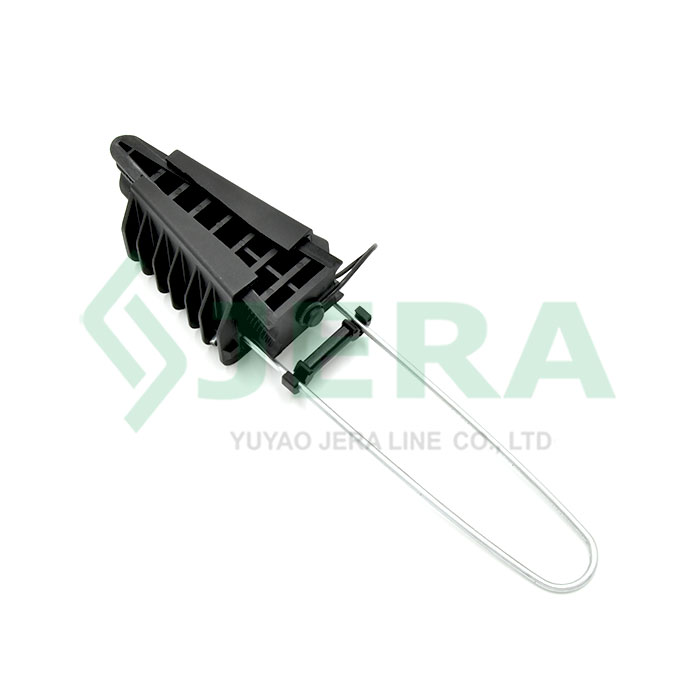

The service anchor clamp STF is applied to anchor and hold 4-core insulated LV ABC service cables (16–25 mm²) at poles or walls in overhead line distribution networks up to 1 kV.
It allows tool free installation, tightening is achieved by sliding and locking.

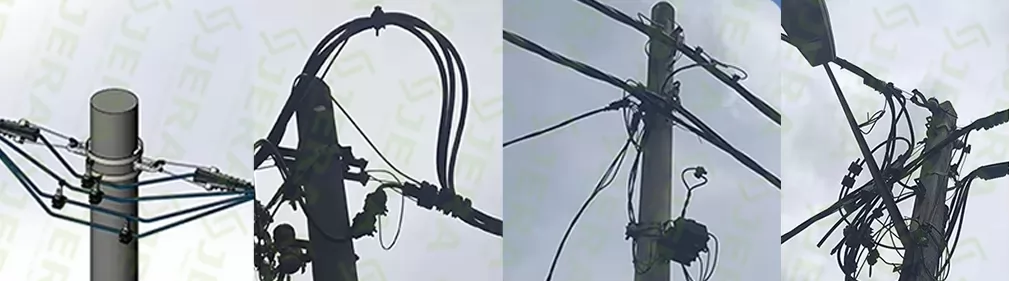

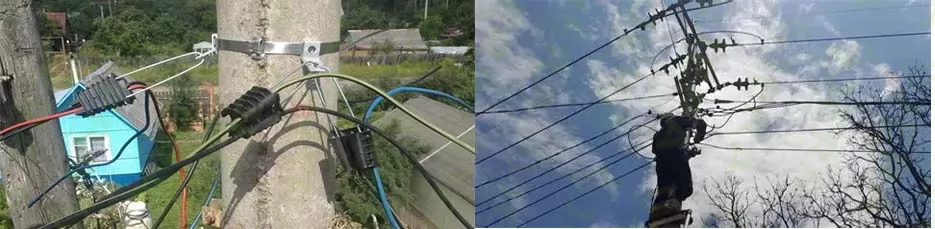

Installation point: At customer service connections, building facades, poles, or walls, where the service line needs to be anchored.
Technical specification
Product code
Cable size, mm2
Minimum breaking load (MBL), KN
STF
4 x 16-25
2
Components and materials
The plastic cable serviceclamp STF, is under Research and Design RnD by a direct factory Jera Line. The clamp consists of following main parts and materials:
Components
Materials
Wire bail
Hot dip galvanized steel
Body
UV resistant, fiberglass reinforced polymer
Wedge
UV resistant, fiberglass reinforced polymer

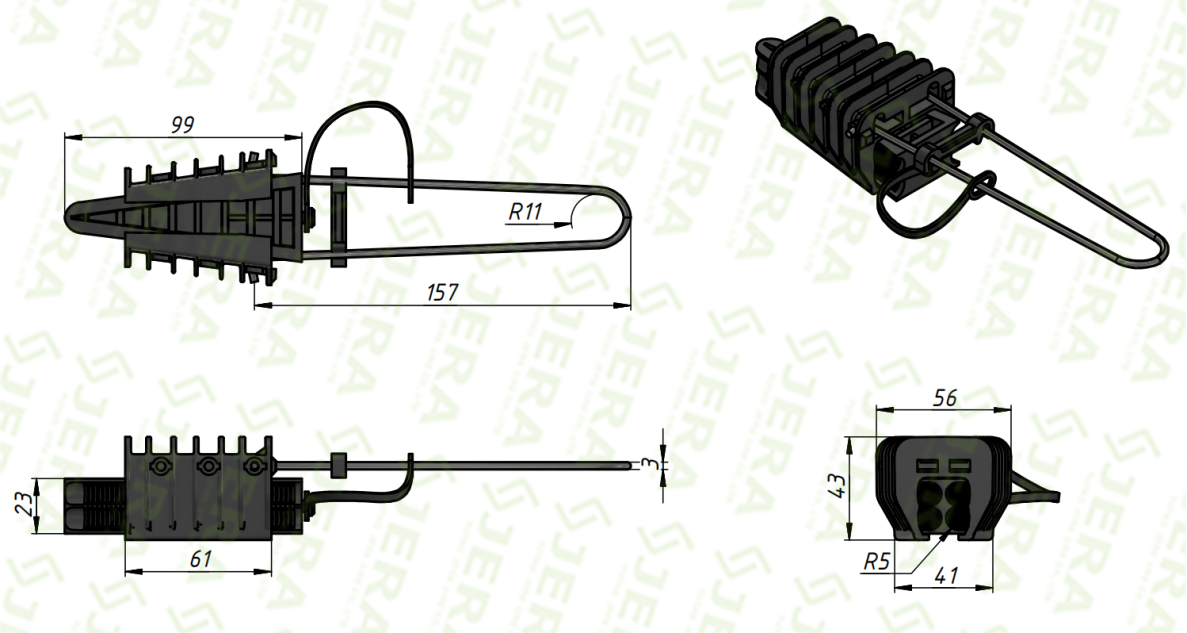

Dimensions

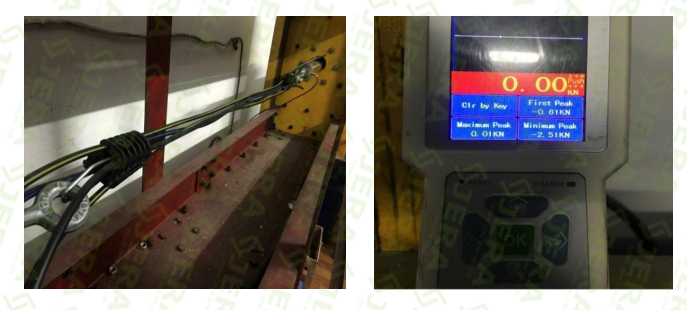

Test
The service tension clamp STF has undergone rigorous the testing in Jera Line factory Laboratory, with testing such as:
• High and low-temperature cycling tests by Temperature & Humidity aging equipment
• Maximum tensile strength tests by tensile strength machine
