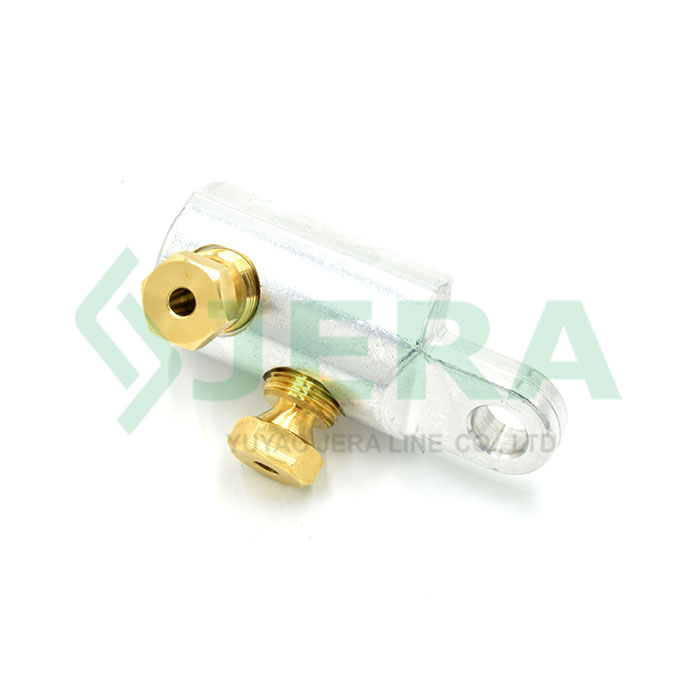

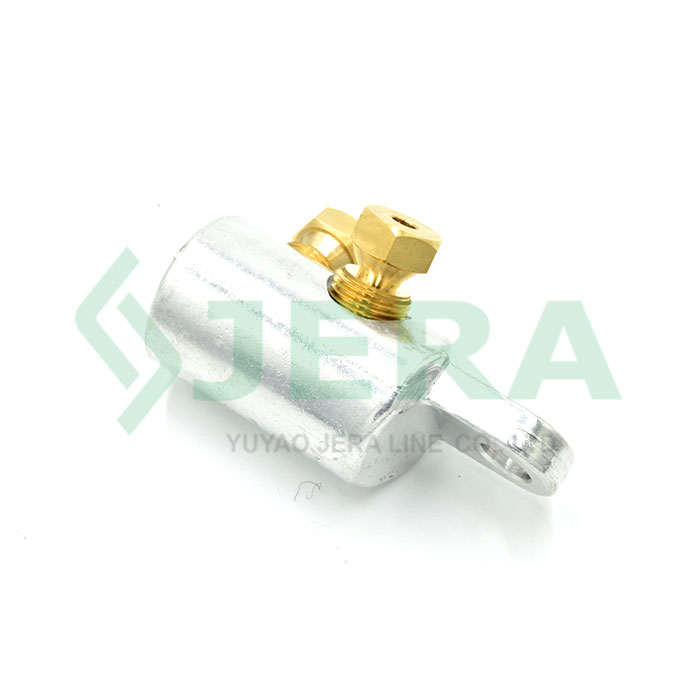

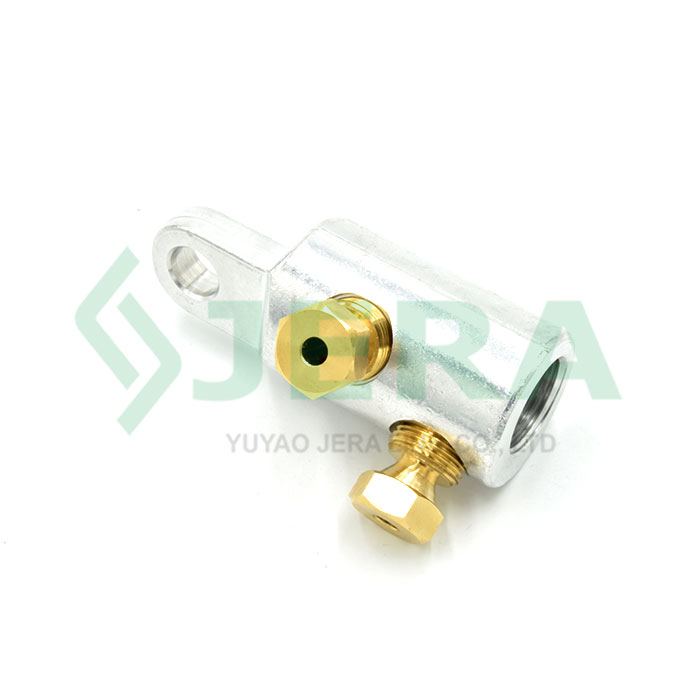

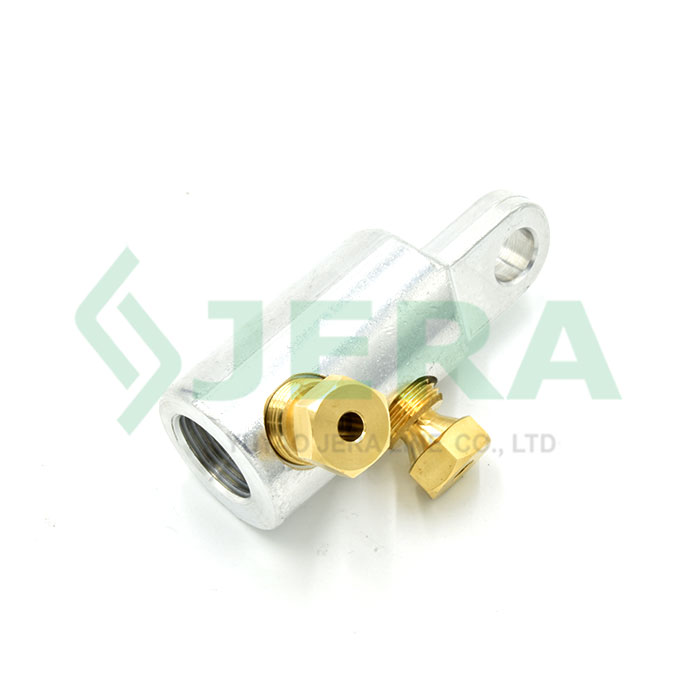

The Mechanical Shear Off Brass Bolt Connector CLBVyT-O-2H-240-300 is designed for reliable mechanical and electrical connection of conductors in low voltage power distribution networks. It ensures stable performance without the need for crimping tools, making it ideal for quick and secure installations in various environments.

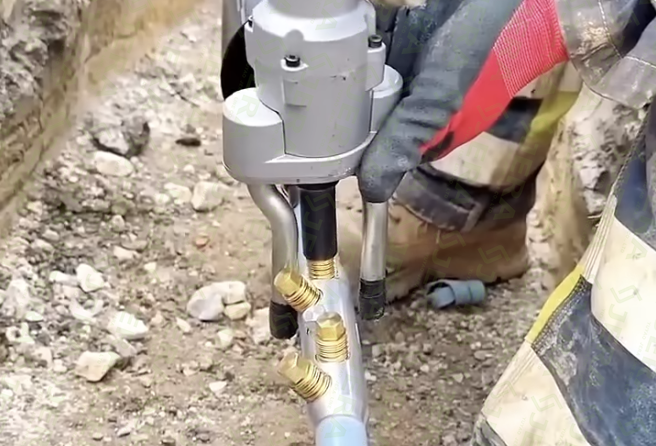

Main Applications:
• lt can be used to low voltage distribution line system
• Substation Equipment: Connects cables or other electrical equipment like transformers, circuit breakers, or switch-gear.
• Grounding Systems: Connects ground wires to grounding rods or other components.
Technical specification
Product code
Cable size, mm2
Bolt number
Application cable
CLBVyT-O-2H-240-300
240-300
2
Copper/Aluminum
Components and Materials
The Mechanical Shear Off Brass Bolt Connector CLBVyT-O-2H-240-300 is engineered by a direct factory in China with high-quality materials to ensure excellent electrical conductivity, corrosion resistance, and long-term mechanical stability under demanding conditions.

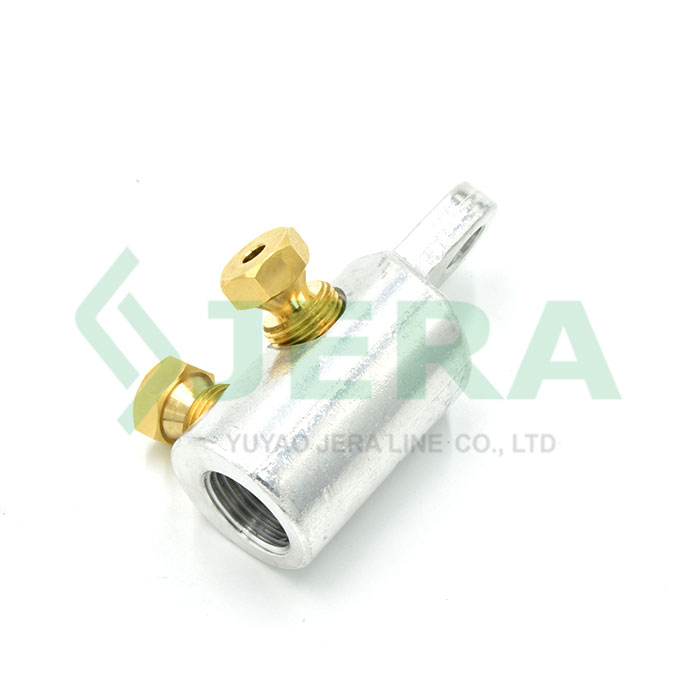

The mechanical shear bolt lugconsists of the following main part:
Components
Materials
Body
Tin Covered Aluminum Alloy
Shear off torque bolts
Brass

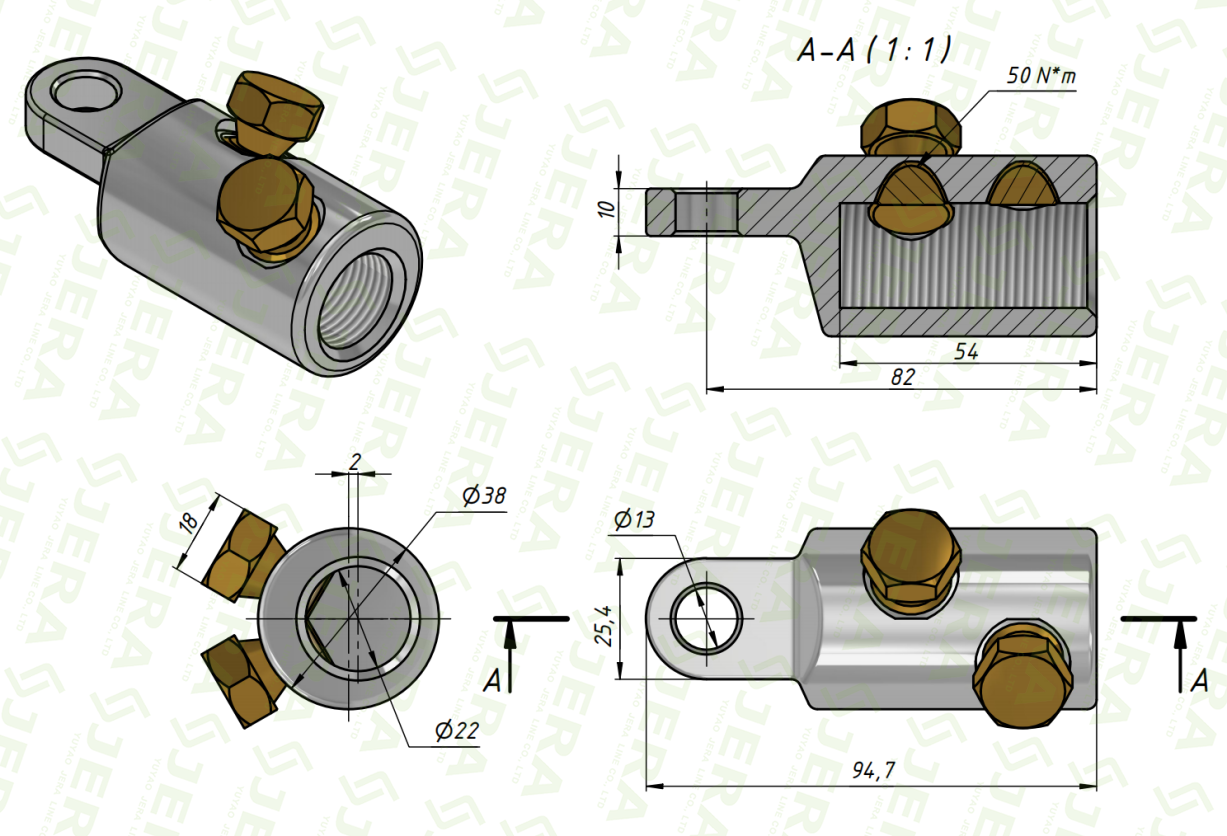

Dimensions
Test
Mechanical brass Shearbolt lug CLBVyT-O-2H-240-300has undergone rigorous quality testing in Jera line factory laboratory, the reference testing standard is IEC 61238-1-3:2018.

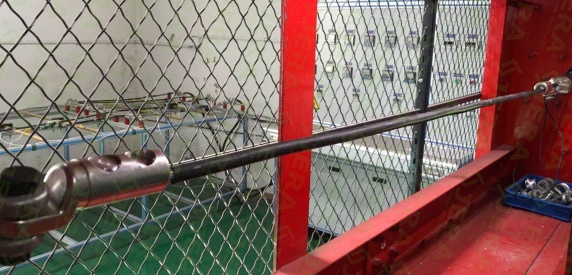

Tensile strength testing with tensilemachine:
PRODUCT VIDEO
