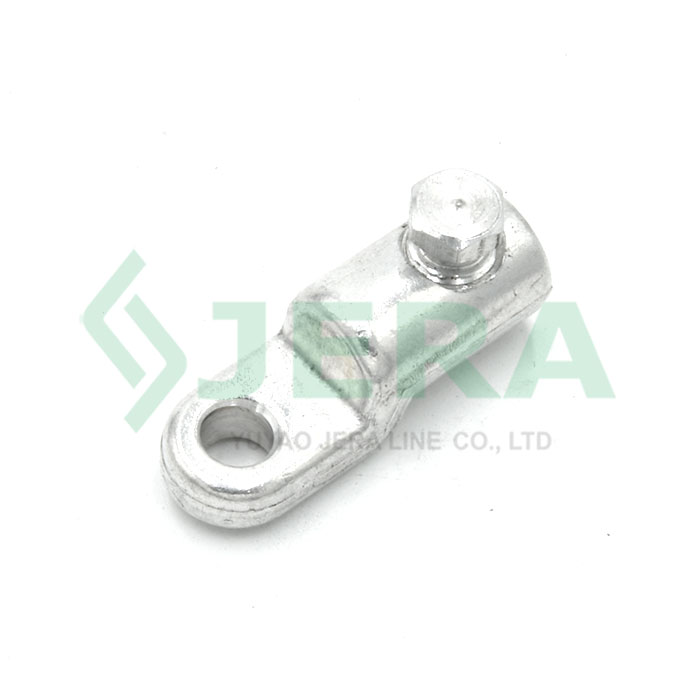

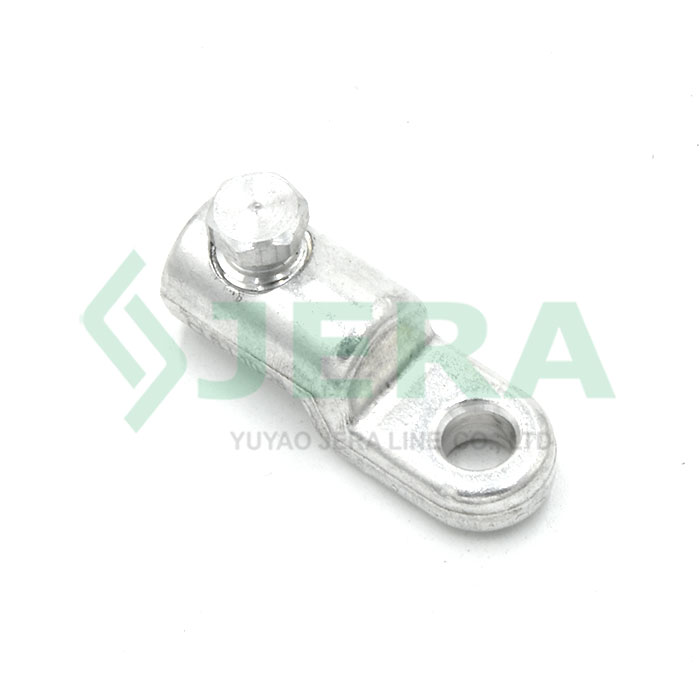

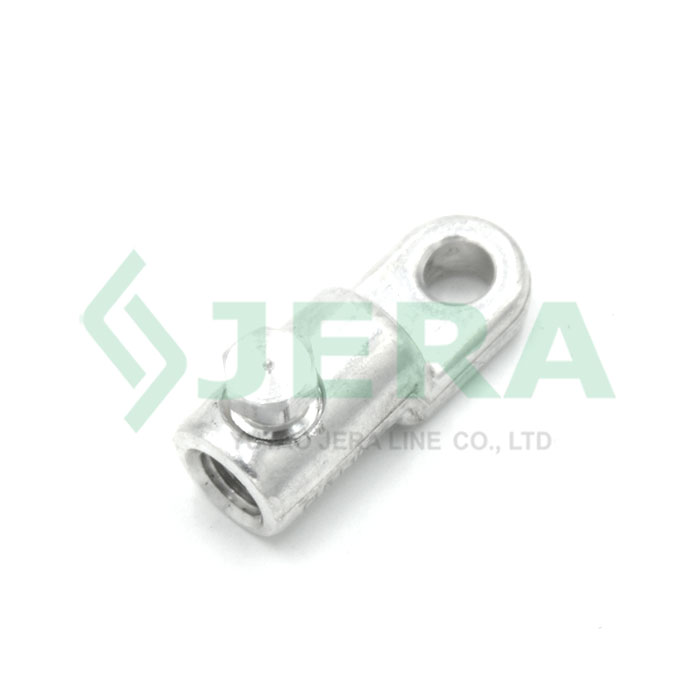

Mechanical Torque Cable Lug, CLB-I-10-25

Mechanical Shearhead Terminal cable lug, 1 bolts, for 10-25 mm2 Aluminum cable usage, durable Aluminum Alloy material, IEC-61238-1-3 type test report

Features

Easy Operation by hex key.
Durable Material
Suitable for 10 to 25 mm² AL cable.
Universal Design for solid and stranded cables.
Comply with IEC-61238-1-3 standards.
Factory location in China

DESCRIPTION

TEST

REVIEW

Application

Mechanical Aluminum Torque Cable Lug, CLB-I-10-25, also called mechanical bolt lug, is a aluminum cable terminal lug which used for connection cables to electrical appliances under voltage 1KV. It’s commonly used in the following areas:

• Electrical Transmission and Distribution Lines: Secures electrical conductors to the system.

• Substation Equipment: Connects cables or busbars to different equipment like transformers, circuit breakers, or switchgear.

• Grounding Systems: Connects ground wires to grounding rods or other components.

Technical specification

Product code	Cable size, mm2	Bolt number	Application cable
CLB-I-10-25	10-25	1	Copper/Aluminum

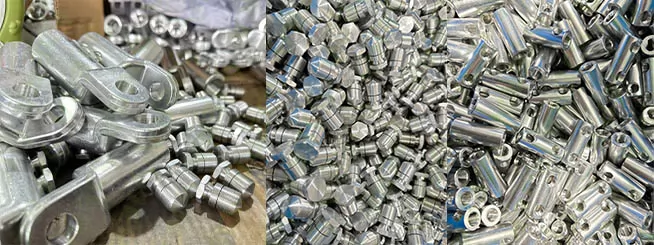

Components and Materials

Mechanical terminal cable Lug,CLB-I-10-25 is produced by a direct factory location in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, Shear-off-head bolts lugs and electrical cables jointing process does not require special tools with exact size. All required tension force is achieved by shearing off the head of bolt by hex key, which tighten the bolt.

The Mechanical Torque cable lug consists of the following main part:

Components	Materials
Body	Aluminum alloyI
Shear off torque bolts	Aluminum alloy

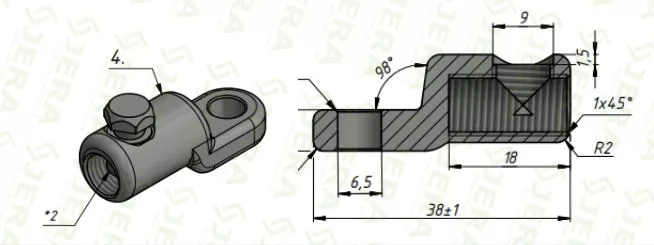

Dimensions

Test

Aluminum Shearbolt Conductor Lug,CLB-I-10-25 has undergone rigorous Electrical and Mechanical testing according to the international standard IEC 61238-1-3:2018, conducted by an independent third-party laboratory.

Jera Line also operates its own factory laboratory for routine tensile strength testing using a professional tensile strength machine.
