MV cold shrink termination kits CST-O-36-3-240-400are critical in power distribution networks where cables must be safely terminated in exposed environments. They are widely applied in:
• Utility substations: Terminating incoming and outgoing feeder cables.
• Switchgear and transformers: Providing safe connections between equipment and medium voltage cables.
• Industrial facilities: Outdoor cable runs exposed to harsh conditions like dust, moisture, and chemicals.
• Renewable energy projects: Wind farms and solar plants requiring UV- and weather-resistant terminations.
• Infrastructure networks: Railways, airports, and construction sites needing durable outdoor cable ends.
Technical specification
Product code
CST-O-36-3-240-400
Conductor cross-section（mm2）
240-400
Insulation outer diameter（mm）
41.4-49.6
Voltage rating
0.4 kV to 36 kV
Cable type
3-core XLPE/EPR, armored or unarmored
Material
UV-stable silicone rubber
Installation method
Cold shrink
Operation method
–40 °C to +90 °C
Environmental protection
IP-rated sealing, UV and moisture resistant

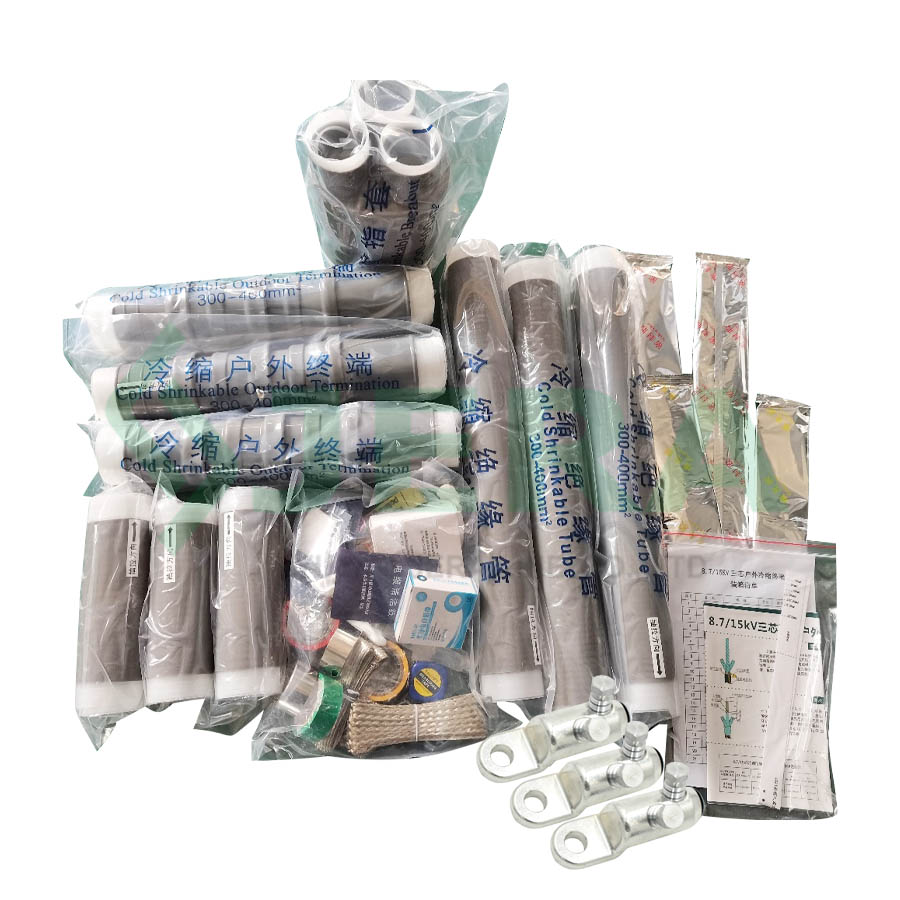

Components and Materials
Jera Line is Medium voltage cold shrink termination factoryin China. The Cold shrink termination for medium voltage cables CST-O-36-3-240-400 is engineered for high-performance termination of 3-core medium voltage XLPE cables, ensuring durability and efficiency in demanding environments.
The materials consists of the following main part:
Components
Materials
Cable Lug Set
CLBVzT-36-2-185-400（3 pcs)
Accessories
Cold Shrink Tubes and accessories bag

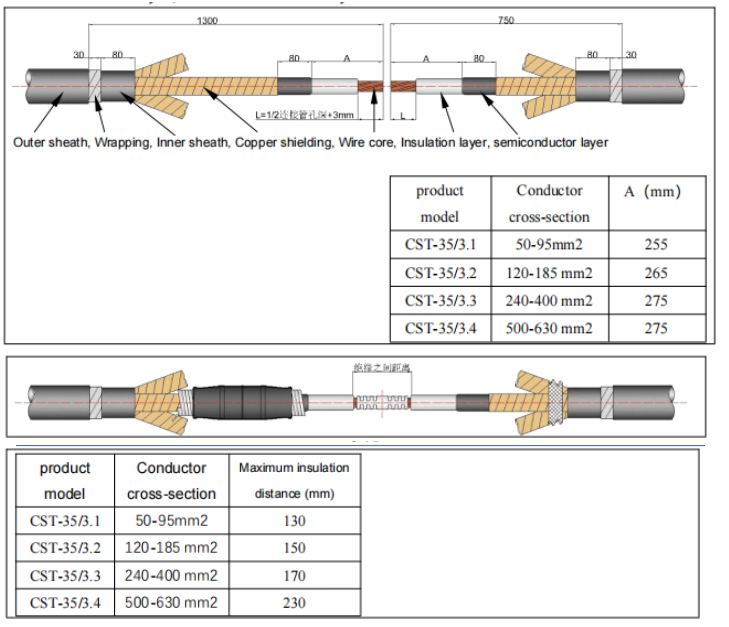

Dimensions
Test
Jera Line is a trusted Medium voltage cable termination supplier in China, specializing in high-quality electrical accessories for power distribution.
Our mechanical lugs have been rigorously tested and approved by independent third-party laboratories according to the IEC-61238 standard, ensuring compliance with international performance and safety requirements.
To guarantee reliability, Jera Line operates its own in-house laboratory, equipped with advanced testing machines to conduct:
