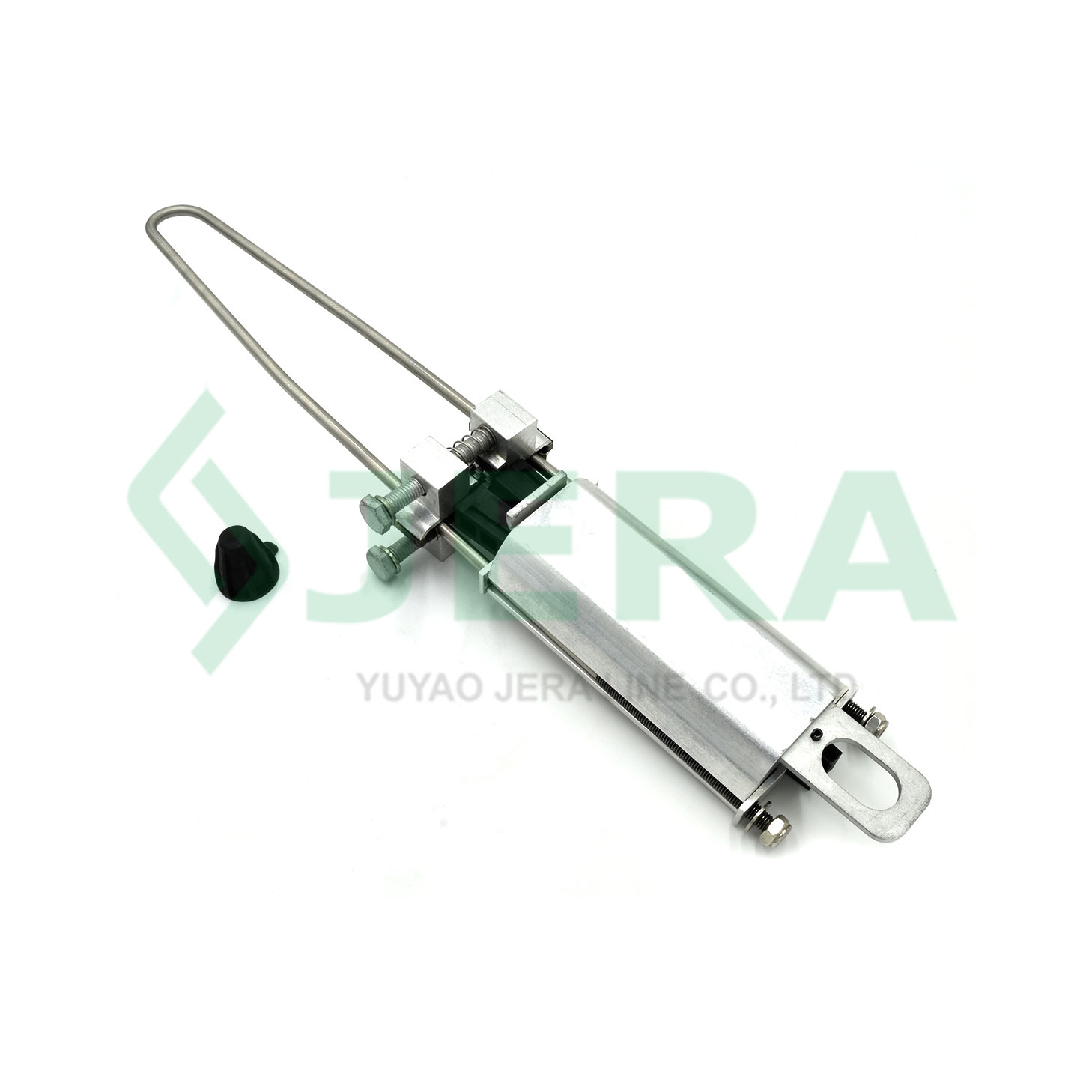

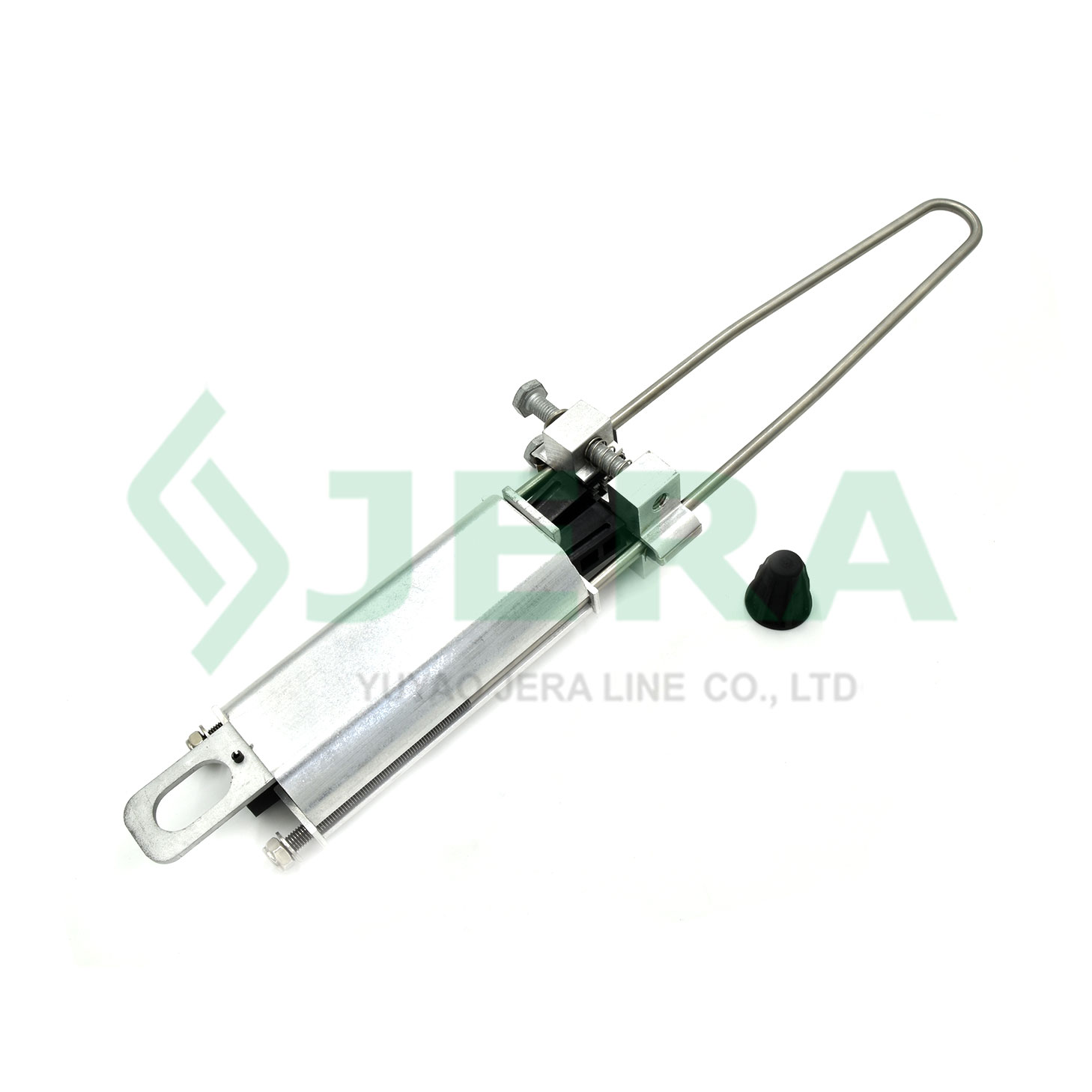

MV cover conductor anchor clamp PA-2550

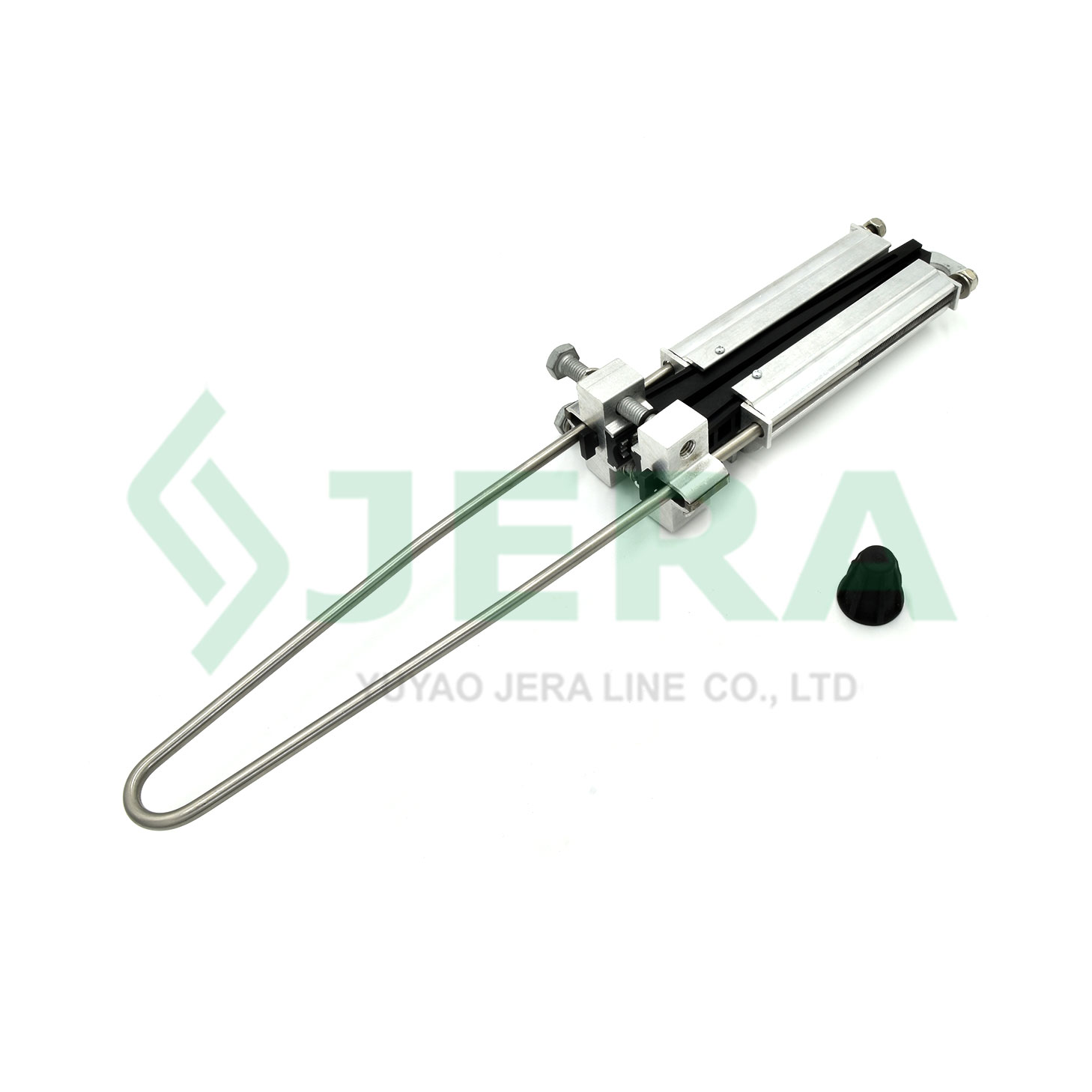

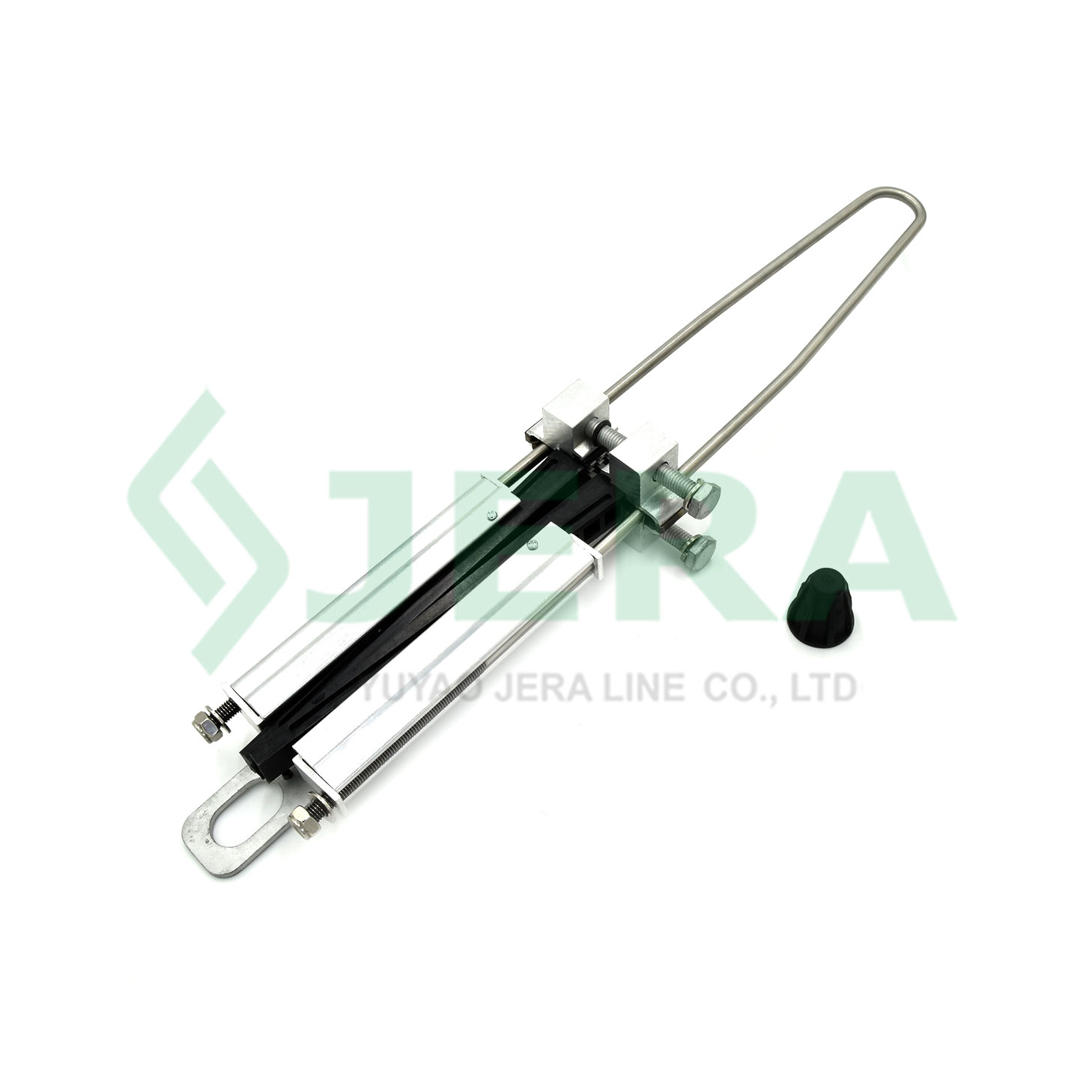

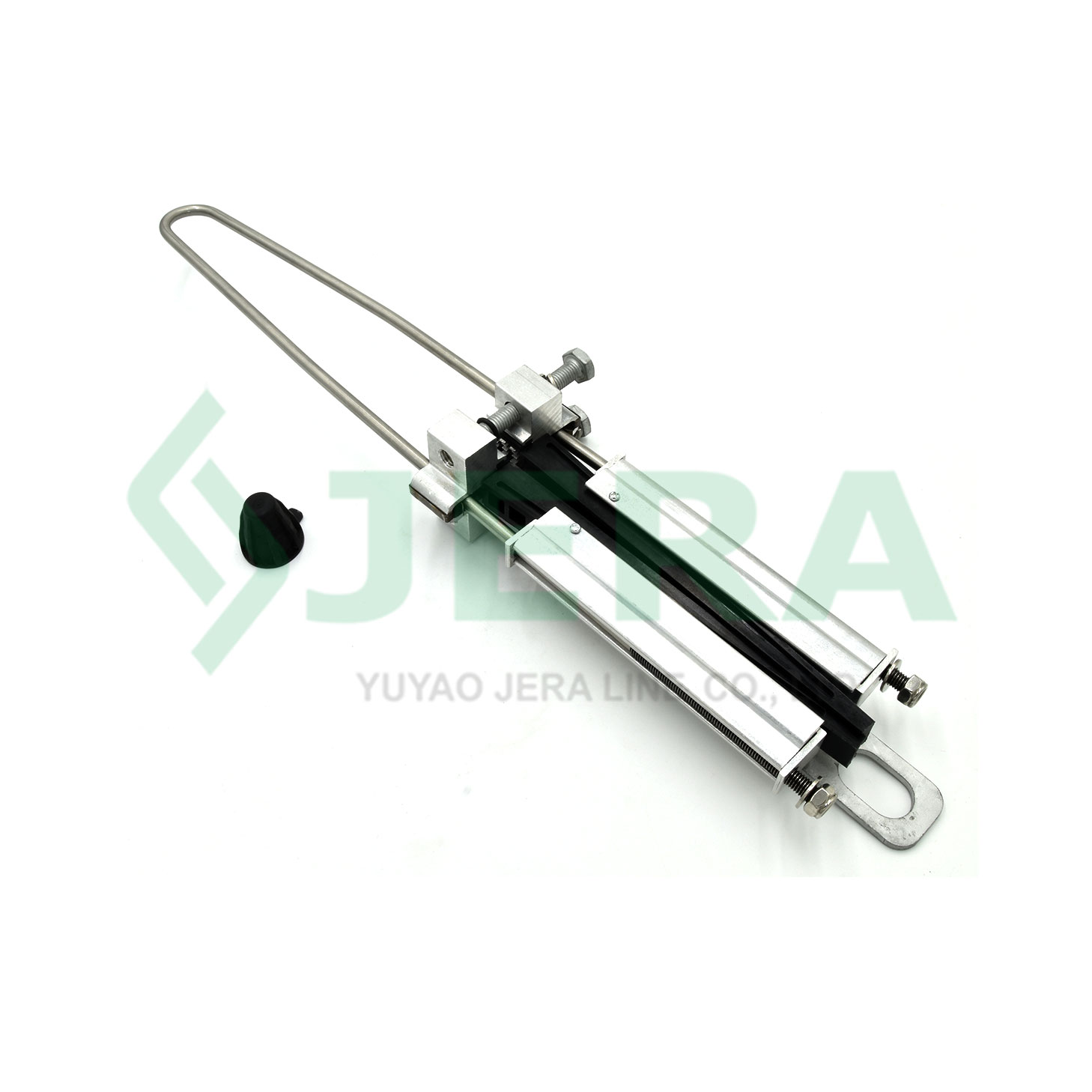

MV Anchor clamp up to 36KV, PAS/BLL 50–70 mm² AlMgSi and insulated messengers, insulation-piercing contact part with a silicone seal

Features

Tension clamp withhold the required force of high voltage electrical aerial cable
Equipped with the insulation piercing connector, which eliminate short circuit events
Tension clamp has trouble-proofed, which reduces the risk of damage because of wind movement and vibrations
Tension clamp reduce electrical stress
Conform to a minimal breaking failing load (MBFL) of cable, which should withhold to up 95% of the breaking load of it
Competitive price

DESCRIPTION

TEST

REVIEW

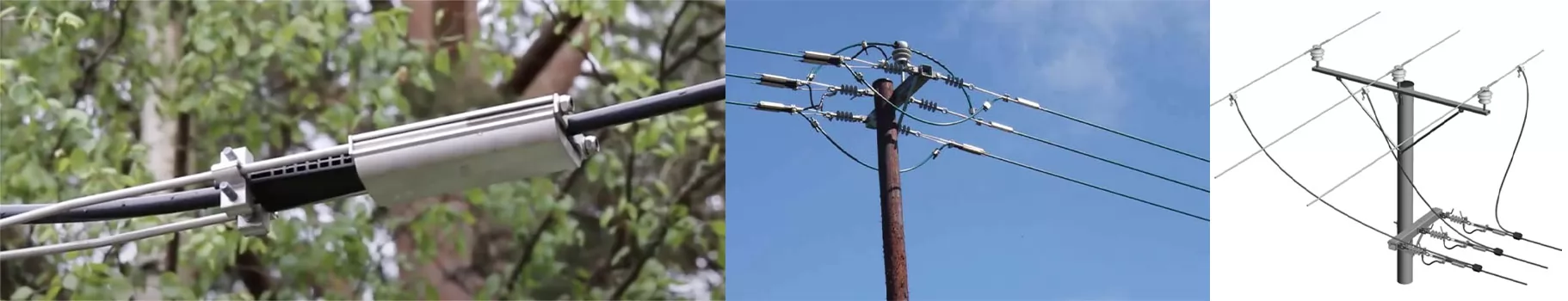

Application

MV ABC cable tension clamps are engineered to safely support and secure single-core insulated cables in overhead power cable installations, they are used for covered conductors (PAS/BLL AlMgSi and for insulated messengers of aerial MV cables like AHXAMK-WM3 (Multi-wiski). The insulation piercing contact part has silicone seal which prevents the moisture getting into the conductor.

Technical specification

Product code	Cable size, mm2	Conductor diameter mm	SMDL (Specified Minimum Disconnection Load)	SMFL (Specified Minimum Failure Load) KN	Torque N*m
PA-2550	50-70MM2	12.7-16.7	18	20	40

Components and materials

Tension clamp PA-2550 is research and designed by a direct factory -- Jera Line, a Direct factory location in China, The clamp engineered with robust materials that deliver high mechanical strength, environmental resilience, and installation consistency, it consists of following main parts:

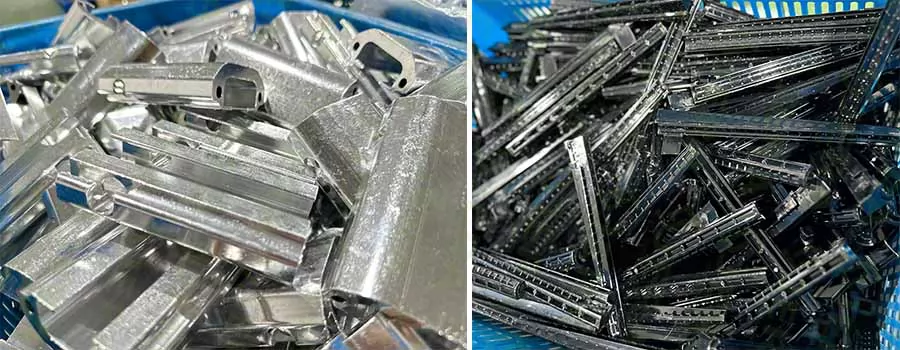

Components	Materials
Insulation-Piercing Contact & Silicone Seal	Metal core with silicone seal
Clamp Body & Bail Assembly	aluminium alloy+galvanized steel
Hardware: Bolts and Fastening Mechanisms	aluminium alloy and Corrosion-protected metal

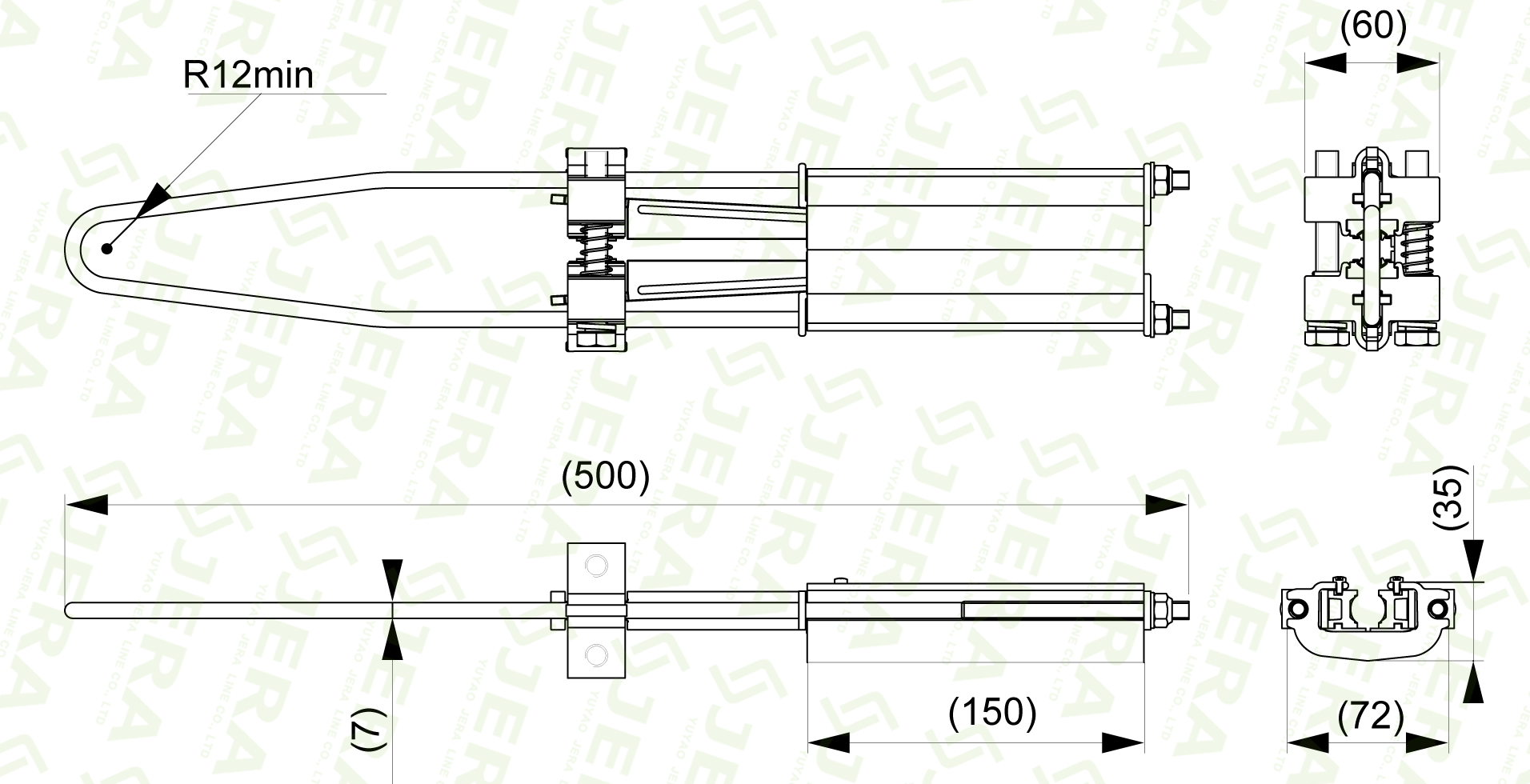

Dimensions

Test

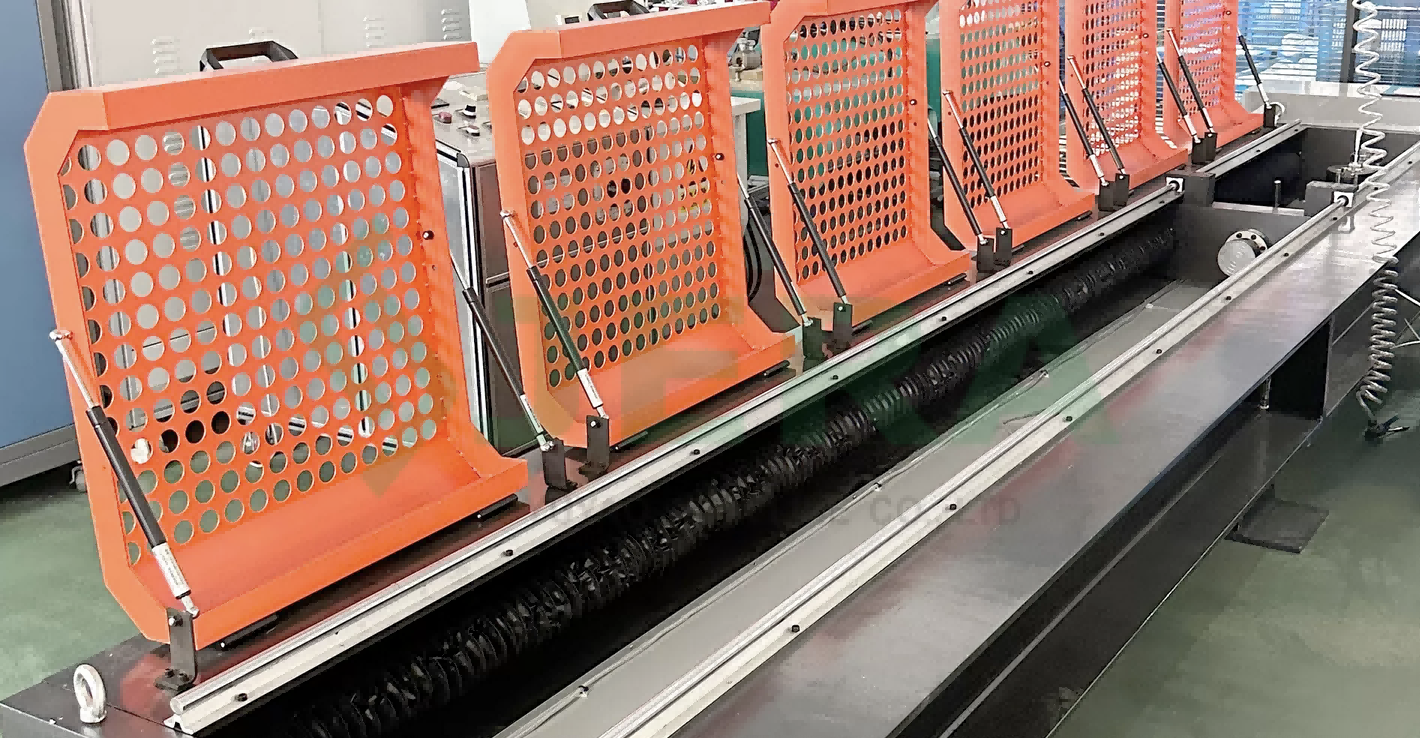

Internal Testing Capabilities at Jera Line

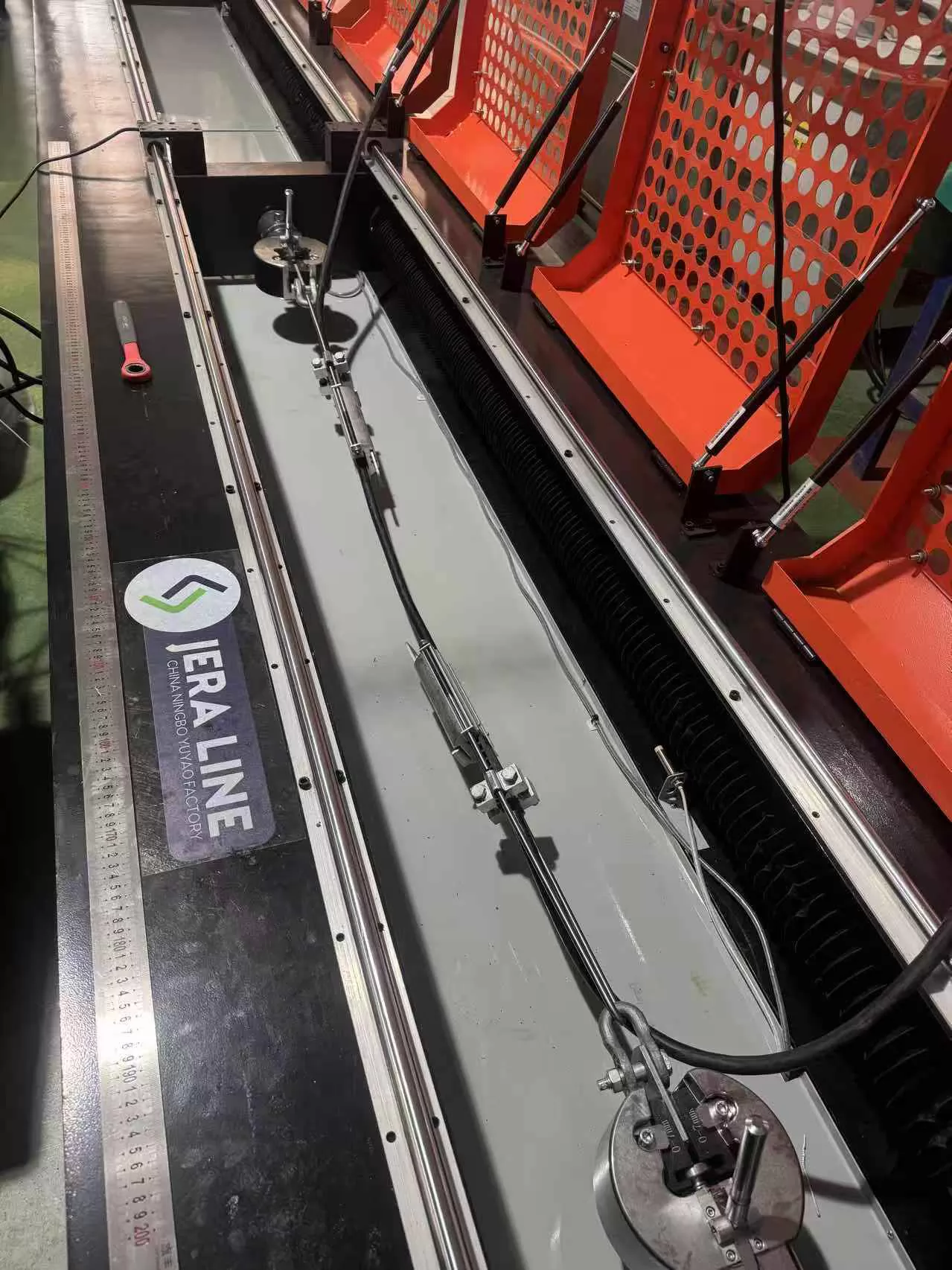

Jera Line has it internal laboratory with testing equipment, the tension clamp PA-2550 has undergone mechanical testing to confirm that it holds securely (SMDL) and withstands failure-inducing loads (SMFL) above set thresholds per the standard.

It is rated at:

SMDL (Specified Minimum Disconnection Load): 18 kN

SMFL (Specified Minimum Failure Load): 20 kN

Standard tightening torque: 40 Nm

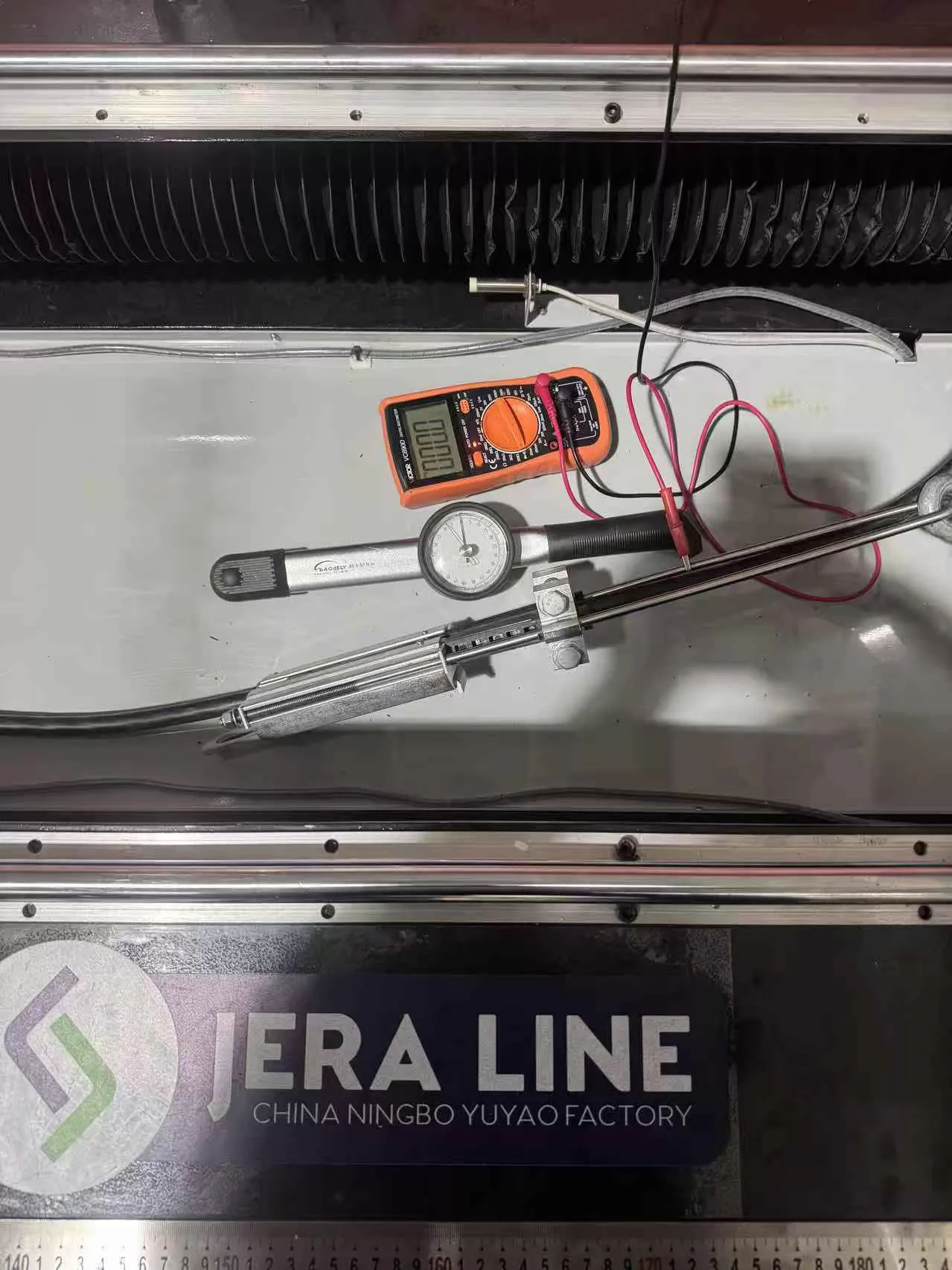

36KV tension clamp PA-2550 complies with EN 50397-2 standard, which is specifically for overhead line fittings used with covered conductors such as PAS/BLL systems.
