MV Tension clamp Assembly With IPC PA-2300- JERA LINE

MV Tension clamp Assembly With IPC PA-2300

MV tension clamp for 35-50 mm2 overhead ABC cables, anchoring clamp assembly with IPC ZOP-45

Features

Easy and quick to install without the need for specialized tools.
Equipped with insulation piercing connector to eliminate short circuit
High mechanical strength 15KN
Tension clamp reduce the electrical stress
Excellent environment stability
Location in China

DESCRIPTION

TEST

REVIEW

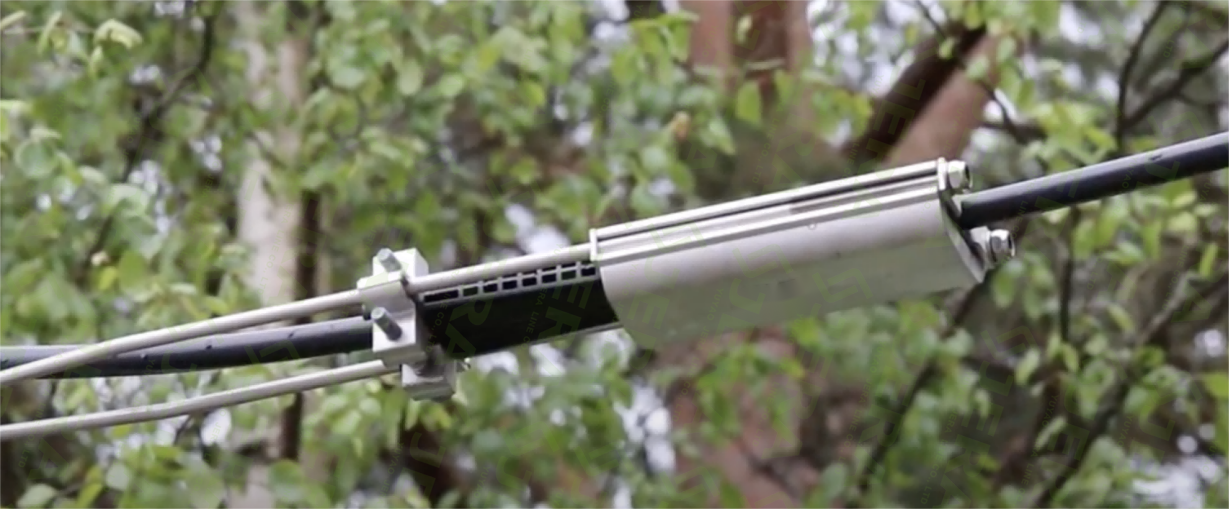

Application

The MV tension clamp assembly combined with IPC PA‑2300 , to be used with insulation piercing connector ZOP-45, is designed for use in medium‑voltage overhead line networks. It provides secure mechanical and electrical connections between conductors while ensuring reliable long‑term performance in utility distribution systems.

Typical Applications:

• Medium‑Voltage Overhead Line Construction

• Connection with Insulation Piercing Connector (IPC ZOP-45)

• Utility Distribution Networks

• Street Lighting and Service Drops

Technical specification

Product code	Cable size, mm2	Minimum breaking load (MBL), KN
PA-2300	35-50	15

Components and materials

Wedge type clamp assembly PA-2300 with IPC, is manufactured by Jera Line, a Direct factory location in China, The clamp consists of following main parts:

Components	Materials
Wire bail	Stainless steel wire + UV resistant U-groove
Body	Aluminum alloy outer shell
Wedge	UV resistant, fiberglass reinforced polymer
Wedge holder	UV resistant, fiberglass reinforced polymer
