MV tension clamp PA-2560- JERA LINE

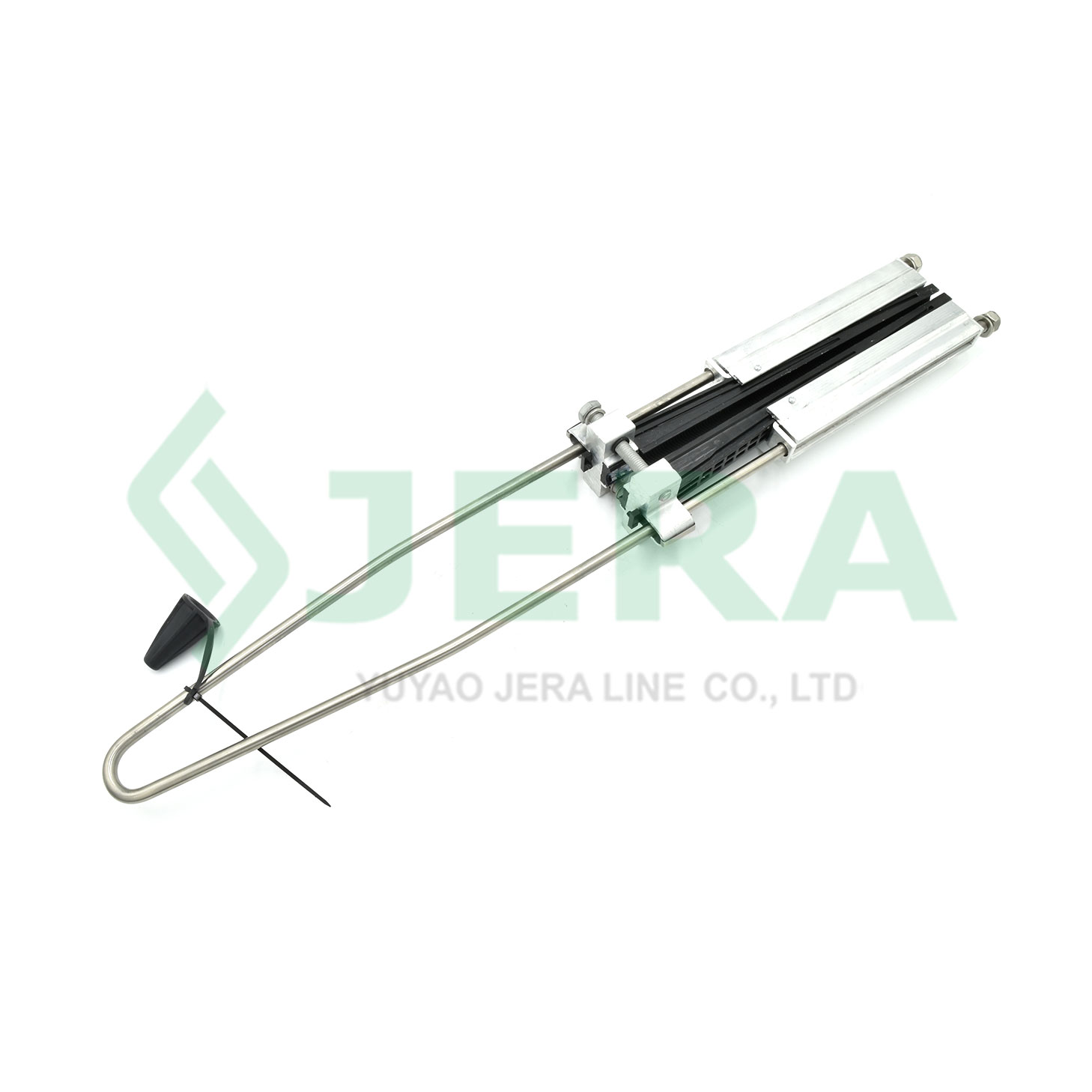

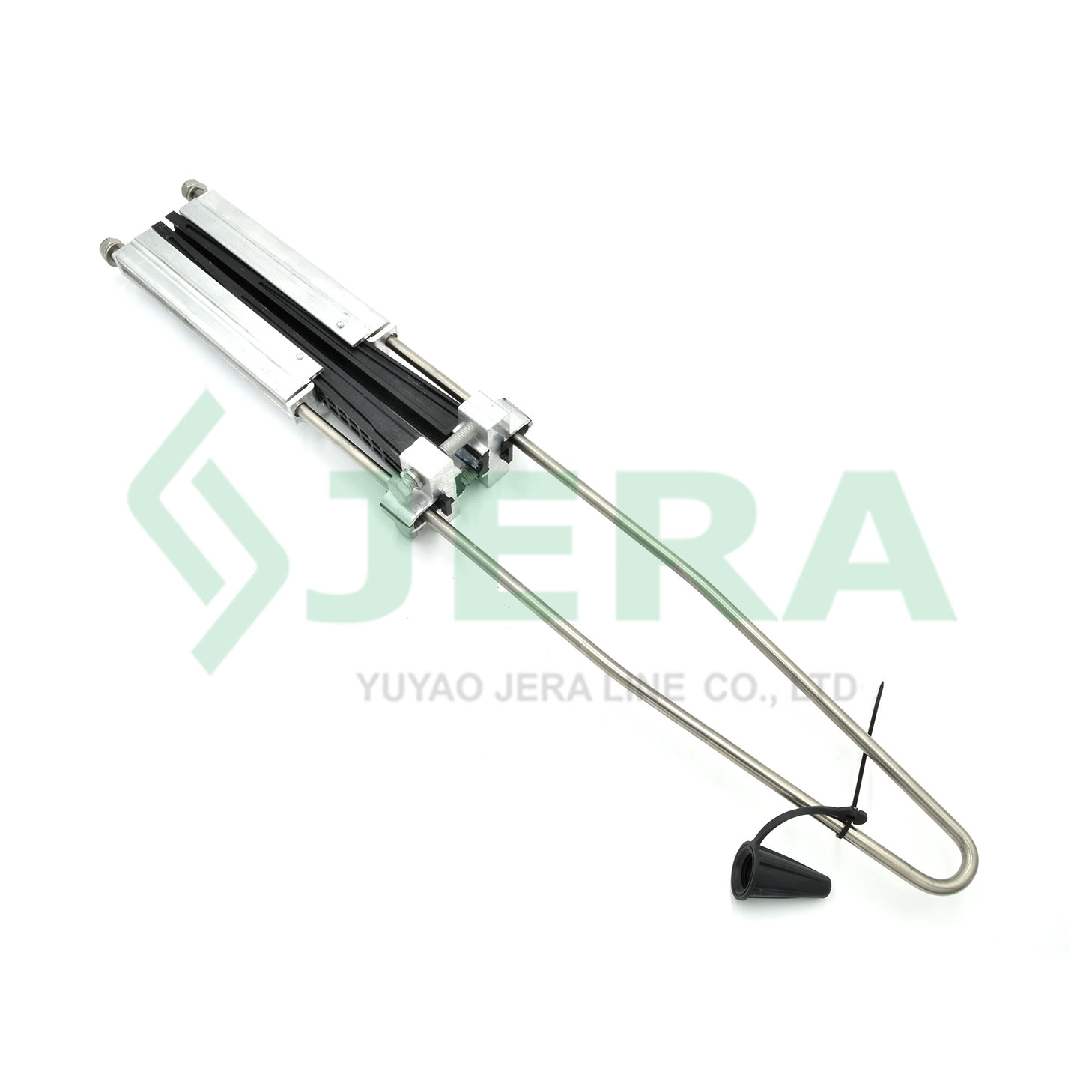

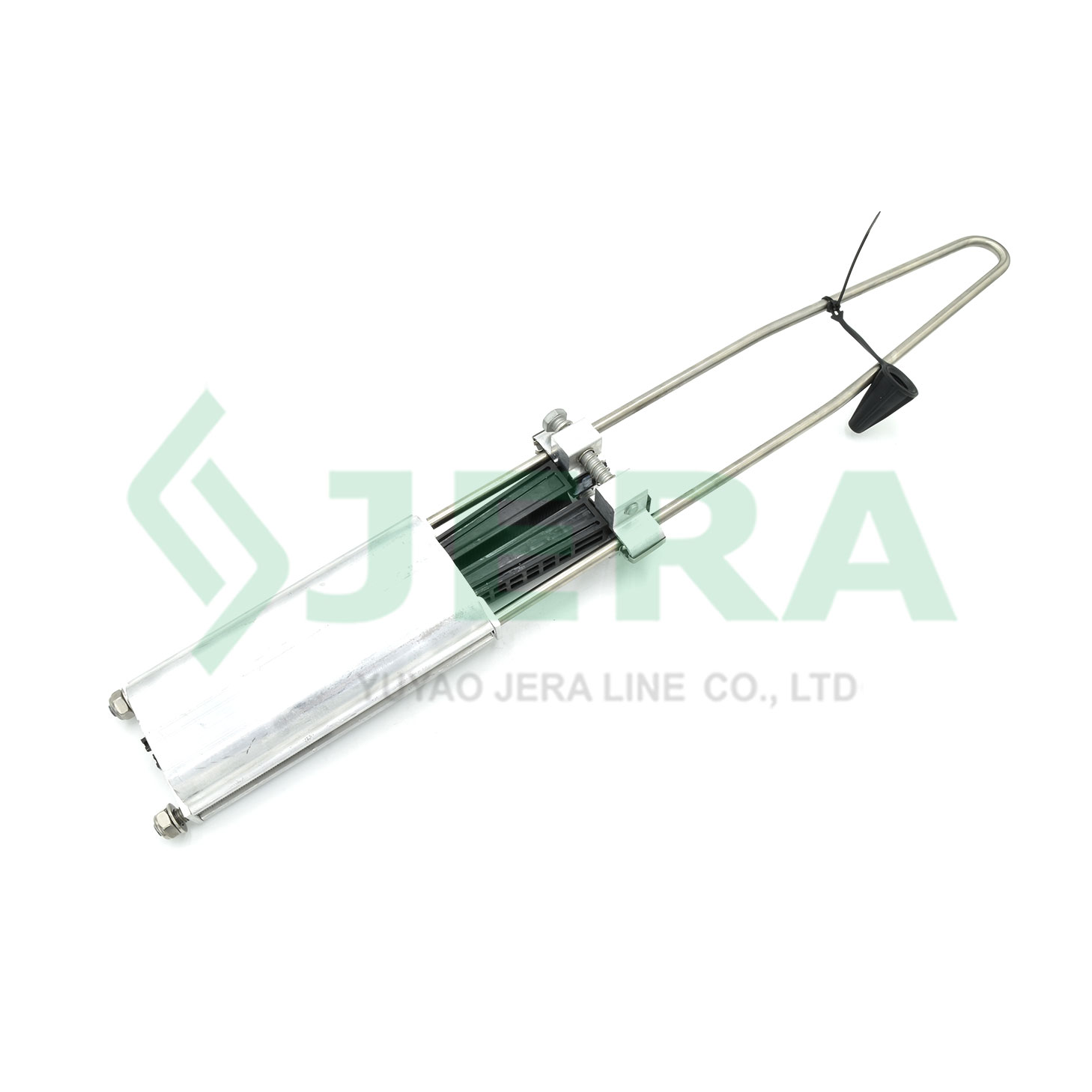

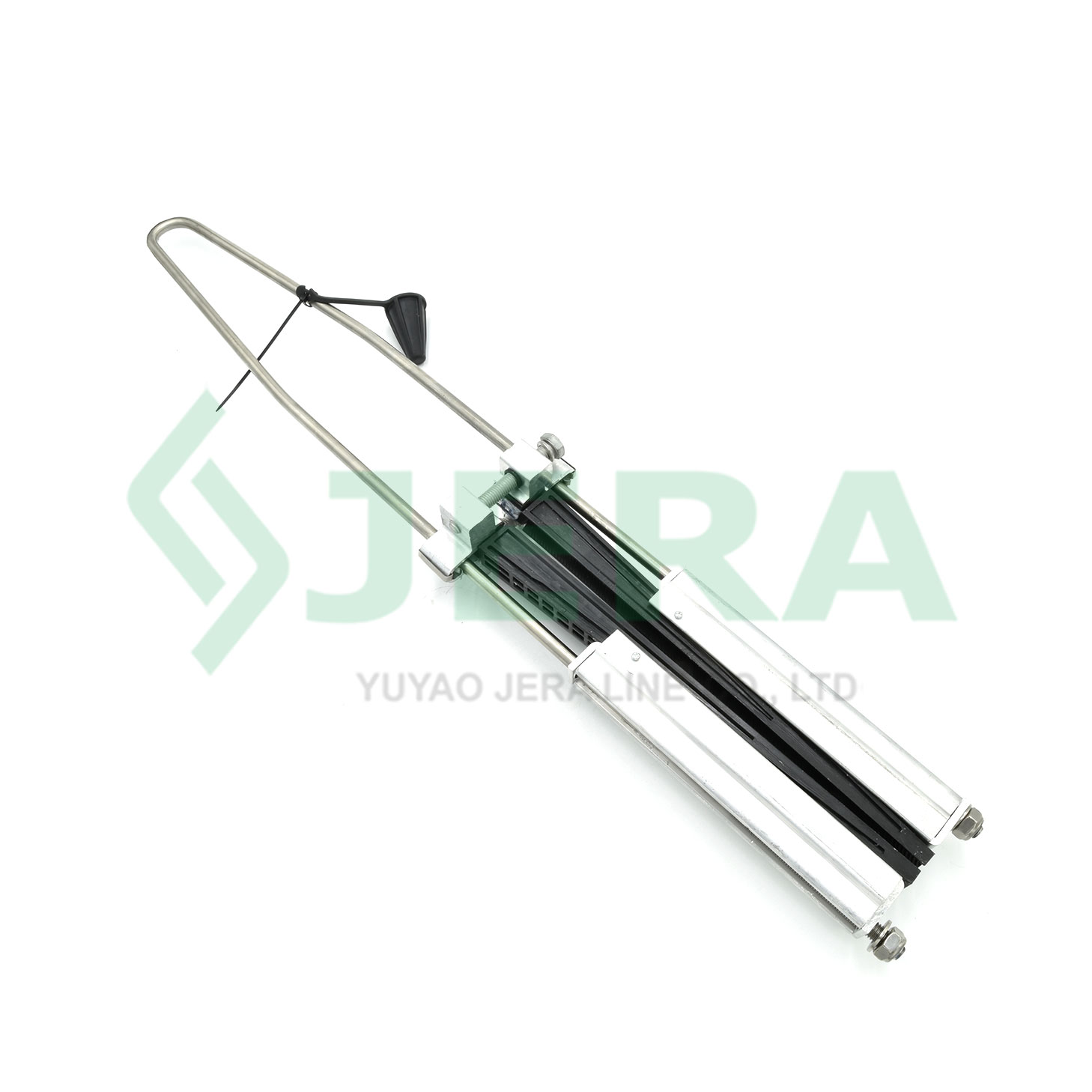

MV tension clamp PA-2560

MV tension clamp for covered conductors, PAS/BLL95-150 mm² AlMgSi cable, insulation-piercing contact part with a silicone seal for moisture

Features

Equipped with insulation piercing parts and sealing
Easy installation on covered conductors without stripping insulation
High mechanical strength tested by horizontal mechanical strength machine
Long service life with minimal maintenance
Excellent environment stability
Location in China

DESCRIPTION

TEST

REVIEW

Application

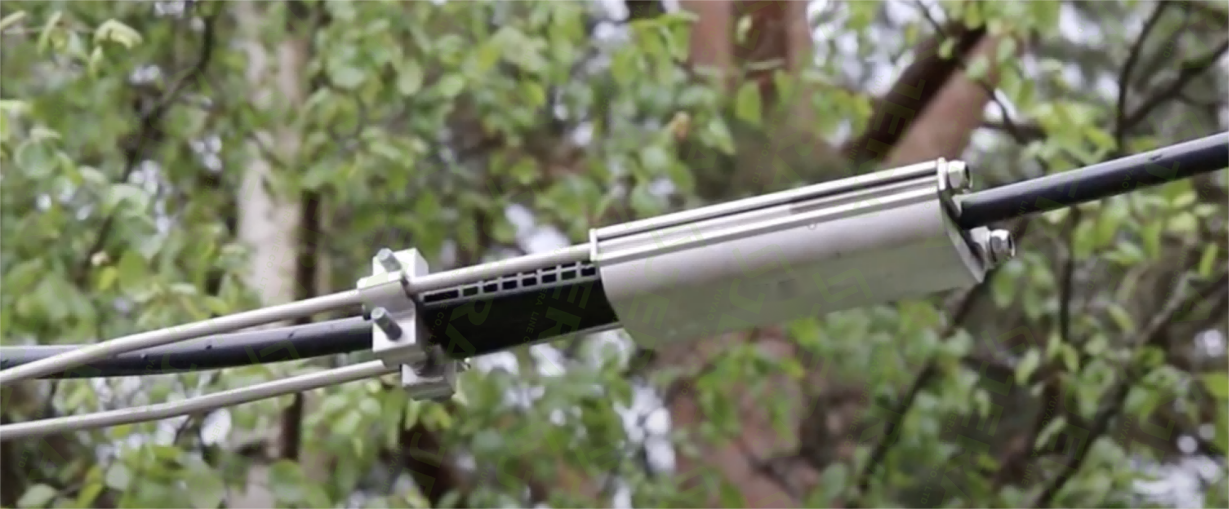

The PA-2560 tension clamp is a robust MV accessory for covered conductors, offering reliable insulation piercing technology, moisture protection via silicone sealing, and compatibility with safety accessories. It is ideal for anchoring 95–150 mm² PAS/BLL conductors in overhead distribution systems.

Key application areas:

• Medium‑voltage overhead distribution networks (12–36 kV).

• Anchoring covered conductors in rural and urban networks.

• Use in harsh outdoor environments requiring moisture protection and mechanical strength.

• Can be combined with protective accessories for enhanced safety and reliability.

Technical specification

Product code	Cable size, mm2	Conductor diameter mm	SMDL (Specified Minimum Disconnection Load)	SMFL (Specified Minimum Failure Load) KN	Torque N*m
PA-2560	95-150MM2	16-22.5	22	28.5	40

Components and materials

Jera Line is a direct MV anchor clamp 95-150mm2 factory, who specially focused on providing overhead cable solutions.

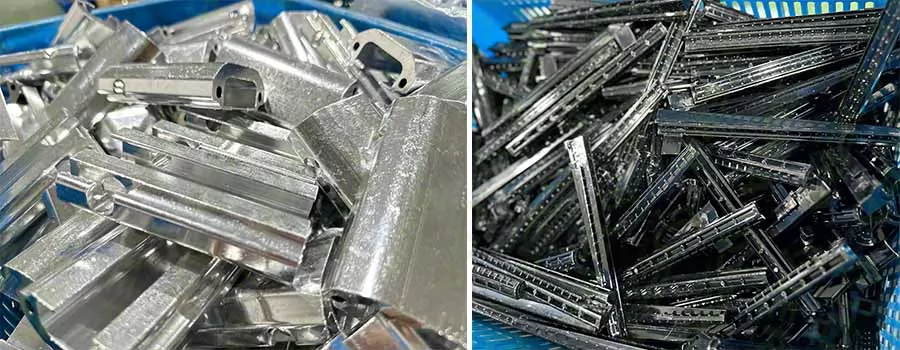

Jera Line has research and designed, molding workshops, injection workshops, CNC machining workshops etc. The tension clamp 95-150mm2 engineered with robust materials that deliver high mechanical strength, environmental resilience, and installation consistency, it consists of following main parts:

Components	Materials
Insulation-Piercing Contact & Silicone Seal	Metal core with silicone seal
Clamp Body & Bail Assembly	aluminium alloy+galvanized steel
Hardware: Bolts and Fastening Mechanisms	aluminium alloy and Corrosion-protected metal

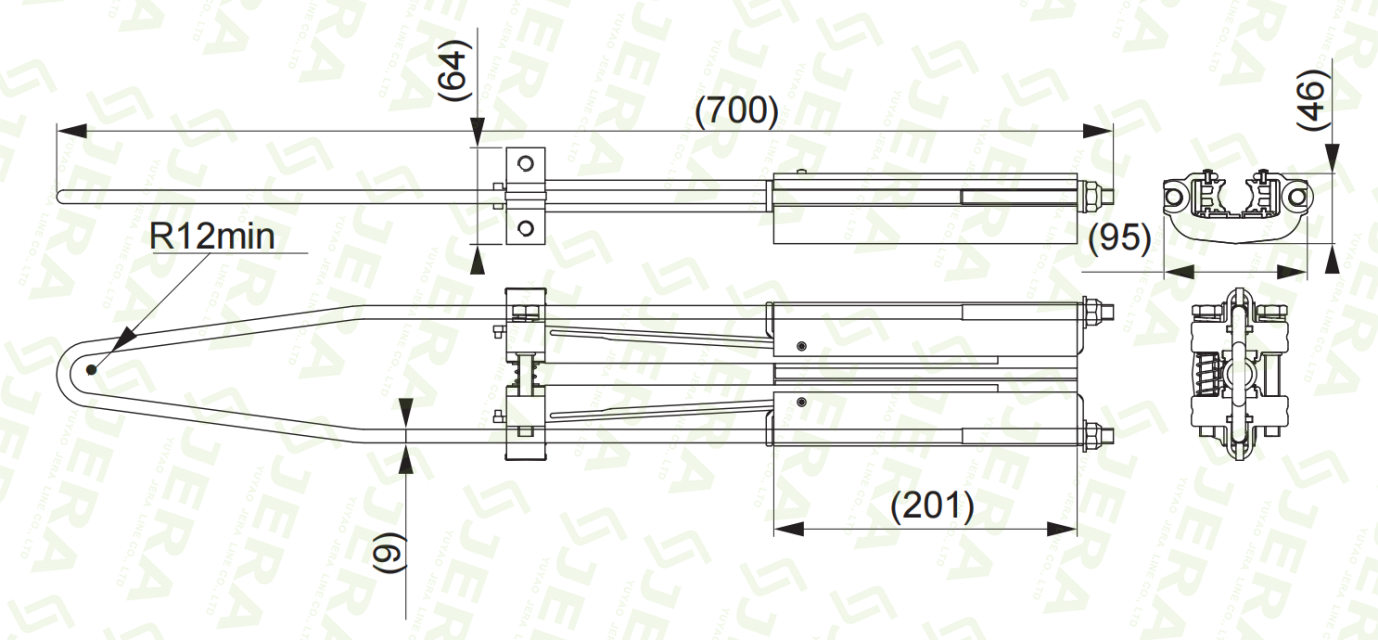

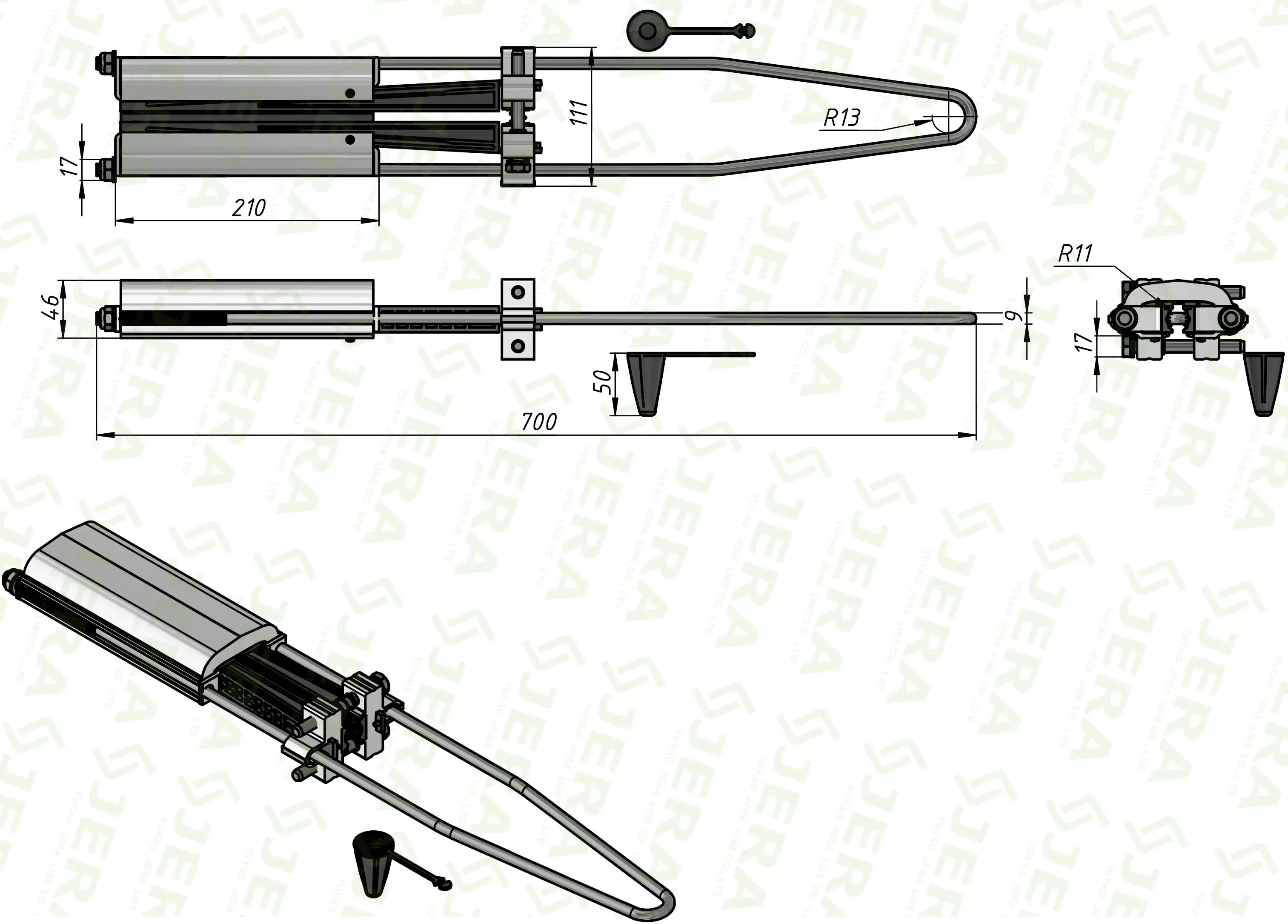

Dimensions

Test

Jera Line operates an in‑house laboratory equipped with specialized testing equipment to verify the mechanical and electrical performance of medium‑voltage cable accessories.

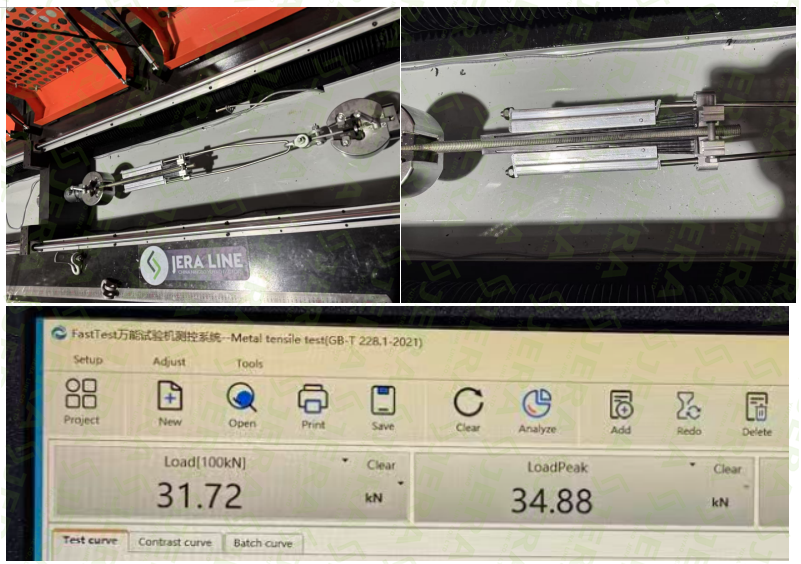

The tension clamp for MV cable PA-2560 has undergone mechanical testing to confirm that it holds securely (SMDL) and withstands failure-inducing loads (SMFL) above set thresholds per the standard.

It is rated at:

SMFL (Specified Minimum Failure Load): 34.88 kN

Standard tightening torque: 40 Nm
