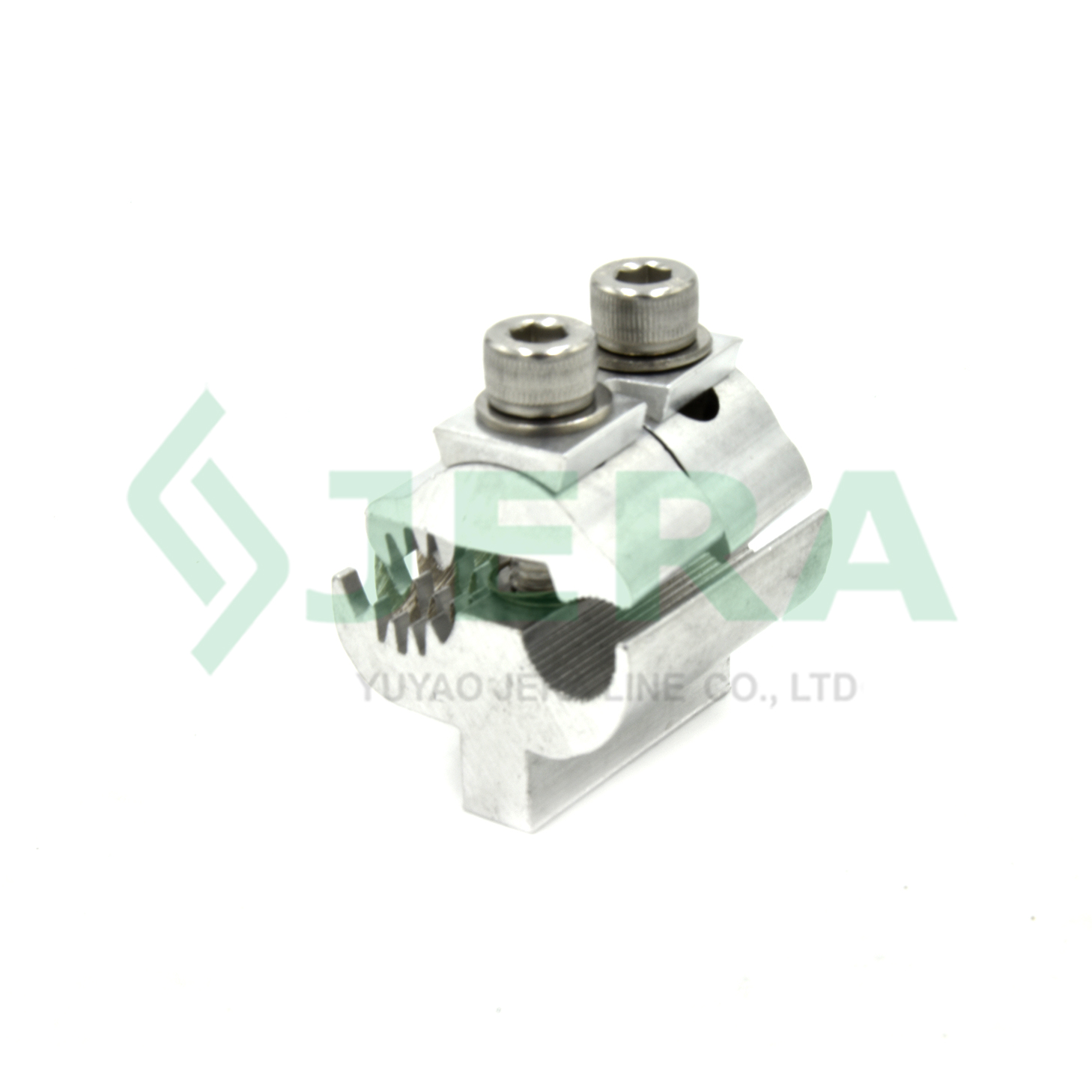

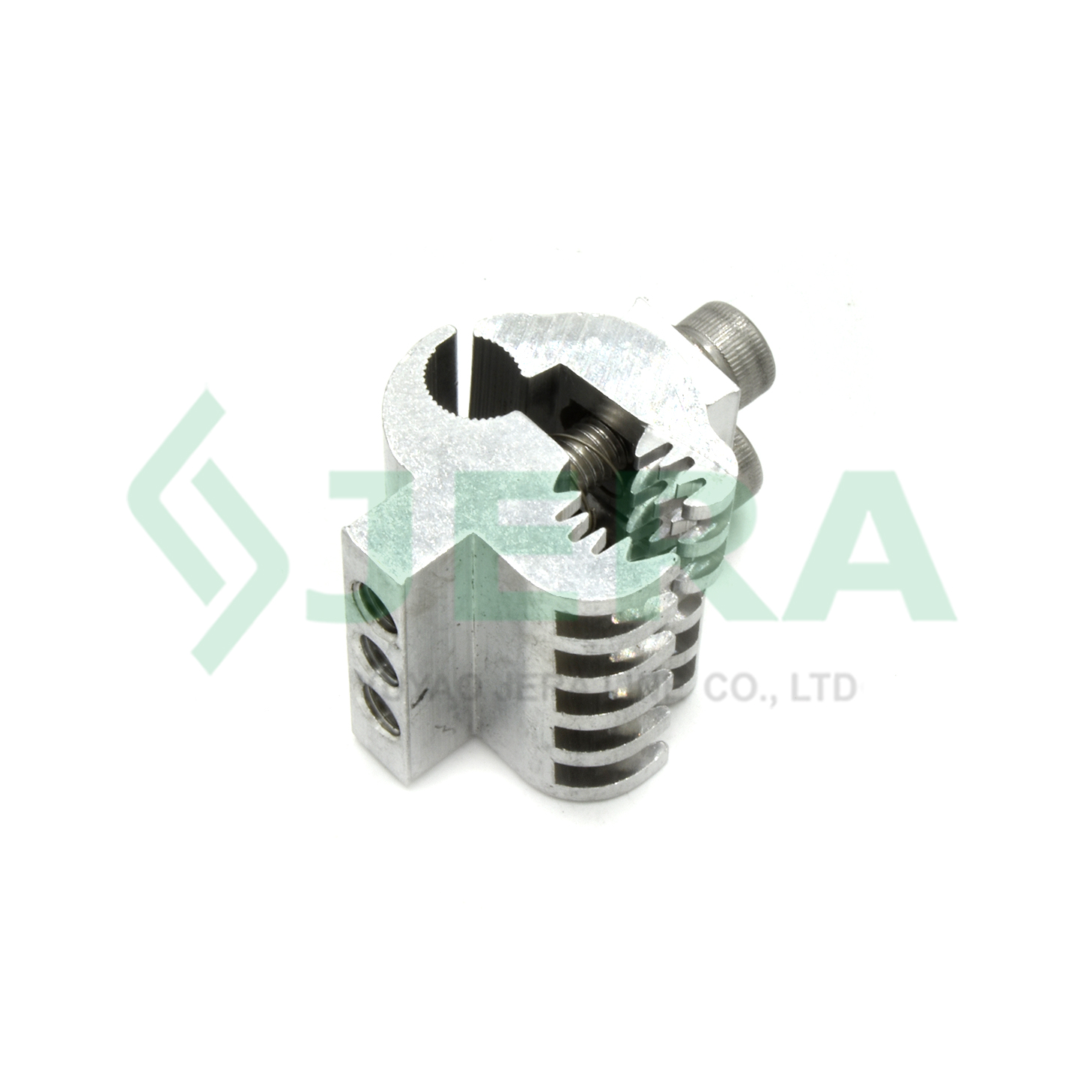

The Aluminum PG Clampis specialized for connecting insulated aluminum cables to bare aluminum conductors. The connector is equipped with hot dip galvanized steel, good performance in corrosion resistance, high mechanical strength, easy installation. The design enables hot line installation without peeling insulation of the conductor.
It’s an electrical fitting designed to connect two parallel conductors, typically in overhead power lines. It ensures a secure mechanical grip and reliable electrical conductivity while minimizing power loss.
Technical specification
Product code
Main line, mm2
Branch line, mm2
Bolt
PG-AL-16-120/16-95-2S
AL 16 – 120
AL 16 – 95
2

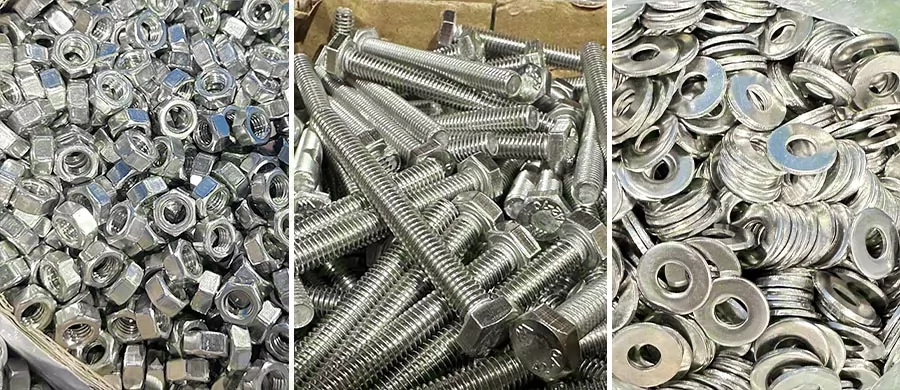

Components and materials

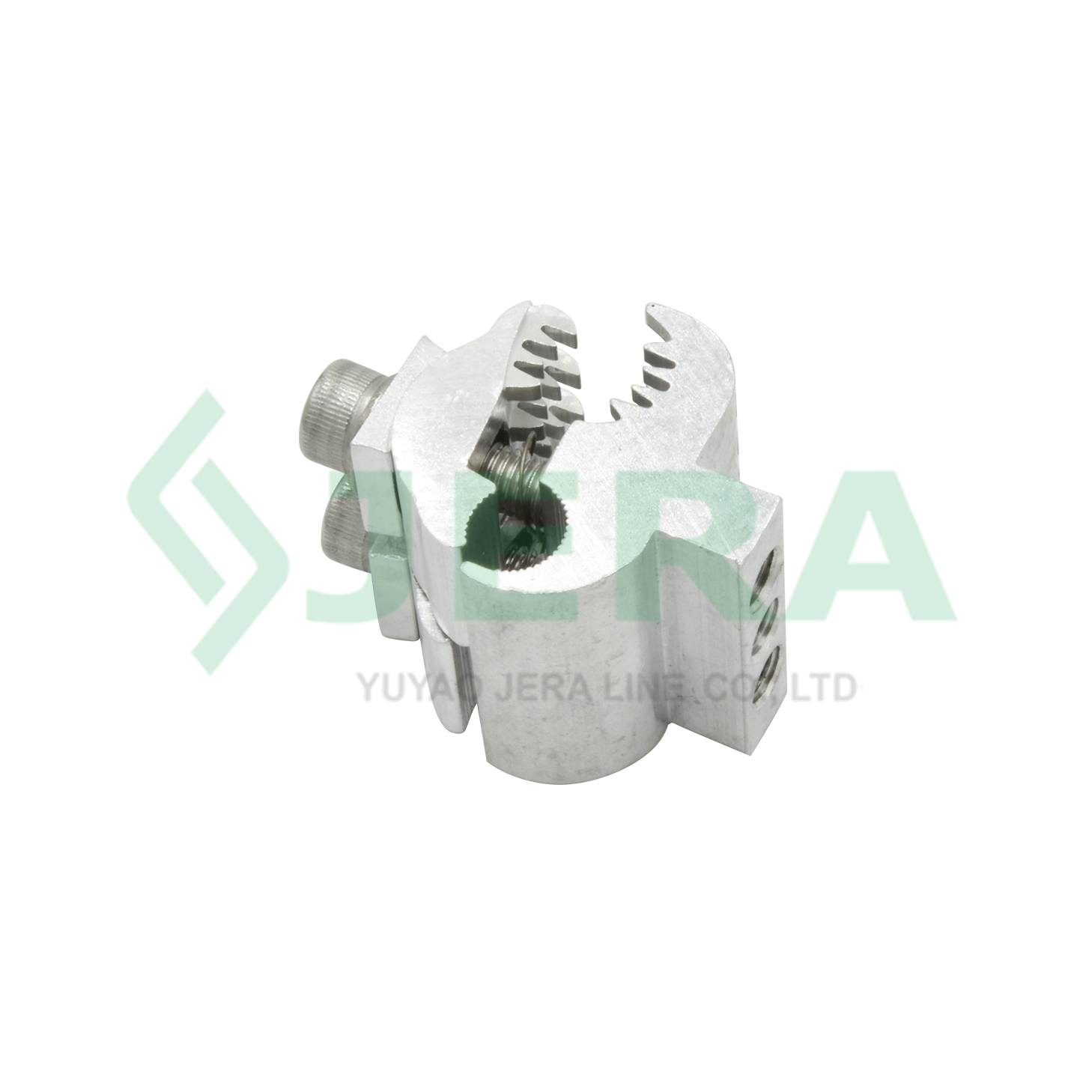

The Parallel groove connector PG-AL-16-120/16-95-2S is made of high strength corrosion proof extruded aluminum alloy, galvanized steel bolts, nuts, spring washers. The material provide high tensile strength and weather resistant during application.
Components
Materials
Body
Aluminum
Scew, washer, nut
hot dip galvanized steel

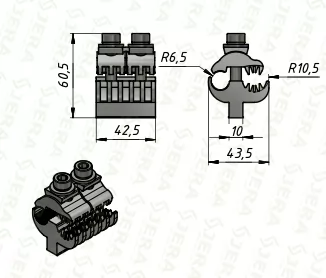

Dimensions

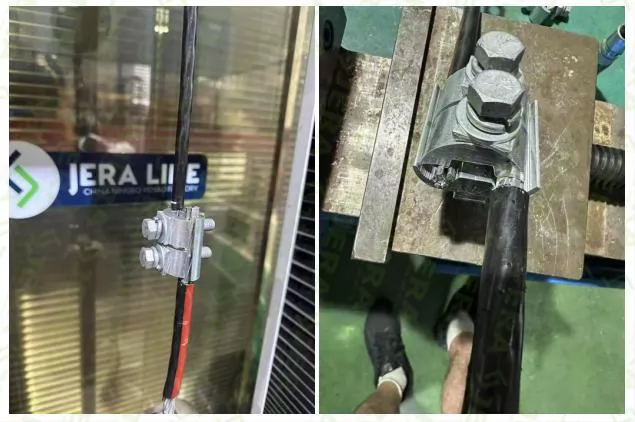

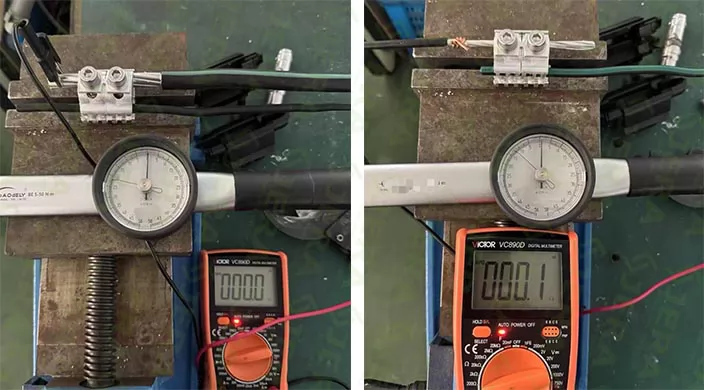

Test

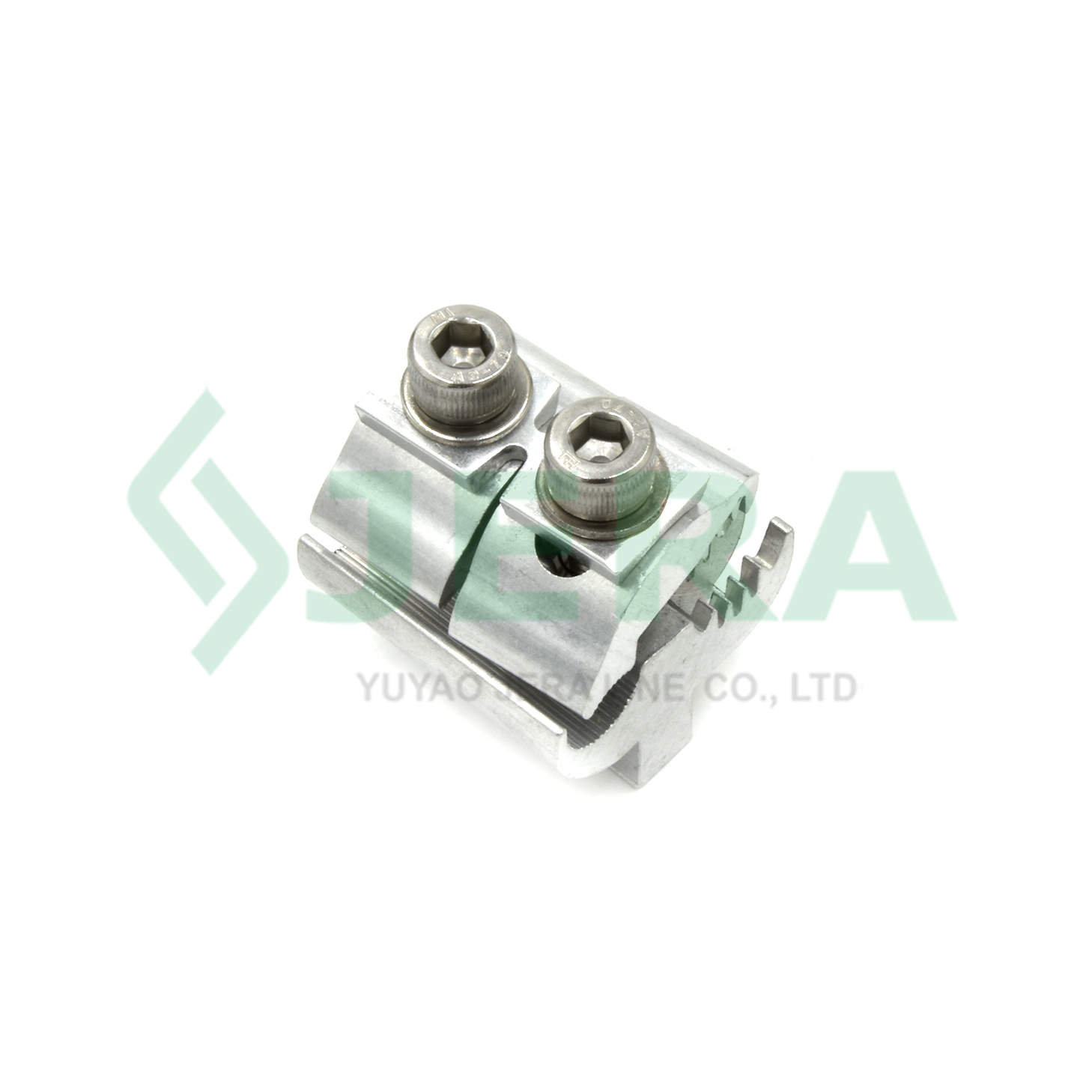

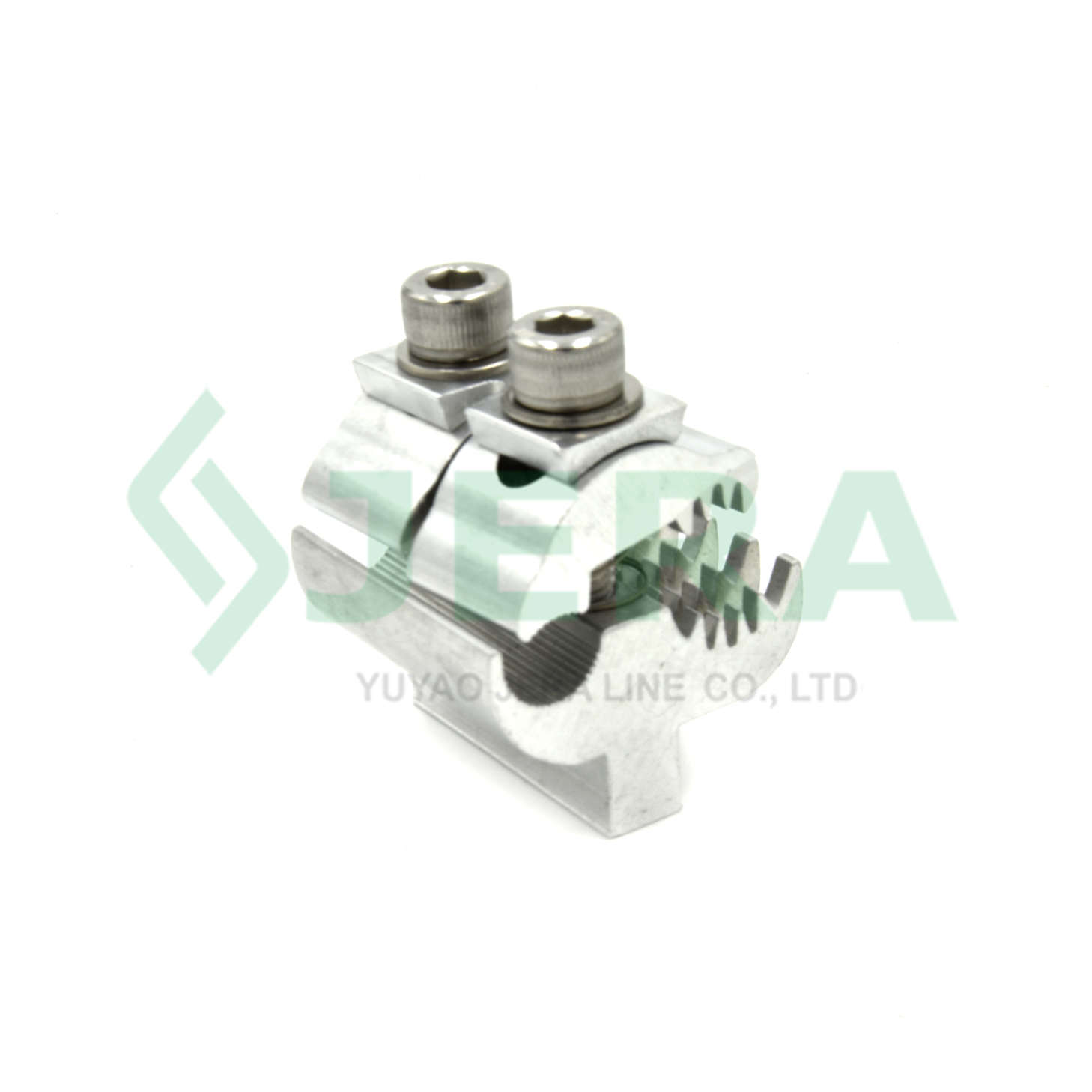

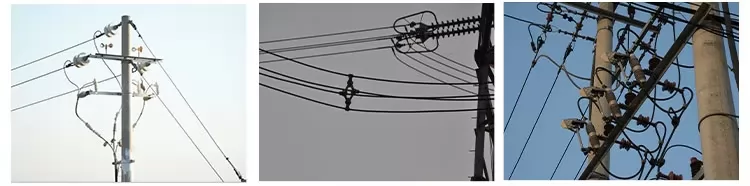

This PG clampis designed to used to connect parallel bare aluminum conductors witj insulated cable in low voltage cable lines, service line system, street lighting and buildings. We have our own laboratory to do related test according to European fundamental test standards.
