The tow bolts aluminum bare cable PG Clampis designed to connect two bare aluminum cables. The aluminum material is high conductivity, to ensure the current flowing. It’s used in overhead power lines to ensure a secure mechanical grip and reliable electrical conductivity while minimizing power loss.

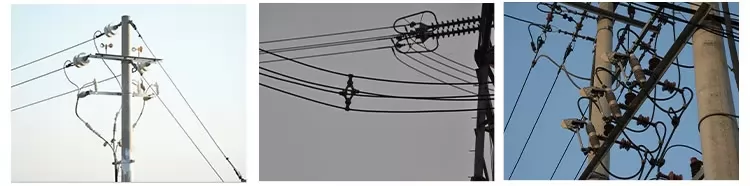

Main Application:
• Overhead Transmission Lines: Ensures stable current flow and mechanical integrity under tension and vibration.
• Distribution Networks: Helps maintain consistent electrical performance across branching conductors.
• Substation Connections: Supports robust and corrosion-resistant connections.
Technical specification
Product code
Main line, mm2
Branch line, mm2
Bolt
PG-AL-16-120-2S
AL 16 – 120
AL 16 – 120
2
Components and materials
The Parallel groove connector PG-AL-16-120-2S is manufactured by direct factory Jera Line factory, the product is made of high strength corrosion proof extruded aluminum alloy, galvanized steel bolts, nuts, spring washers. The material provide high tensile strength and weather resistant during application.
Components
Materials
Body
Aluminum
Scew, washer, nut
hot dip galvanized steel

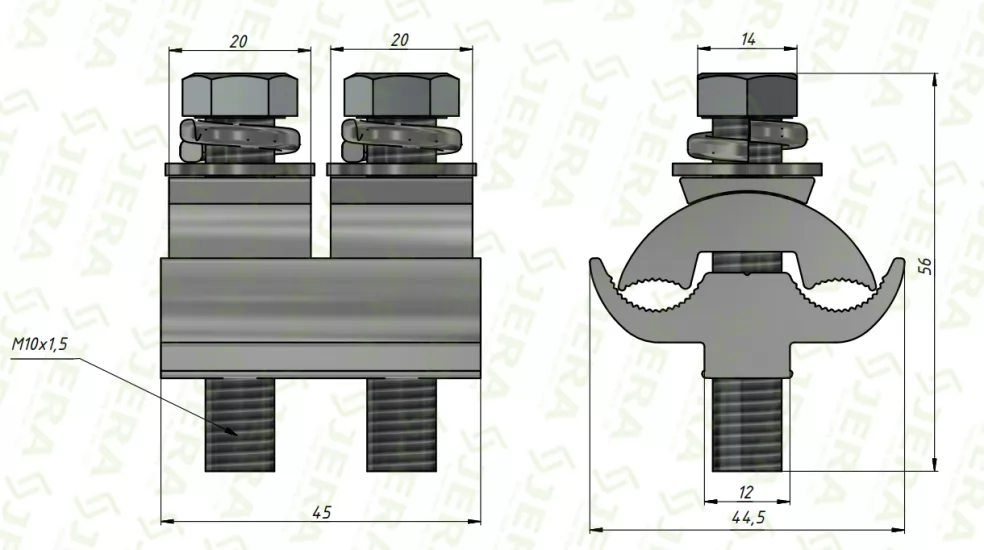

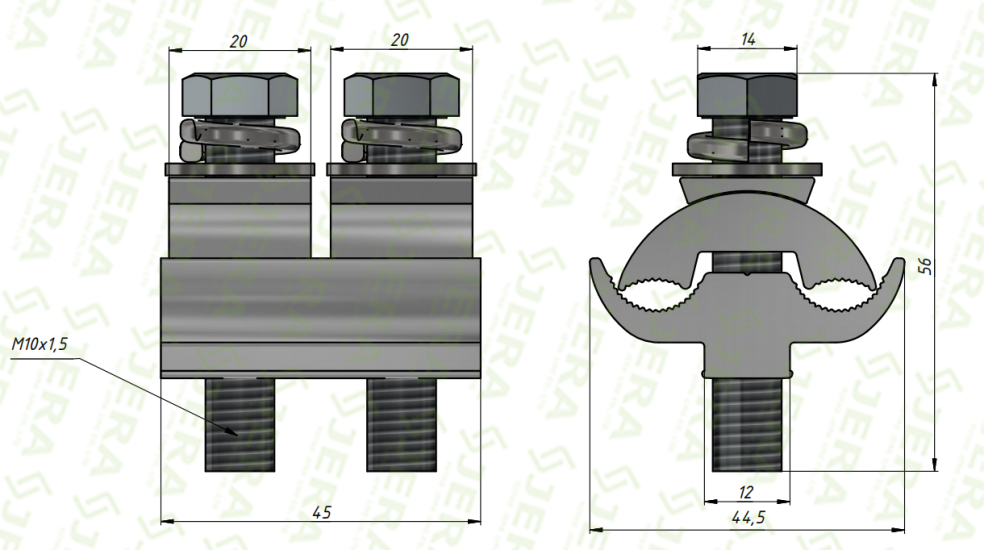

Dimensions
Test
This Parallel Groove clamp is conducted testing in Jera Line in-house laboratory in accordance with European fundamental standards.
