Powerlock panel mount source connector EU Standard 400A Socket N-Blue (PL-N-F-400A-EU-L)

Powersafe Powelock Rotalock 400Amp, IP67 waterproof, IP2X safety protection, EU Standard, CE standard, neutral socket

Features

High capacity rating 400A-800A
IP67 for waterproof and dustproof

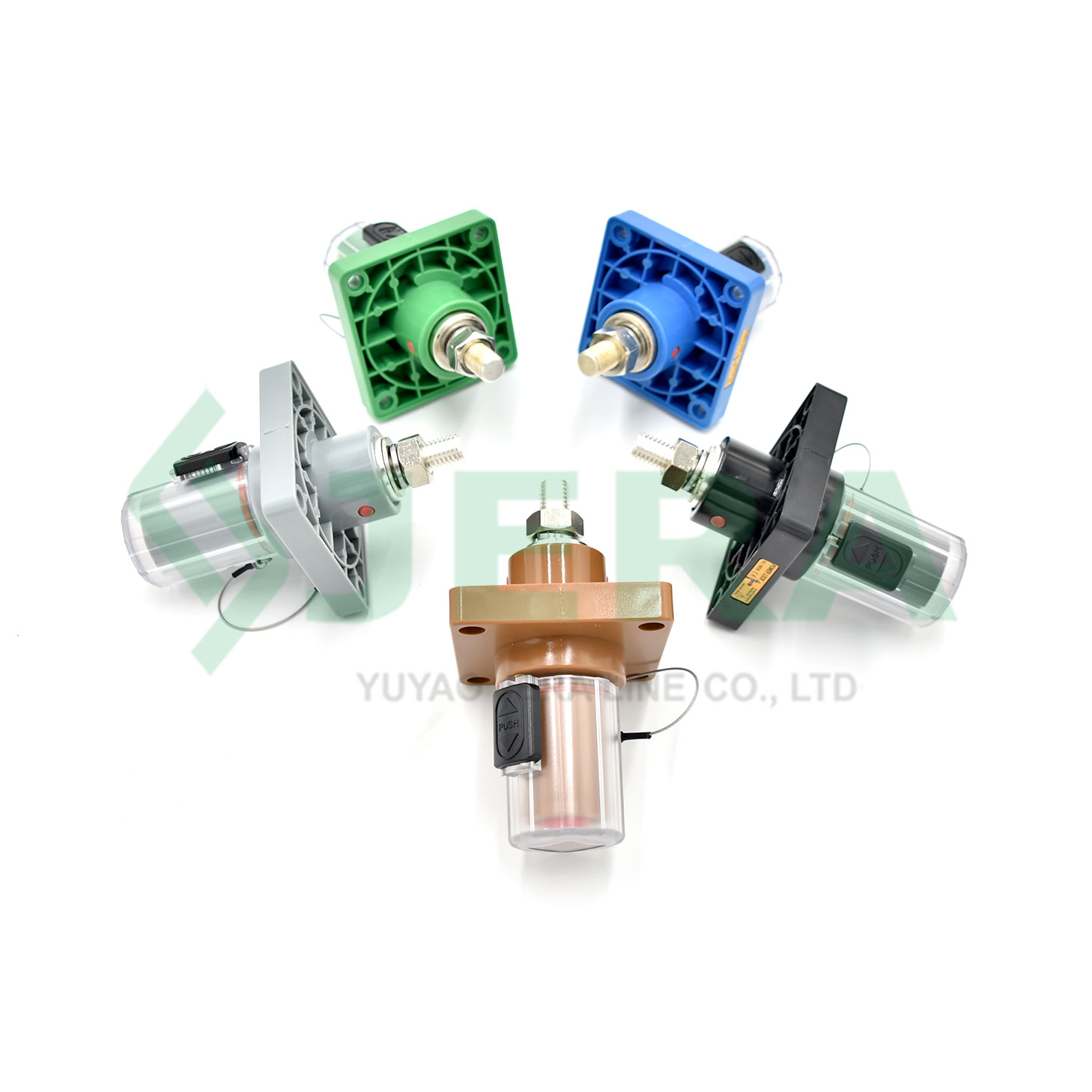

Colour coded for easy identification
IP2X Finger-safe protection
Fire proof material UL94-V0
Field installation no special tools required
Powerlock connector factory in China

DESCRIPTION

TEST

REVIEW

Application

The low voltage Powerlock panel mount source connector is designed for safe and reliable low-voltage power input in high-current power distribution systems. Installed directly on panels, enclosures, or switchgear, it provides a secure and permanent power entry interface from the source to downstream electrical equipment.

The Powerlock Connector is widely used in:

• Switchgear panels and power distribution cabinets

• Data centers and critical infrastructure for stable source power input

• UPS and backup power systems ensuring safe power transfer

• Generators and energy storage systems for fixed power connections

• Industrial power distribution systems requiring high-current panel-mounted interfaces

• Temporary power distribution panels for construction sites, events, and rental equipment

Technical specification

Model	Color	Capacity	Voltage	Operating temperature	Size of Strand head	Docking dust proof level
EU Standard 400A Socket L1 – Brown (PL-L1-F-400A-EU-Z)	Brown	400A	1000V	-45-85°C	M50	IP67
EU Standard 400A Socket L2 – Black (PL-L2-F-400A-EU-H)	Black	400A	1000V	-45-85°C	M50	IP67
EU Standard 400A Socket L3 – Grey (PL-L3-F-400A-EU-H)	Grey	400A	1000V	-45-85°C	M50	IP67
EU Standard 400A Socket N – Blue (PL-N-F-400A-EU-L)	Blue	400A	1000V	-45-85°C	M50	IP67
EU Standard 400A Socket E – Green (PL-E-F-400A-EU-L)	Green	400A	1000V	-45-85°C	M50	IP67

Components and Materials

Jera Line is a powerlock panel mount connector factory in China, these connectors is featuring a secure locking mechanism, finger-safe design, and high current capacity, the Powerlock panel mount source connector ensures reliable, safe, and long-term performance in demanding indoor and outdoor low-voltage power applications.

The product included the following parts:

Component	Description
Connector housing	impact resistance and flame retardant plastic
Locking Mechanism	Brass and stainless steel
Power contact	Brass (up to 400 A), silverplated · Copper (up to 660 A), silver plated
Material seals	Neoprene
Material springs/release pin	Austenitic steel
Material contact retaining pin	PA

Dimensions

Test

Jera Line have in house laboratory, which can conduct comprehensive testing for Powerlock Panel Mount Source Connector to ensure electrical safety, mechanical durability, and long-term reliability in high-current low-voltage power distribution systems. All tests are carried out in accordance with relevant IEC and international standards.

Jera line has in-house laboratory, with testing equipment for:

• Electrical performance validation

• Environmental performance validation

• Mechanical properties & performance validation
