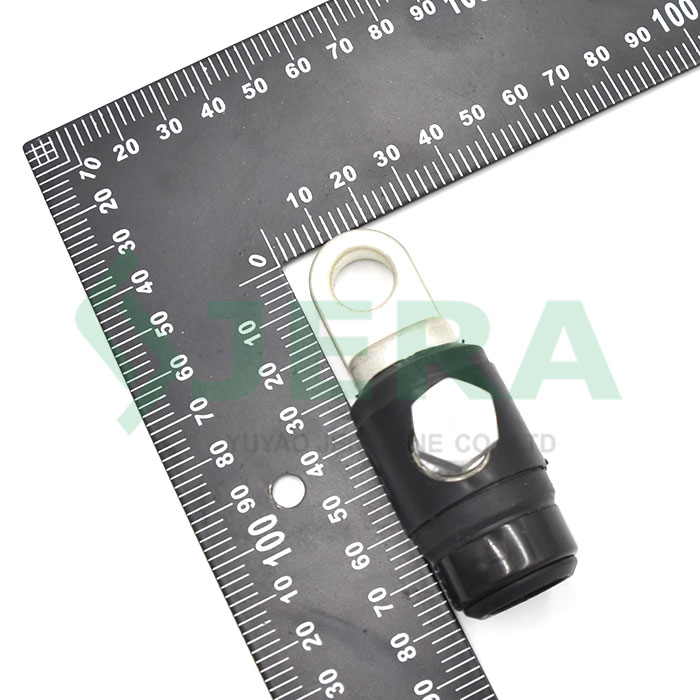

Pre-Insulated Cable Lug, ICL-16-95

Pre-insulated cable lug, ICL-16-95 is are electrical connectors used to securely terminate and connect cables and wires while providing insulation and protection.
Pre-Insulated Cable Lug, ICL-16-95
Features
  • Suitable for aluminum and copper cables
  • LCL are made of aluminum tinned covered, filled by lubricate
  • Quick and easy installation compared to CPTAU
  • Waterproof design
  • Shearhead bolt torque, provide excellent strength Tool free installation

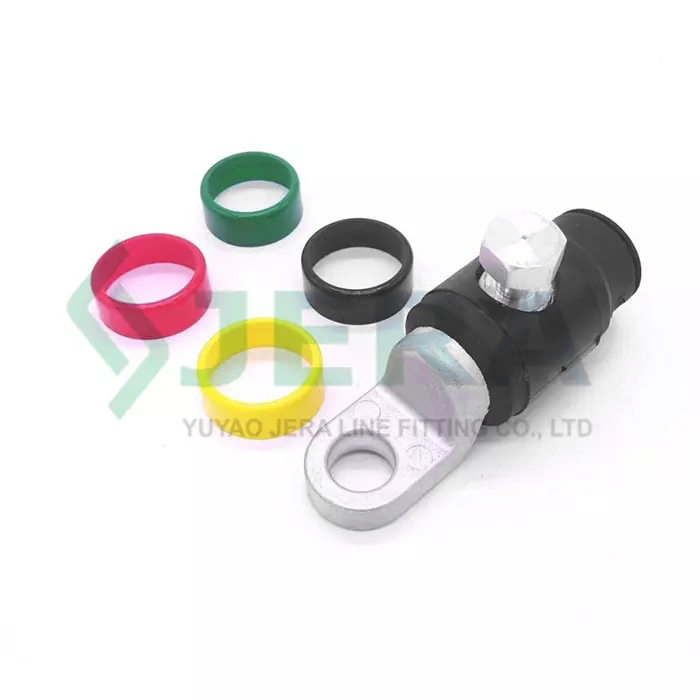

  • Marked by color cap according to phase of electrical cable Plastic shim locking system
  • Electrical resistant ribbon materials prevent the connection from short-circuits
  • Competitive price of shear head bolt cable lug
Contact Us
DESCRIPTION
TEST
REVIEW

Application

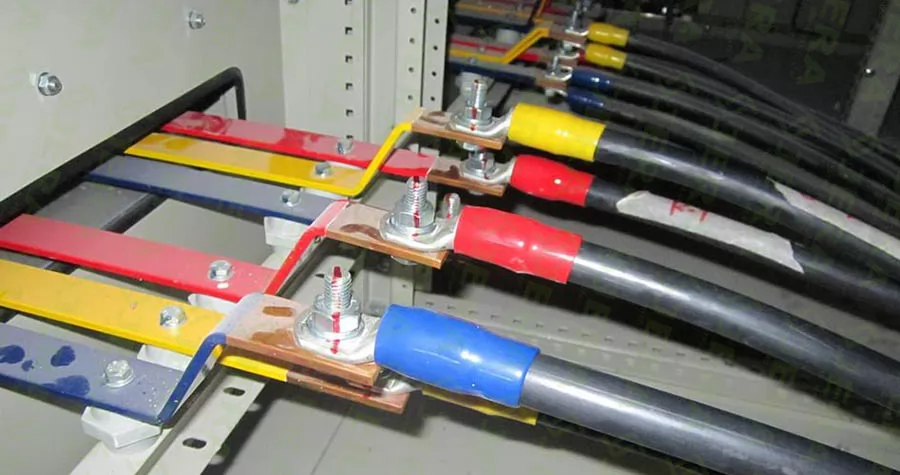

Shear Insulated cable lug is used in electrical distribution panels to connect and terminate wires, ensuring efficient power distribution.

Technical specification

Product code Cable application size, mm2 Number of Bolts Installation method Voltage, KV Conductor Materials
ICL-16-95 16 – 95 1 shear head bolt AC: 0.4-6.0 CU or AL Insulated

Components and Materials

Pre-insulated cable lug, is manufactured by Jera Line, a Direct factory location in China, the lug consists of following main parts:

N Item Material
1 Body PA-GF, UV resistant
2 Contact lug Aluminum alloy, tin covered
3 Sealants, cap UV resistant polymer
4 Bolt Aluminum alloy
5 Supporting ring UV resistant polymer
6 Additional grease Silicone grease

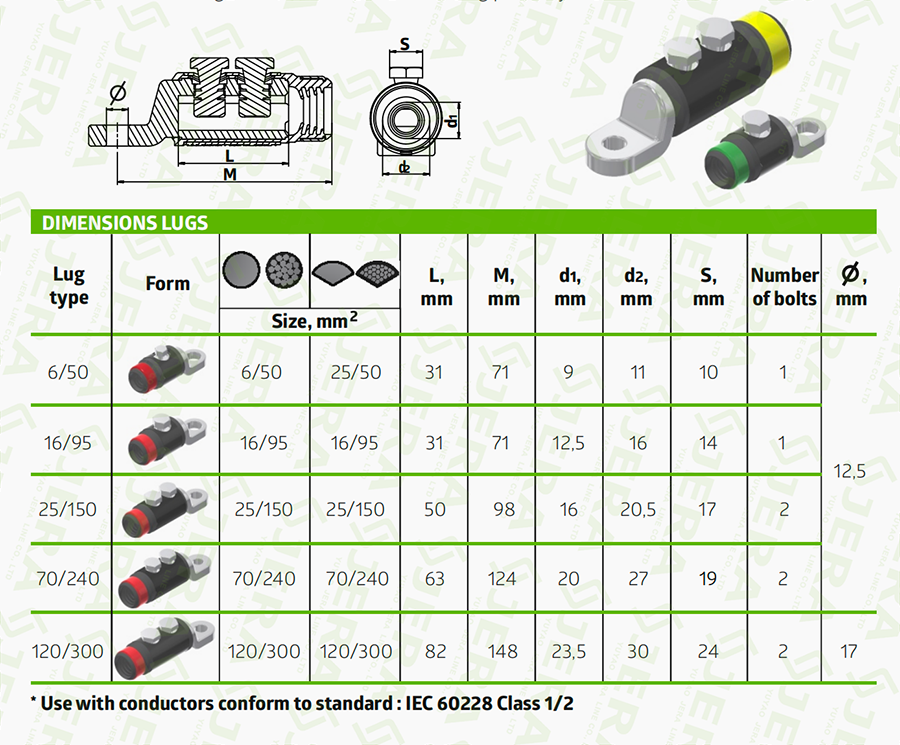

Dimensions

Test

Jera line is operating according to ISO9001:2015, we have our own interior laboratory to do related test during daily production and new product developments. Tests such as:

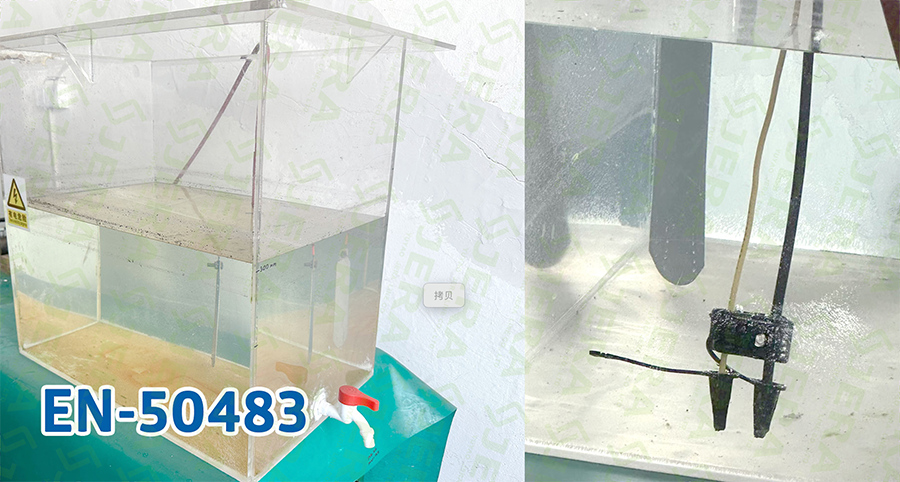

* Dielectrical voltage test in water

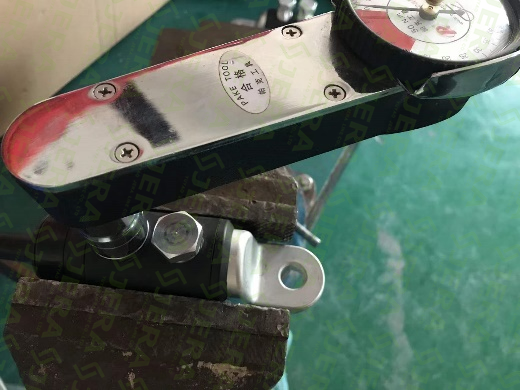

*Shear head torque test, aging test, UV resistant test etc.
