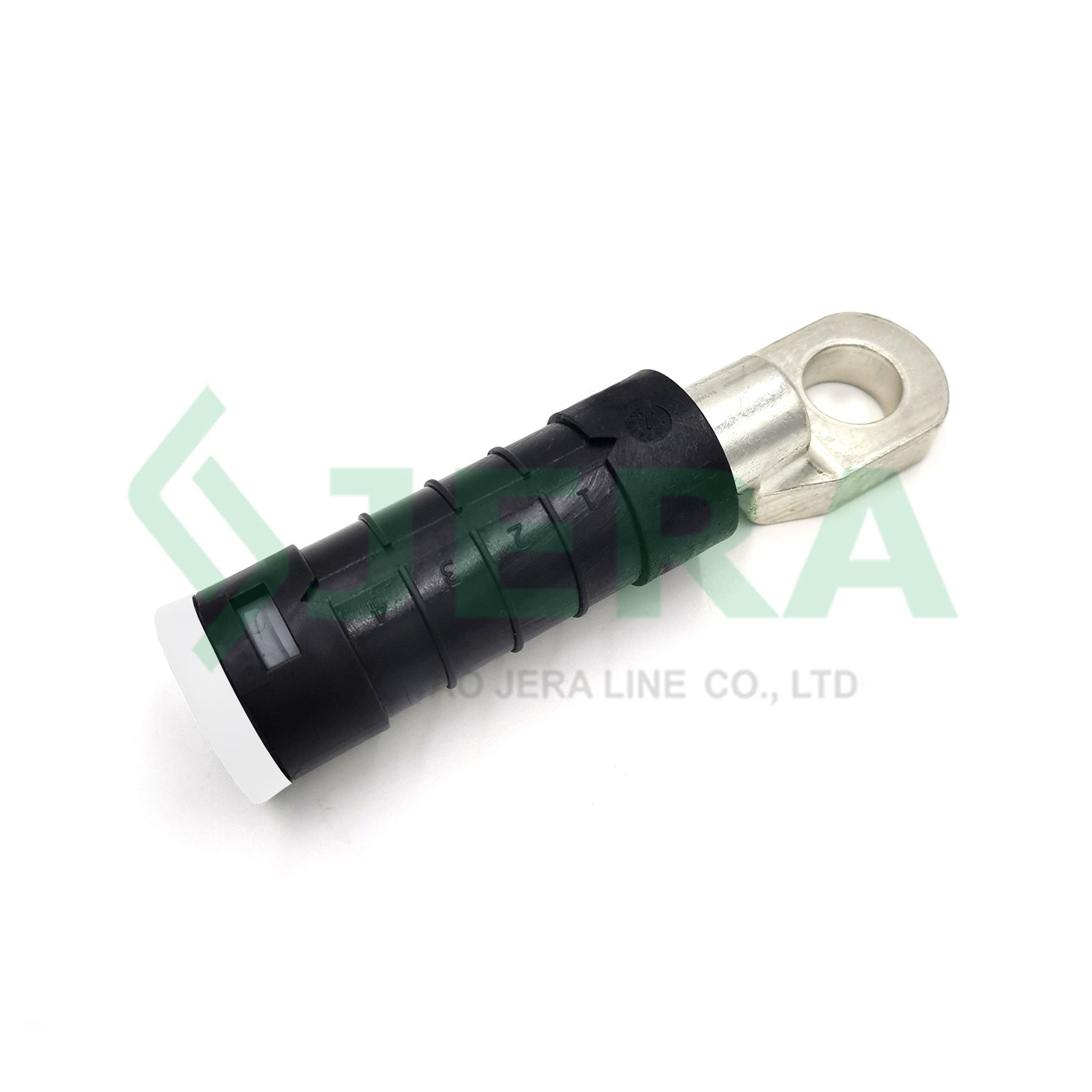

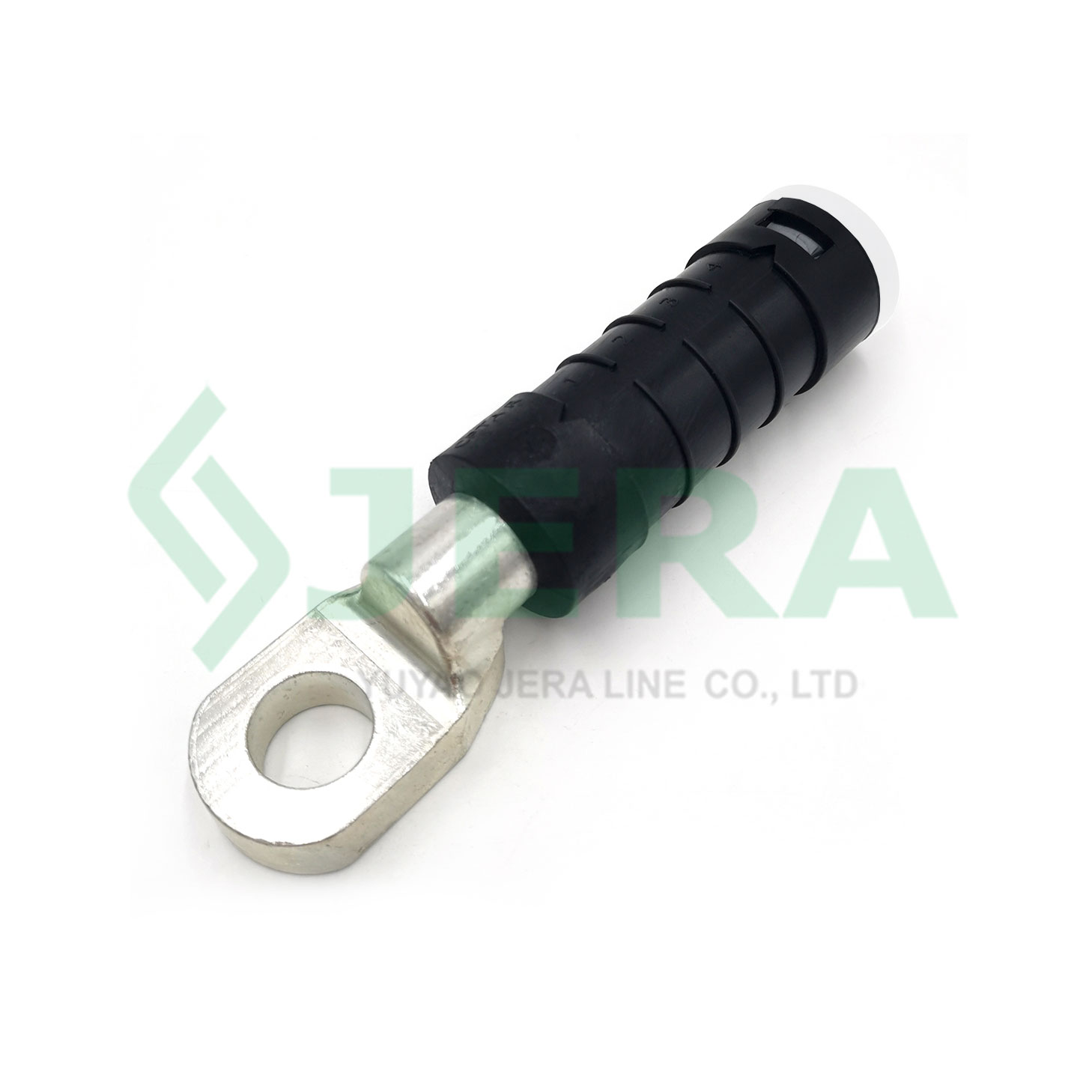

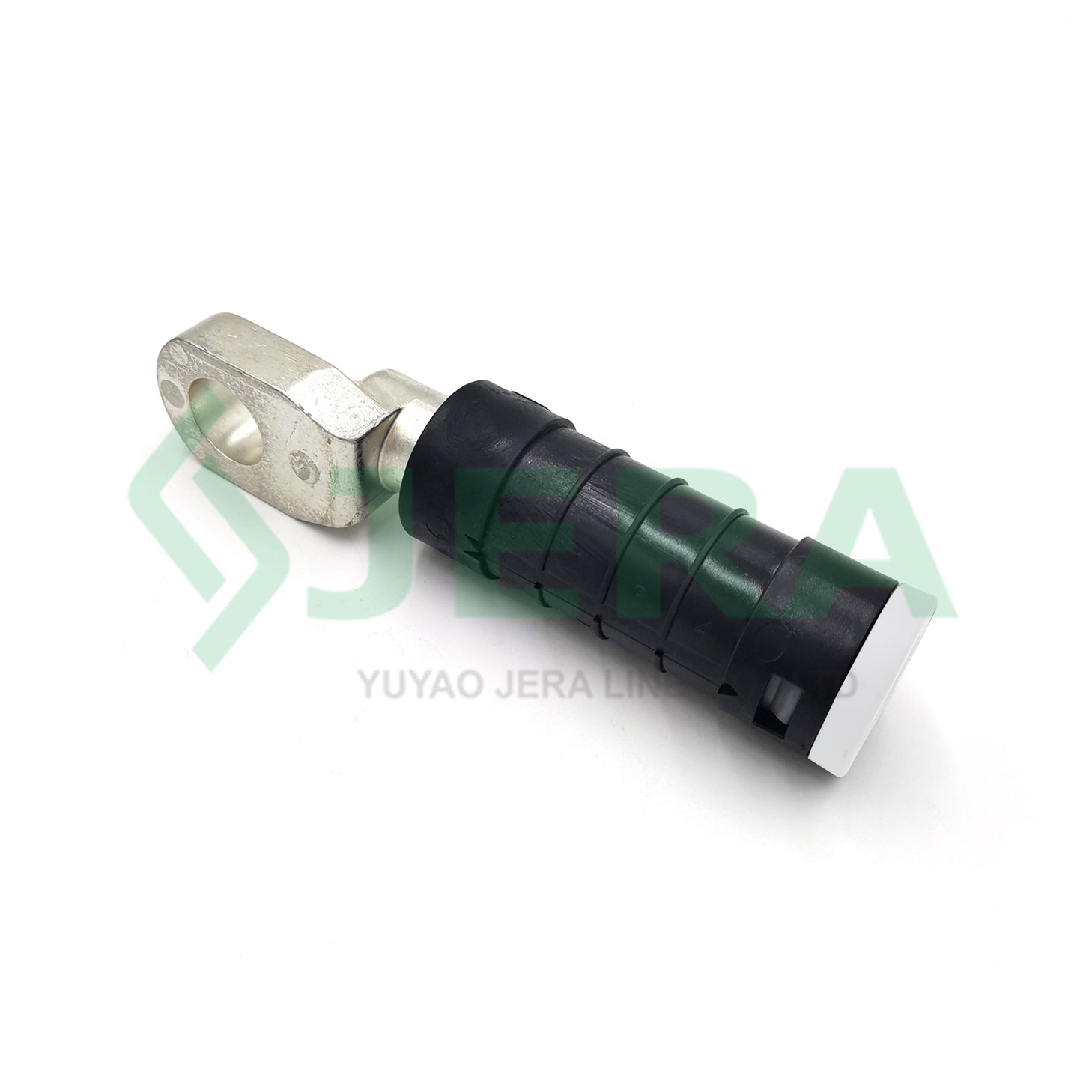

Pre-insulated Lug CPTA-70

Pre-insulated Electrical Lug, 70 mm2 Aluminum and copper cable, tin covered Aluminum Alloy body for bimetal usage, waterproof outdoor application

Features

Easy and quick installation with crimping tools E173
Tin covered aluminum Alloy material, it can be applied with both AL and CU cables
Pre-insulated lug, prevents water leakage and moisture of ABC cable to indoor equipment
Detail marking with letter and rubber color, to distinguish the size quickly
Competitive price, factroy location in China

DESCRIPTION

TEST

REVIEW

Application

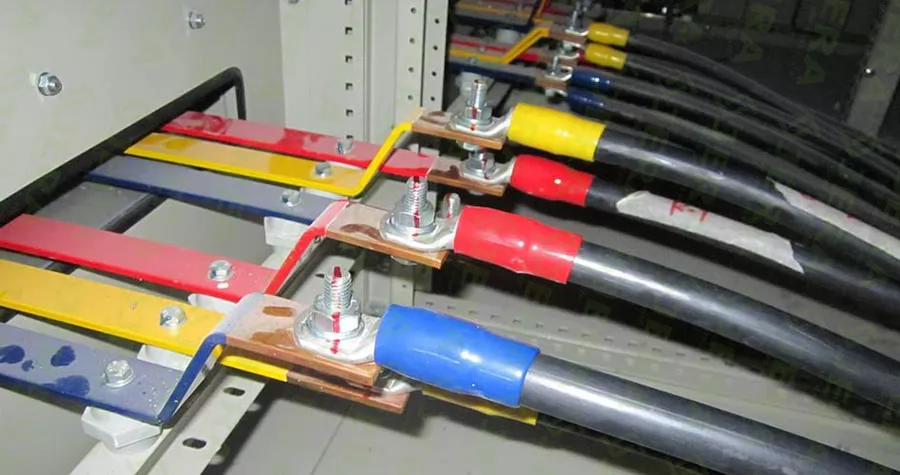

Pre-insulated Electrical Lug CPTA-70 is suitable for the connection between distribution network from the outdoor to the indoor busbar or connect other electrical equipment up to 1KV.

The insulation of Terminal crimping cable lug is good at outdoor application agaist water and moisture.

The application of the Pre-Insulated cable Lug CPTA-70 includes:

· Connecting power cables to electrical equipment such as switches, circuit breakers, or transformers.

· Joining wires together in electrical panels or distribution boxes.

· Other solution for electrical wiring

Technical specification

Product code	Cable size, mm2	Length L,mm	Crimping Tool	End cup color
CPTA-70	70	101	E173	White

Components and Materials

Electrical cable crimping lug is under Research and Design RnD by Jera Line, a direct factory location in China, it consists of the following main part:

Components	Materials
Body	Tin covered Aluminum Alloy
Insulation	UV resistance Polypropylene
End cap	UV resistance Polypropylene

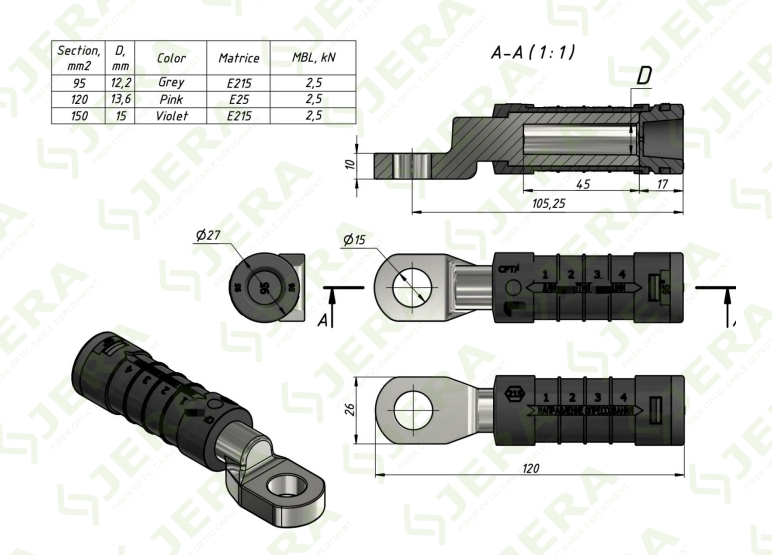

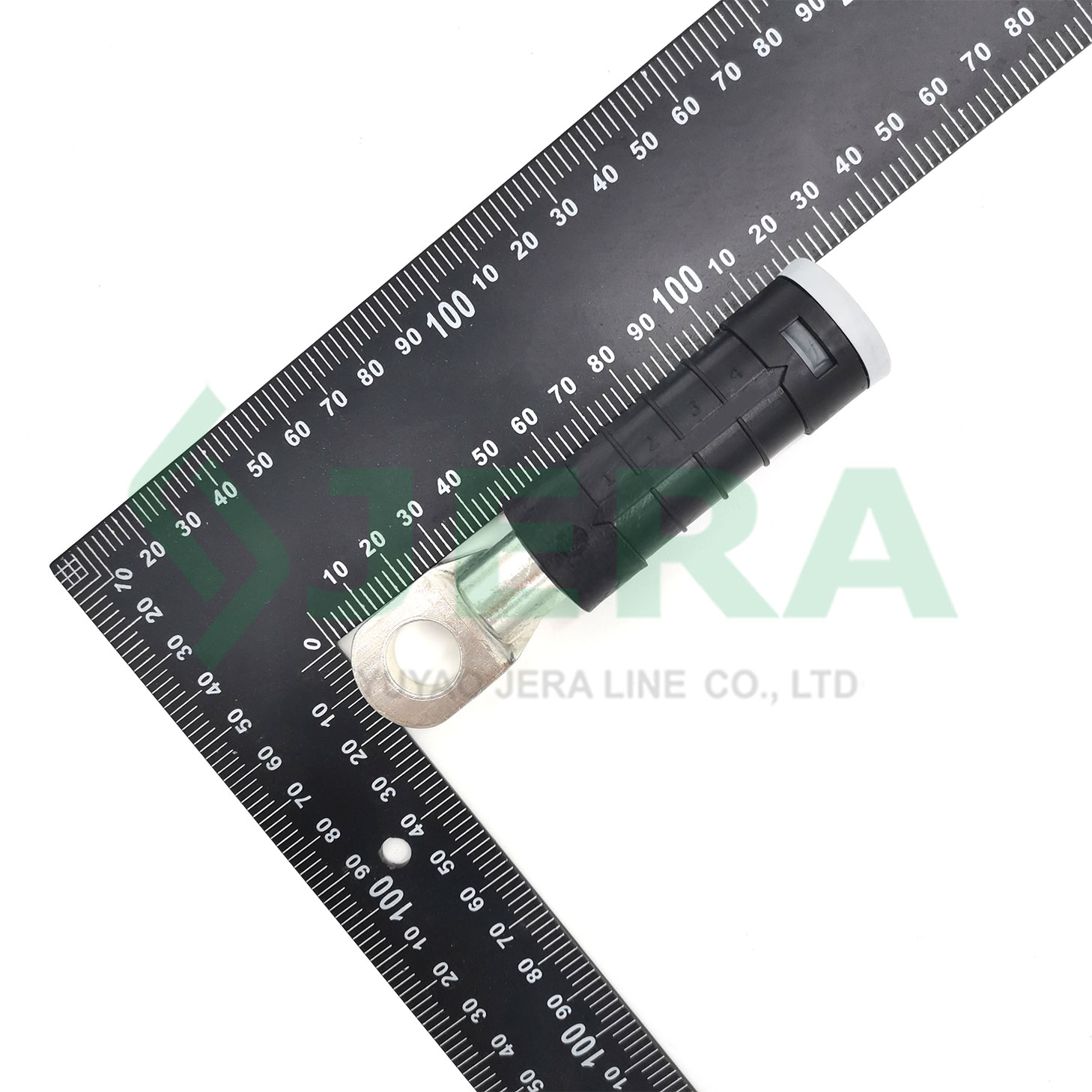

Dimensions

Test

Electrical Crimp Wire Terminal CPTA-70 has undergone rigorous Mechanical properties & performance validation by Laboratory Testing Equipments.

Here is the example for Crimping test:

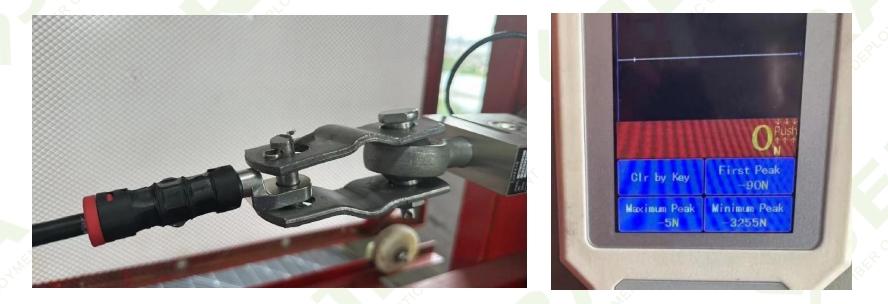

Test scope: Apply the CPTA-70 with the power cable of 70 mm2 size, inspect if there will be any breaking of plastic body after E173 crimping tool usage. Applied according to manufacturer instructions following to 1, 2, 3 crimping zones.
