LV overvoltage and over currecnt equipment is designed to safeguard electrical systems from excess voltage spikes and excessive current flow, which can damage components and disrupt operations.
This type of device is formally referred to as a low-voltage surge arrester, which is also known as an LV overvoltage protective device.
• SA-0.5/10
• SA-0.66/5
|
Item No. |
Max allowable voltage, V |
Voltage protection level, V |
Nominal discharge current, kA |
Maximum discharge current, kA |
Short-circuit withstand capability, kA |
|

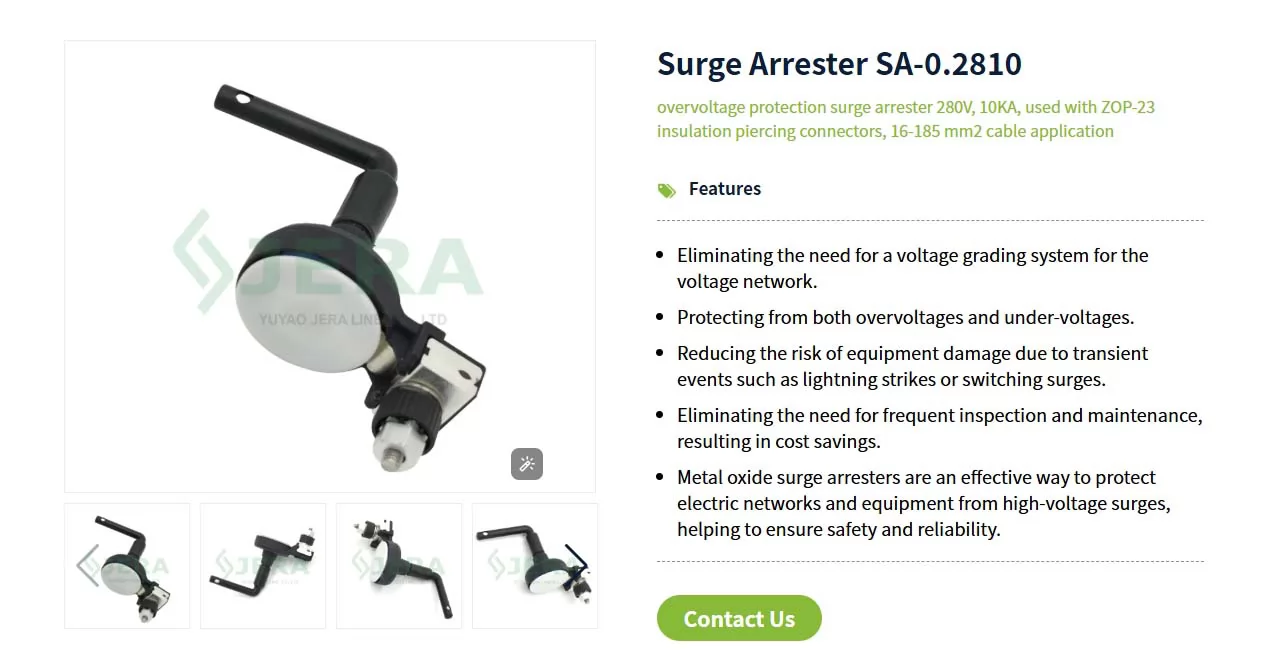

SA-0.28/10 |
280 |
1100 |
10 |
40 |
4.5 |
|
SA-0.5/10 |
500 |
1680 |
10 |
40 |
4.5 |
|
SA-0.66/5 |
660 |
2465 |
5 |
35 |
4.5 |
Jera Line offers the following LV surge arresters, also known as Metal Oxide Surge Arresters (MOSA), which are designed for overhead lines and distribution transformers.
• Fast Response Time
• No Power Frequency Follow Current
• Auto-reset Function
When the voltage and current return to normal value, the power will be automatically restored.
• Long Lifespan
Typically lasts 20-30 years with proper maintenance.
• No need any voltage grading systems
• Protecting from both overvoltages and under-voltages
• Protect the components of electrical systems
• Indicate the system fault through the LED light
Protecting residential or commercial appliances, solar inverters, and LV distribution panels.
When the current/voltage exceeds or below the set value, the relay automatically disconnects the power to prevent fires and safeguard electrical devices.
When the voltage/current return to normal values, the system is automatically restart.
Jera Line produce low voltage surge arresters in accordance with IEC 61643, which has various testing demands for reliability, mechanical and environmental performance, safety and operational behavior.

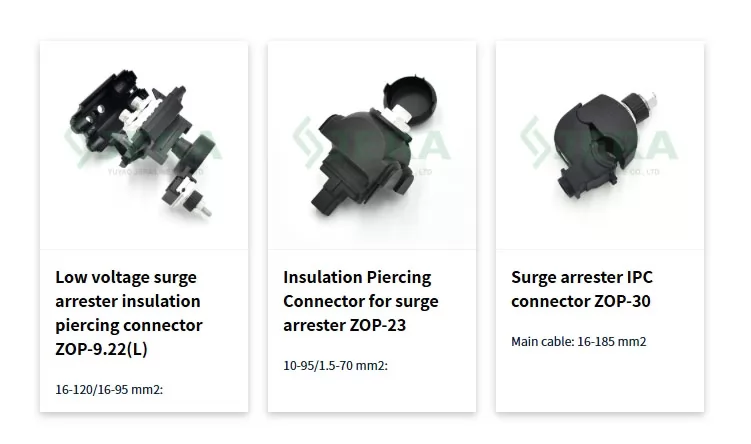

Jera line produces low voltage insulation piercing connectors that can be used with surge arrester.
Below are the key parameters:
|
Item No. |
Cable size, mm²（Main） |
Cable size, mm²（Tap） |
Torque, N*m |
|
16-120 |
16-95 |
20 |
|
|
10-95 |
1.5-70 |
20 |
|
|
16-185 |
/ |
16 |
1. Jera Line is a direct factory from China, committed offers reliable and affordable budget products for aerial and underground cables.
2. Jera Line has internal laboratory and experienced engineers to proceed essential quality test conform to EN-50483-4, IEC-61238-1, NFC 33020 for daily inspection or new product development.
3. Producing with over 5000㎡area of facilities including plastic workshop, CNC metals workshop, press forming workshop, mould processing workshop, products assembly workshop and CNC machining workshop.
4. Favourable payment terms to ease delivery waiting from China.
5. Both OEM and ODM services are available.
6. Extensive global trade experience.
7. Reliable after-sales warranty.
8. Offers a variety of LV&MV power line accessories and protections
Jera Line is a leading manufacturer from China that has extensive experience in the protection of LV&MV power lines. The low voltage surge arrester is one of the core product and is recommended to be used together with the IPC (ZOP-9.22(L), ZOP-23, ZOP-30) produced by Jera Line.
For more information, please don’t hesitate to contact us!
