The suspension clamp is used for the direct suspension of round fiber optic ADSS cables at intermediate poles on straight routes.designed for tensioning and fastening stainless steel straps with buckle to fix hardware fittings (Anchor bracket, aerial hooks) on poles during aerial electrical line deployments.
Technical specification
Code
Band width(mm)
Band thickness(mm)
Weight
Material
MBT-004
<25
<1.5
1.3KG
Galvanized steel & stainless steel
Components and materials
This banding tool mbt-004 is made of stainless steel and galvanized steel which provide good mechanical strength and weather resistance. The operations of cutting, tension,banding can be done with spin tension handle, spring-loaded gripper and cutter.
Dimension

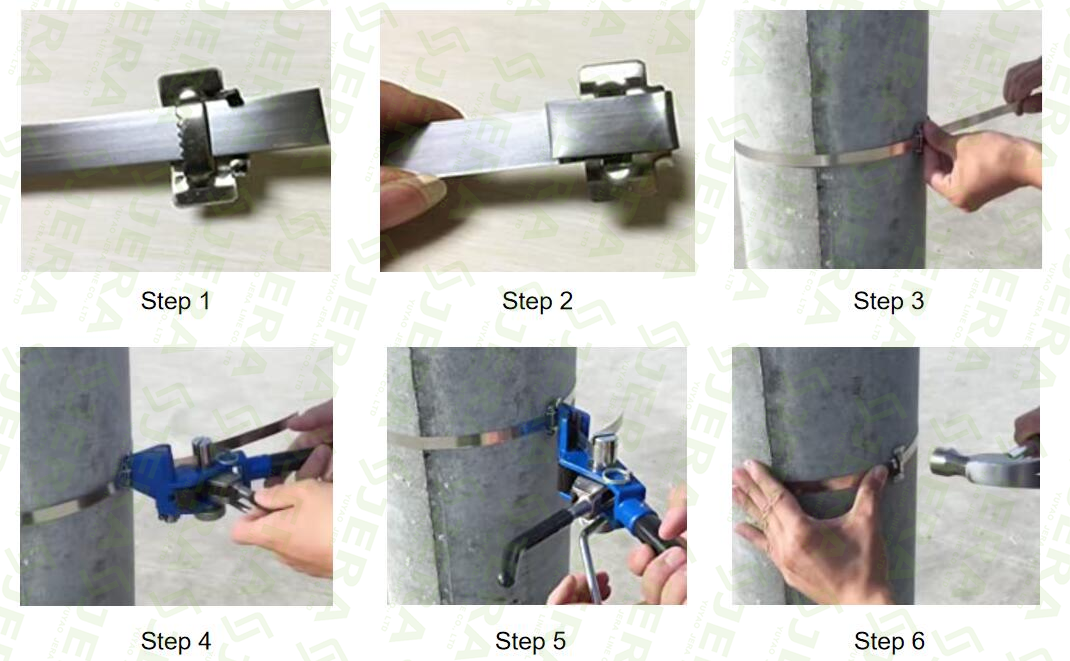

Operation Instructions
Step 1: Choose a suitable stainless steel band and buckle, slide the band through the buckle, obligate 4cm length as picture.
Step 2: Bend the obligated 5cm length band in the step 1, to fasten stainless steel buckle.
Step 3: When you are tightening, thread the other end of band as the photo shown, and obligate at least 10cm length to prepare stainless steel strapping tool using.
Step 4: Hole tool with your left hand line up the slots in the nose and ratchet so they are on a straight line. Insert the band and hold short handle, push long handle forward in full arc to tighten the band.
Step 5: When the band is tightened, turn over the banding tool in reverse direction. Then pull the handle of the blade to cut the band.
Step 6: Hammer the two ear of buckle flat to stick the last reservation tie head.
