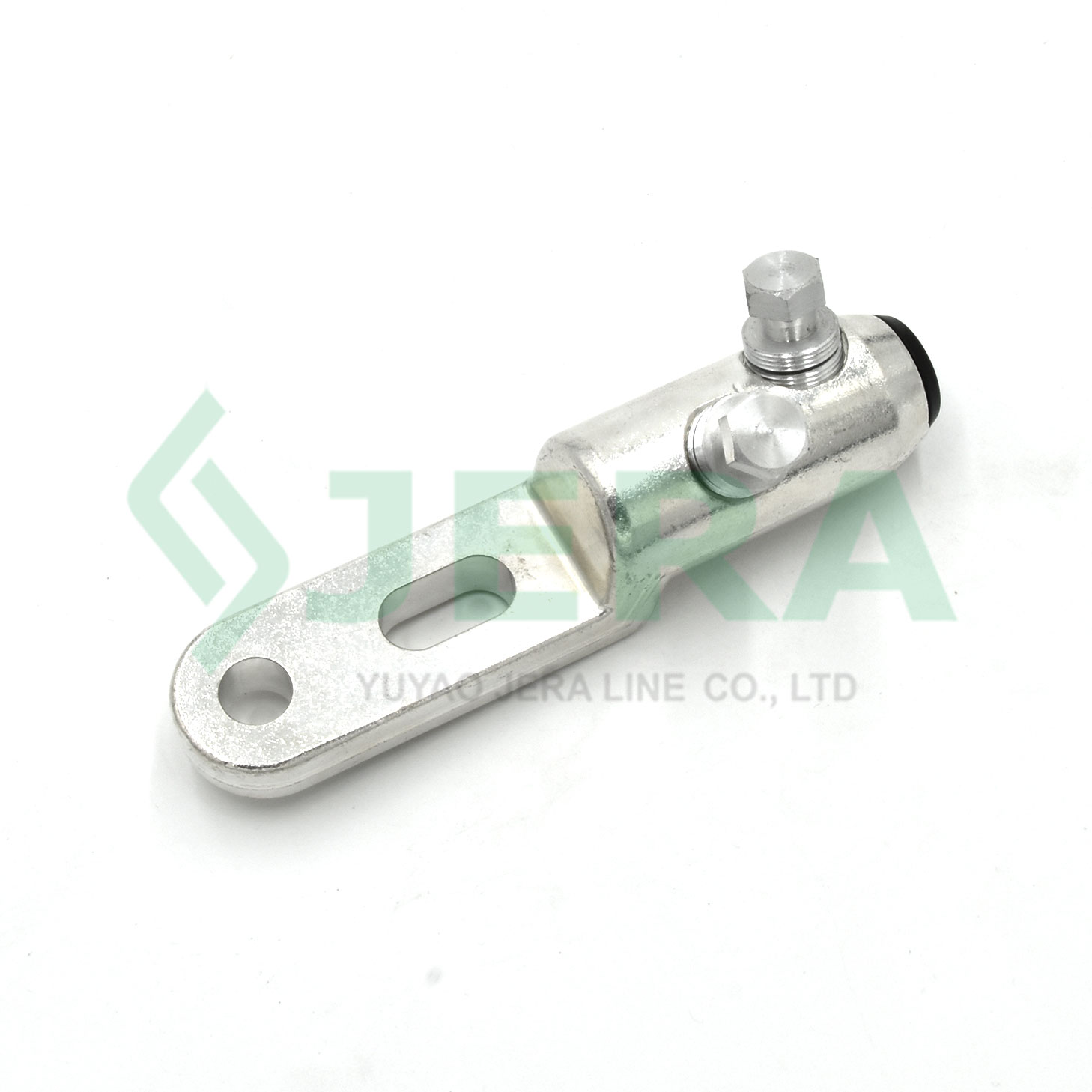

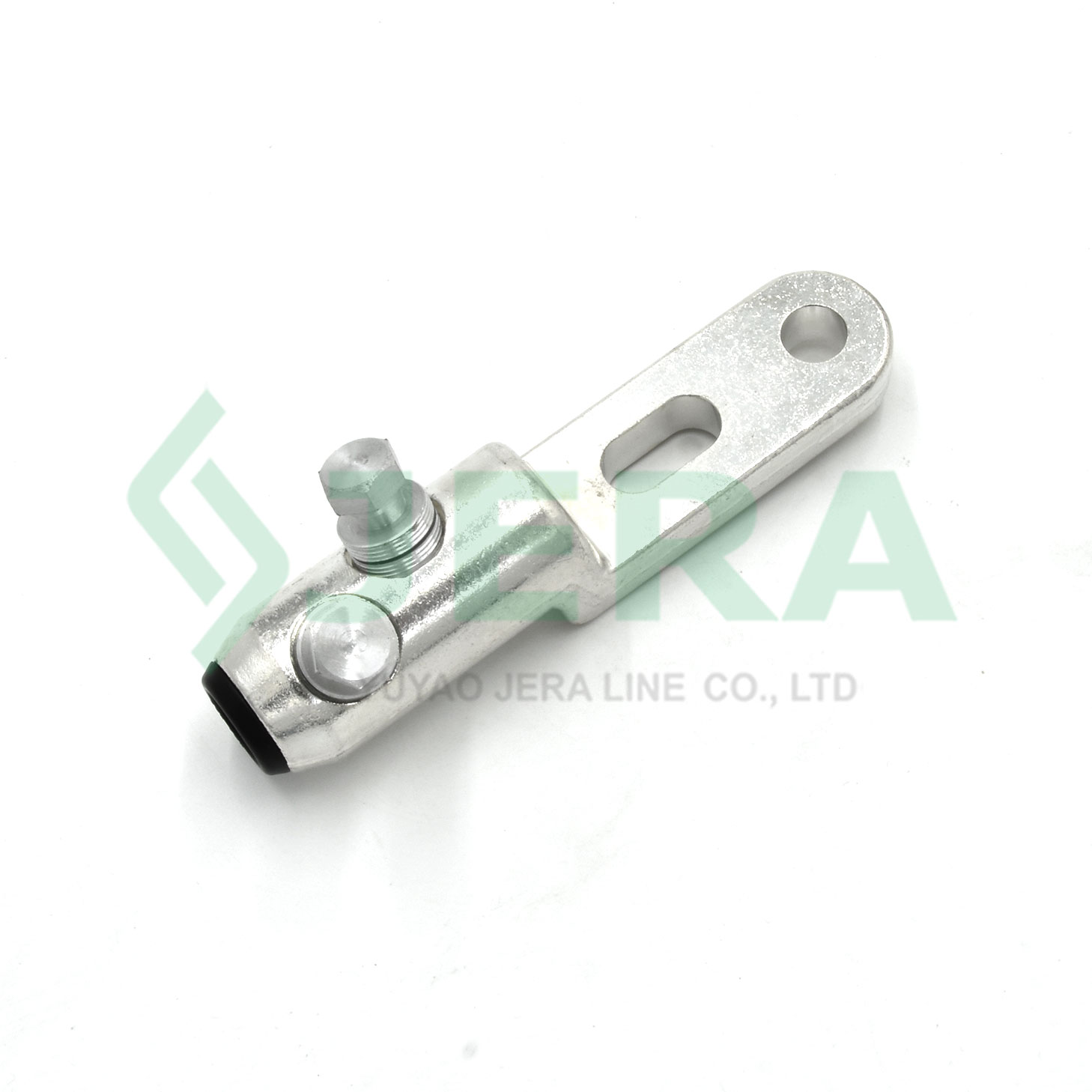

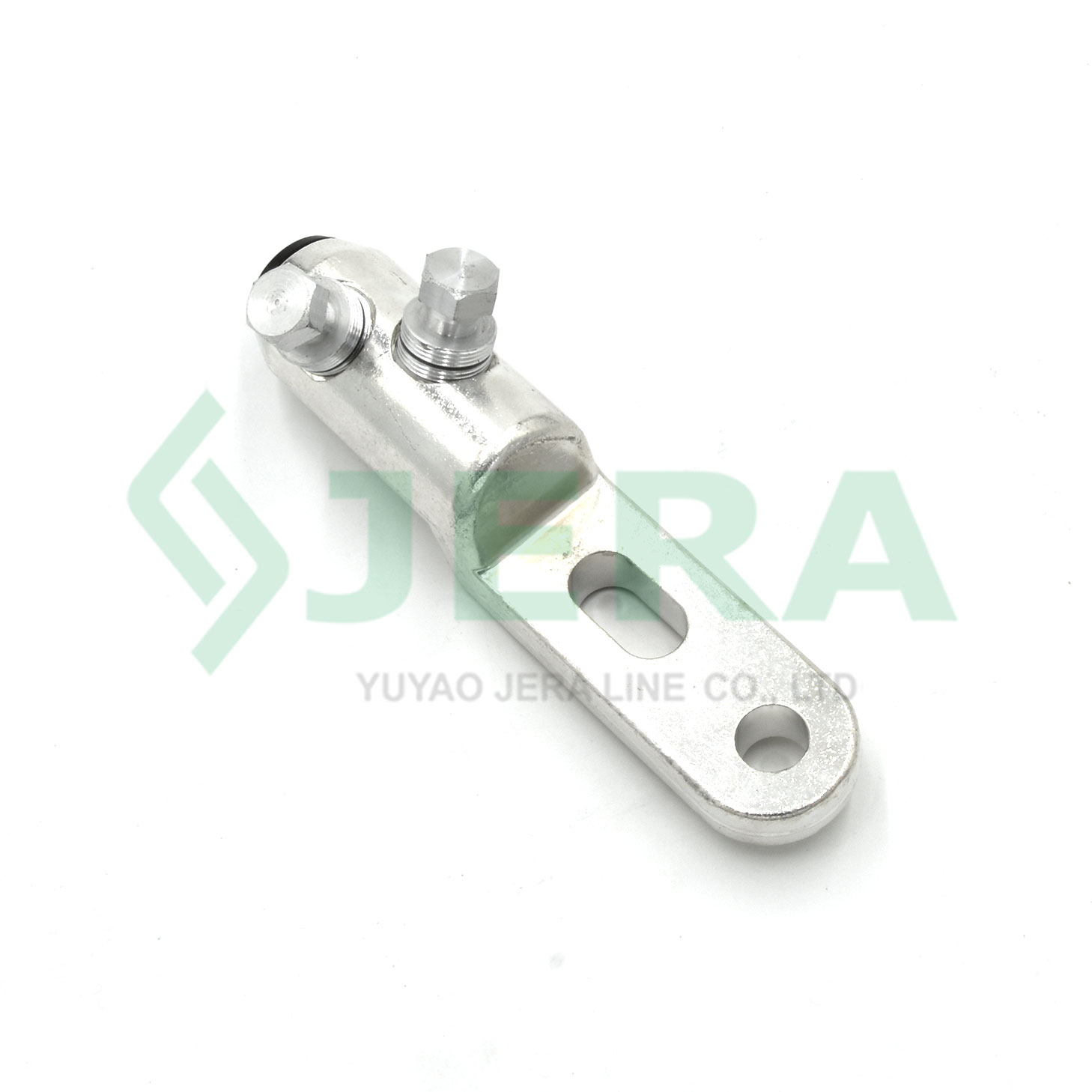

shearhead 2-hole terminal lug CLB-2K-vzt-36-2-25-150

2-Hole mechanical terminal connector, long palm MV cable lug, 25-150mm2 AL and Copper cable

Features

Quick installation: shear-off bolt technology
Wide cable application range: 50–240 mm² conductors.
Complies with IEC 61238-1-3 international standard
Tin-plated aluminium body, suitable for bi-metal (Al/Cu) cable connections.
Long palm design for improved mechanical stability and enhanced electrical contact.
Direct manufacturer in China, ensuring competitive pricing and reliable supply.

DESCRIPTION

TEST

REVIEW

Application

The CLB-2K-VzT-36-2-25-150 mechanical lug is engineered for the secure and reliable termination of low and medium voltage cables—without the need for crimping tools. It provides a robust mechanical and electrical connection to busbars, transformers, switchgear, distribution cabinets, and grounding systems, and is compatible with both aluminium and copper conductors in installations rated up to 36 kV.

Applications

• Low Voltage (LV) and Medium Voltage (MV) distribution networks

• Renewable energy systems, including solar farms and wind power installations

• Industrial power panels and switchgear assemblies

• Utility grid connections where crimping tools are unavailable or impractical

Technical specification

Product code	Cable size, mm2	Bolt number	Application cable
CLB-2K-VzT-36-2-25-150	16-95	2	Copper/Aluminum

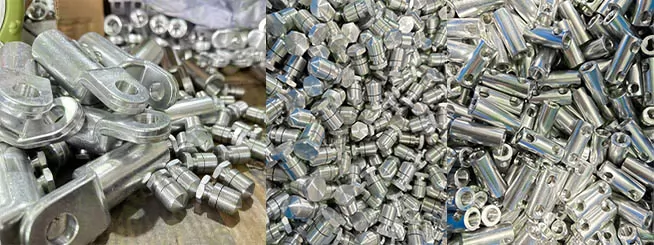

Components and Materials

2-hole shearhead bolted lug CLB-2K-VzT-36-2-16-95 is designed and manufactured in Jera Line factory, who has experience more than 10 years and had exported to different countries in the word. Jera Line has lathe workshop, CNC machines for producing shear head bolts, the products price is competitive.

The Long Palm Long Barrel lug’s body is made of a high-tensile, tin-plated aluminium alloy. The internal surface of the conductor holes are grooved.

Components	Materials
Body	Aluminum alloy, tin covered
Shear off torque bolts	Aluminum alloy
Compensating ring	UV resistant FR polymer

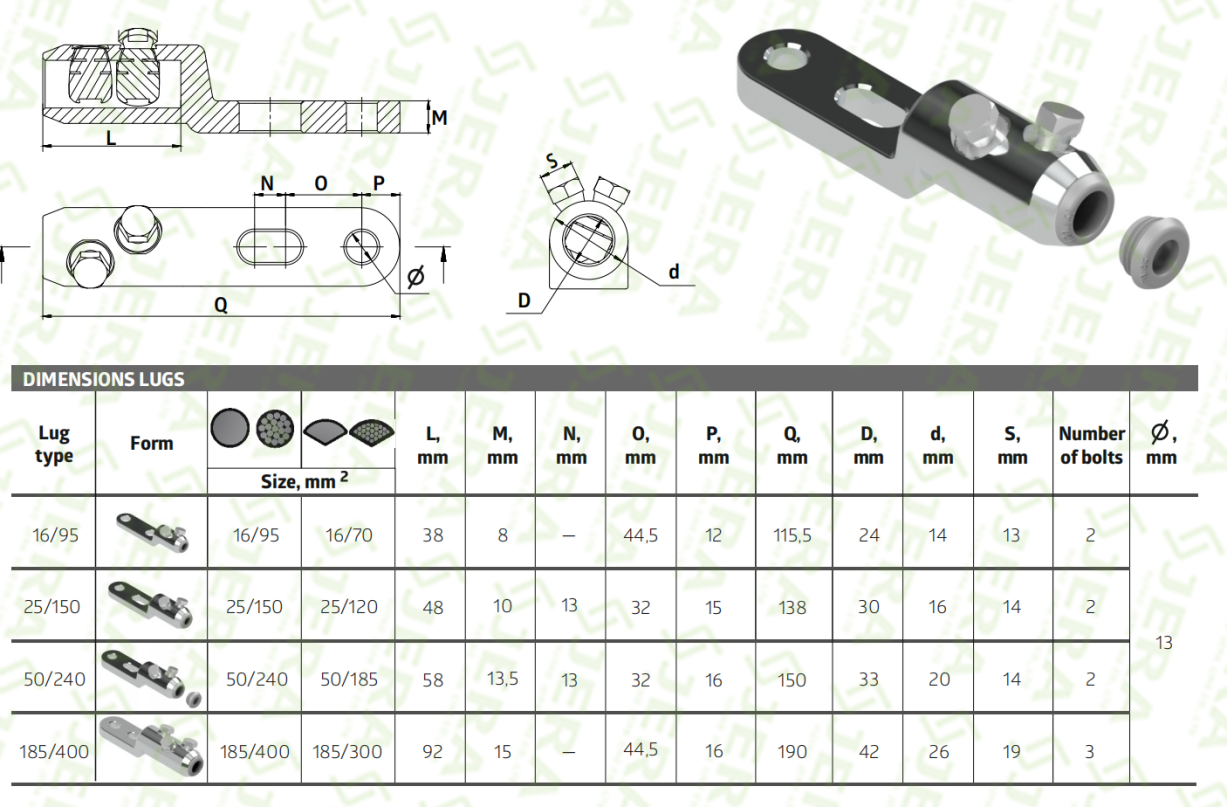

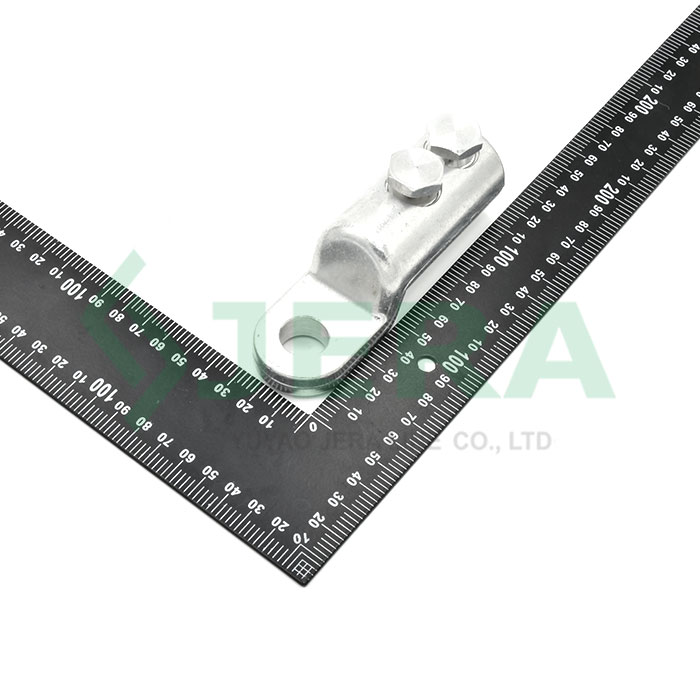

Dimensions

Test

The CLB-2K-VzT-36-2-25-150 mechanical lug undergoes rigorous testing to ensure it meets international standards for mechanical and electrical performance.

Here's a the typical tests performed:

• Visual Inspection & Dimensional Verification

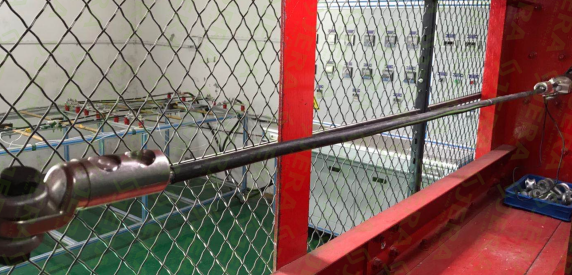

• Mechanical tension test according to standard IEC 61238-1-3

• Shear head functions test according to standard IEC 61238-1-3

It Complies with IEC 61238-1-3 standard for medium voltage applications up to 36 kV, and the actory test reports are available upon request for quality assurance and project documentation.
