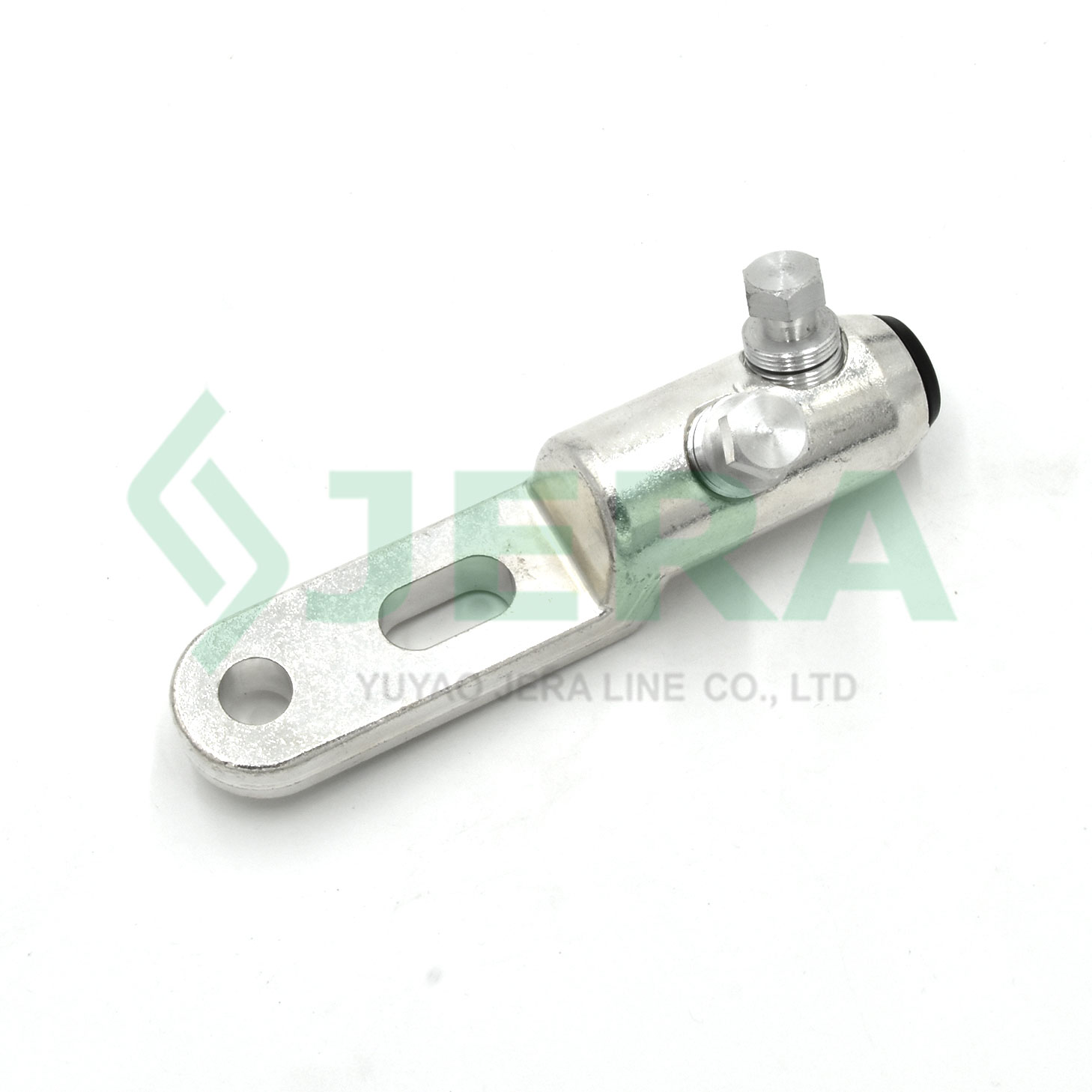

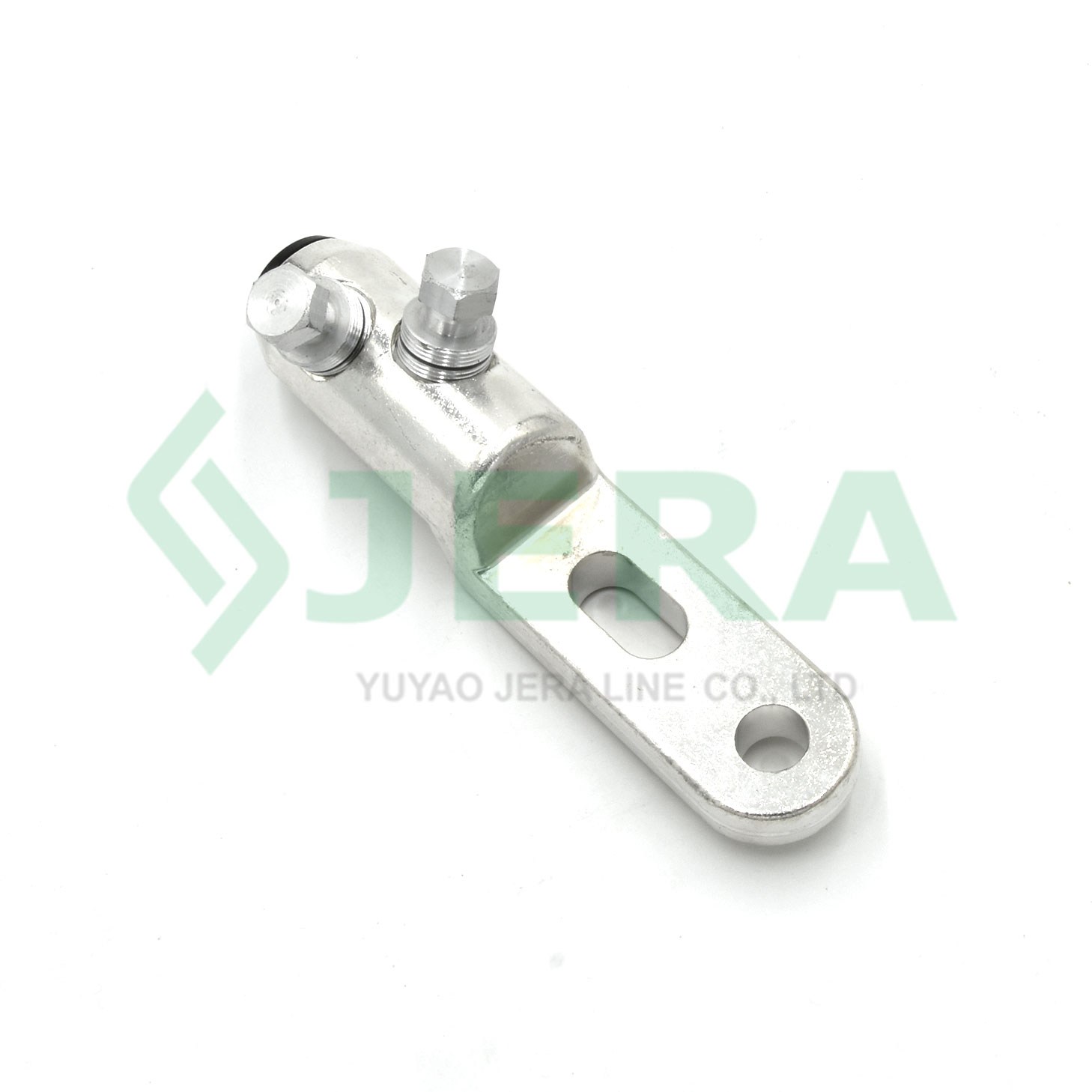

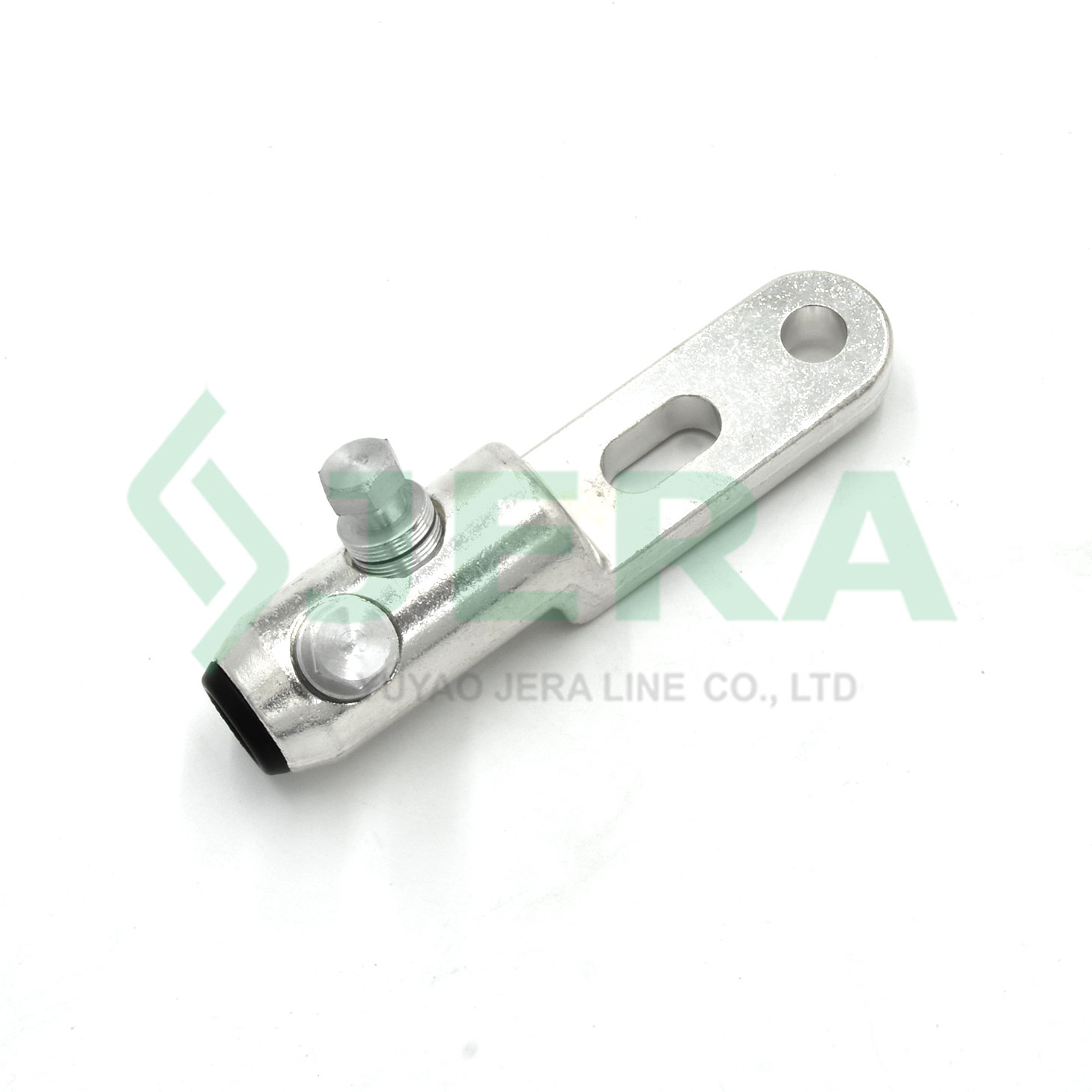

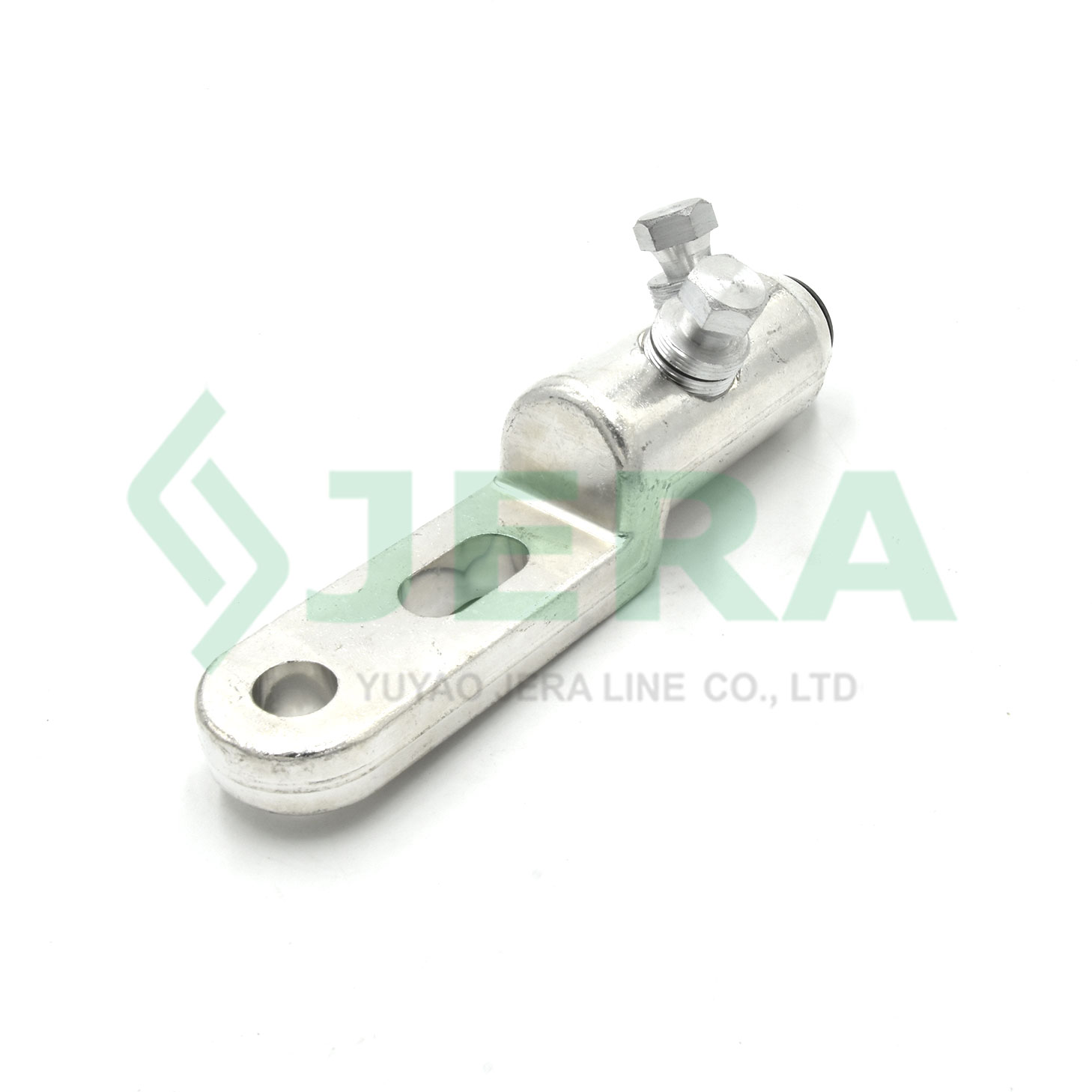

Shearhead connector lugs Long Palm Long Barrel CLB-2K-VTz-36-2-50-240

2-Hole Terminal Lugs, 50-240mm2 36KV copper and aluminum power cable application, long palm lugs

Features

Wide cable application range from 50-240mm2
Comply with IEC-61238-1-3 international standard
Fast installatio with shearhead torque bolt
Compatible with Aluminum and Copper Cables
High mechanical strength, tested by horizontal mechanical strength machine
Direct factory from China

DESCRIPTION

TEST

REVIEW

Application

Two Hole long Barrel Mechanical Lugs CLB-2K-VTz-36-2-50-240 is designed for secure termination of aluminum or copper conductors. It features a long barrel for enhanced crimping strength and two mounting holes for stable attachment to busbars or equipment pads.The application cable size is from 50mm2-240mm2, voltage up to 36KV.

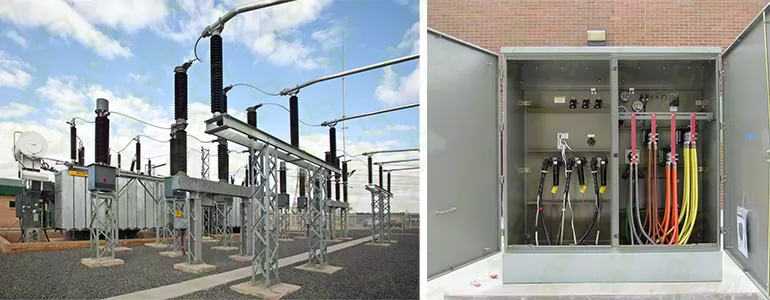

Application areas:

• Medium and Low Voltage Cable Termination

• Substation and Switchgear Connections

• Industrial and Utility Installations

Technical specification

Product code	Cable size, mm2	Torque, Nm	Bolt number	Application cable
CLB-2K-VTz-36-2-50-240	50-240	40/42/44	2	Copper/Aluminum

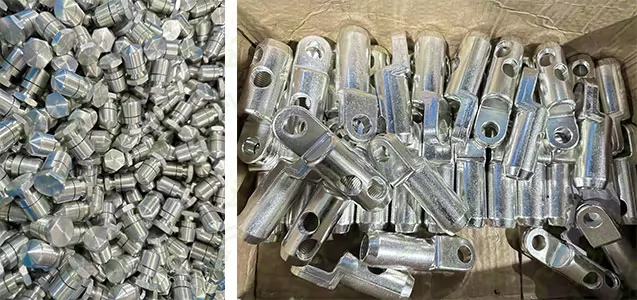

Components and Materials

2-hole Shear bolt terminal lug CLB-2K-VTz-36-2-50-240 is produced by Jera Line factory, who established in 2012, has global experience more than 10 years, as a direct factory location in China with own R&d department, Jera Line can provide competitive price.

The Long Palm Long Barrel lug’s body is made of a high-tensile, tin-plated aluminium alloy. The internal surface of the conductor holes are grooved.

Components	Materials
Body	Aluminum alloy, tin covered
Shear off torque bolts	Aluminum alloy
Compensating ring	UV resistant FR polymer

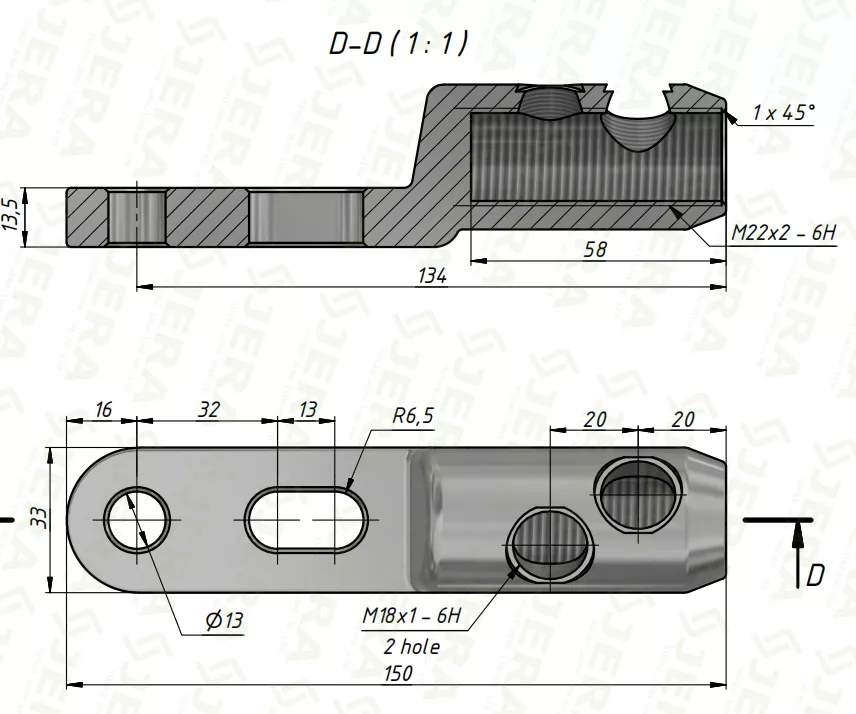

Dimensions

Test

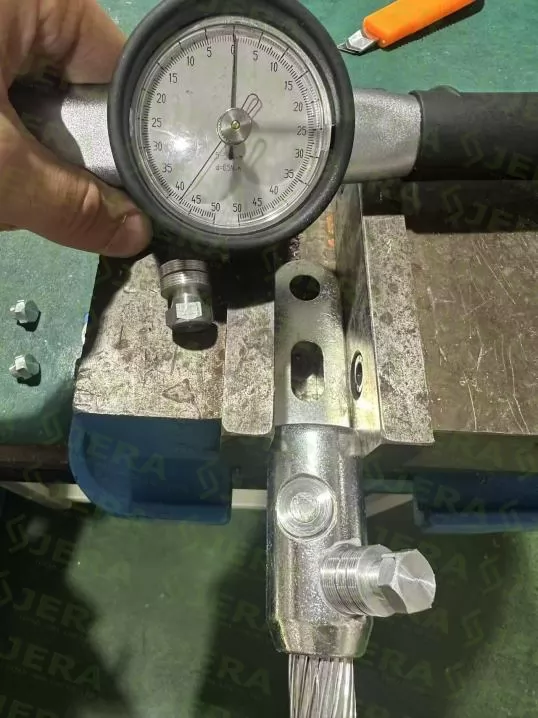

Jera Line 2-hole palm lug CLB-2K-VTz-36-2-50-240 undergoes rigorous testing to ensure it meets international standards for mechanical and electrical performance.

Here's a the typical tests performed:

• Visual Inspection & Dimensional Verification

• Mechanical tension test according to standard IEC 61238-1-3

• Shear head functions test according to standard IEC 61238-1-3

It Complies with IEC 61238-1-3 standard for medium voltage applications up to 36 kV, and the actory test reports are available upon request for quality assurance and project documentation.
