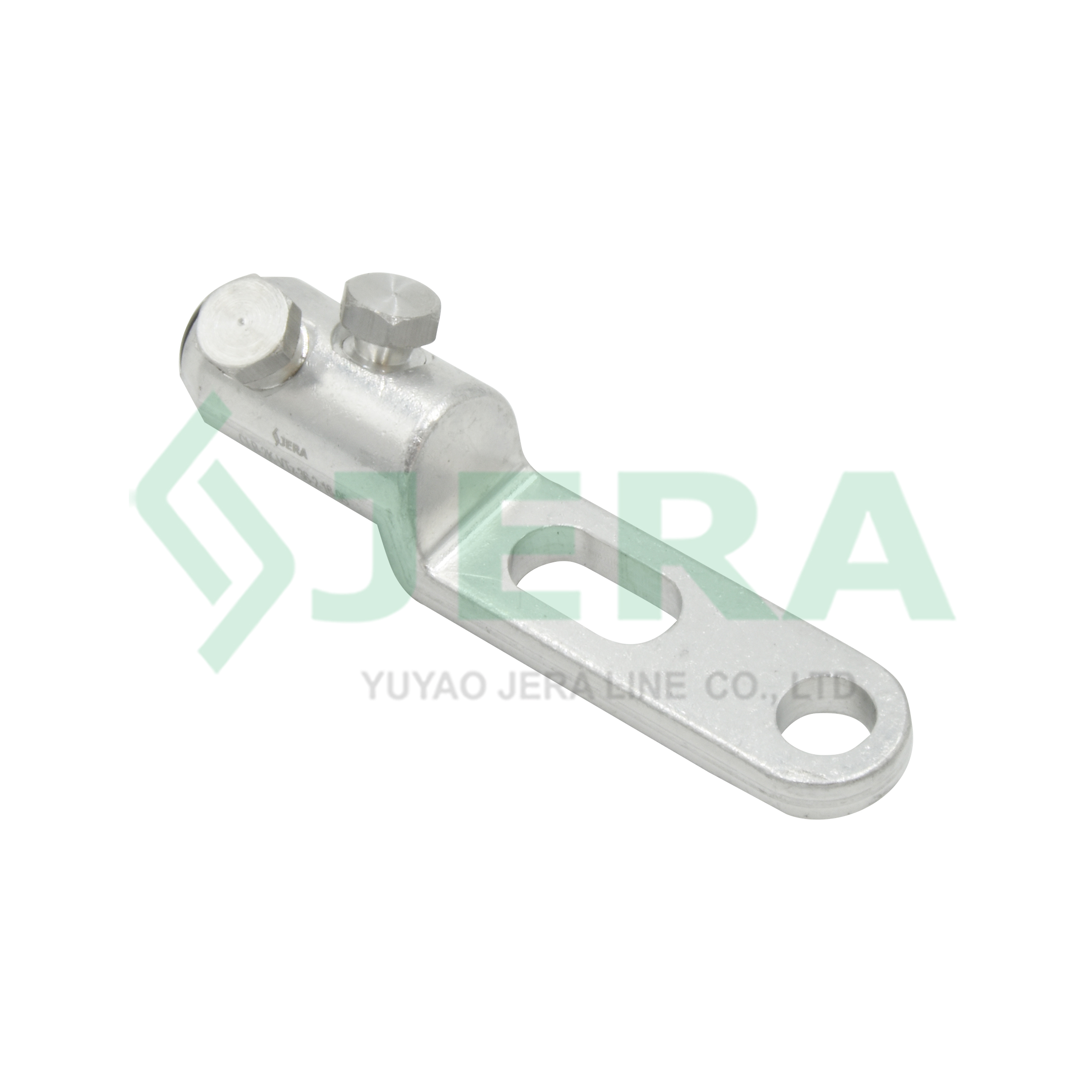

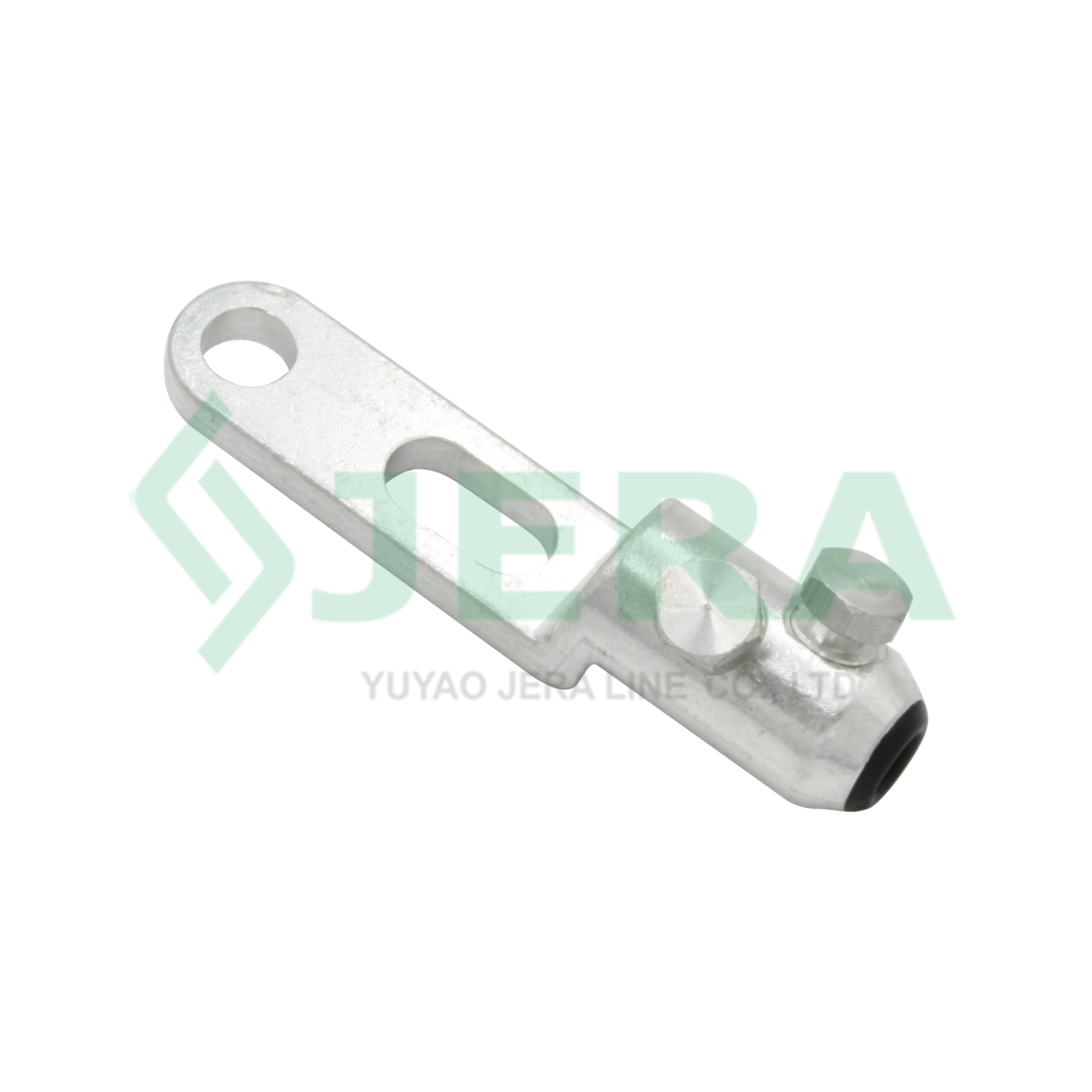

Shearhead long palm cable lug clb-2k-vzt-36-2-16-95

2-Hole Terminal Lugs, 16-95mm2 MV up to 36KV cables, long palm cable lugs for transformer

Features

Quick installation with hex key to shear bolt off
Wide cable application range from 50-240mm2
Comply with IEC-61238-1-3 international standard
Tin covered aluminum body for Bi-metal cables usage
Long palm with Better mechanical stability and Improved electrical contact
Direct factory from China

DESCRIPTION

TEST

REVIEW

Application

Two Hole long palm Mechanical Lugs CLB-2K-VzT-36-2-16-95 is designed for reliable termination of low and medium voltage cables without the need for crimping tools. The cable lug termination of electrical cables to busbars, transformers, switchgear, distribution cabinets, or grounding systems, Suitable for aluminium and copper conductors up to 36KV.

Applications

• Low voltage (LV) and medium voltage (MV) distribution networks.

• Renewable energy installations (solar farms, wind projects).

• Industrial power distribution panels and switchgear.

• Utility grid connections where crimping tools are impractical.

Technical specification

Product code	Cable size, mm2	Torque, Nm	Bolt number	Application cable
CLB-2K-VzT-36-2-16-95	16-95	20/22/24	2	Copper/Aluminum

Components and Materials

2-hole shearhead bolted lug CLB-2K-VzT-36-2-16-95 is designed and manufactured in Jera Line factory, who has experience more than 10 years and had exported to different countries in the word. Jera Line has lathe workshop, CNC machines for producing shear head bolts, the products price is competitive.

The Long Palm Long Barrel lug’s body is made of a high-tensile, tin-plated aluminium alloy. The internal surface of the conductor holes are grooved.

Components	Materials
Body	Aluminum alloy, tin covered
Shear off torque bolts	Aluminum alloy
Compensating ring	UV resistant FR polymer

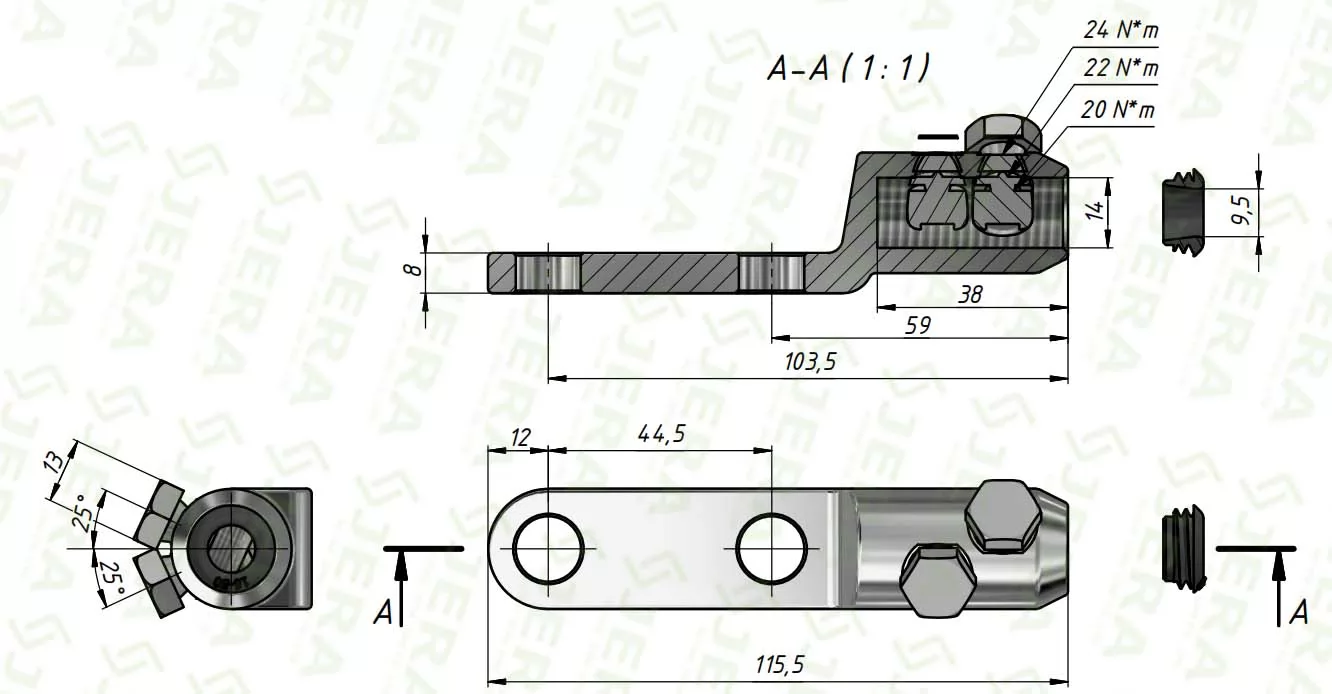

Dimensions

Test

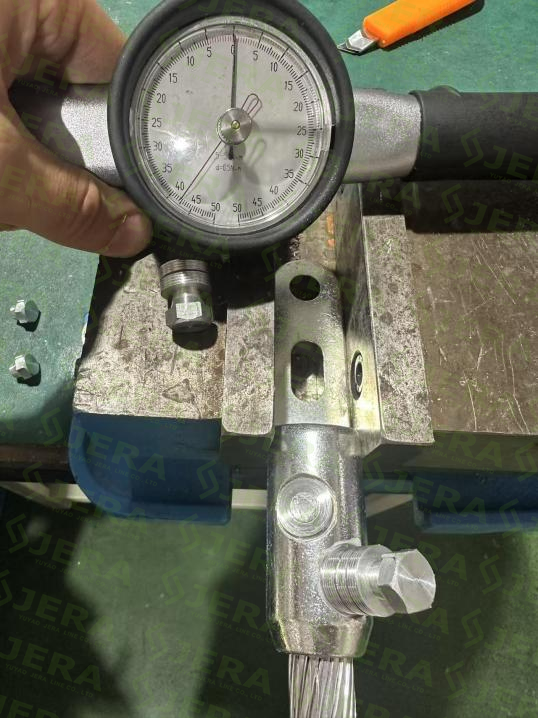

Jera Line 2-hole palm lug CLB-2K-Vzt-36-2-16-95 undergoes rigorous testing to ensure it meets international standards for mechanical and electrical performance.

Here's a the typical tests performed:

• Visual Inspection & Dimensional Verification

• Mechanical tension test according to standard IEC 61238-1-3

• Shear head functions test according to standard IEC 61238-1-3

It complies with the IEC 61238-1-3 standard for medium voltage applications up to 36 kV, and factory test reports are available upon request to support quality assurance and project documentation.
