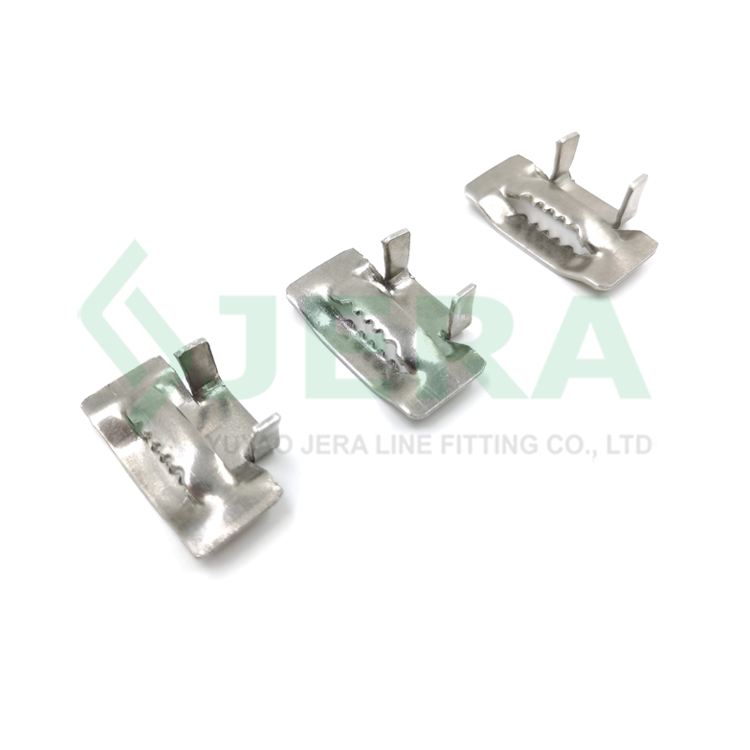

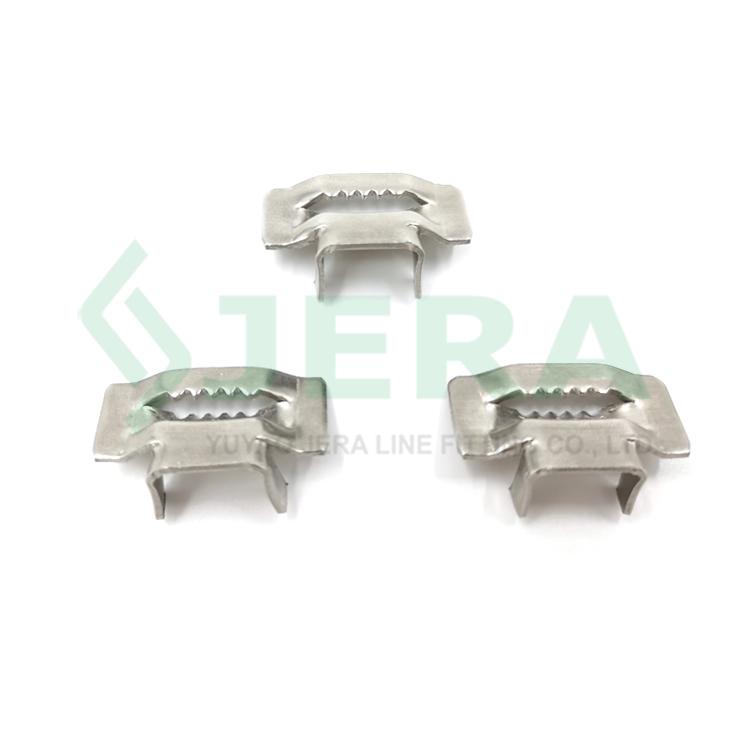

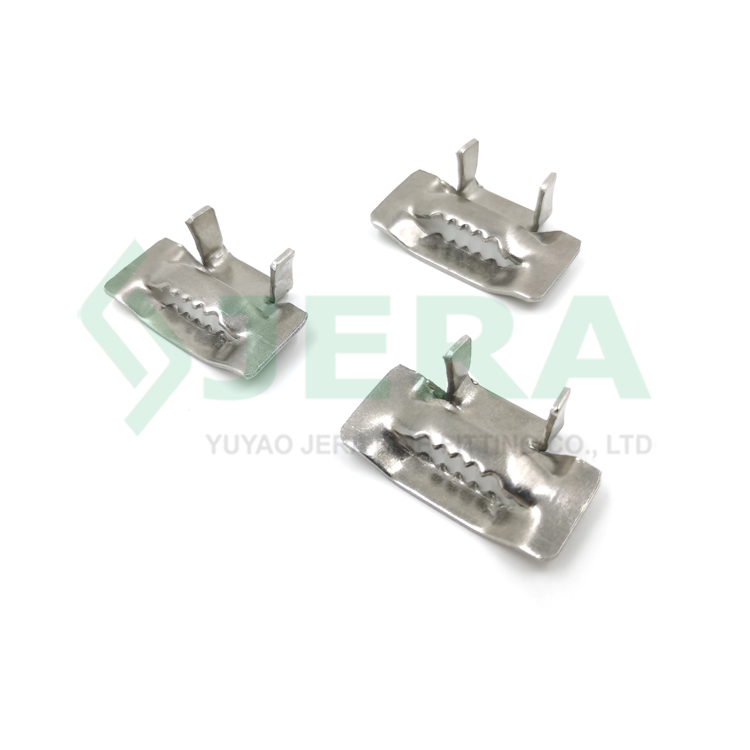

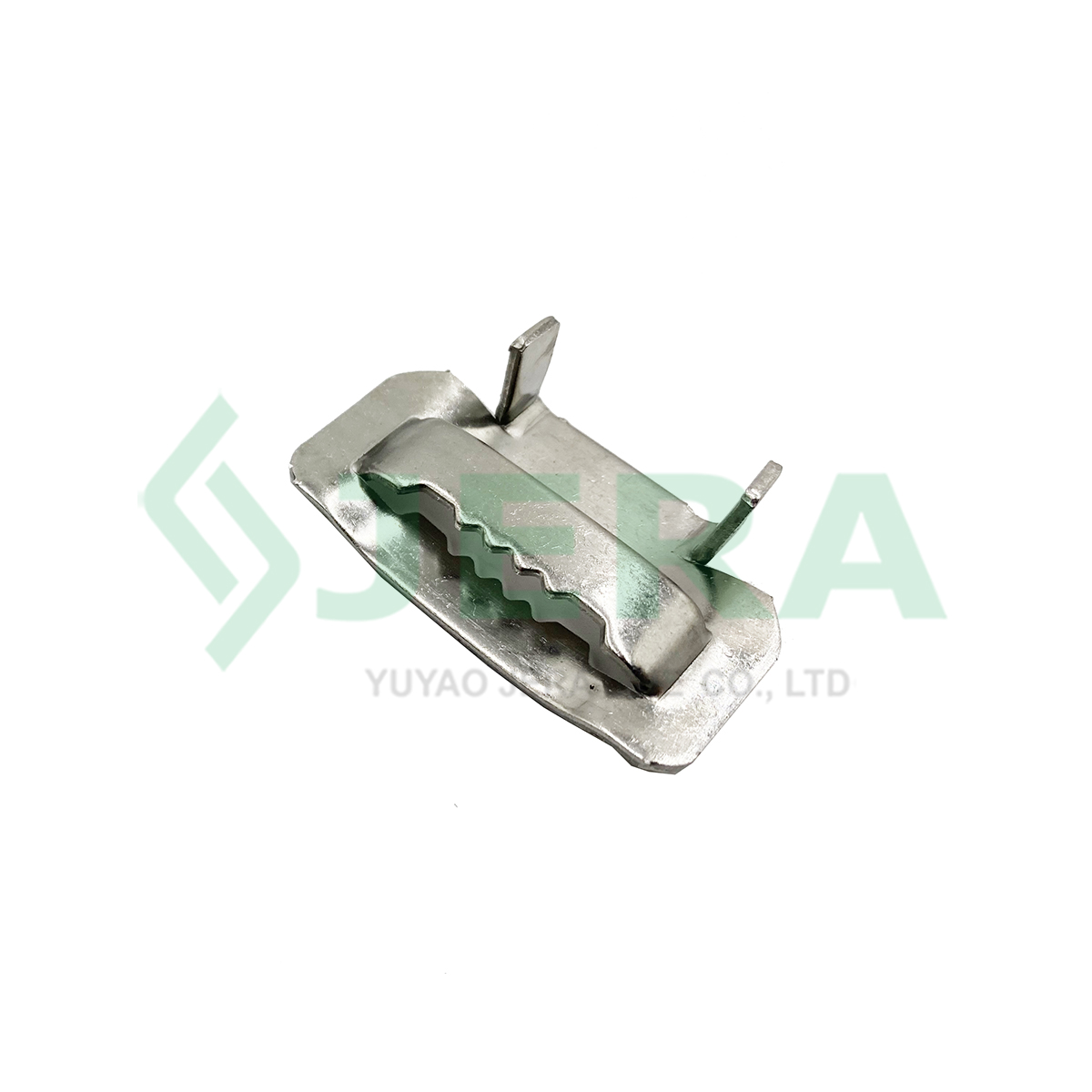

C316 Stainless steel banding buckle KL-16-T also called stainless steel tension buckle, are typically used in conjunction with stainless steel bands to fasten cables and accessories to poles and other structures. It features with high corrosion, environmental stability, easy installation etc.
Technical specification
Product code
Max band width
Grades
AISI316 stainless steel band
5/8” -16mm
316
Components and materials

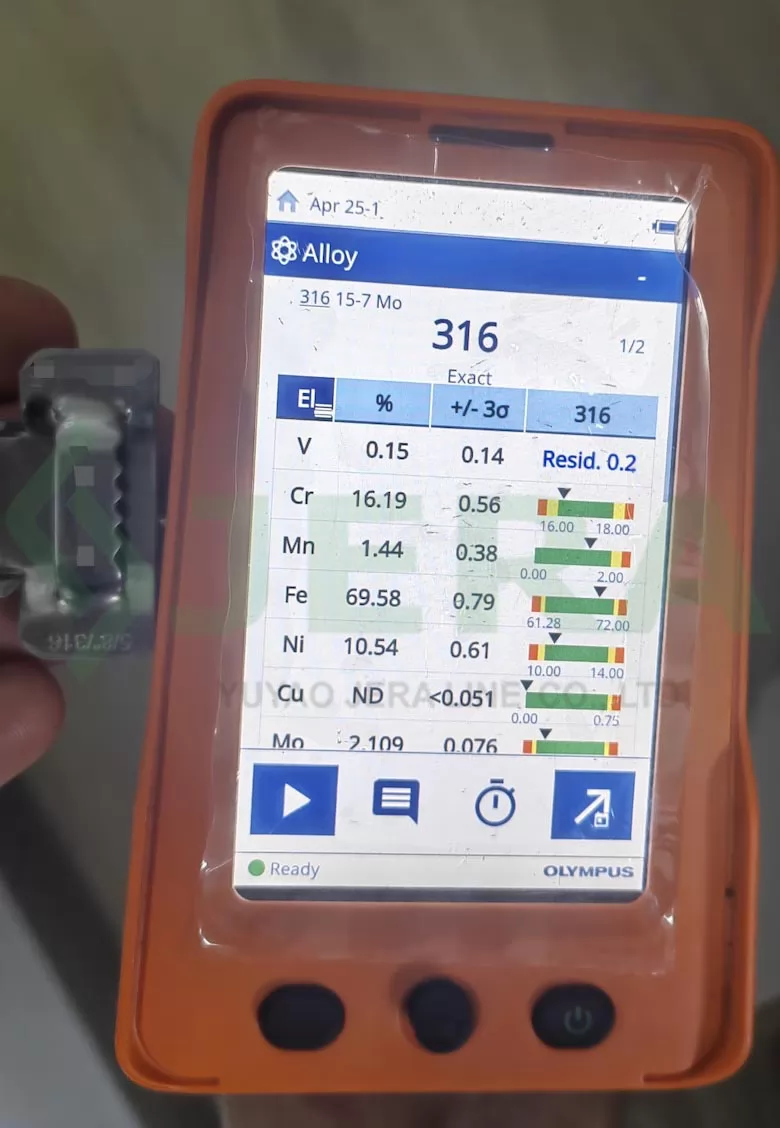

AISI 316 stainless steel cable banding buckle is Tested by: XRF VATANA. Scan the steel wire with testing equipment and record the value.

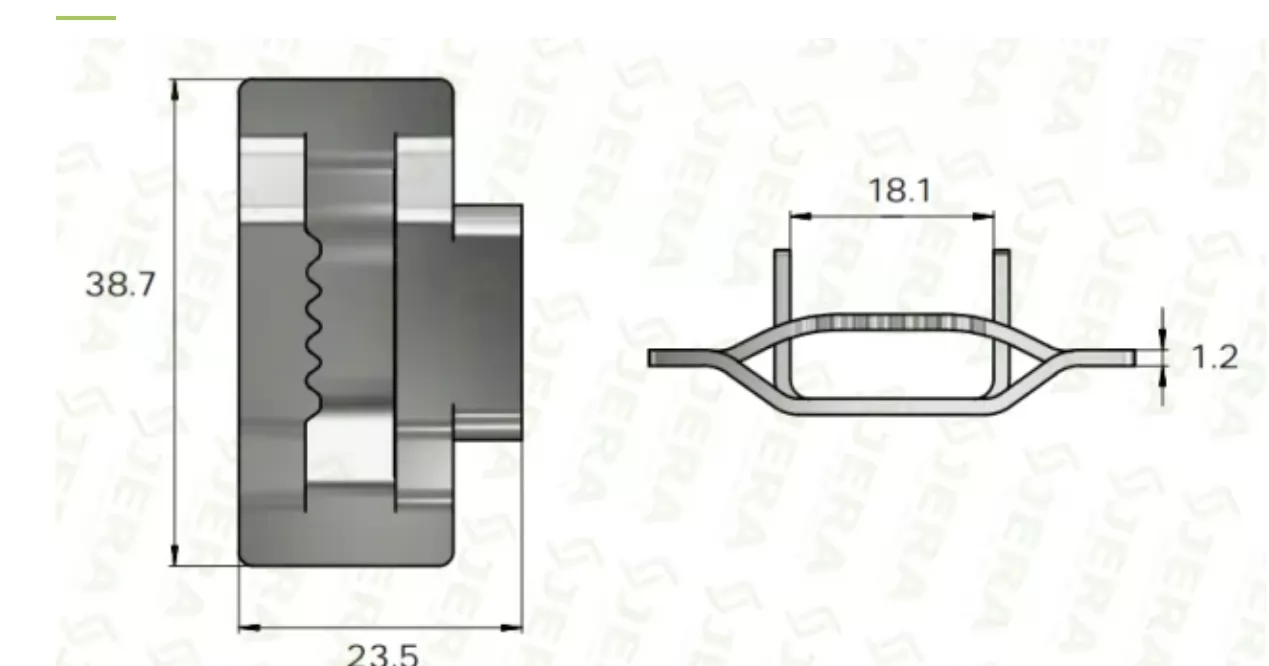

Dimensions

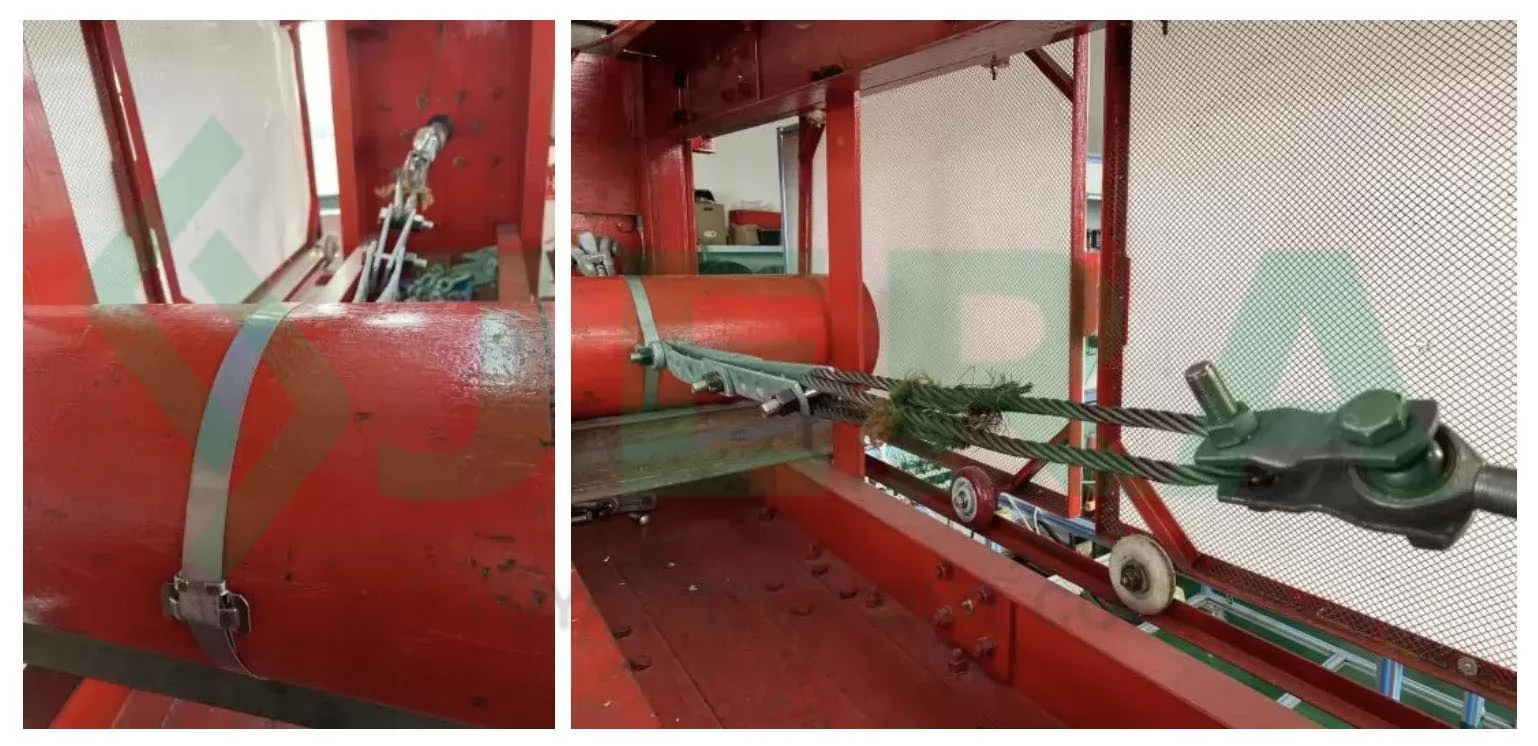

Test
The tensile strength test comply to IEC 61284-1997
Equipment: Testing machine ZD-4
Test scope: Test the buckle when installed with a stainless steel band on the pole, gradually increasing the force on the band. The test simulates the real usage of the buckle during outdoor application. After reaching the required tensile load, the buckle should not break or deform.
Product name
Required tension force, KN
Actual data, KN
Conclusion
Stainless steel buckle KL-16-T-C316
15.0
15.45
Passed
Sample before test:
Conclusion:
The buckle remained intact without any deformation or damage when a tensile load of 15.0KN was applied. Even after the load increased to 15.45KN, the band broke, but the buckle showed no signs of deformation.
This buckle successfully passed the tensile strength test, and we certify its quality after inspection, approving it for further use.

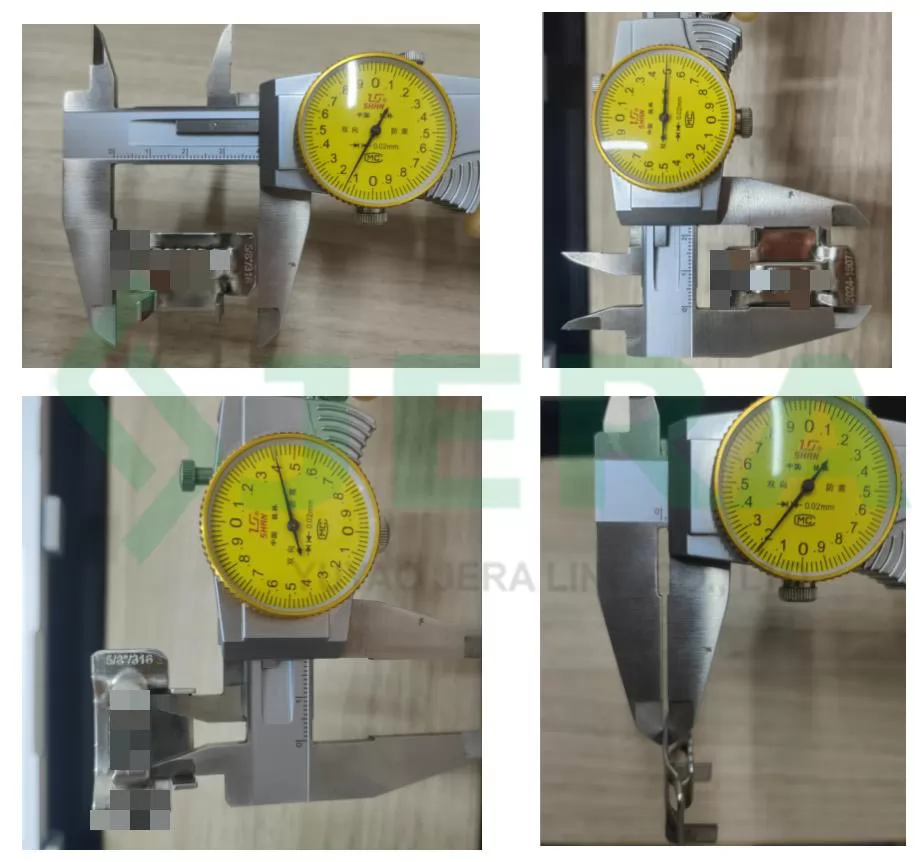

Dimensions test:
Use the measuring tool to test the size according to the drawings.
