K336 is the insulation piercing connector from Well known brand Michaud, this connector is used for connecting the insulated service conductor in low voltage electrical system. It’s designed to create a safe and reliable electrical connection without stripping the insulation from the cable. LV IPC K336 uses a piercing method in which sharp contact teeth penetrate the insulation, ensure secure electrical contact, while maintaining waterproof sealing for outdoor use.
|
Item No. |
Main line, mm² |
Branch line,mm² |
Contact Teeth |
|
K336 |
16-95 |
4-35 |
Tin covered brass |
Jera Line is a direct factory from China who produce low and medium overhead and underground connectors for power distribution networks. We have more than 10 years experience in production, our insulation piercing connectors are trusted by utility companies in more than 30 countries. Jera Line has several models that can effectively alternate LV service IPC K336.
|

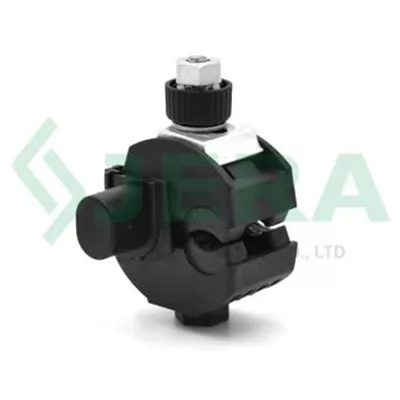

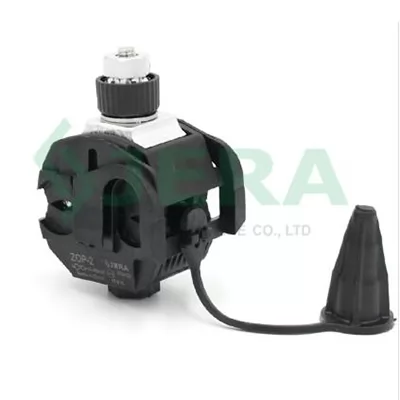

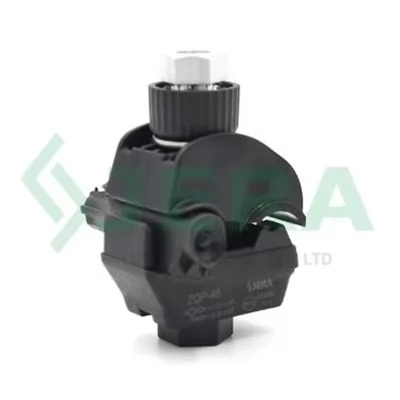

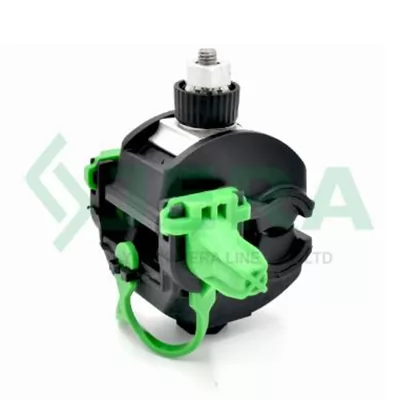

Picture |
Item No. |
Main line, mm² |
Branch line,mm² |
Torque, N*m |
Contact plate |
|
|
4-120 |
1.5-16 |
11 |
Tin coated brass |
|
|
|
16-95 |
4-35 |
7 |
Tin coated Aluminum |
|
|
|
16-120 |
4-35 |
15 |
Tin coated brass |
|
|
|
35-185 |
6-35 |
15 |
Tin coated Aluminum |
To install Jera Line’s insulation piercing connectors, no need to strip the cable insulation. Only need to shear head off by Jera Line torque tool JTN-11-13, save labor cost.
To use with Jera Line insulation piercing connector holding JTN-7, it guarantees proper torque application during shear head installation. This ensures a stable, low-resistance electrical connection.
Jera Line’s insulation piercing connectors are designed for both CU and AL conductor applications.
Jera Line has more than 40 models of insulation piercing connectors, they are compatible with a verity of conductor sizes (for both main and tap lines) for different low-voltage overhead line applications, such as street lighting, surge arresters, service drops, and distribution networks.
Jera Lines insulation piercing connectors comply with common international standards, including EN-50483-4, NF C 33 020. This guarantees reliable electrical functionality, robust mechanical properties, and adherence to safety standards under challenging field conditions.
Jera Line’s ZOP range IPCs can be applied to various working scenarios. They fit following fields:
Jera Line delivers a comprehensive portfolio of insulation piercing connectors suitable for a diverse array of low-voltage overhead lines, to choose Jera Line as your supplier due to the following advantages:

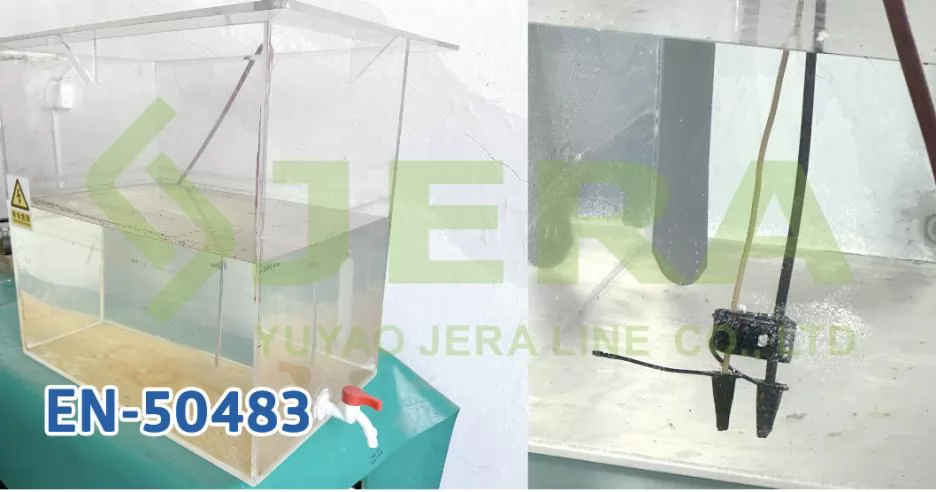

Jera Line has a in-house laboratory with testing equipment to dedicate self-inspection and quality control. Jera Line has dielectric voltage testing scope in own laboratory according to EN-50483 standard.
Jera Line offers different IPCs according to their application, such as:
Jera Line has the ISO 9001-certified , and the insulation piercing connectors are tested by an independent 3rd party laboratory to international standards such as NFC 33-020 and EN-50483:2009, as the basic guarantee of product quality.

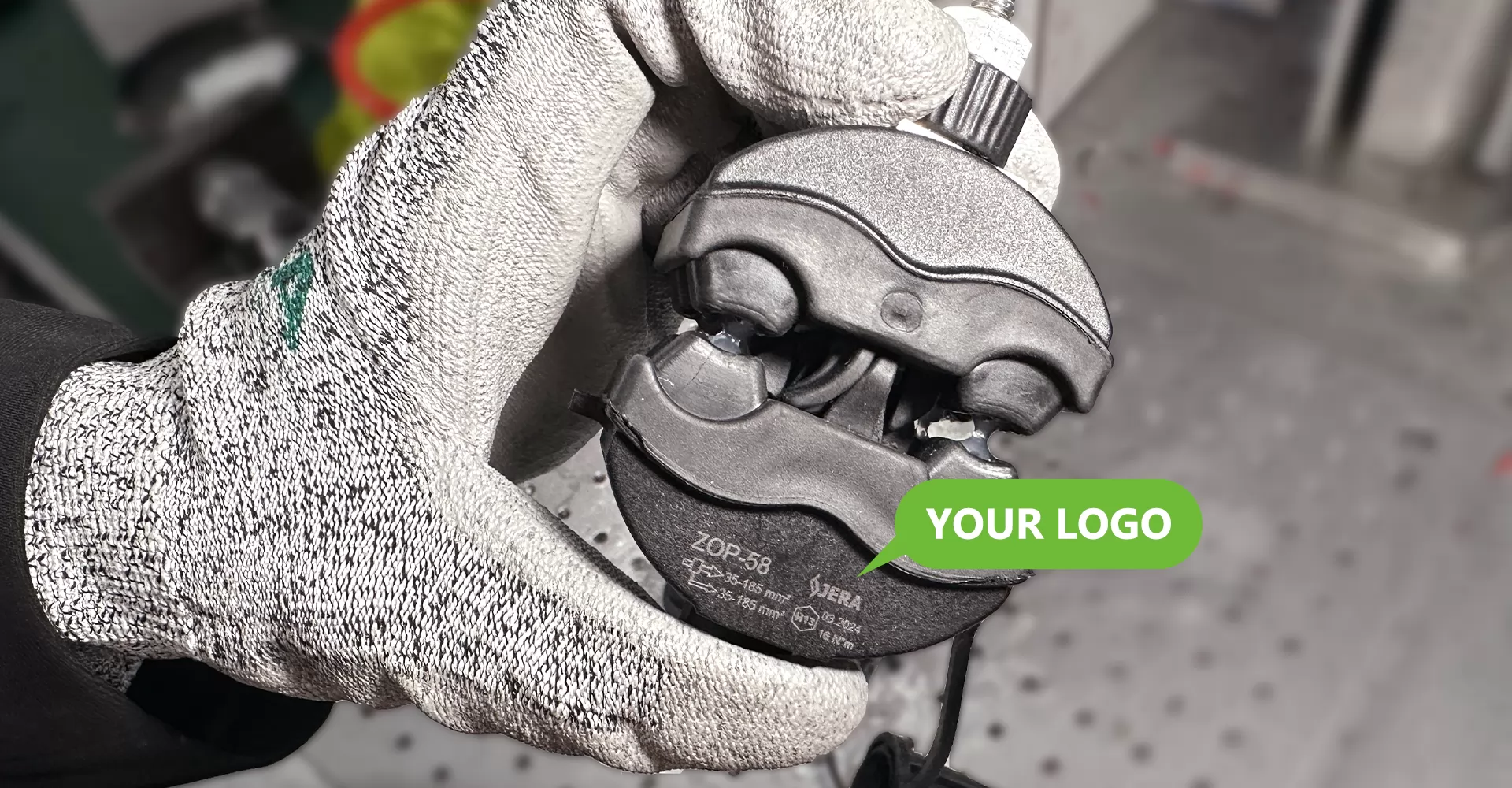

4. OEM and ODM are doable
Jera Line boasts a skilled engineering team capable of customizing and enhancing products based on your requirements, along with complete OEM and ODM solutions.
Jera Line is a direct factory from China, featuring professional workshop facilities with organized and efficient production processes.
It includes moulding and tooling workshop, plastic injection moulding workshop, assembly worksho, press forming workshop.
Jera Line is a specialized low-voltage service insulation piercing connector manufacturer with extensive experience in production and global sales. Our products comply with international standards, positioning us as a reliable partner in the LV and MV power industry.
Please feel free to contact us if you have any questions or need more information!
