Insulation Piercing Connector ZOP-45

4-120/1.5-16 mm2

Features

Easy and fast installation, no need to peel the jacket.
Durable materials, UV resistant and suitable for cold weather conditions.
Tin covered copper teeth materials in IPC, allows them to apply with both AL and CU cables.
Stainless steel bolt and washer, which prevents rust and corrosion.
Factory laboratory routine test report avaiable according to standard EN 50483
Competitive price, factroy location in China.

DESCRIPTION

TEST

REVIEW

Short description

Overhead line insulation piercing connector, 4-120/1.5-16 mm2, tin coated copper teeth, Low voltage power cable braching connector.

Application

The insulation piercing connector ZOP-45 is suitable for a variety of applications in electrical distribution and power transmission systems.

Including:

l To connect insulated conductors in overhead power lines

l Applied in street lighting installations to connect power cables to lighting fixtures

l Ideal for use in solar plants strings connecting

Technical specification

Product code	Cable size, mm2		Torque, N*m
ZOP-45	Main	Tap	11
	4-120	1.5-16

Components and materials

Electric Cable Piercing Clamp ZOP-45, is manufacturered and Research and Design RnD by Jera Line, a direct factory location in China ,the IPC consissts of the following main part:

Components	Materials
Body and Seal	Heat and UV resistance two components insert molding of composite polymer and elastomer
Contact plate	Tin coated Copper
Bolt	stainless steel
Nut with shear-head	Aluminum alloy
Washer	Stainless steel
End cap	PP

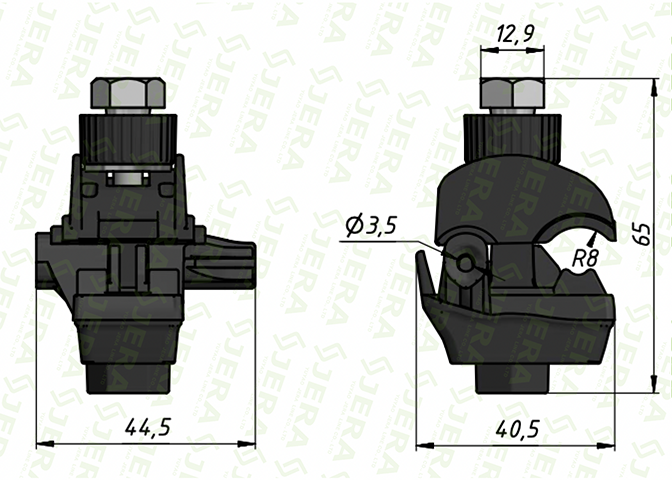

Dimensions

Test

Cable Insulation Piercing Connector ZOP-45 has regular routine test by Jera line factory laboratory according to EN-50483:4 standard, the test scopes are as following:

l Visual examination

l Dimensional and material verification

l Test for permanent marking

l Connector bolt tightening test

l Shear head function test

l Dielectrical voltage test in water

l Electrical ageing test
