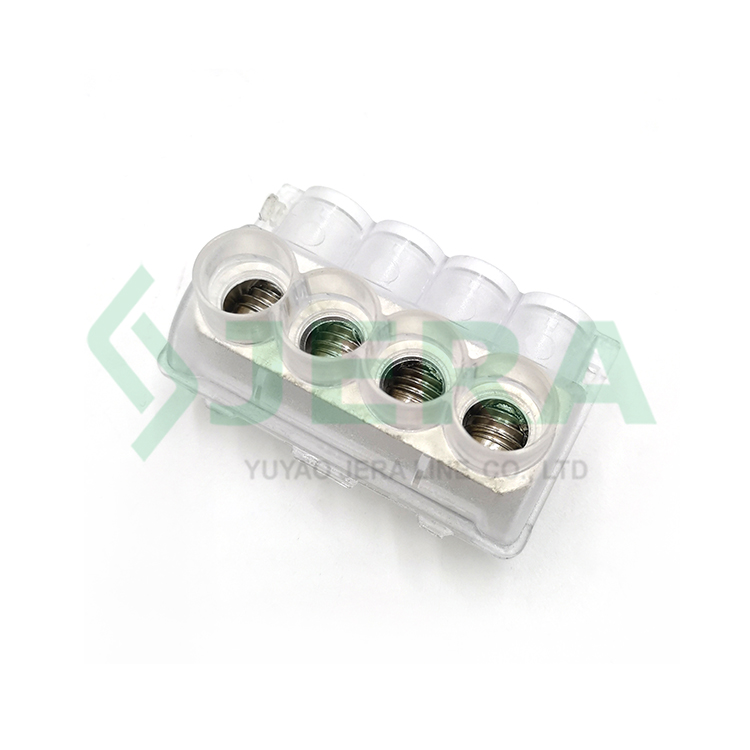

The KE 10.504 wire branching connectoris designed for reliable cable connections in low‑voltage distribution systems, supporting both aluminium and copper conductors. It provides stable electrical performance and long‑term durability, making it suitable for a wide range of LV network applications.
Technical specification
Product code
KE10.504
Ratings
ETIM class, low current connector
Colour
Transparent
Model
Branch
Tightening torque Nm
10
Highest system voltage, kV
1
Conductor size Al, mm2
10-50
Conductor size Cu, mm2
2.5-35
Core diameter, mm
2-10.2
Max. number of cores
1
Components and Materials

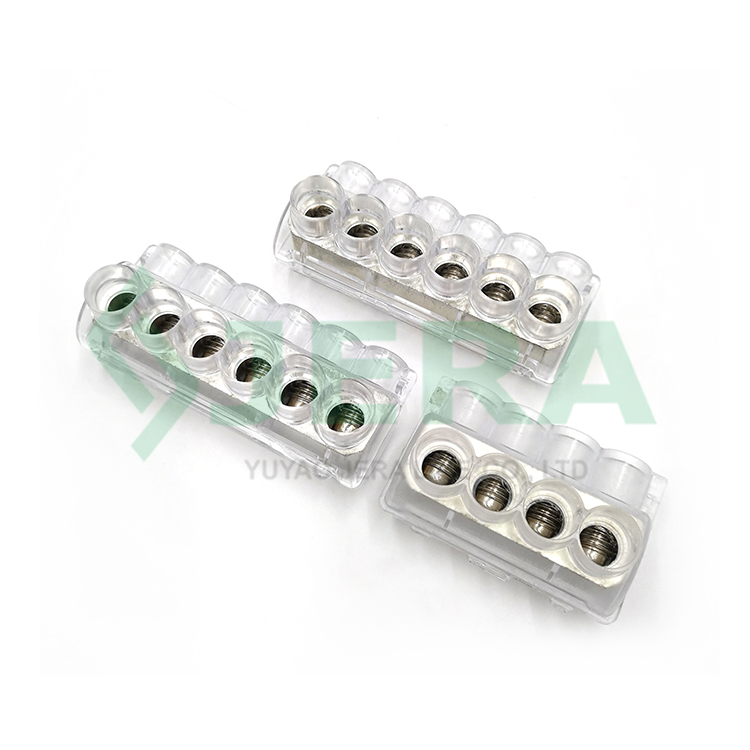

KE10.506 branching wire connector China factory Jera Line, is focusing on low voltage cable solution. The LV branching connector were developed, tested in Jera Line in housr laboratory, ensuring compliance with international standards as well as customer‑specific technical requirements.
The LV Electrical branching connector consists of the following main part:
Components
Materials
House
Polycarbonate
Screws
Nickel-plated brass
Connector body
Tinned aluminium
