Model No. :

ZOP-56

Description:

ABC insulation piercing connector ZOP-56, also called branching piercing connector is developed to use in low voltage ABC insulated overhead systems, on main or end us connection up to 1KV.

This tap piercing connector are water proofed, very fast and easy in installation in service line system, street lighting without stripping of cable insulation.

  • Product detail
  • Specification
  • Video
  • Inquiry

Key Features

  • Convenient to install without cutting the conductor’s jacket
  • UV-resistant and waterproof materials,durable
  • Outdoor usage for construction applications like buildings, street lights
  • Captive and flexible end cups
  • Manufacturing according to the standard: EN50483-4:2009
  • Competitive price
ABC Insulation Piercing Connector, ZOP-56 (25-185/6-35) ABC Insulation Piercing Connector, ZOP-56 (25-185/6-35)

SPECIFICATION

tap piercing connecto

Analogs: P1X-95, P2X-95, ZOP-57, ZOP-54

Insulation piercing clamp ZOP-56 is made of UV resistant thermoplastic with high value of electrical strength, high strength aluminium alloy nut and stainless steel hardware are weather resistant ensure long period usage.

This piercing connector is very durable and easy for installation, just need to put proper diameter cable in right position and tighten the aluminum nut until the torque nut is shear off and the inner teeth will penetrate the insulation and made a tight contact. Low voltage cable connector ZOP-56 can be used on cable lines up to 1000Vac (1000 V).

read more

APPLICATION

branching piercing connector

We apply European fundamental test standards, when inspecting the quality of our production operations. For electrical power cable related products, they are mentioned in EN 50483-4, NFC 33020, and IEC 61238-1.

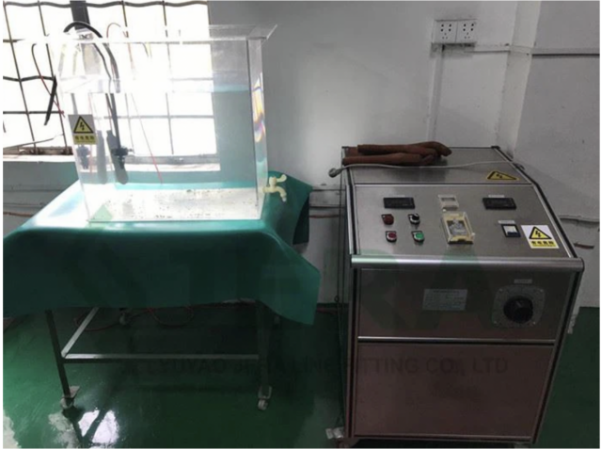

Jera line is a direct insulation piercing connector factory, all our piercing connector passed Dielectrical voltage test in water, UV and temperature aging test, corrosion aging test, shear head torque test, electrical aging test etc.

Aerial cable piercing connector ZOP-56 can be supplied either separately or together as assembly with other needed Low voltage cable fittings, tension clamps, shear off cable lugs, suspension clamps, LV brackets, hooks which you could find in our product range.

Feel free to contact us for more information about this ABC insulation piercing connector price.

read more

Manufacturing

    app

Watch Our Factory Video

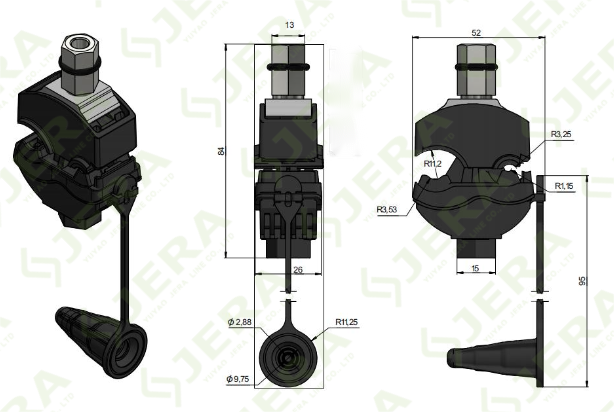

Technical specification

Product code

Main line, mm2

Branch line, mm2

Torque, N*m

Weight, kg

ZOP-56

25-185

6-35

13

0.080
