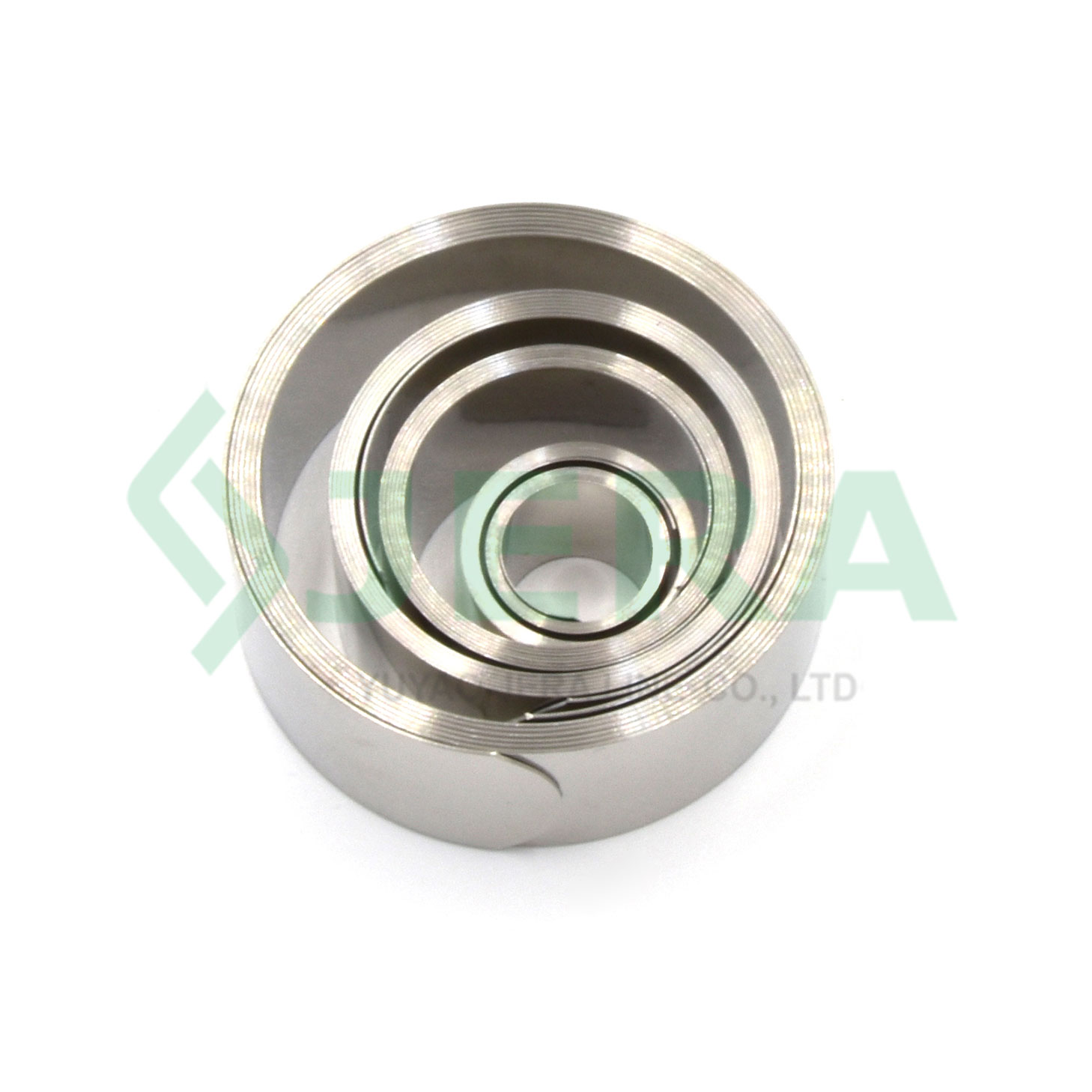

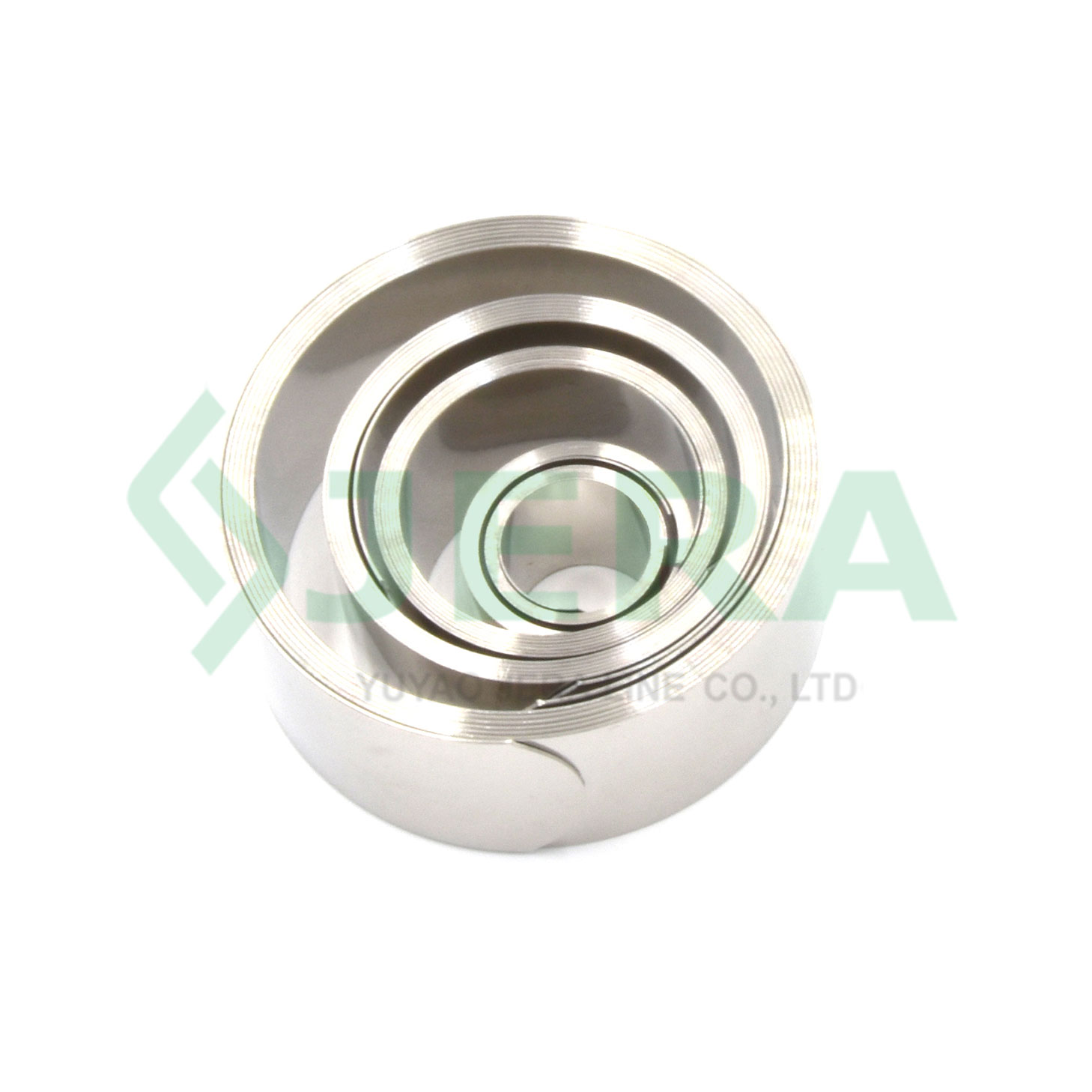

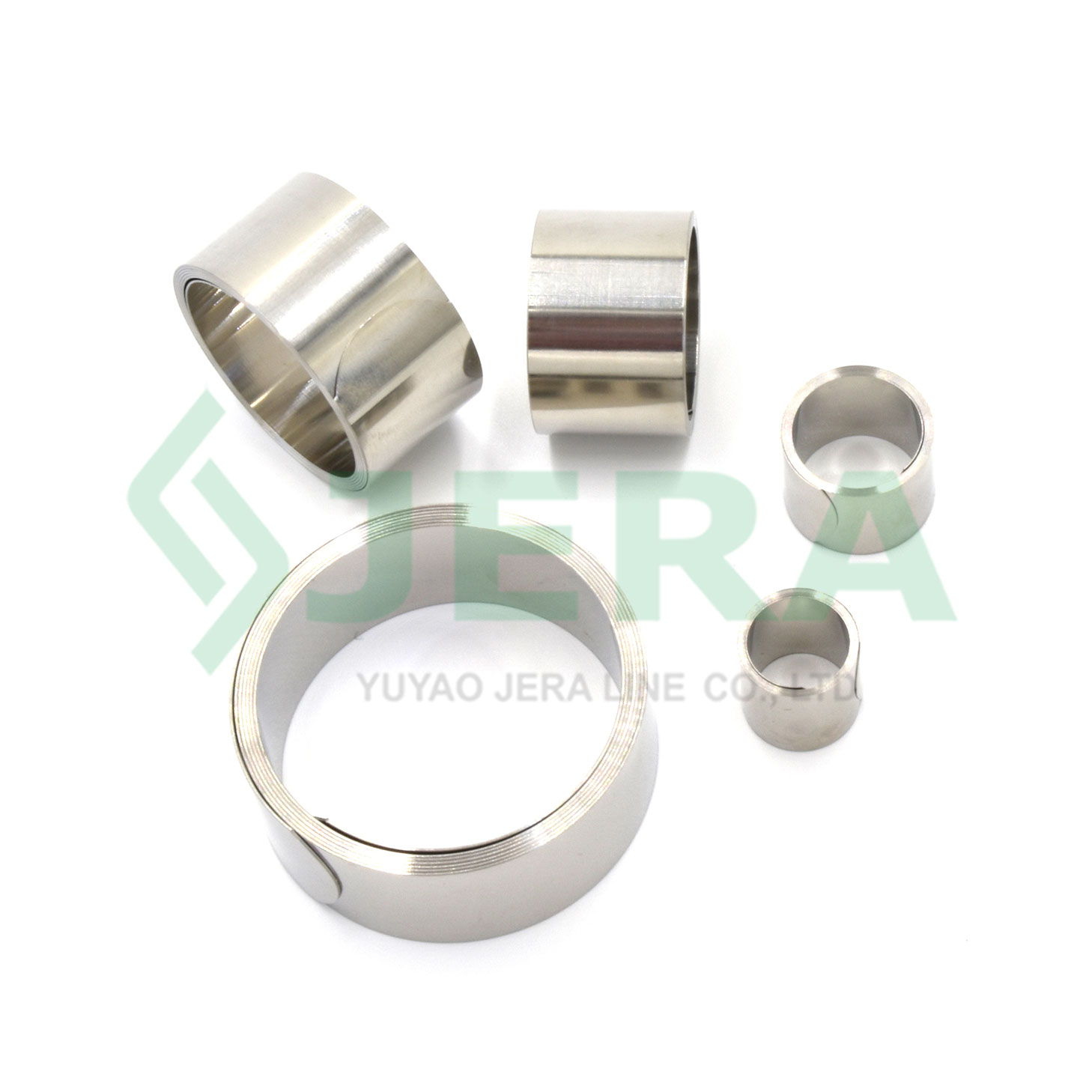

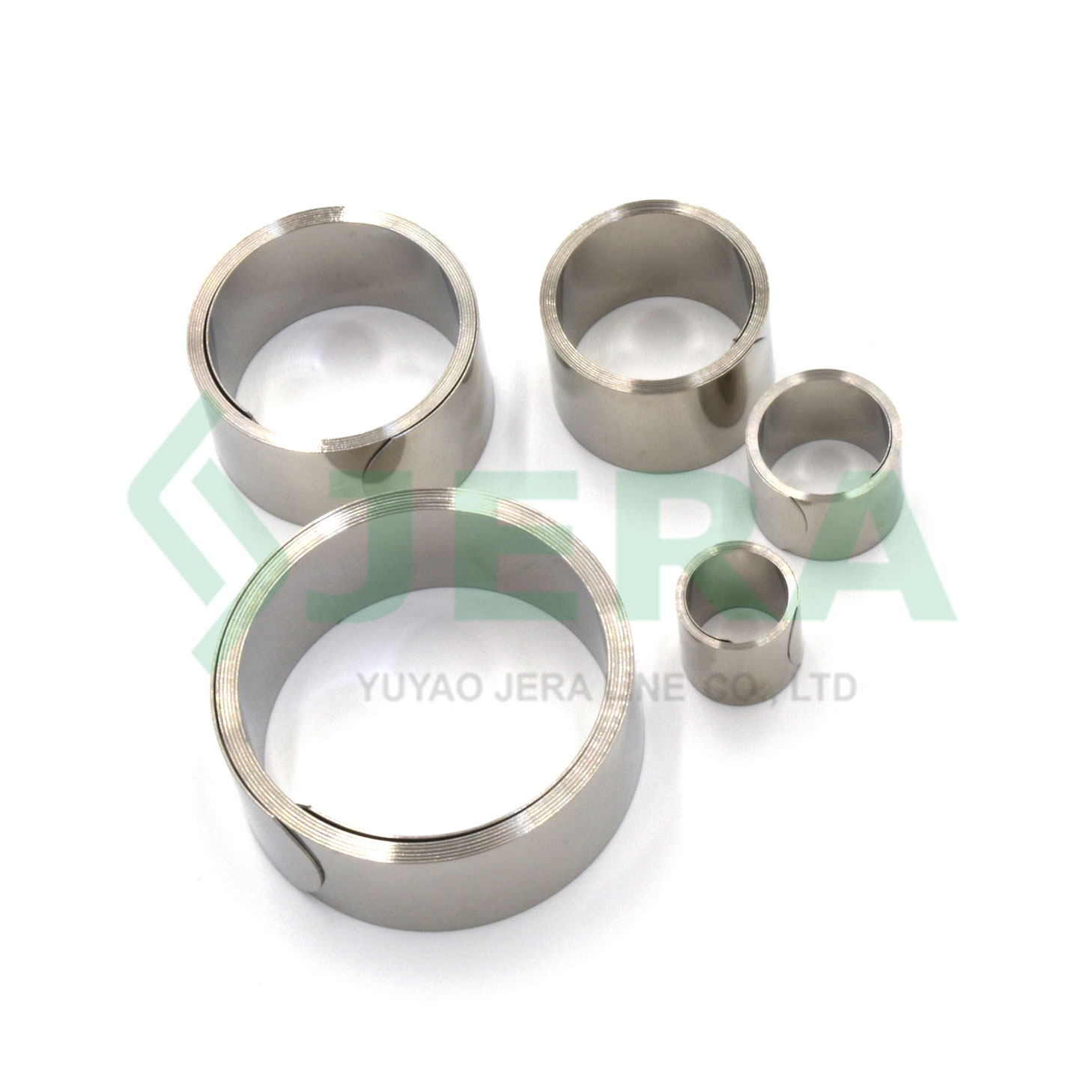

Stainless steel constant force springs are widely used in applications requiring consistent tension, smooth motion, and long service life.
Main application:
• Cable Terminations and Joints
Used to apply uniform pressure around cable lugs and connectors, ensuring stable electrical contact and mechanical grip in medium and high voltage systems
• Earthing Systems
Maintain consistent tension in grounding connections, especially in bolted or compression-type assemblies.
Technical specification
Model
Number of rings
Thickness, mm
Width,mm

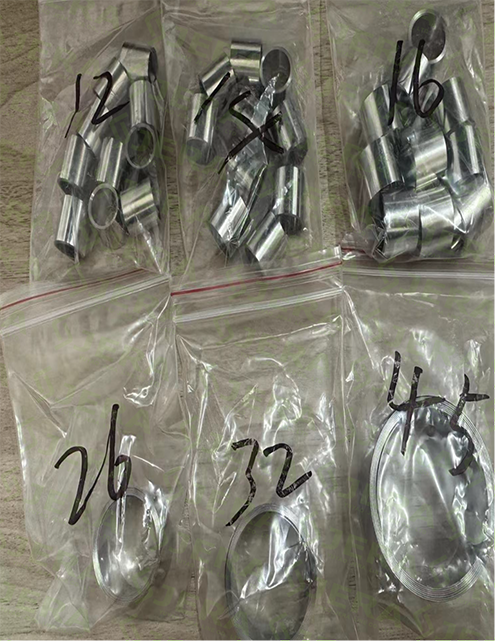

Inner diameter, mm
Cable sheath diameter range, mm
Weight
F1
7
0.1
15.9
12.0
12,7-19,0
5.6
F2
7
0.15
15.9
14.0
16,0-25,0
8.2
F3
7
0.24
15.9
16.0
20,3-38,1
13.3
F4
7
0.3
15.9
26.0
25,4-56,0
23.1
F5
7
0.4
19.6
32.0
38,1-76,2
46.5
F6
7
0.55
19.6
45.0
45,7-101,6
80.7
Components and Materials
Constant Force Spring with Stainless Steel is produced by a direct factory location in China -- Jera Line

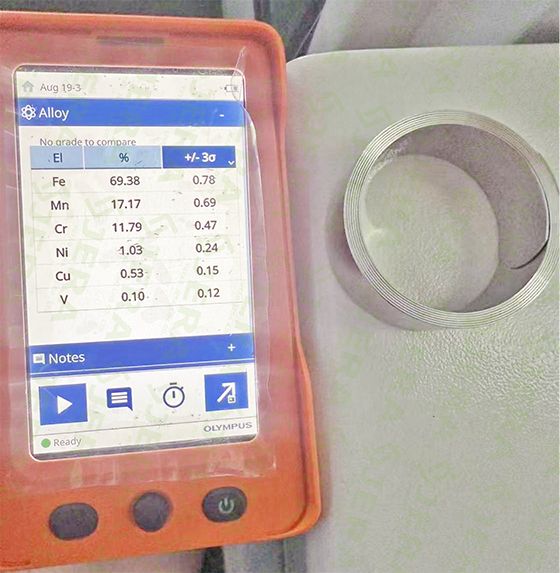

The materials consists of the following main part:
.png)
