ESP power cable accessories

In modern oil and gas production, electric submersible pump (ESP) systems rely on reliable down-hole power supply, and robust cable accessories play an essential role for securing ESP power cables, control lines and injection lines along the production tubing. Stainless steel pneumatic cable ties are continuously exposed to demanding operating environments including high tensile pull, thermal cycling, humidity, atmospheric pollution and corrosive well fluids. Poor-quality fastening hardware may trigger cable loosening, strap corrosion, component detachment and premature fitting failure. Such failures further lead to unexpected pump shutdowns and push up recurring operation-and-maintenance expenditure for oilfield operators, service companies and EPC contractors. Beyond oil and gas wells, the same heavy-duty fastening hardware is widely deployed for fixing overhead line hardware to poles, clamping industrial hoses, bundling cables and securing equipment across energy, utility, marine and manufacturing industries. Many procurement engineers are looking for reliable, cost-effective stainless steel fastening solutions for ESP and heavy-duty industrial projects. Jera Line's 304 stainless steel pneumatic cable tie, installed with the A480 pneumatic strapping tool, is a proven fast-locking clamping solution developed for permanent, high-strength fastening of cables, fittings and pole hardware. This blog describes product definition, official technical specifications, structural highlights, practical application scenarios and core procurement benefits when selecting Jera Line pneumatic cable accessories for your projects.

What Is ESP Power Cable Accessories?

ESP power cable accessories are the protective and support components used with Electric Submersible Pump (ESP) power cables in oil wells. They keep the cable safely attached to the tubing and prevent damage during installation and operation. Depending on well conditions, banding hardware is provided in black steel, stainless steel or monel; stainless steel is used in moderately corrosive wells with no H2S present, and most cable bands follow the industry-standard 3/4 in. (19 mm) width with approximately 0.6–0.7 mm thickness.

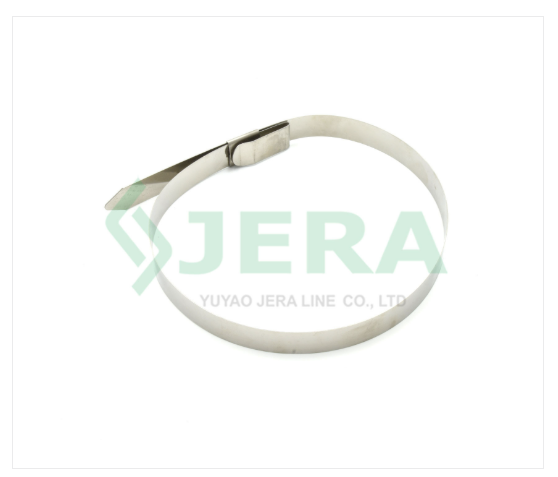

Jera Line's 304 stainless steel pneumatic cable tie is a fast-locking center-punch clamp engineered for exactly this duty. Manufactured from C304 stainless steel and supplied as a pre-assembled set with a pre-formed center-punch buckle, it offers secure, permanent, tamper-resistant fastening once installed. The tie is tensioned and locked with the A480 pneumatic strapping tool: the strap is pulled to the required tension and the buckle is punched to lock permanently, creating a one-way connection that cannot loosen in service. The 19 mm × 0.6 mm tie matches the ESP industry band standard, and installation with the pneumatic tool is roughly 70% faster than with a manual banding tool, which matters directly for long tubing runs in the field. Because every tie is pre-assembled with its buckle, large projects save up to 30% in time and labor costs compared with conventional field-assembled banding.

Technical Specification Components and Materials

The 304 stainless steel pneumatic cable tie is manufactured by Jera Line, a dedicated stainless steel banding factory in China focused exclusively on producing high-quality stainless-steel bands, buckles and pneumatic tools for heavy-duty industrial use. The fast band stainless steel clamp consists of the following main parts:

Official technical specification of the cable tie:

The 19 mm width and 0.6 mm thickness provide high tension strength, while the 610 mm length covers a wide range of bundling diameters. Multiple size options are available to match different project requirements, and every tie is supplied as a complete set with its matching buckle, ready for immediate installation.

Matching A480 pneumatic stainless steel strapping tool:

The A480 is a semi-automatic, portable pneumatic strapping machine built from corrosion-resistant 304 stainless steel. It performs tensioning and cutting of the stainless steel center-punch clamp in one fast operation, and its adjustable 0.5–50 N tension knob prevents damage to sensitive materials while delivering secure fastening.

Features

• Permanent installation with one-way center-punch locking; ties cannot loosen or be re-adjusted in service.
• High tension strength for heavy-duty fastening loads.
• Pre-assembled set with pre-formed center-punch buckle, saving up to 30% time and labor costs on large projects.
• Pneumatic operation roughly 70% faster than manual banding tools.
• Adjustable 0.5–50 N tension control avoids over- or under-tightening and protects sensitive cable insulation.
• Corrosion-resistant C304 stainless steel construction, rust-proof and suitable for harsh environments.
• Buckle design eliminates bolts, nuts, washers and keys of different sizes.
• No heavy crimping or power equipment required; the portable A480 pneumatic tool is sufficient.
• High-precision, user-friendly and energy-efficient tool design with CE marking.
• Multiple size options for different bundling diameters.
• Factory-direct supply from China with competitive bulk ex-works pricing.

Applications of Jera Line ESP Power Cable Accessories

Jera Line's pneumatic cable tie system is purpose-built for high-tensile fastening tasks across ESP, utility and heavy-duty industrial projects. It achieves firm, maintenance-free strapping by the 304 strap and center-punch buckle mechanism, and maintains reliable holding performance under continuous vibration, thermal cycling and outdoor ageing:

1. ESP Cable Banding in Oil & Gas Wells: Attach ESP power cables, control lines and injection lines to the production tubing. The stainless steel grade suits moderately corrosive wells without H2S. Following recommended field practice, install about three bands per section from the motor pothead to the first splice, avoid placing bands directly on cable splices, and use two to three bands per tubing joint; more bands should be considered in doglegs or tight well sections.
2. Utility Pole & Overhead Line Hardware Fixing: Fix pole-mounted hardware, insulators, brackets and overhead line fittings, withstanding long-term outdoor exposure and wind vibration.
3. Industrial Hose Clamping & Cable Bundling: Clamp industrial hoses and bundle power, control and communication cables in plants and process facilities, holding against pressure, vibration and mechanical loads.
4. Pipeline Fixing: Fix pipes and tubing to supports, racks and structures in industrial and municipal facilities.
5. Sign & Camera Mounting: Mount street signs, traffic signs and surveillance cameras on poles, providing durable, tamper-resistant attachment.
6. Solar Panel Installation: Secure cables, conduits and mounting hardware in solar power plants and rooftop PV systems, resisting UV ageing and weathering.
7. Marine & Food Processing Environments: Fasten cables and equipment in marine applications and food processing plants, where corrosion resistance, cleanability and permanent locking are critical.

The pneumatic cable tie system delivers safe, labour-saving and budget-efficient fastening solutions for global ESP, energy and infrastructure projects. Its proven center-punch locking principle, high tension strength and tool-friendly pneumatic installation make it a practical industrial-grade hardware choice for both new-build construction and retrofit assignments.

Why Choose Jera Line as Your ESP Power Cable Accessories Supplier?

• Direct Factory Supply & Cost Efficiency: Founded in 2012, Yuyao Jera Line is a specialised overhead and underground LV-MV cable accessories manufacturer located in Ningbo, China, and operates a dedicated stainless steel banding factory focused exclusively on stainless-steel bands, buckles and pneumatic tools for industrial use. Most production procedures, including component stamping, surface anti-corrosion treatment and finished-product assembly, are completed fully in-house. Cutting out intermediate traders enables competitive ex-works bulk prices for global distributors and EPC partners. Standard pneumatic cable tie items are kept in stock to support 7–15 working-day shipment lead times for large-volume project orders.
• Quality-testing procedures: To satisfy demanding project requirements, Jera Line operates an in-house laboratory equipped with professional testing instruments. Rockwell and Brinell hardness test machines verify a hardness value of 240 HB for the stainless steel strap; solar radiation, temperature and humidity ageing equipment covers an operating temperature range of -40°C to 200°C; and salt spray and fog testing equipment complies with ASTM B117, capable of performing 48-hour salt spray corrosion tests. Raw-material incoming inspection is enforced before mass production to reject inferior steel raw-material batches. Lab-verified hardness, anti-ageing and anti-corrosion performance guarantees long-term stable service under complex downhole, outdoor and industrial operating conditions.
• Complete solutions portfolio: Jera Line maintains a comprehensive catalogue of overhead and industrial accessories, covering multiple series of stainless steel banding, tension clamps, suspension clamps, insulation piercing connectors and matching installation tools, alongside related auxiliary hardware such as cable ties, connection terminals and banding accessories. Buyers can source complete sets of fastening and connecting hardware for one project from a single manufacturer, without coordinating several separate suppliers for different component items. This consolidates procurement workflows, simplifies parts-matching risks caused by mixed-source supplies, lowers multi-supplier communication costs, reduces order-coordination lead time and cuts cross-border logistics overheads. It also brings greater convenience for project tender documentation preparation, as all technical datasheets and test reports can be obtained from one supplier for whole-project submission.
• OEM and ODM Services: Customised project-oriented solutions are available to match diverse tender requirements and local market demands: laser marking customer logo, brand name or project-specific codes on the strap or packaging; bespoke carton packaging including custom-printed outer boxes, private-label stickers and tailored packing quantities per carton; and special technical adjustments such as modified strap dimensions and customized coil lengths, all subject to internal engineering assessment and feasibility review. Pre-order product samples can be supplied for customers to carry out field installation validation, mechanical performance checking and compatibility testing before formal large-volume procurement.
• Global Experience: Jera Line's overhead cable hardware has been exported to over 60 countries across Europe, Asia, the Middle East, Africa and South America. A multilingual sales-technical team possesses deep understanding of local utility specifications, tender document requirements and cross-border shipment logistics. Whether you are working on public utility tender bidding, large-scale oil and gas projects, industrial construction or small-size distributor stock-order procurement, we are capable of offering tailored commercial quotation, technical document support and pre-sales product consultation.

Conclusion

Selecting qualified fastening hardware is critical to guarantee secure cable fixing and long service life for ESP systems and heavy-duty industrial installations. As a key load-bearing fastening fitting, stainless steel pneumatic cable ties continuously undertake cable tension, vibration stress and environmental erosion throughout their service cycle. Inferior-quality products may suffer insufficient tensile capacity, steel corrosion, buckle loosening or premature strap fracture. These defects bring hidden hazards such as cable detachment and power supply breakdown, resulting in high-cost maintenance burden for operators. Therefore, distributors and EPC contractors should not merely focus on initial purchase cost, but pay close attention to raw-material grade, lab-test mechanical data and real-world field feedback when selecting stainless steel fastening hardware.

Jera Line's 304 stainless steel pneumatic cable tie delivers utility-verified, high-strength fastening hardware with a verified 240 HB hardness, -40°C to 200°C ageing capability and ASTM B117 48-hour salt spray corrosion resistance. Each production batch undergoes in-house laboratory validation, ensuring reliable holding performance under cable tension, wind dynamic pull and long-term UV outdoor ageing. Installed with the A480 pneumatic strapping tool, its pre-assembled center-punch buckle design drastically cuts down on-site installation labour time for field crews.

Whether you require official technical datasheets, pre-order evaluation samples or formal project quotations, please do not hesitate to get in touch with our sales team. We support sample assessment, bulk-order delivery as well as custom OEM packaging solutions to satisfy diverse tender and project requirements. We look forward to establishing stable long-term win-win business cooperation with global partners from power utility, oil and gas, municipal engineering and renewable-energy sectors.
