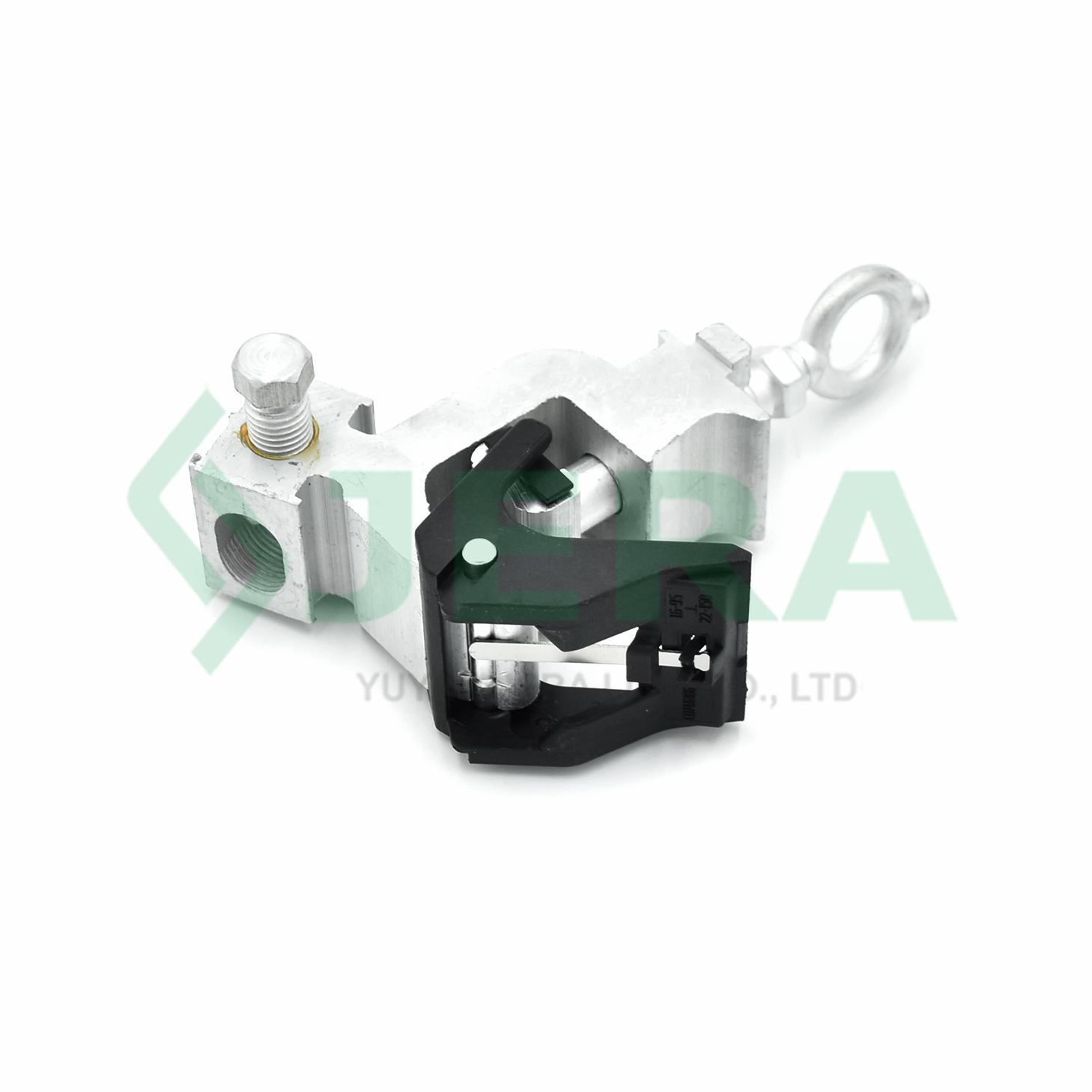

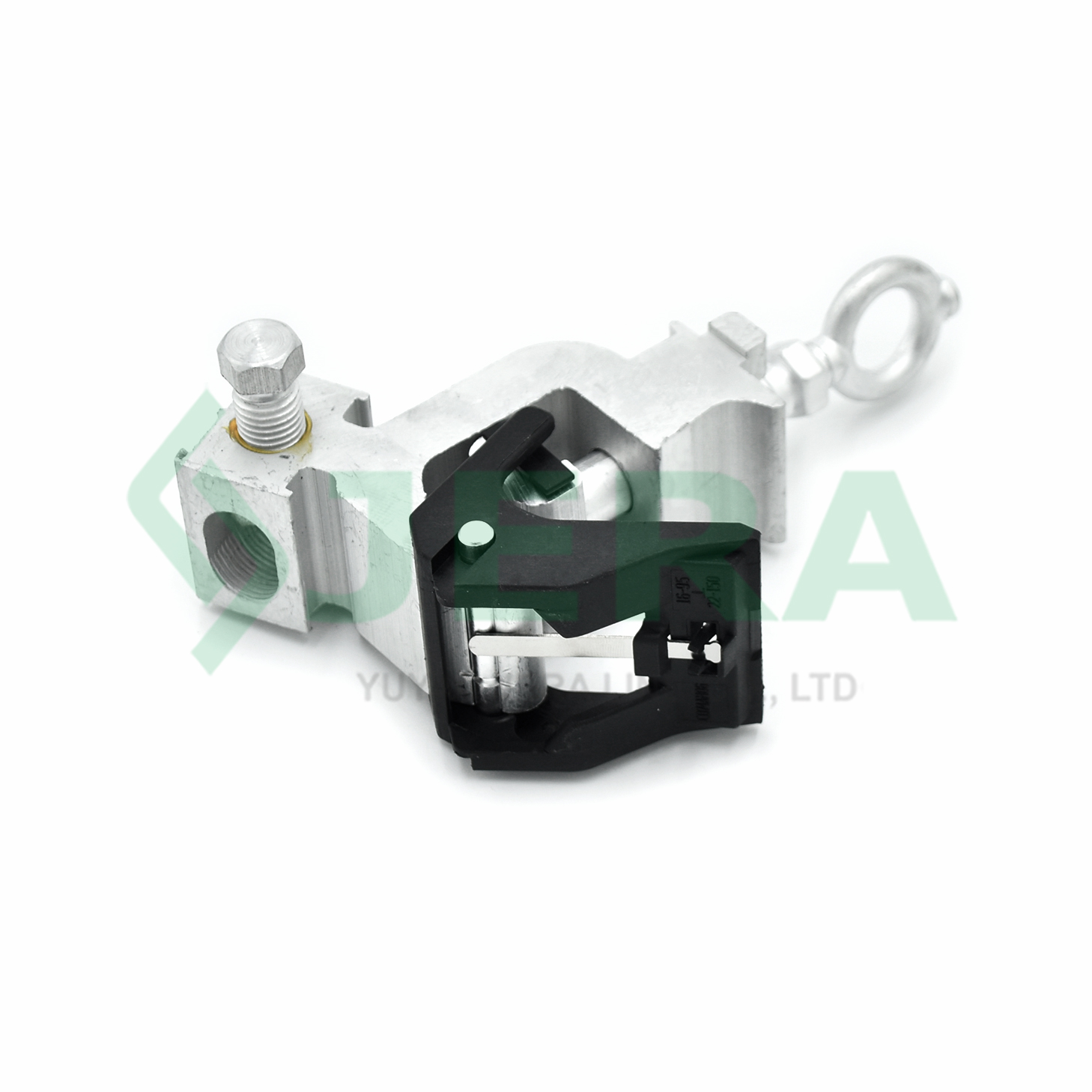

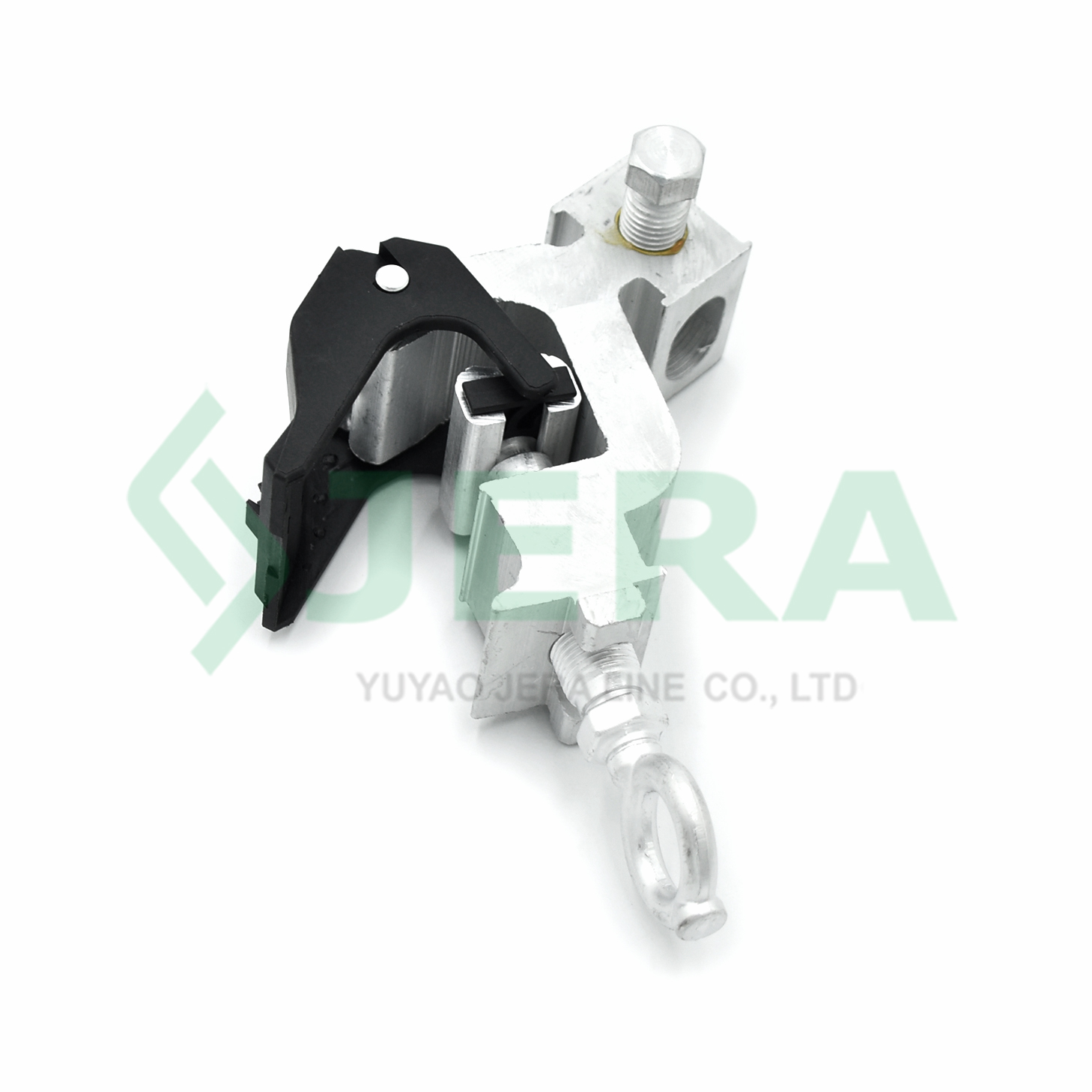

Hot line live clamps JR-30 is designed for use with bare conductors as a branching connector. In PAS lines, it is installed onto the live line stirrup, ensuring reliable connections without interrupting power flow.
Installation can conveniently be performed using a live line rod. This clamp is specifically designed for efficient branching or for connecting/disconnecting transformers while the system remains live.
Technical specification
Product code
Cable size, mm2
Application cable
JR-30
16-95/16-150
Bare cable
Components and materials
Transformer connection clamp JR-30, is researched and developed by Jera Line, after testing, it had beed in production line, The clamp consists of following main parts:
Components
Materials
Body
corrosion resistant aluminum alloy
Bolt
corrosion resistant aluminum alloy
Tightening crew
corrosion resistant aluminum alloy
Plastic open part
UV resistance polymer

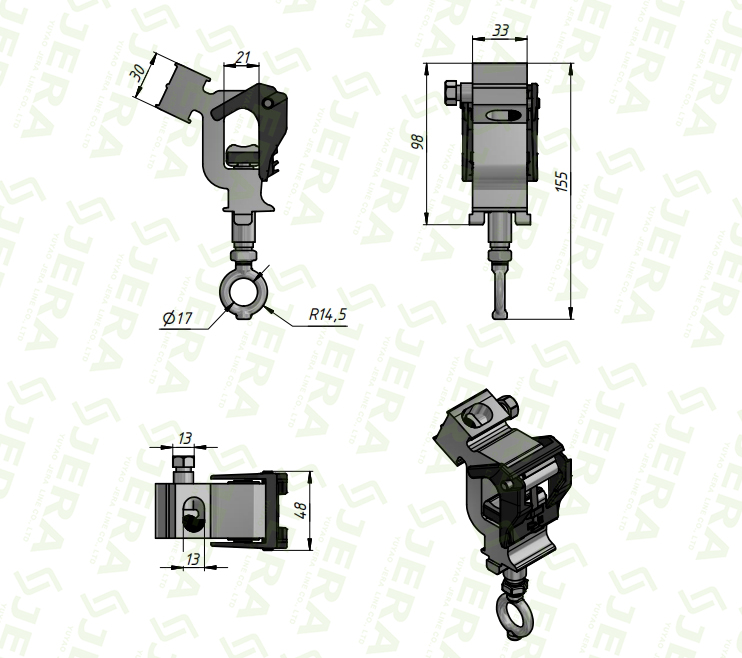

Dimensions
Test
Line line electrical tap clampinvolves ensuring their safety performance under line electrical conditions, so Jera Line tested them in factory laboratory.

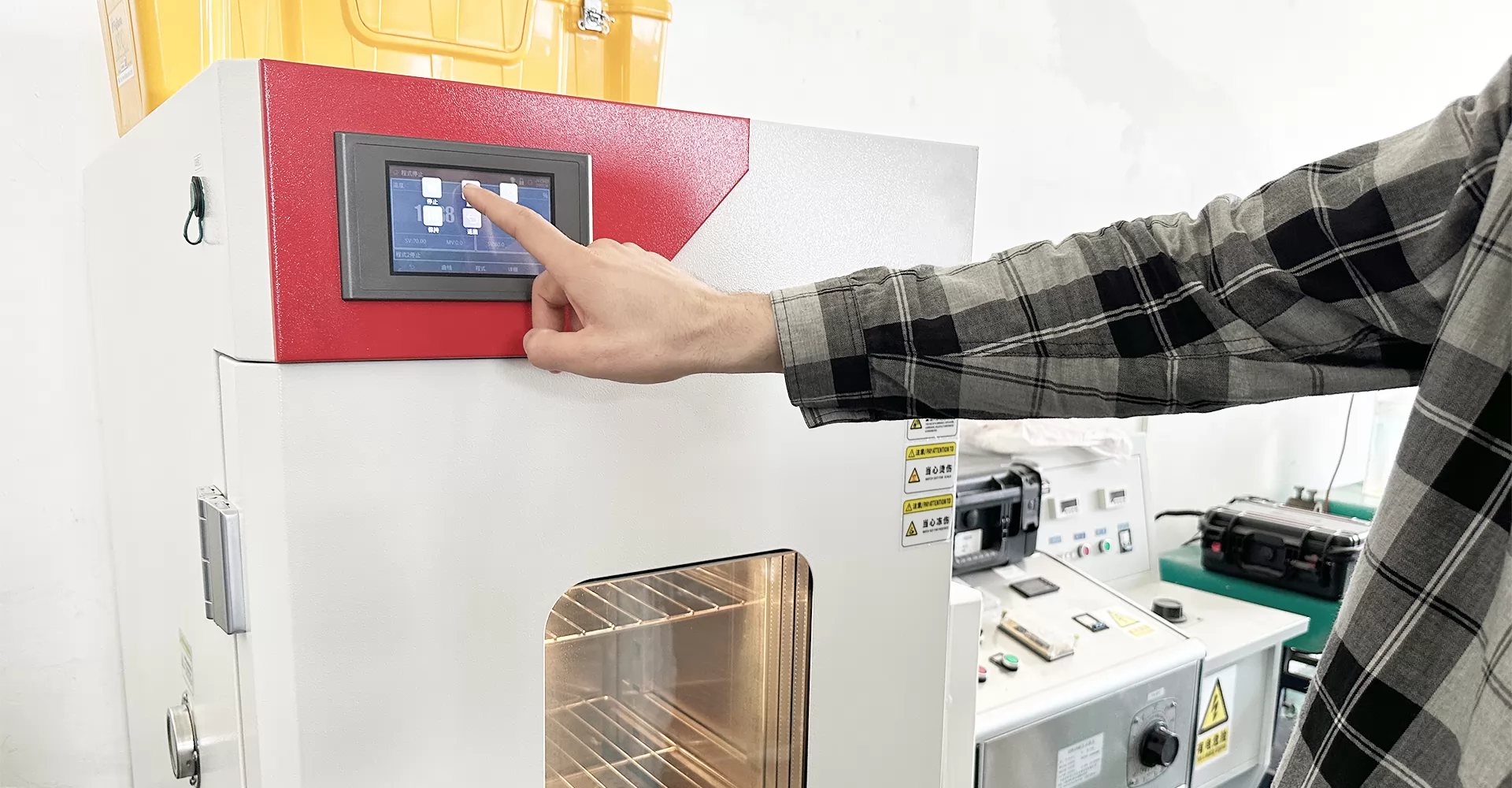

It has undergone rigorous Electrical performance validation，Environmental performance validation as well as Mechanical properties & performance validation by Laboratory Testing Equipments Such as:
