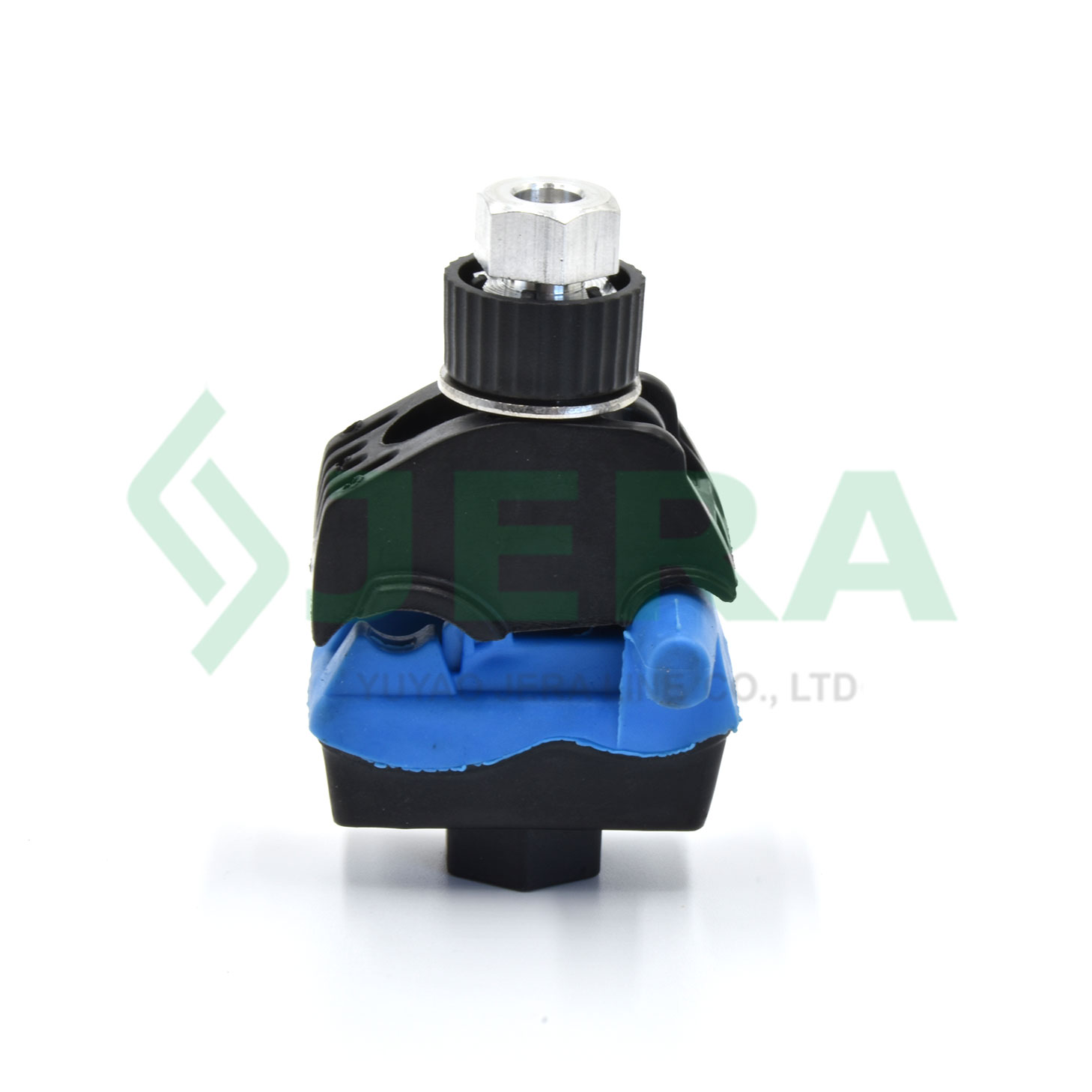

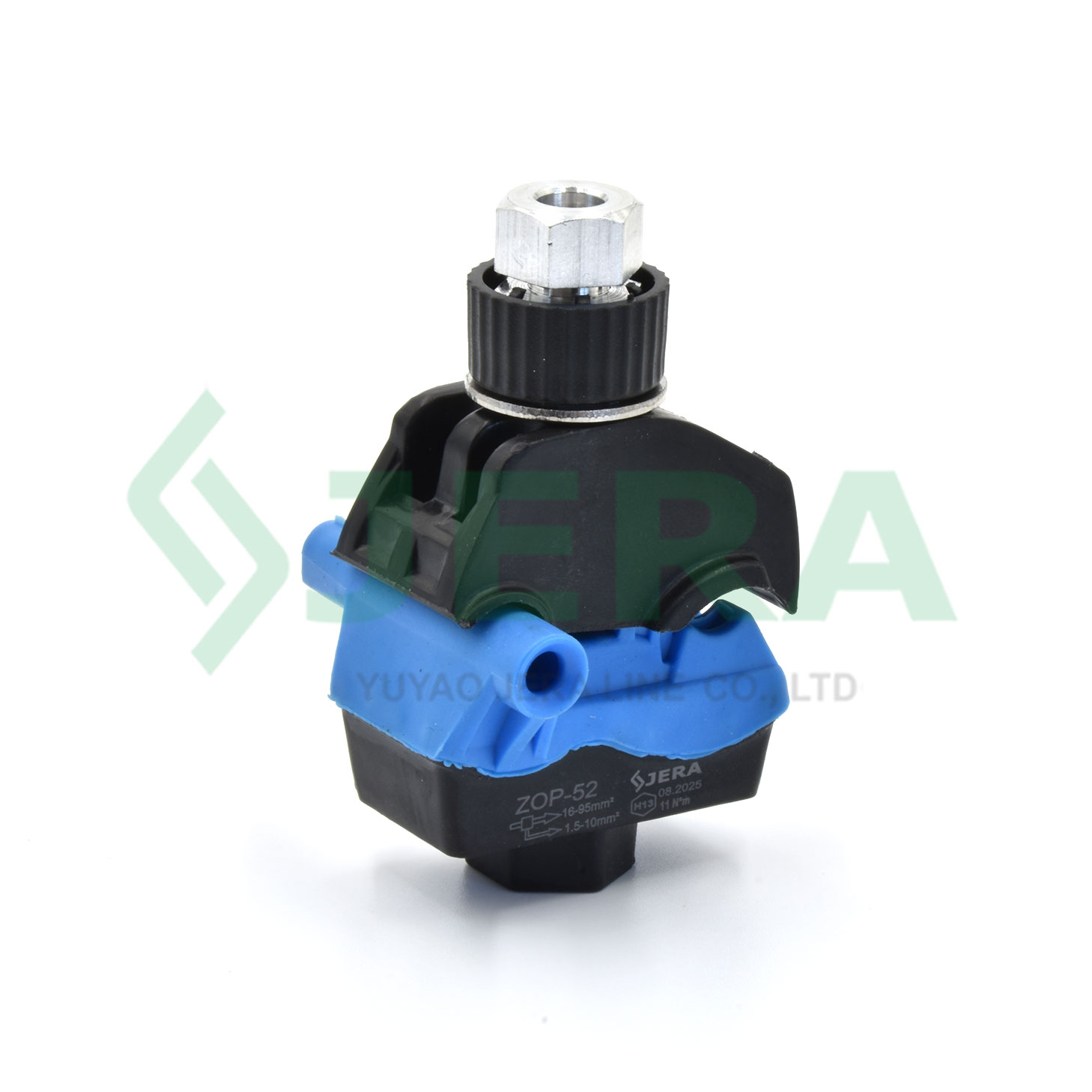

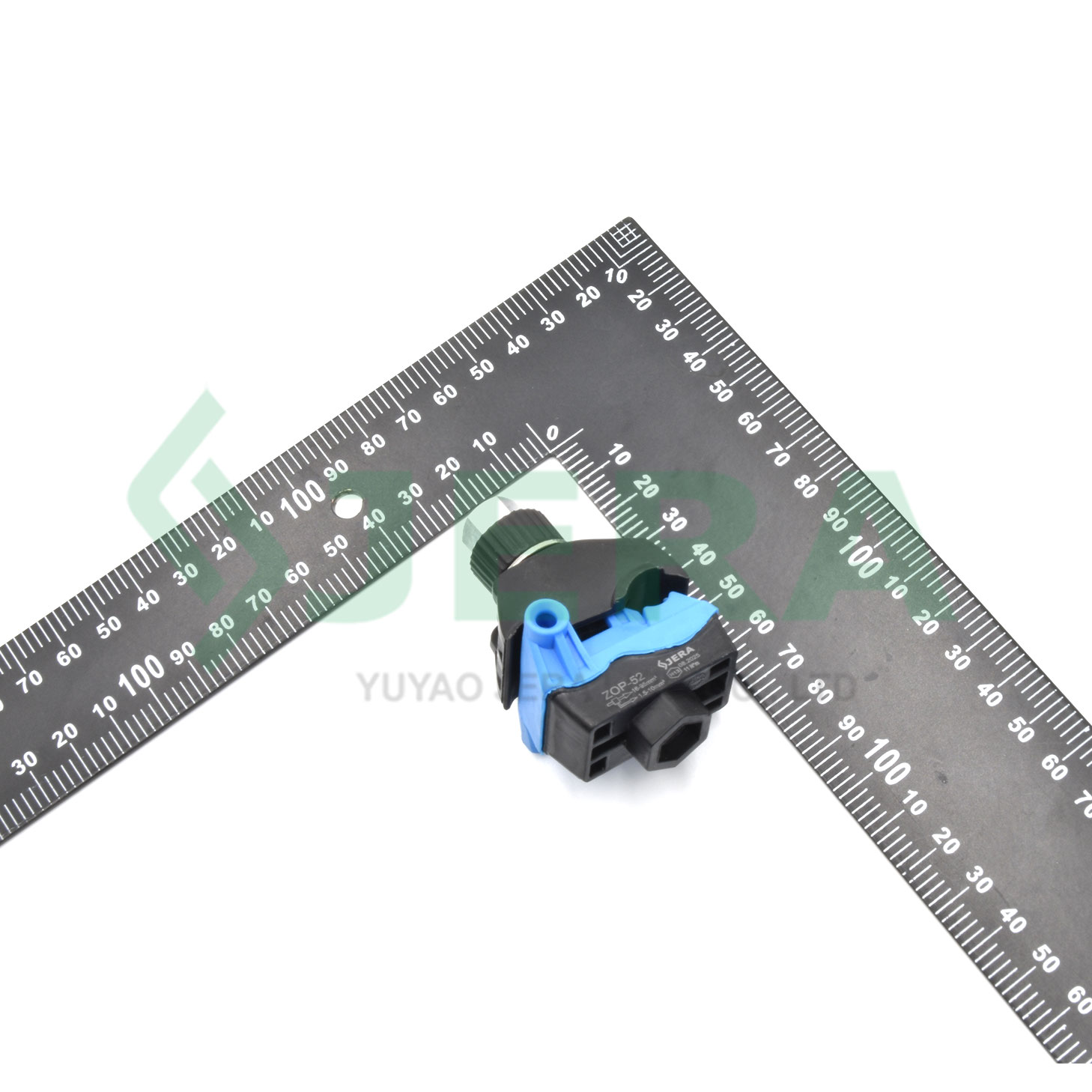

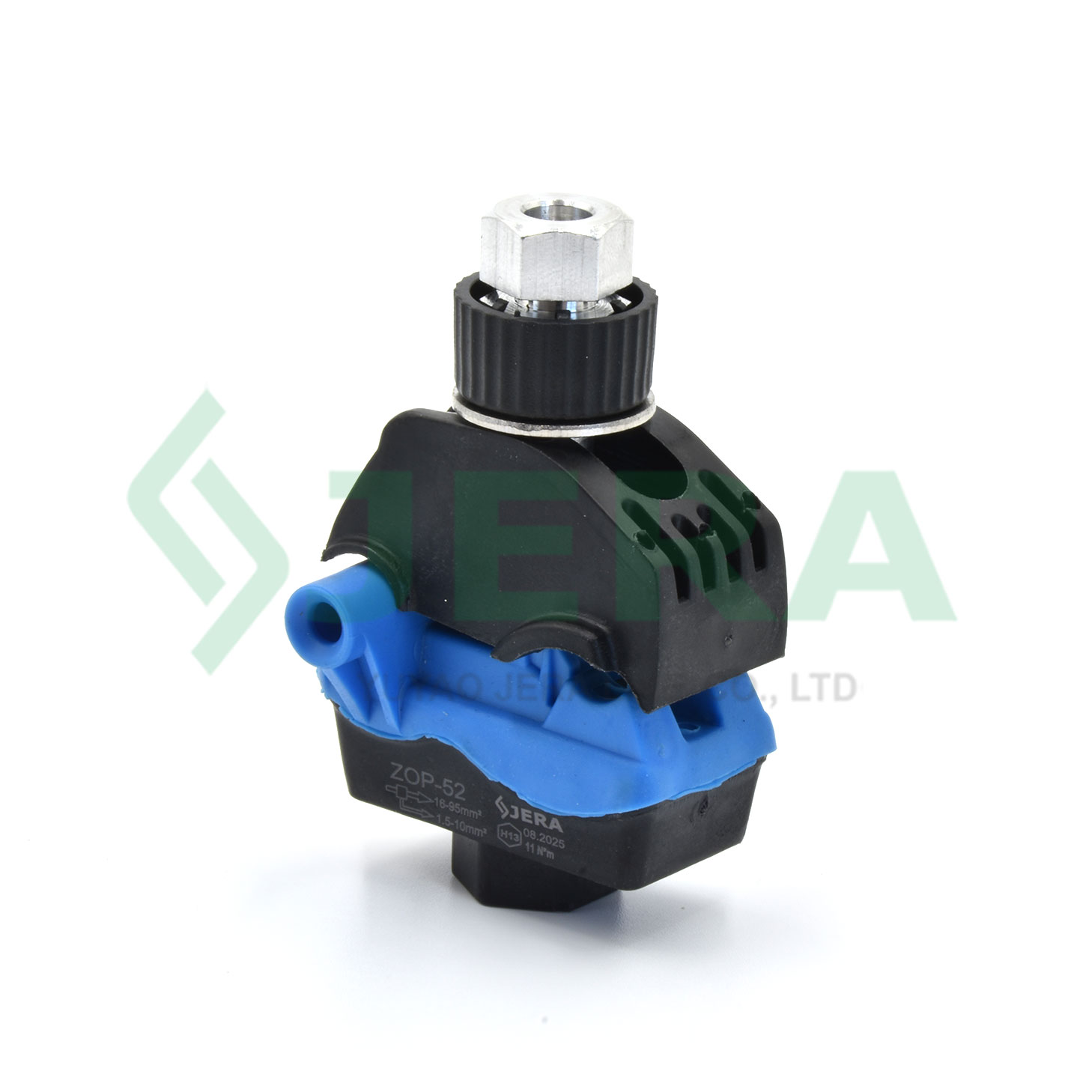

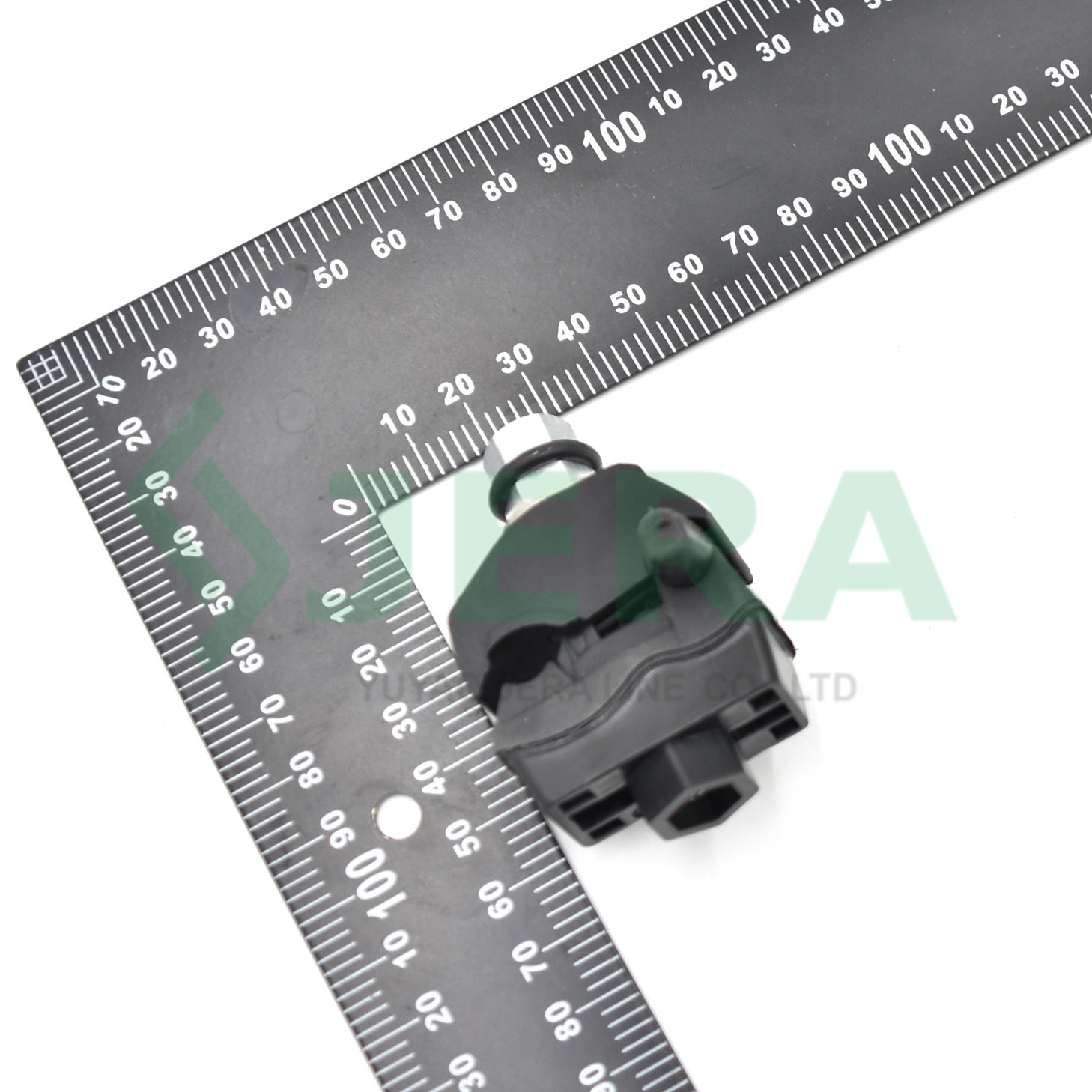

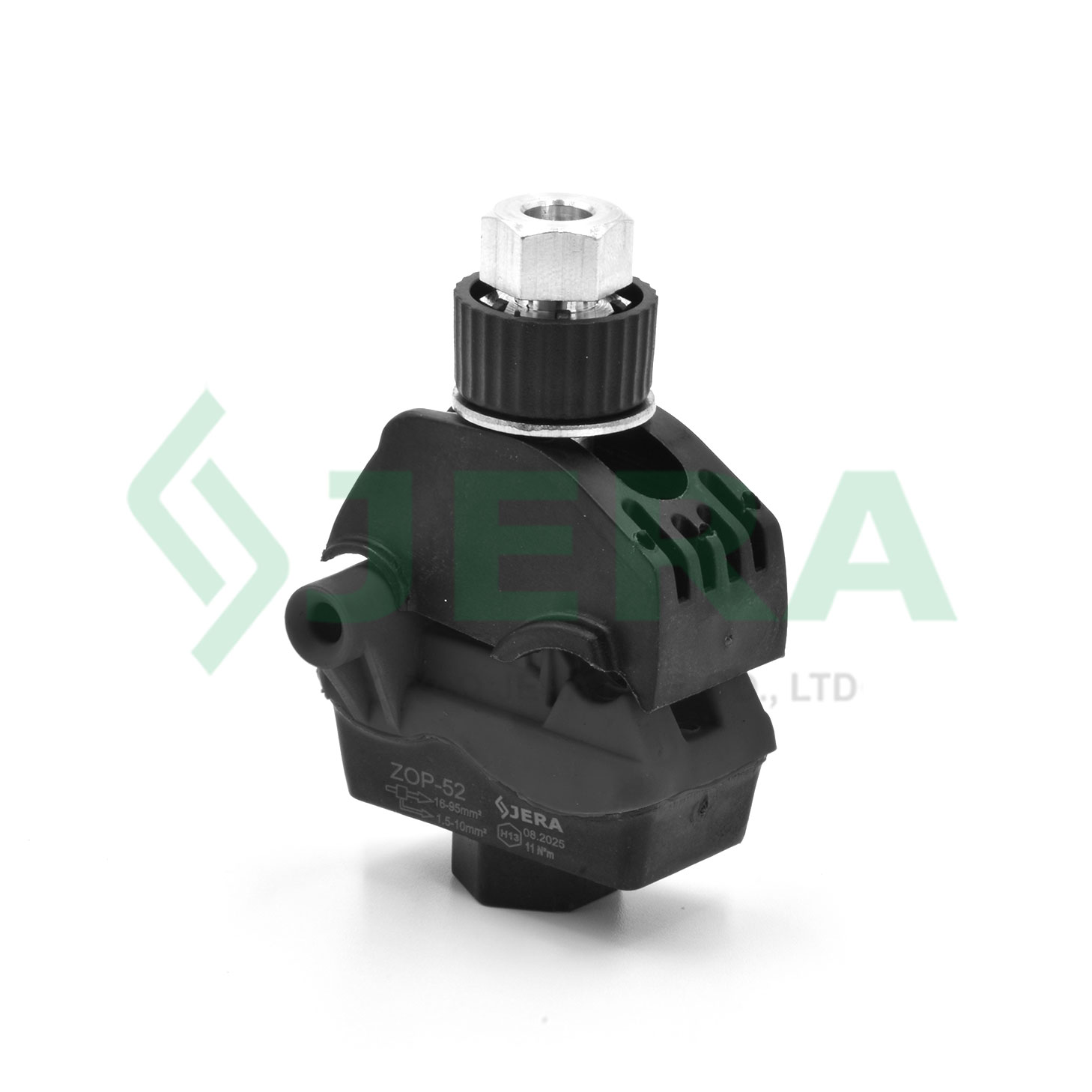

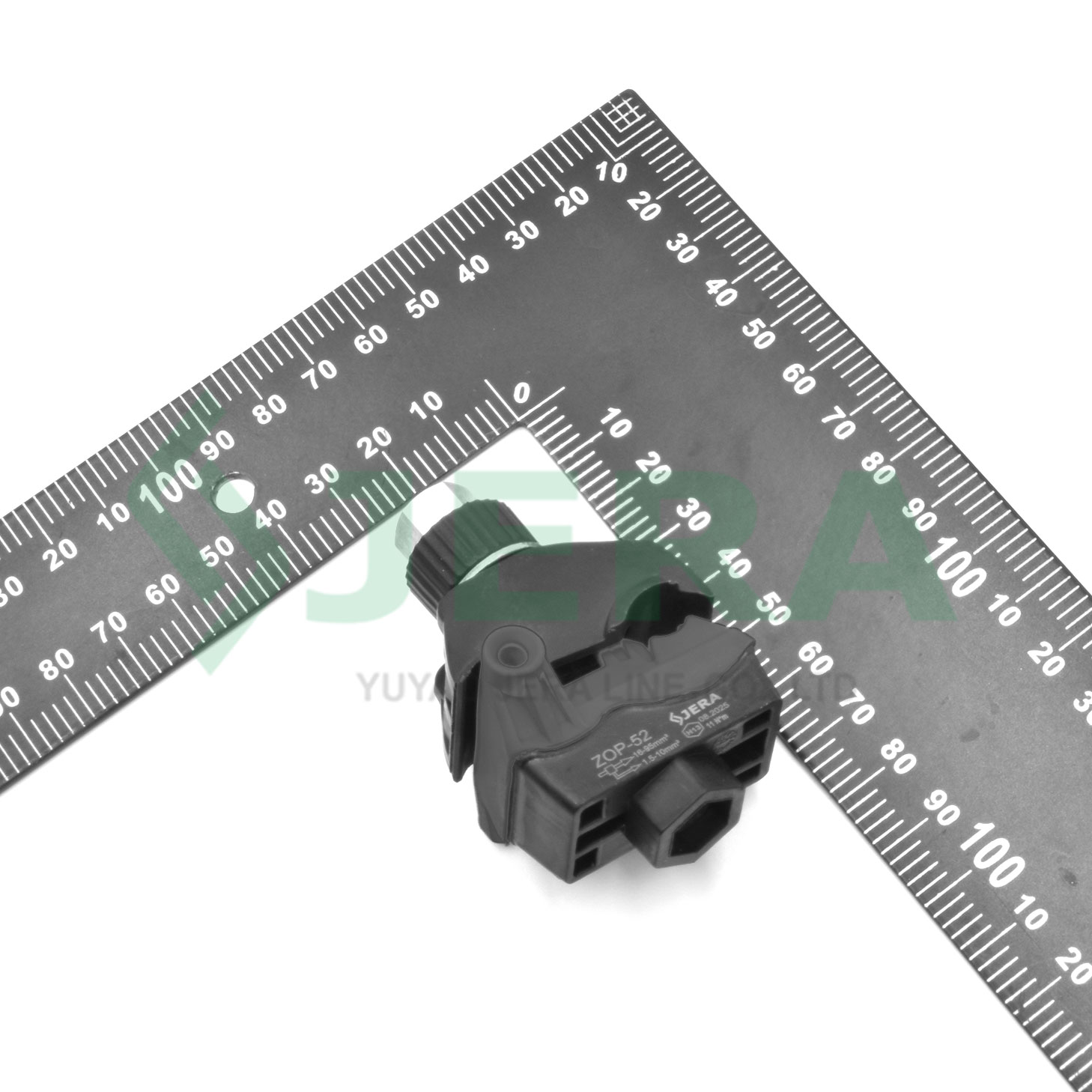

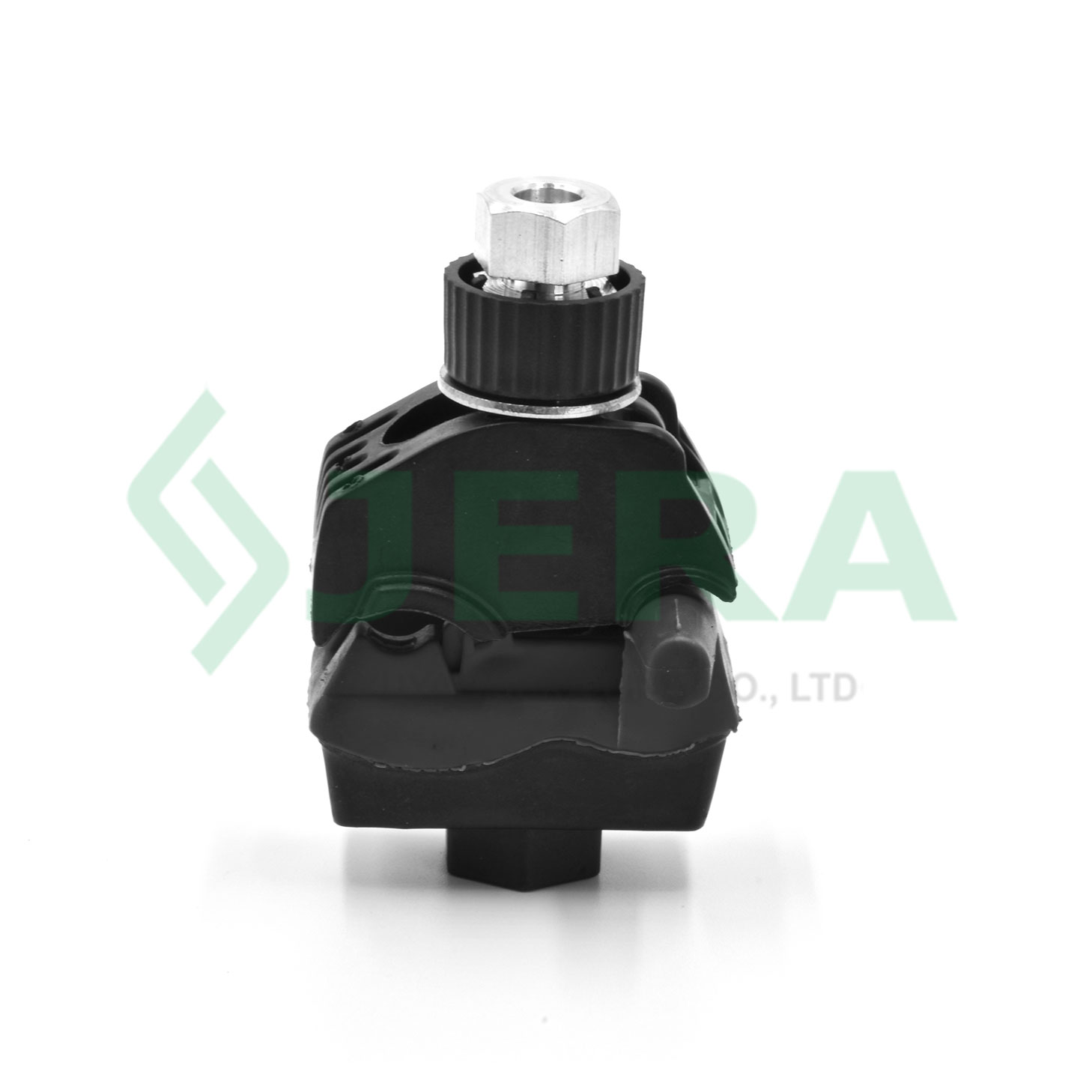

Insulation Piercing clamp ZOP-52(16-150/1.5-16)

Insulation Piercing clamp ZOP-52(16-150/1.5-16)
Insulation Piercing clamp ZOP-52(16-150/1.5-16)
Insulation Piercing clamp ZOP-52(16-150/1.5-16)
Insulation Piercing clamp ZOP-52(16-150/1.5-16)
Insulation Piercing clamp ZOP-52(16-150/1.5-16)
Insulation Piercing clamp ZOP-52(16-150/1.5-16)
Insulation Piercing clamp ZOP-52(16-150/1.5-16)
Insulation Piercing clamp ZOP-52(16-150/1.5-16)
Model No. :

ZOP-52

Description:

Insulation piercing connector ZOP-52, either called power wire ipc connector is is used for overhead low voltage insulated cable connection. With this insulation piercing connector, no need to strip the insulation of the abc cable and cutting the jacket of the main cable. It always used buy end users, like in buildings, street lighting.

  • Product detail
  • Specification
  • Video
  • Inquiry

Key Features

  • Components is not isolated, flexible end cups
  • Easy installation, no need to strip conductor jacket
  • Material: UV resistant plastic, stainless steel, aluminum
  • Bimetallic, suitable for aluminum and copper conductors
  • Manufactured according to the standard: EN50483-4:2009
  • Factory price of insulation piercing connector
Insulation Piercing clamp ZOP-52(16-150/1.5-16) Insulation Piercing clamp ZOP-52(16-150/1.5-16)

SPECIFICATION

Ipc Insulation Piercing Connector

Analogs: ZOP-54,P2X-95,ZOP-57,P2X-150

Ipc Insulation Piercing Connector are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off.

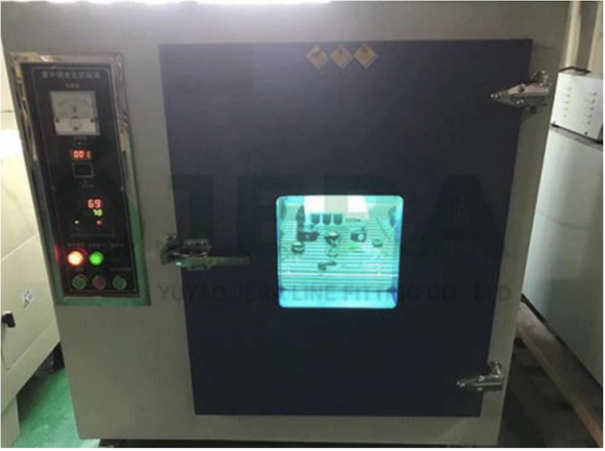

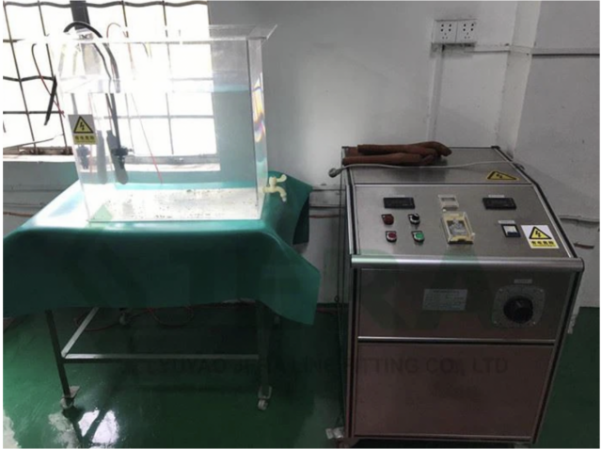

Insulation piercing are made of UV resistant thermoplastic, has tin covered teeth, and stainless steel hardware. All jera produced insulation piecing connectors had passed tests according to EN 50483, operation experience with temperatures ranging from – 60 °C up to +60 °C test, temperature cycling test, aging test, corrosion resistance test etc.

read more

APPLICATION

!insulation piercing connector zop-52

Analogs: ZOP-54,P2X-95,ZOP-57,P2X-150

Ipc Insulation Piercing Connector are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off.

Insulation piercing are made of UV resistant thermoplastic, has tin covered teeth, and stainless steel hardware. All jera produced insulation piecing connectors had passed tests according to EN 50483, operation experience with temperatures ranging from – 60 °C up to +60 °C test, temperature cycling test, aging test, corrosion resistance test etc.

read more

Manufacturing

    app

Watch Our Factory Video

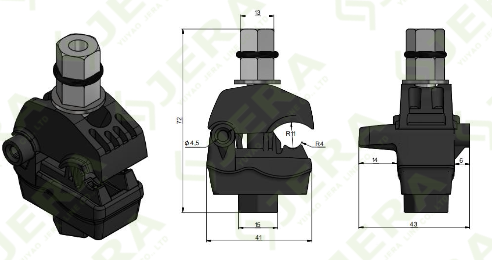

 Technical specification

Product code

Main line, mm2

Branch line, mm2

Tightening, N*m

Weight, kg

ZOP-52

16-150

1.5– 16

11±2

0.06

PRODUCT VIDEO
