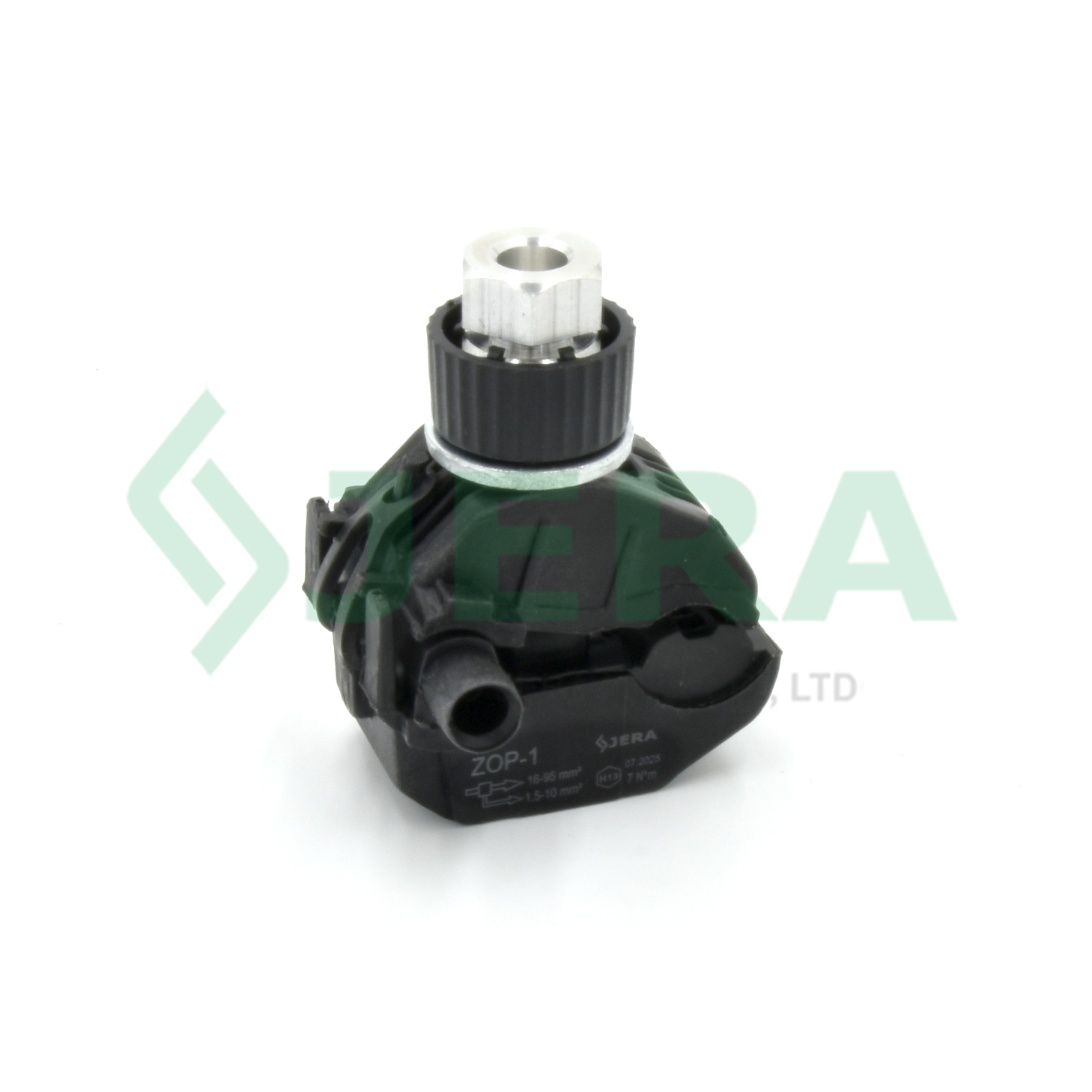

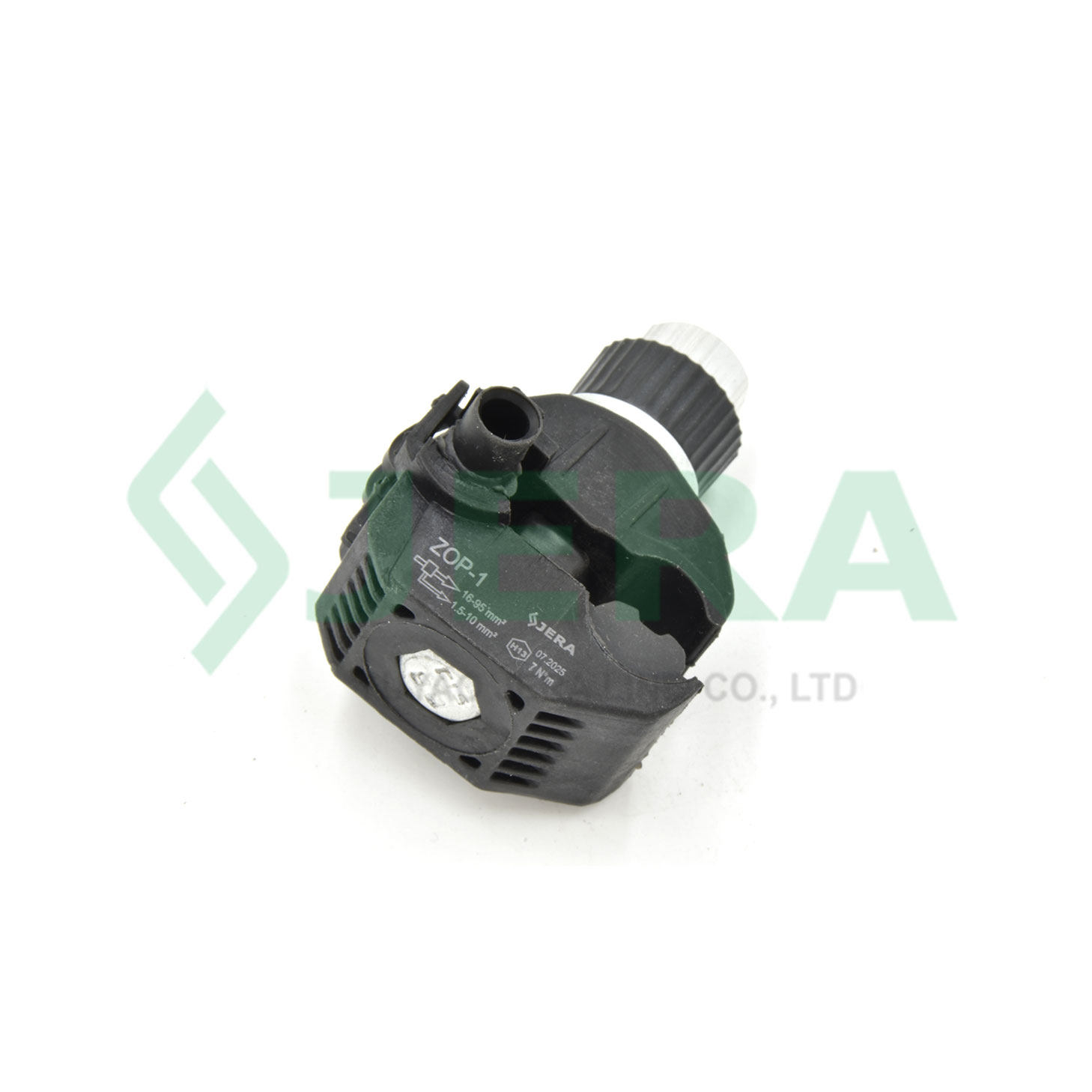

Insulation Piercing Connector ZOP-1

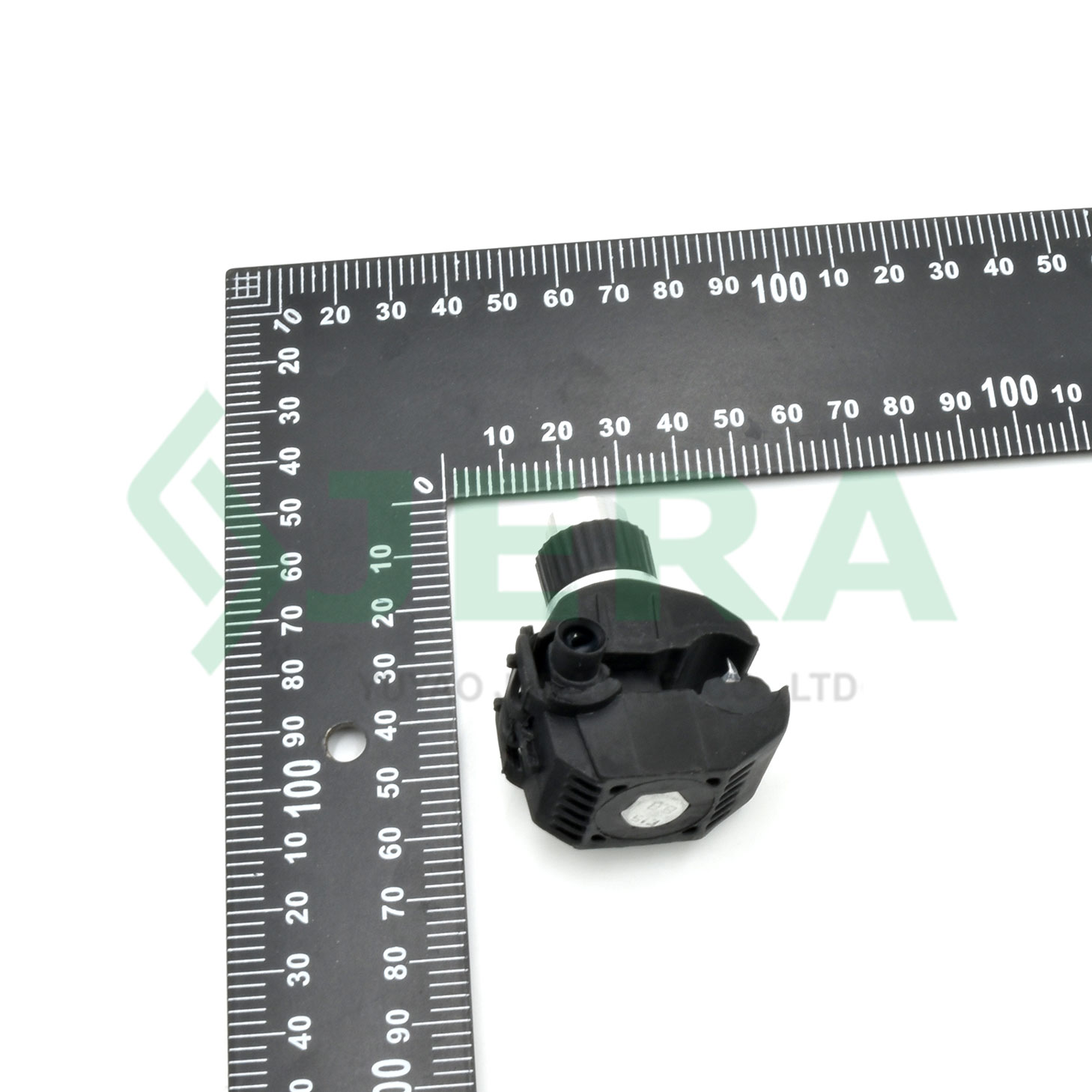

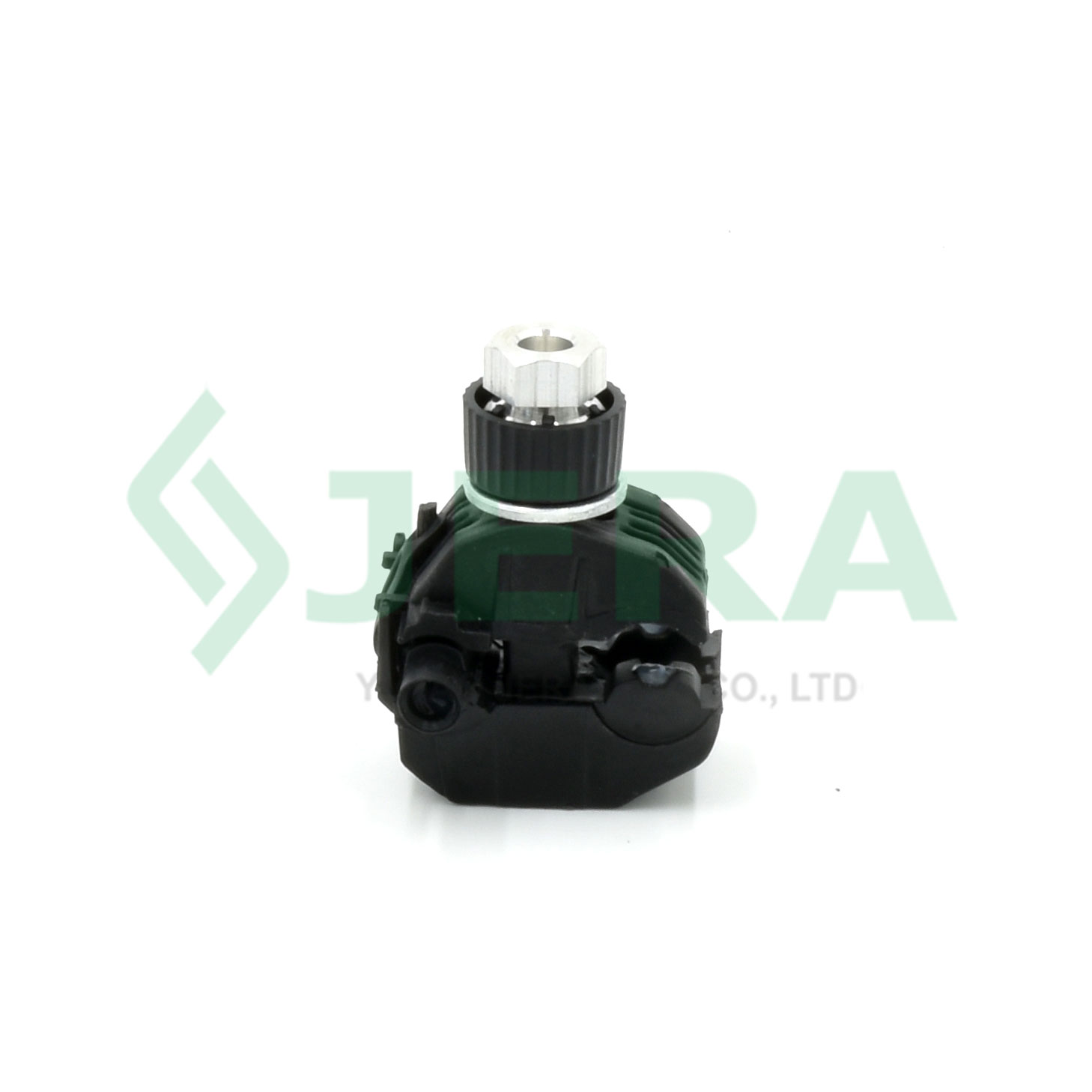

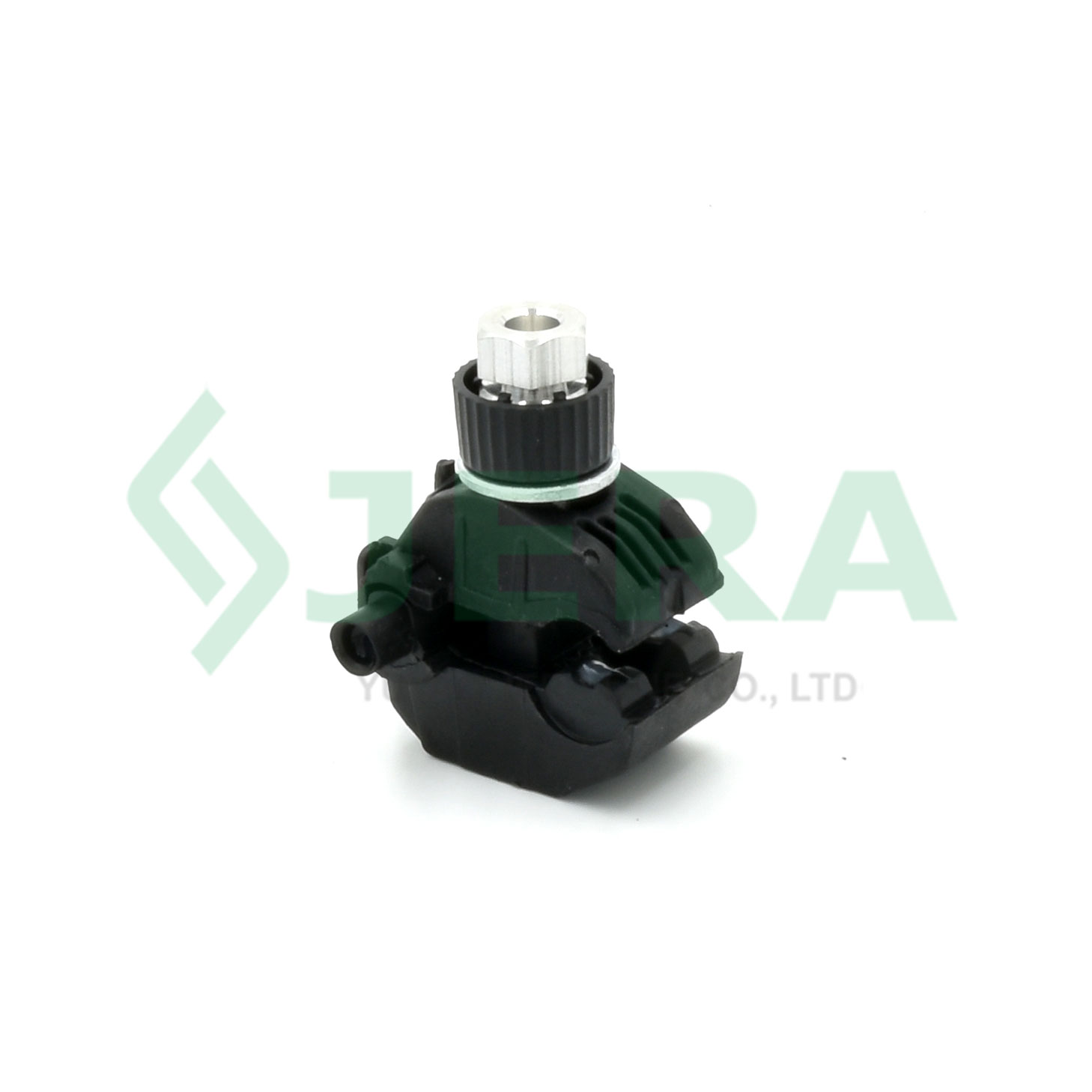

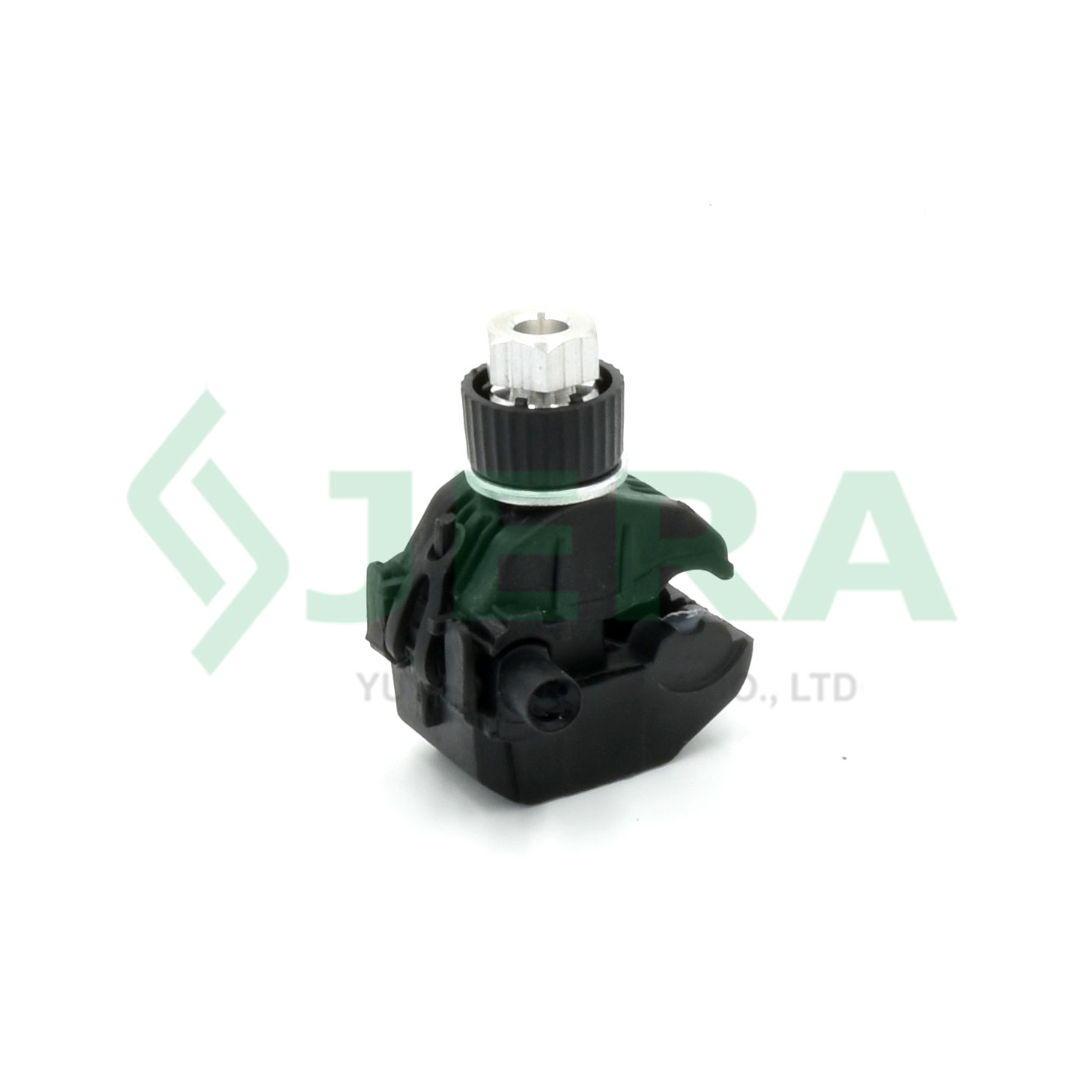

ABC cable insulation piercing connector, 16-95/1.5-10 mm2, aluminum contact, Low voltage insulation piercing connector

Features

Wide cable application size
Fast installation with torque wrench JTN-11-13
High mechanical strength aluminum teeth
Durable materials, which prevents rust and corrosion
EN-50483:2009 type test report from the third party independent laboratory
Low cost with factory location in China

DESCRIPTION

TEST

REVIEW

Application

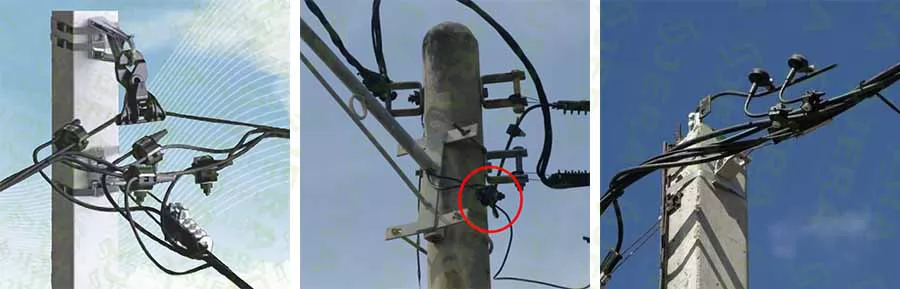

The ZOP-1 insulation piercing tap cable connector is engineered to provide reliable branching of low-voltage aerial bundle conductors to customer service lines. Its robust design incorporates fully insulated contact plates that ensure optimal conductivity while maintaining safety in live-line environments.

Overhead insulation piercing connector ZOP-1 enables efficient installation without stripping cable insulation, reduce the labor cost. The connector is used for utility overhead cable distribution networks, especially in urban or densely populated areas where live-line work is essential.

Technical specification

Product code	Cable size, mm2		Torque, N*m
	Main	Tap
ZOP-1	16-95	1.5-10	7±1

Components and materials

Power cable insulation piercing connector ZOP-1 is designed and reached by by Jera Line, a direct factory location in China,the IPC consissts of the following main part:

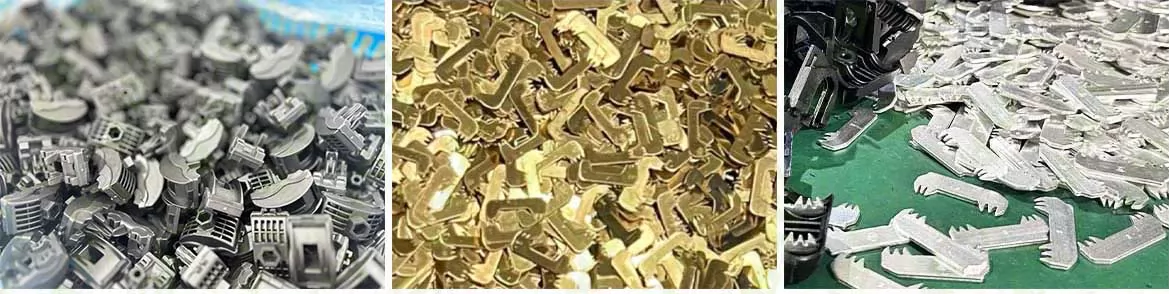

Components	Materials
Body and Seal	Heat and UV resistance two components insert molding of composite polymer and elastomer
Contact plate	Aluminum
Bolt	Darkomet steel
Nut with shear-head	Aluminum alloy
Washer	Darkomet steel
End cap	UV resistance Polypropylene

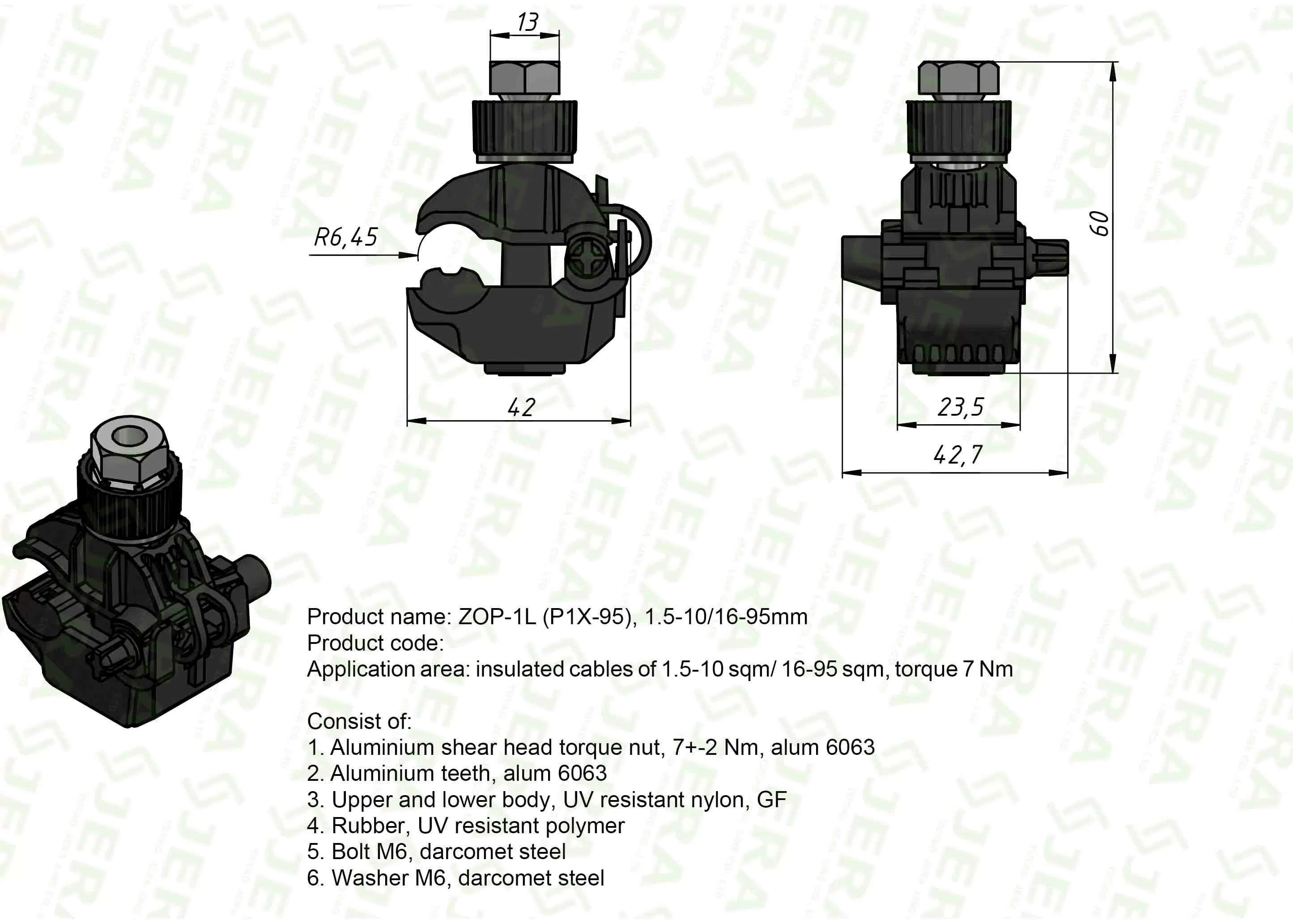

Dimensions

Test

Aerial insulation Piercing Connector ZOP-1 is rigorously tested to ensure safe and reliable performance when branching low-voltage aerial bundle conductors on live lines.

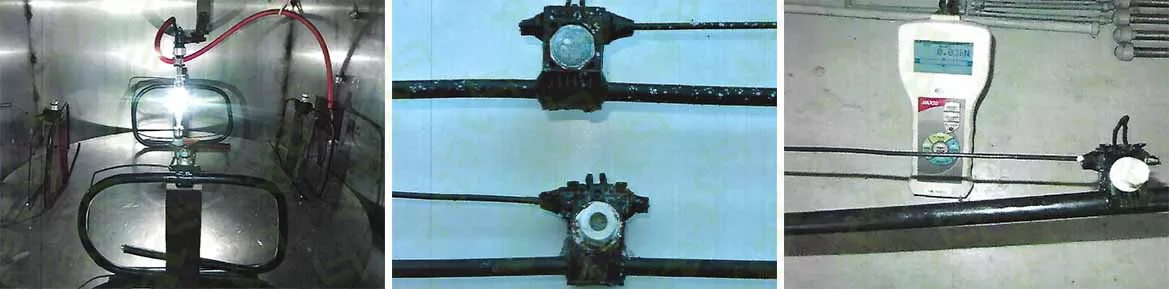

The tests are according to international standard EN-50483:2009 in the third party laboratory, the test scopes are as following:

• Visual examination

• Dimensional and material verification

• Test for permanent marking

• Test for mechanical damage to the main conductor

• Branch cable pull-out test

• Connector bolt tightening test

• Shear head function test

• Low temperature impact test

• Dielectrical voltage test in water

• Low temperature assembly test

• Corrosion ageing test (Method 1)
