Insulation piercing connector ZOP-58
ZOP-58
Description:
Insulation piercing connector ZOP-58, also known as Insulated Piercing Connector for LV ABC Cable, is suitable for all types of LV-ABC cables. It penetrates the insulation of the cable by tightening the bolt. The product eliminates the need for workers to manually strip the insulation.
- Application: copper and alum cables
- Main line: 35-185 mm2
- Branch line： 35-185 mm2
- Torque: 16 N
- Product detail
- Specification
- Video
- Inquiry
Key features
- Easy and safe to use, no additional tools required to strip insulation
- Compatible with cables of different sizes, adjustable tine movable distance
- UV resistant thermoplastic、 tinned covered aluminum alloy and stainless steel metal
- Comes with a end cap to insulated the cable.
- Complied to international standard EN-50483-4, and NF-C33-020
SPECIFICATION
installation steps：
- Adjust the puncture clamp nut to a proper position, and insert the branch line into the branch line cap completely.
- Insert the main line. If the main line has two layers of insulation, a certain length of outer insulation must be stripped at the connection position.
- Put the main/branch line in a proper position and keep it parallel, first tighten the nut by hand to fix the clamp.
- Tighten the nut evenly with a socket wrench of the corresponding size until the top breaks off and the installation is complete.
APPLICATION

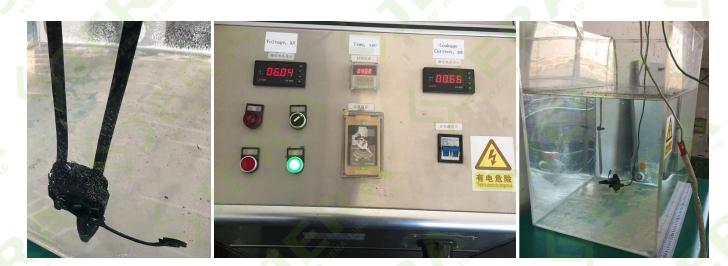

We apply European fundamental test standards, when inspecting the quality of our production operations. For electrical power cable related products, they are mentioned in EN 50483-4, NFC 33020, and IEC 61238-1.
Insulation Piercing connector ZOP-58 can be supplied either separately or together as assembly with other needed Low voltage cable fittings, tension clamps, shear off cable lugs, suspension clamps, LV brackets, hooks which you could find in our product range.
Feel free to contact us for more information about this ABC cable electrical connector.a
Manufacturing
Watch Our Factory Video
Technical specification
|
Product code |
Main line, mm2 |
Branch line, mm2 |
Torque, N*m |
|
ZOP-58 |
35-185 |
35-185 |
16 |
