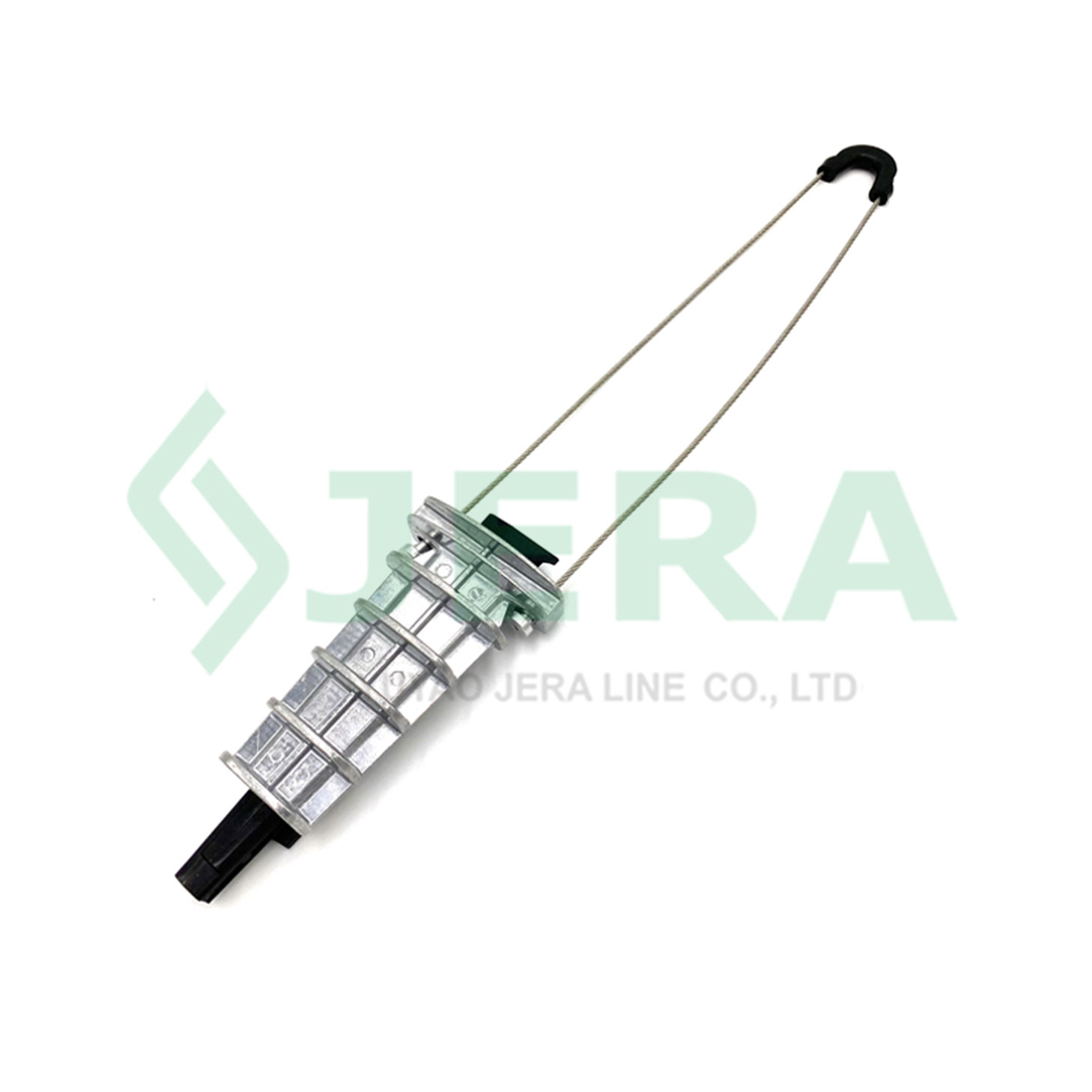

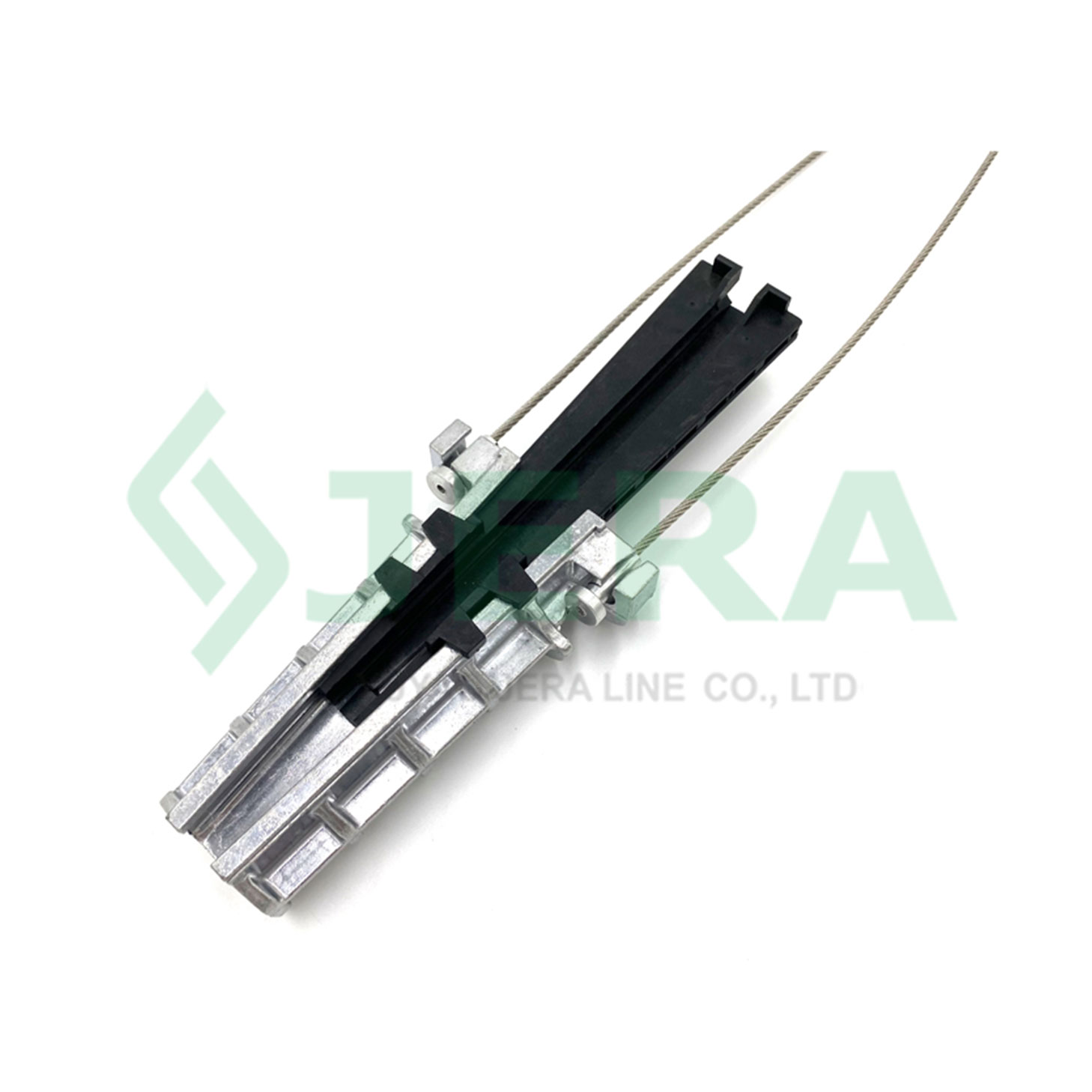

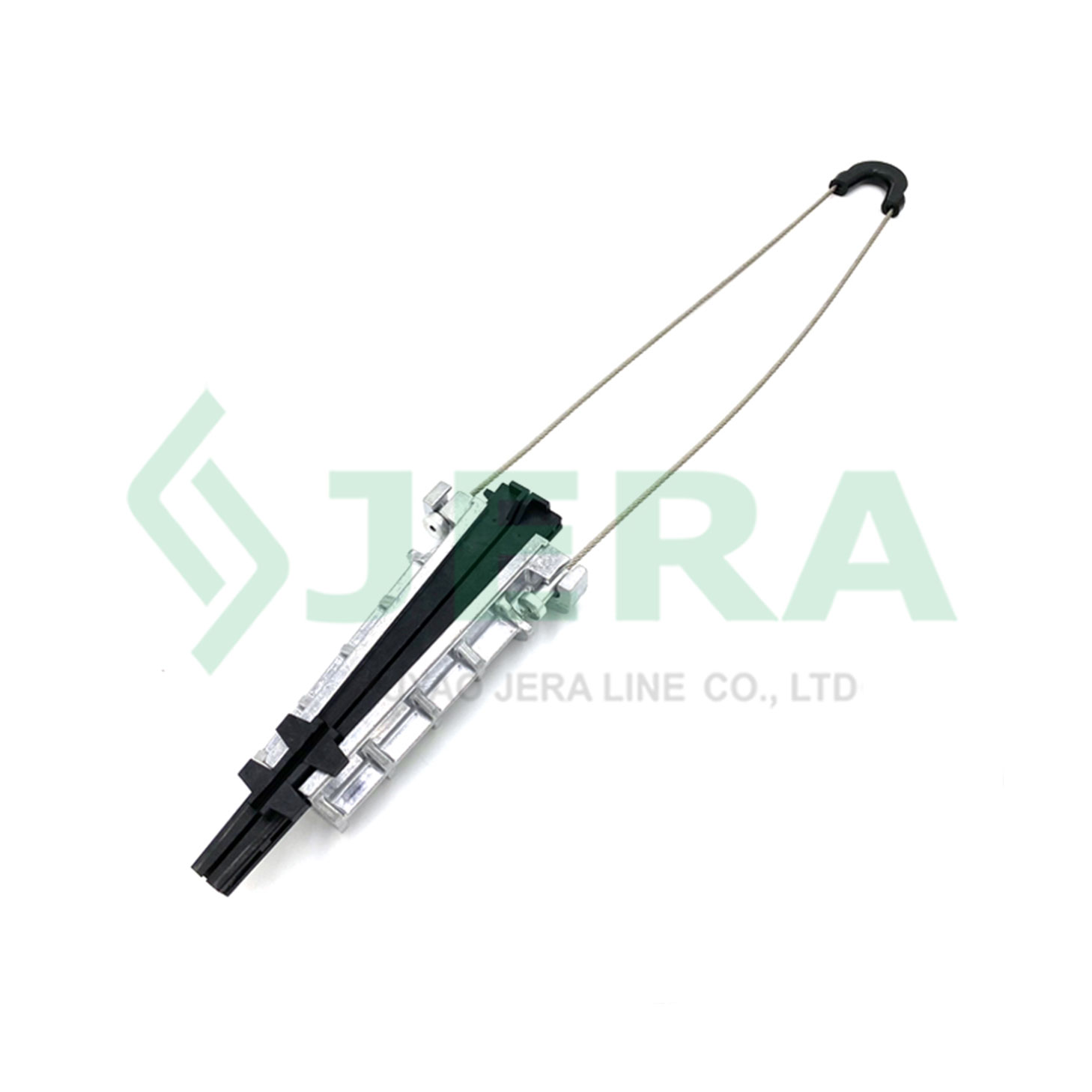

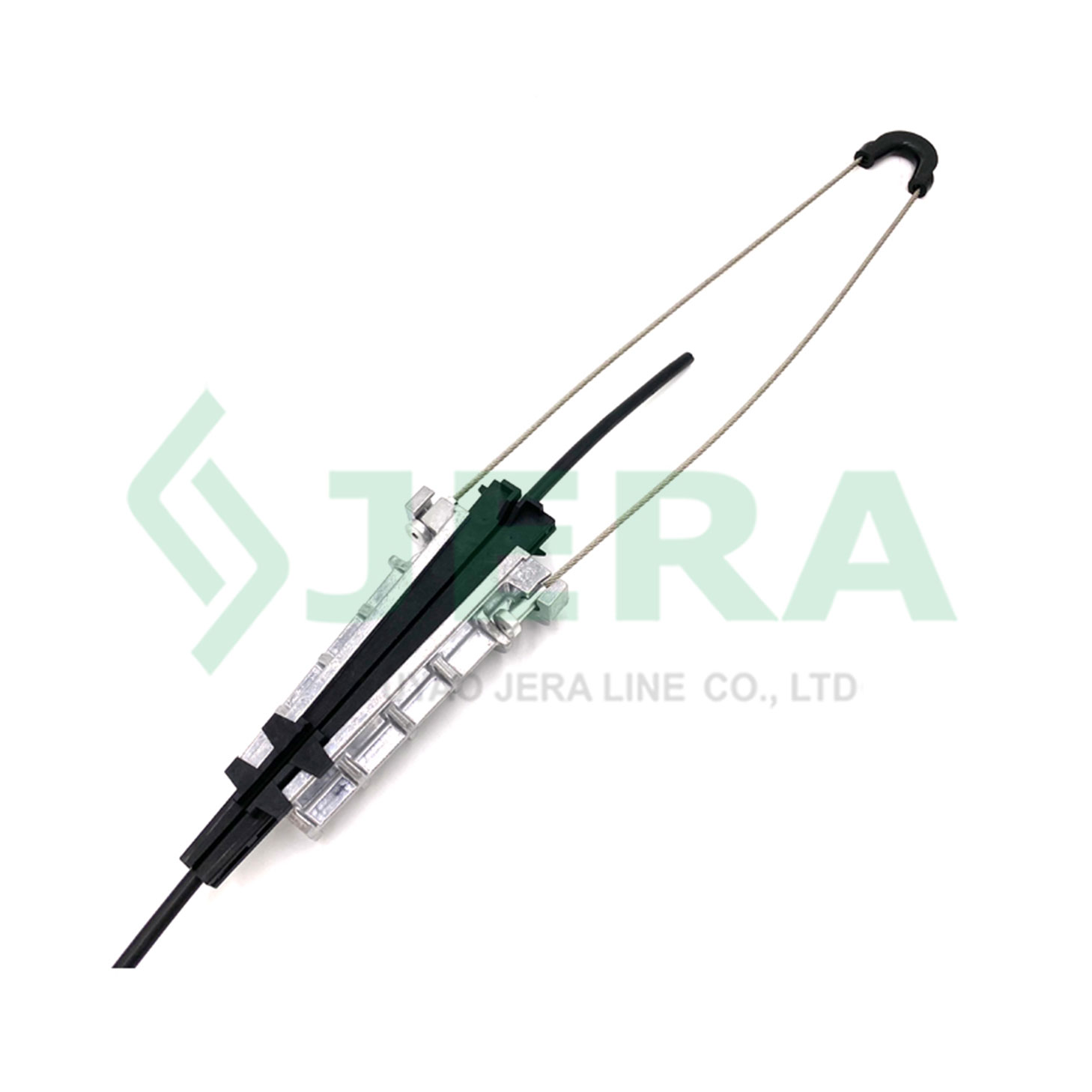

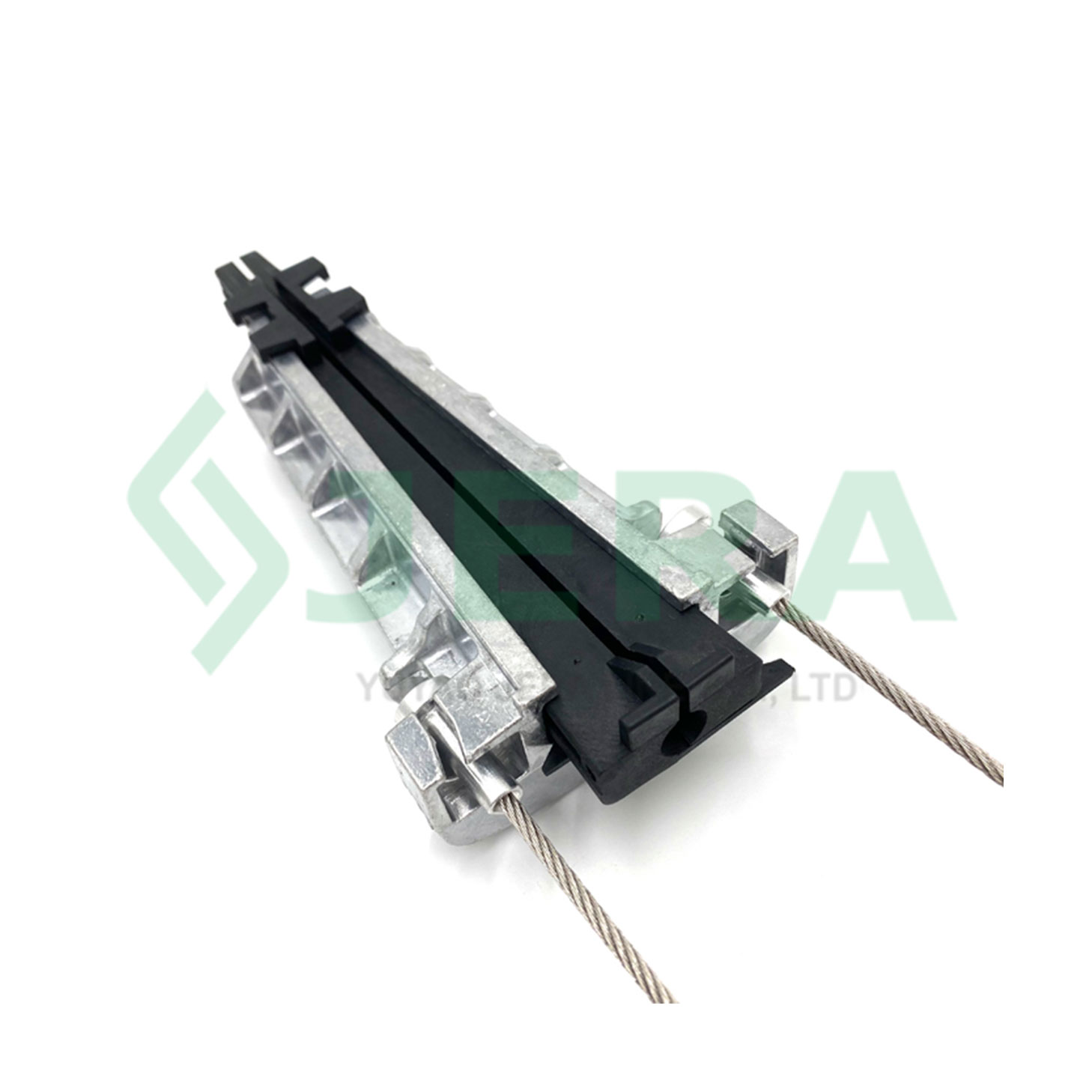

Low voltage ABC cable clamp, PA-800

Low voltage ABC cable clamp, PA-800
Low voltage ABC cable clamp, PA-800
Low voltage ABC cable clamp, PA-800
Low voltage ABC cable clamp, PA-800
Low voltage ABC cable clamp, PA-800
Low voltage ABC cable clamp, PA-800
Low voltage ABC cable clamp, PA-800
Low voltage ABC cable clamp, PA-800
Model No. :

PA-800

Description:

Anchor clamp PA-800 designed to anchor ADSS fiber optic cable or low voltage ABC cable with neutral messenger. Strain clamp designed to support the round cable on intermediate, during construction of overhead distribution line.

  • Product detail
  • Specification
  • Video
  • Inquiry

Key Features

1. Overhead appliance for both Fiber optic cable and Low voltage ABC cables
2. Universal closed / open hook installation
3. Self-adjusting wedges, no tool required
4. Anti-drop off design
5. No cable jacket damages
6. Excellent Environmental Stability
7. Indoor or outdoor cable rapid installation
8. Competitive price
9. Aluminum alloy cast body provides excellent mechanical strength.
10. Stainless steel bail wire guarantee a long-term durability

Low voltage ABC cable clamp, PA-800 Low voltage ABC cable clamp, PA-800

SPECIFICATION

anchor clamp

Application areas:

1. Fiber to the home (FTTH)
2. Passive optical networks(PON)
3. Low voltage ABC lines.

Product analogs: PA-1000, PA-3000,PA-1600

Tension lamp pa-800 is made of high strength aluminum alloy, UV resistant plastic and stainless steel. Aluminum alloy body can provide enough firmness during aerial application. Black wedge and thimble are made of 1st grade UV resistant plastic and wire bail is made of stainless steel which will provide superior tensile load up to 8KN.

read more

APPLICATION

!tension clamp pa-800

Jera line is operating according to ISO9001:2015 standards, all jera produced low voltage cable clamp inspected by a series tests in jera laboratory, such as mechanical tensile test, UV resistant test, aging test, corrosion test etc. The tests will make us be more confident in our products and also guarantee the product quality for our clients.

Jera is a confident cable abc cable clamp factory. We have the whole kit of accessories for overhead installation need. Anchor clamps and cable brackets are available either separately or together as assembly.

Feel free to inquire about this abc anchor clamp price.

read more

Manufacturing

    app

Watch Our Factory Video

Technical specification

Product code

Electrical cable, mm2

Fiber optic cable, mm

MBL, kN

PA-800

16-35

7-11

8.0
