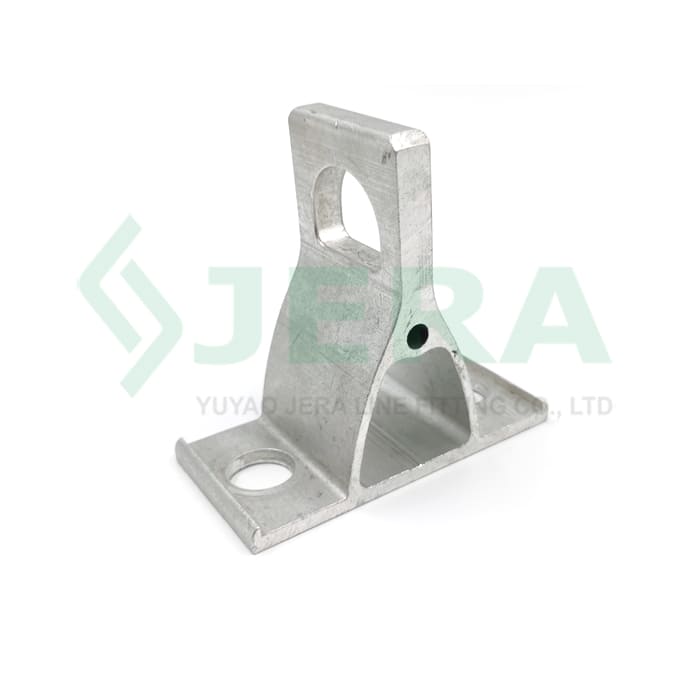

Low Voltage Cable Tension Bracket, CA-2000.1

Low Voltage Cable Tension Bracket, CA-2000.1
Low Voltage Cable Tension Bracket, CA-2000.1
Low Voltage Cable Tension Bracket, CA-2000.1
Low Voltage Cable Tension Bracket, CA-2000.1
Low Voltage Cable Tension Bracket, CA-2000.1
Low Voltage Cable Tension Bracket, CA-2000.1
Low Voltage Cable Tension Bracket, CA-2000.1
Low Voltage Cable Tension Bracket, CA-2000.1
Model No. :

CA-2000.1

Description:

LV anchoring bracket, CA-2000.1 also called low voltage tension bracket, made of aluminum alloy, developed to be used on wooden, metal or concrete poles.Mostly installed in LV-ABC line with anchor clamps for main cables by 2 stainless steel band (20 mm) or 1 bolts 14, 16 mm diameter.

  • Product detail
  • Specification
  • Video
  • Inquiry

Key Features

  1. Compact size
  2. With high mechanical strength, up to 20KN
  3. Overall aluminum alloy material, long time service life
  4. Both stainless steel band or bolts installation
  5. Good environmental stability
  6. Fair price
Low Voltage Cable Tension Bracket, CA-2000.1 Low Voltage Cable Tension Bracket, CA-2000.1

SPECIFICATION

Universal anchor bracket

Analogs: CA 1500.1, CS 102000, CS10.3

Universal anchor bracket is made of high quality aluminum alloy, overall aluminum alloy body provide superior weather proof and mechanical tensile strength, the tension force is up to 20KN suitable for most electrical tension clamps.

The installation of this abc anchor bracket is very simple, it can be fixed on wooden or concrete poles by stainless strap (20mm width) or pole bolt(16mm) during electrical wire line constructions.

This tension bracket have passed the aging tests, tension test. Operation experience with temperatures ranging from –60 °C up to +60 °C test, temperature cycling test. All the brackets meets the criteria of NF C 33042 and EN 50-483.

read more

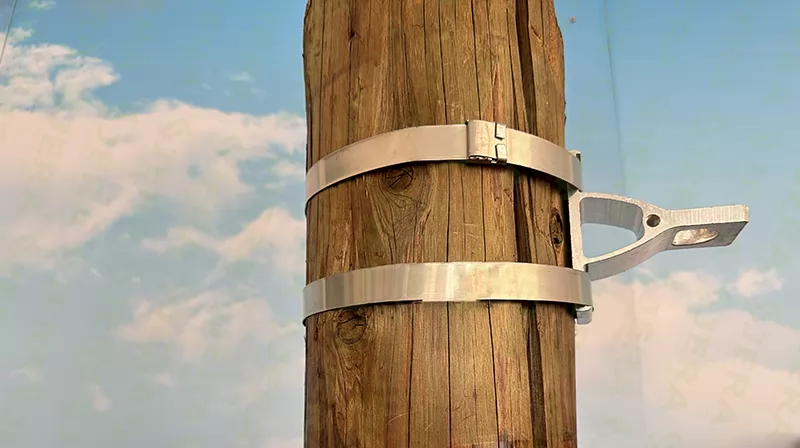

APPLICATION

abc anchor bracket

Jera line is operating refer to ISO9001:2015, we care about product quality and cost effective, to provide the most suitable solution for our clients. We have our interior laboratory to do a series test for aerial electrical components during daily production and new product developments.

We are a direct manufacturer, supply a wide range products for electrical line constructions. Our product include tension clamps, suspension bracket, stainless steel straps, insulation piercing connector, cable lug and connectors etc.

Feel free to contact us for more details about this tension brackets price.

read more

Manufacturing

    app

Watch Our Factory Video

Technical specification

Code

MBL, kN

Weight, kg

Material

CA-2000.1

20

0.11

aluminum alloy
