The MV cold shrink termination kit CST-O-36-3-120-185 for 3-core outdoor cables is widely used across medium-voltage power distribution networks where reliable sealing, insulation, and mechanical performance are essential. Its heat-free, tool-less installation makes it ideal for challenging field environments, elevated work areas, and confined spaces, ensuring consistent and safe performance in all conditions.
Main application:
• Utility distribution Medium voltage 3-core XLPE cable terminations
• Outdoor MV switchgear and control cabinets
• Transformer and substation equipment connections
• Industrial electrical distribution networks
Technical specification
Product code
CST-O-36-3-120-185
Conductor cross-section（mm2）
120-185
Insulation outer diameter（mm）
36-41.4
Voltage rating
0.4 kV to 36 kV
Cable type
3-core XLPE/EPR, armored or unarmored
Material
UV-stable silicone rubber
Installation method
Cold shrink
Operation method
–40 °C to +90 °C
Environmental protection
IP-rated sealing, UV and moisture resistant
Components and Materials
Jera Line is a China manufactorwho produce Cold shrink cable termination MV, including MV bolted cable lugs and Medium voltage cable termination accessories. The MV Cold Shrink tube Termination set CST-O-36-3-120-185 is designed for outdoor environments, the CST-O-36-3-120-185 termination setensures stable performance under moisture, pollution, UV exposure, and mechanical stress. Its heat-free, tool-free installation makes it especially suitable for field conditions, confined spaces, and areas where open flames or heat equipment are restricted.

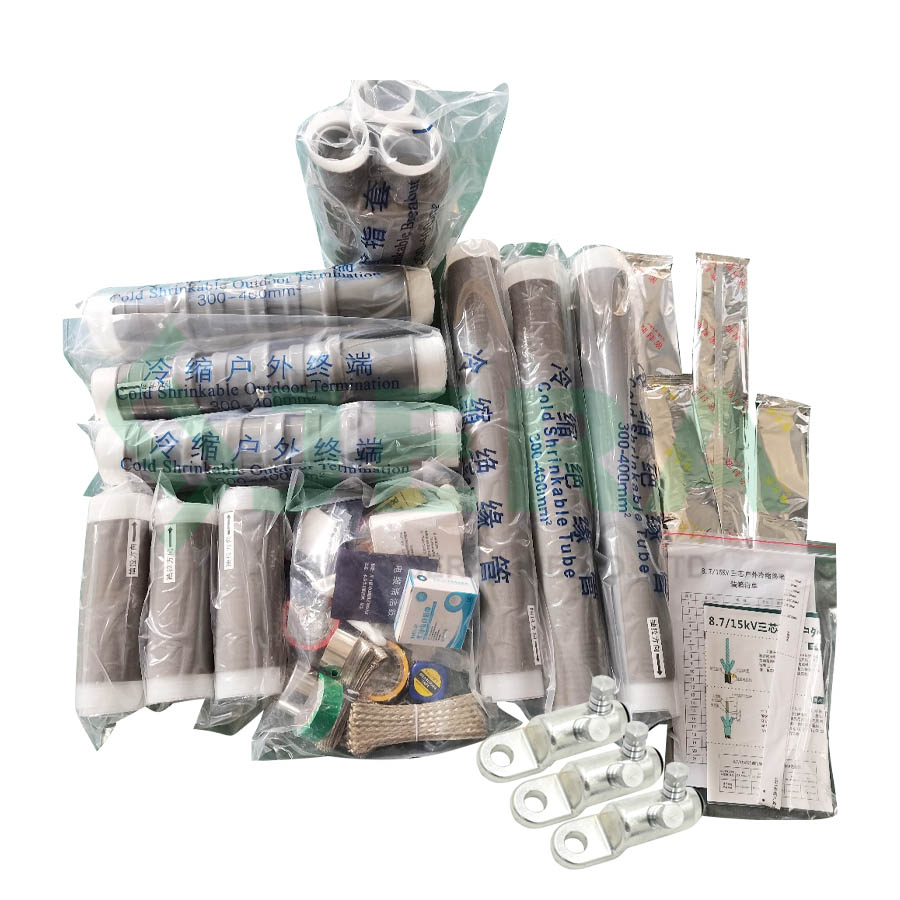

The materials consists of the following main part:
Components
Materials
Cable Lug Set
CLBVzT-36-2-70-240（3 pcs)
Accessories
Cold Shrink Tubes and accessories bag

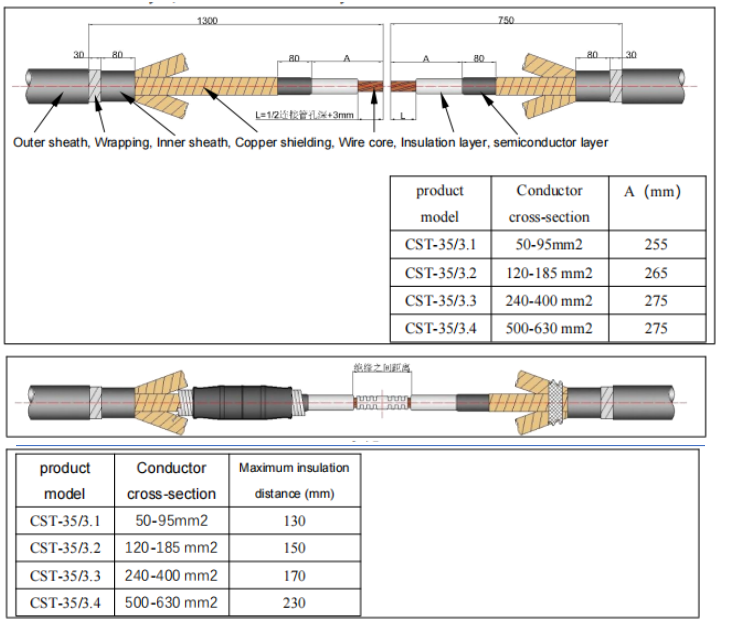

Dimensions
Test
Jera Line is a Substation and switchgear termination sets supplier in China, the shear head mechanical lugs had tested in the third party EU laboratory according to IEC-61238 standard.
