Low voltage pole line bolt, B-16-300
B-16-300
Description:

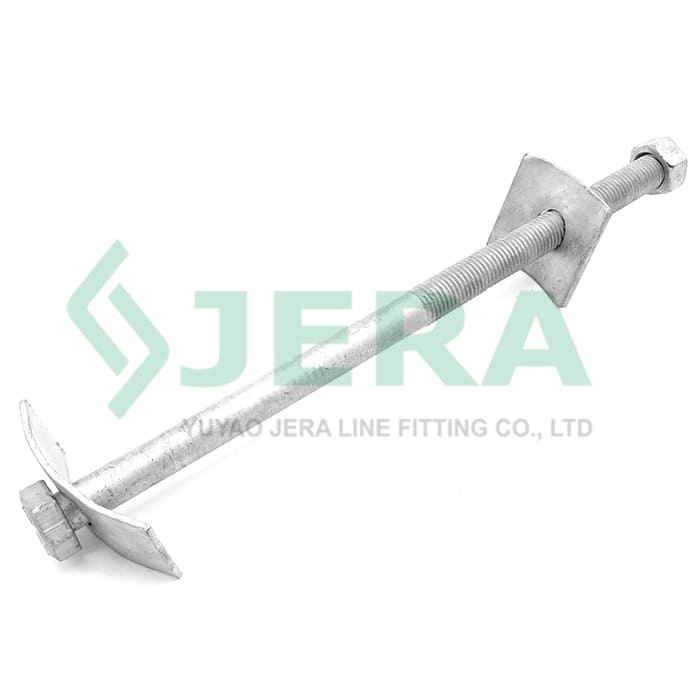

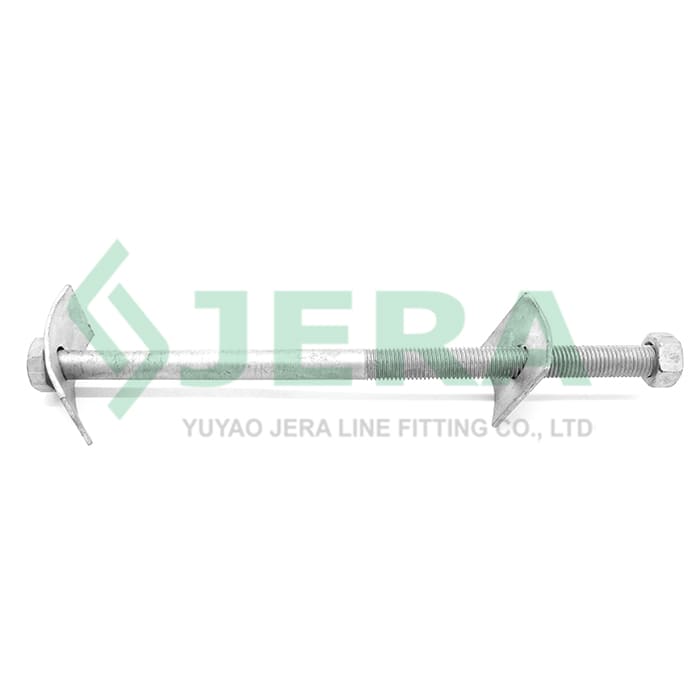

Low voltage pole line bolt also called OHL pole bolt is designed to used on pole to secure or fix LV anchor bracket or electrical cable console during outdoor electrical line constructions.
- Bracket type: Tension
- Application: Pole
- Span:70-200 m
- MBL: 10 KN
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Easy operation
- Hop dip galvanized steel, durable
- With high mechanical strength up to 10KN
- Allow installations on wooden or concrete pole
- Superior environmental stability
- Competitive price
SPECIFICATION
Outdoor electrical cable deployment, overhead
low voltage suspension bolt is made of high strength carbon steel, hot dip galvanized production technology which is available in jera line workshop. Galvanized surface provide an exceptional corrosion resistant which ensure long period service life during applications.
The installation of this pole bolt is very easy, it can be installed on wooden or concrete pole with related anchor bracket such as UPB bracket, or pole console. The package of this bolt is plastic due to it is heavy duty product.
APPLICATION
LV ABC bolt passed a series test including aging test, max tensile strength test, UV resistant test and etc in accordance with European quality inspection standards which are available in jera interior laboratory.
Jera products were designed to be convenient for quick application. We have introduced plenty of engineering know-how, to provide you with the ultimate in confidence when choosing our solution.
Jera Line is a direct factory, with many years of experience, we supply a wide range of products for aerial electrical line deployments. Our product includes low voltage tension clamps, suspension clamps, anchor brackets, stainless steel banding, dead end guy grips, insulation piercing connectors, bolt mechanical lugs, cable connectors etc.
Feel free to contact our sales team for more details for this pole bolt price.
Manufacturing
Watch Our Factory Video
Technical specification
|
Product code |
Material |
Nut |
Diameter,mm |
Length,mm |
Thread length,mm |
MBL,KN |
|
B-16-300 |
Hot dip galvanized steel |
M24 |
16 |
300 |
140 |
10 |
