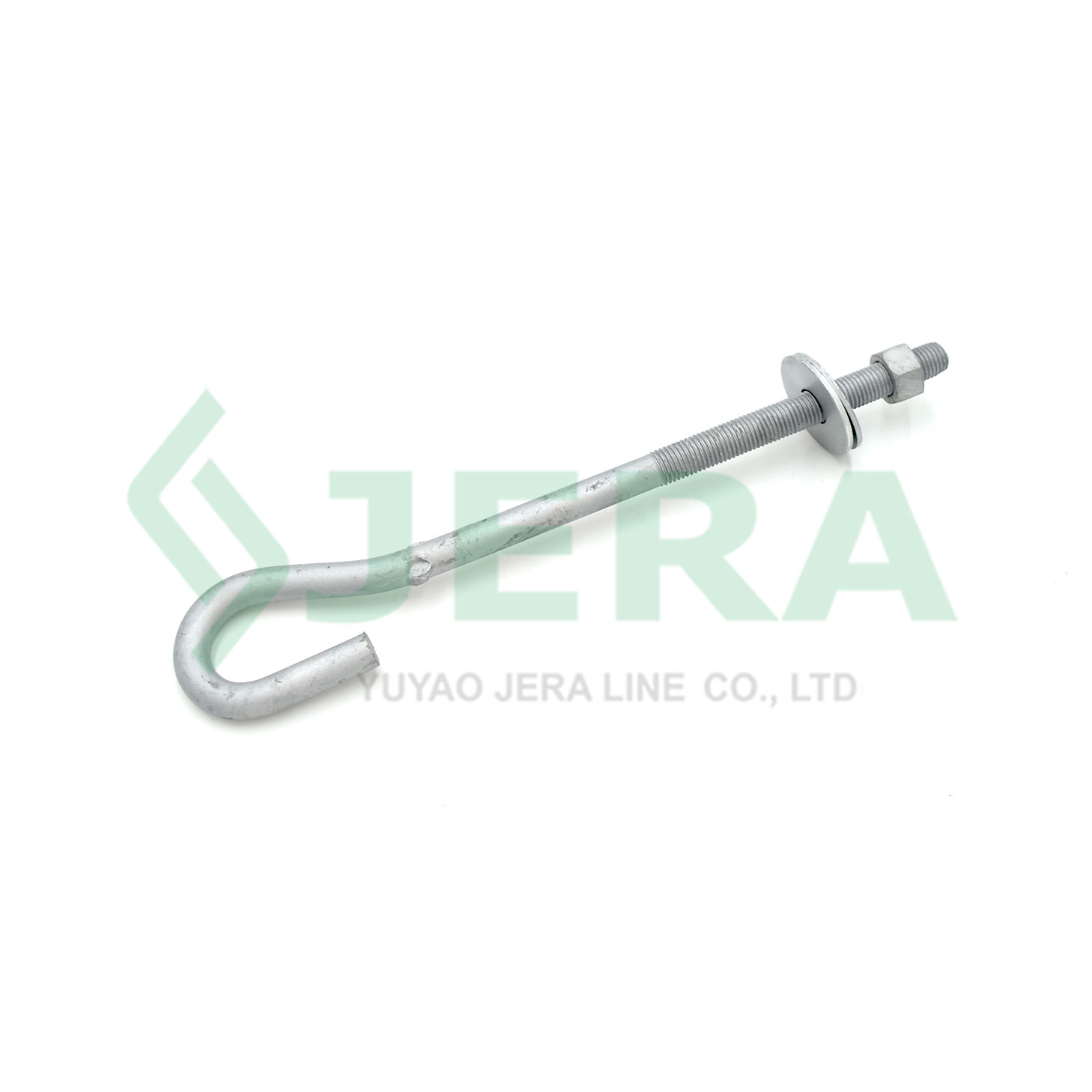

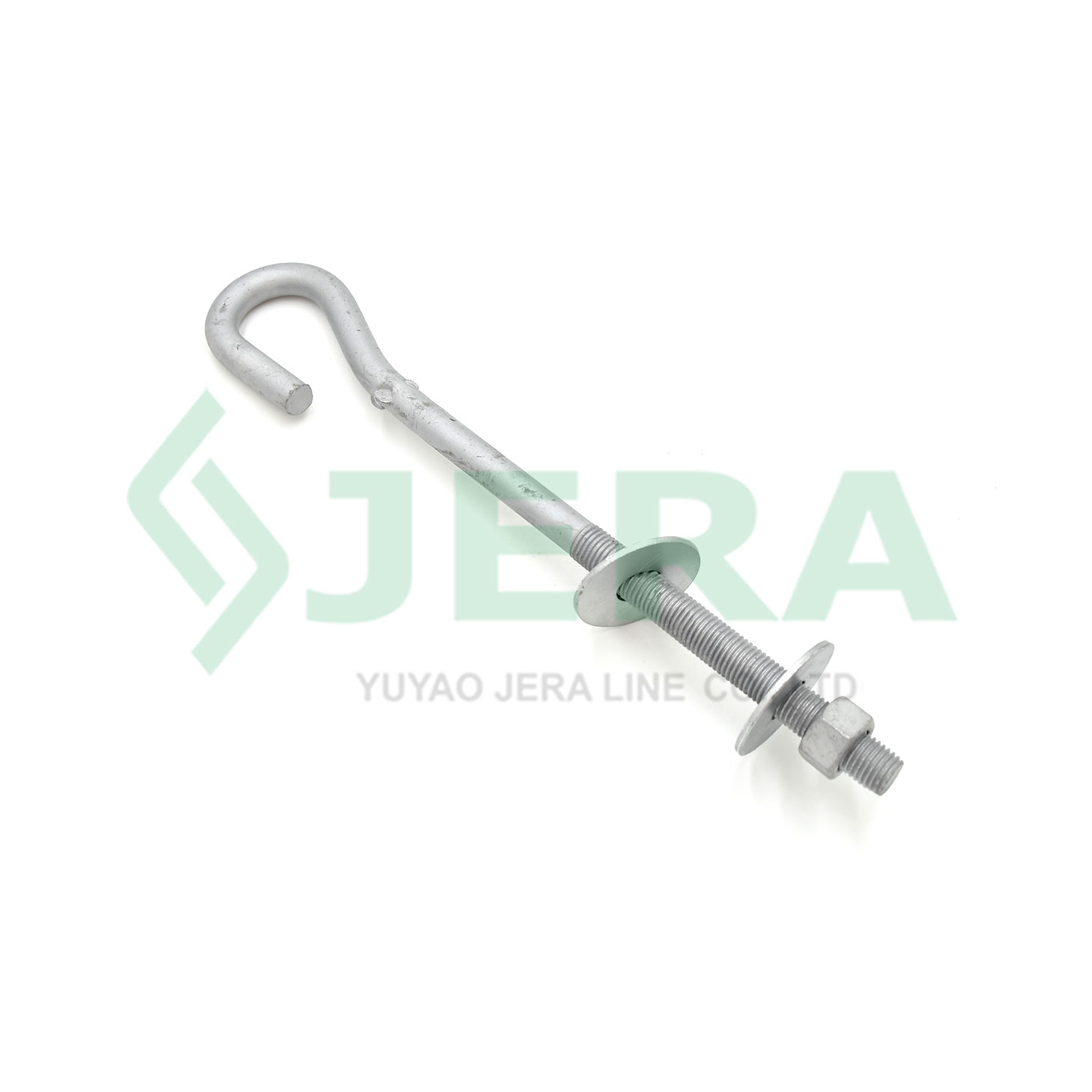

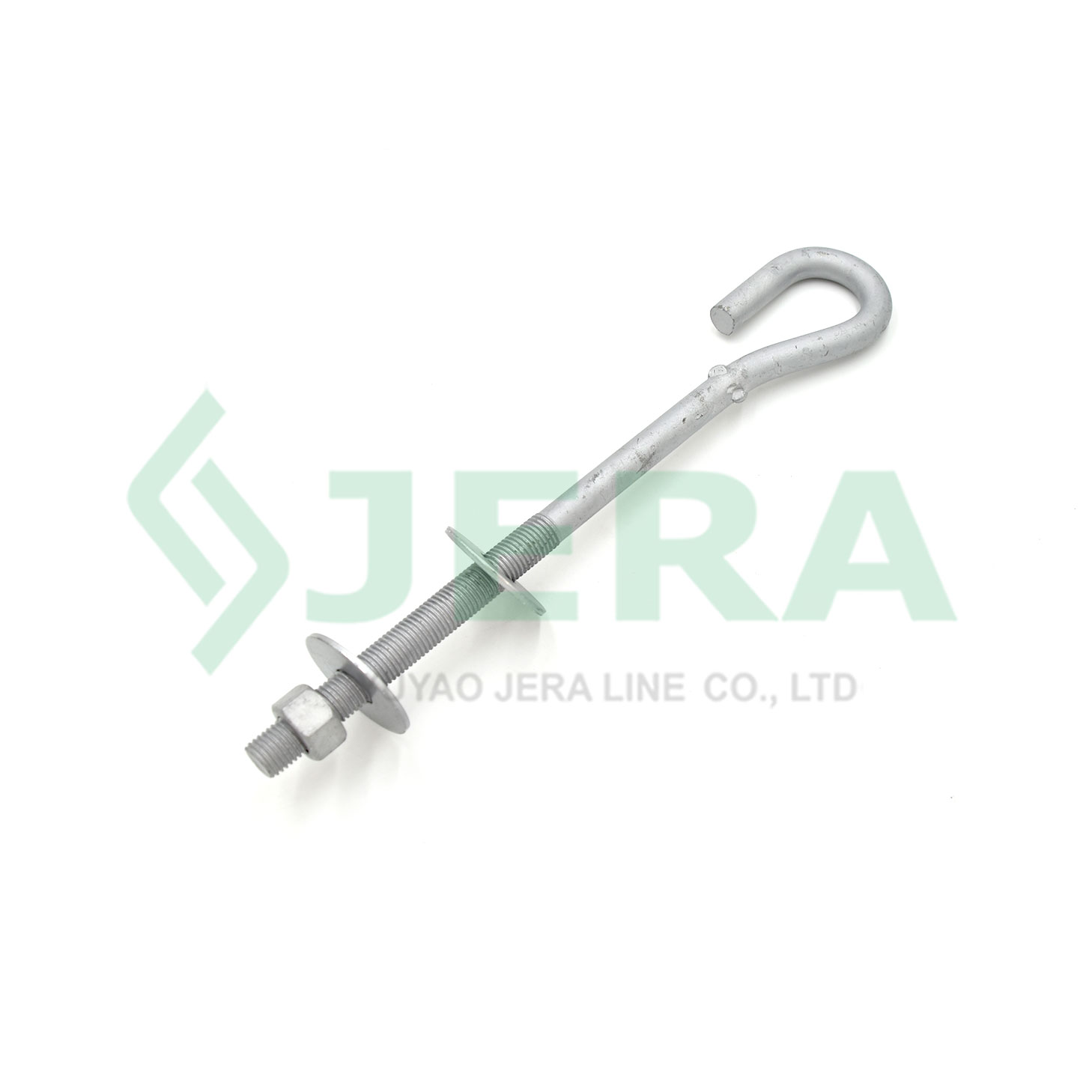

Pigtail Pole Bolt, PB-16-300

Pigtail hook PB-16-300 also called pigtail anchor bolt is developed to use on wooden, concrete poles or other power line poles to hang and tension the low voltage dead end clamps or suspension clamps during electrical line constructions.

Features

Made of hot-dip galvanized steel
Easy in installation process of OHL clamps
Bolt hook withstand sufficient mechanical tensile loads
LV ABC spiral hook meets the criteria of NF C 33042 and EN 50-483
Excellent environmental stability
Fair price

DESCRIPTION

TEST

REVIEW

Application

Low voltage power cable line distribution

Technical specification

Code	MBL, kN	Weight, kg	Material	Dimensions
PB-16-300	15	0.74	hot-dip galvanized steel	Ø 16 mm - 240 mm

Components and materials

Pigtail eye bolt is made of high quality steel and processed by hot dip galvanized production technology which is available in jera line workshop. Superior material and surface finish allow it to used in various weather conditions under appropriate loading.

The reason why we call it pigtail bolt is because of its one end pigtail designed, the spiral end of the bolt resembles the tail of a pig.The installation of this aerial pigtail bolt is very easy, it can be installed on wooden or concrete pole with related suspension clamp with cables.

Dimensions

Test

Pigtail Pole Bolt, PB-16-300 have passed the voltage tests, tension test. All the brackets meets the criteria of NF C 33042 and EN 50-483.We have our own interior laboratory to do inspection during daily production, which ensure our product meet the requirement for aerial electrical line components standards.
