Polymer Insulator top tie CO300 (31-36)

Polymer Insulator top tie CO300 (31-36)
Polymer Insulator top tie CO300 (31-36)
Polymer Insulator top tie CO300 (31-36)
Polymer Insulator top tie CO300 (31-36)
Polymer Insulator top tie CO300 (31-36)
Polymer Insulator top tie CO300 (31-36)
Polymer Insulator top tie CO300 (31-36)
Polymer Insulator top tie CO300 (31-36)
Model No. :

CO-300

Description:

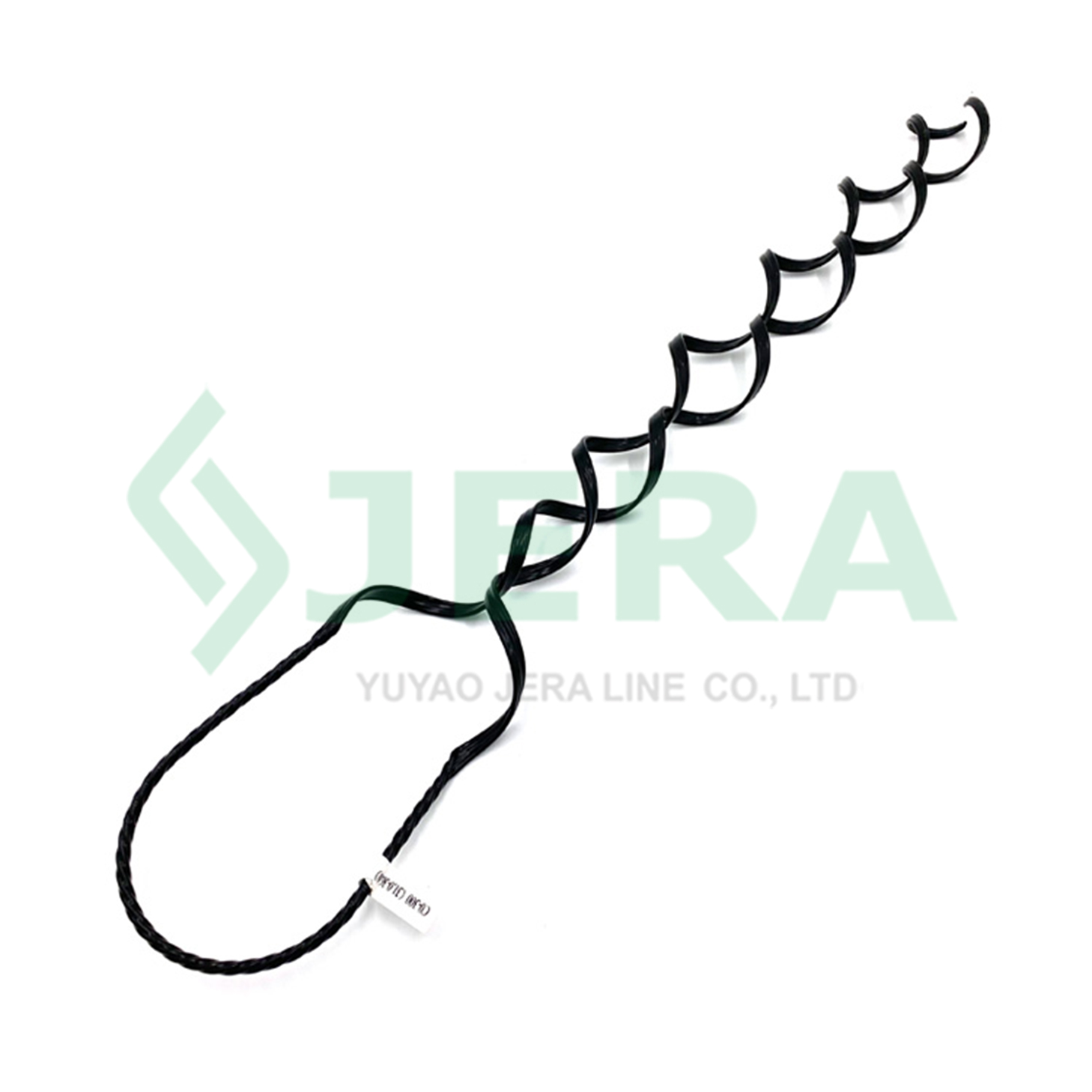

Polymer insulator top tie CO300 also called Helical Formed Top Ties is used to fix plastic jacked conductors on neck insulator to prevent conductor’s sheath from wind vibration during aerial MV or HV electrical distribution line.

  • Product detail
  • Specification
  • Video
  • Inquiry

Key Features

  1. Hand installation no need other tools
  2. High strength hop dip steel wire provide high tensile strength
  3. Overall surface coated by polymer layer, insulativity
  4. Developed for tying conductors to porcelain insulation neck
  5. Appropriate for middle or high voltage electrical line
  6. Competitive price coated ties
Polymer Insulator top tie CO300 (31-36) Polymer Insulator top tie CO300 (31-36)

SPECIFICATION

Polymer Insulator top tie CO300 (31-36)

Product analogs: CO185, CO240, SO115.5085, SO115.9573, SO115.150

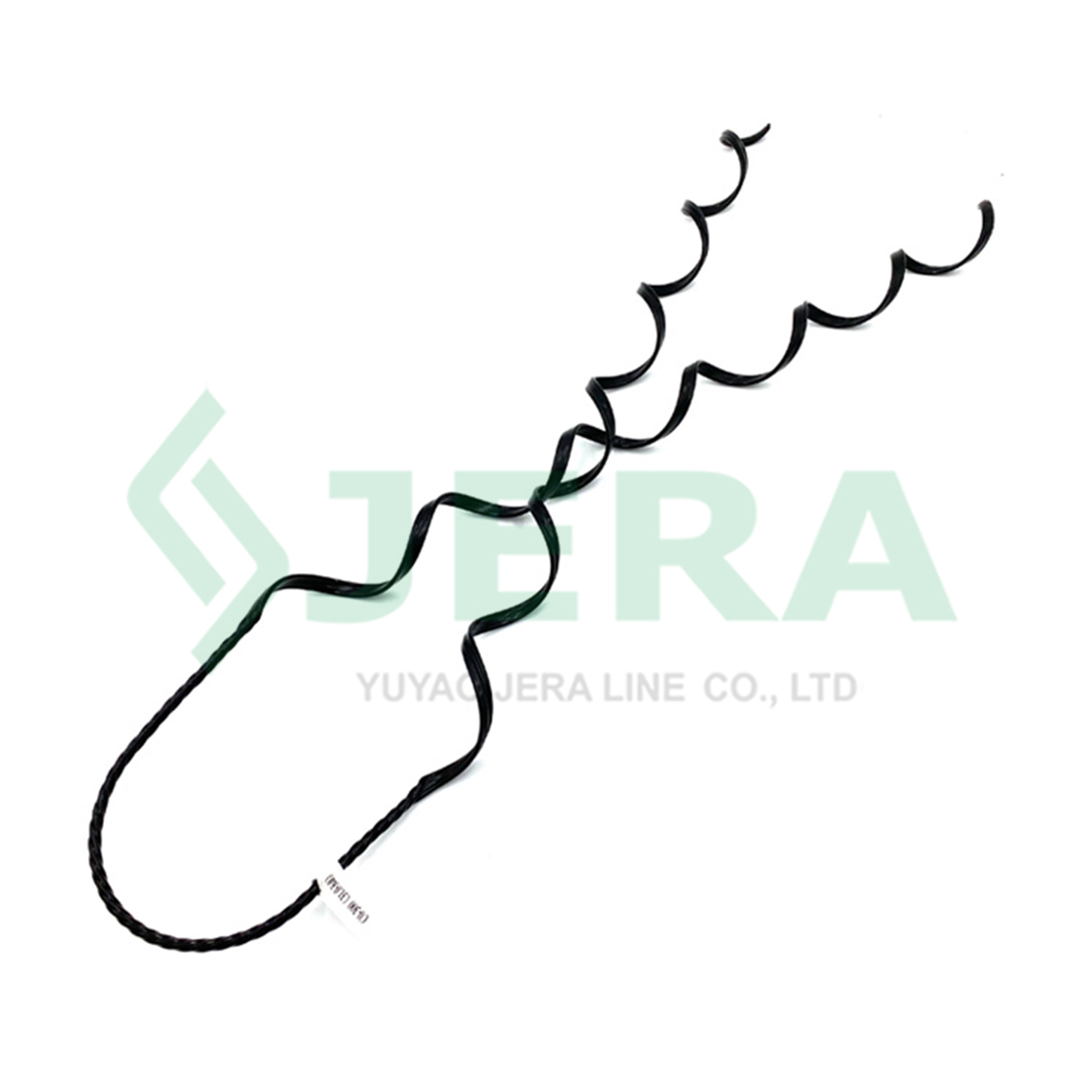

The insulated cable top tie is consist of hop dip galvanized steel wire and UV resistant polymer, which provide high mechanical tensile strength and weather resistant, ensure long period usage during various weather conditions.

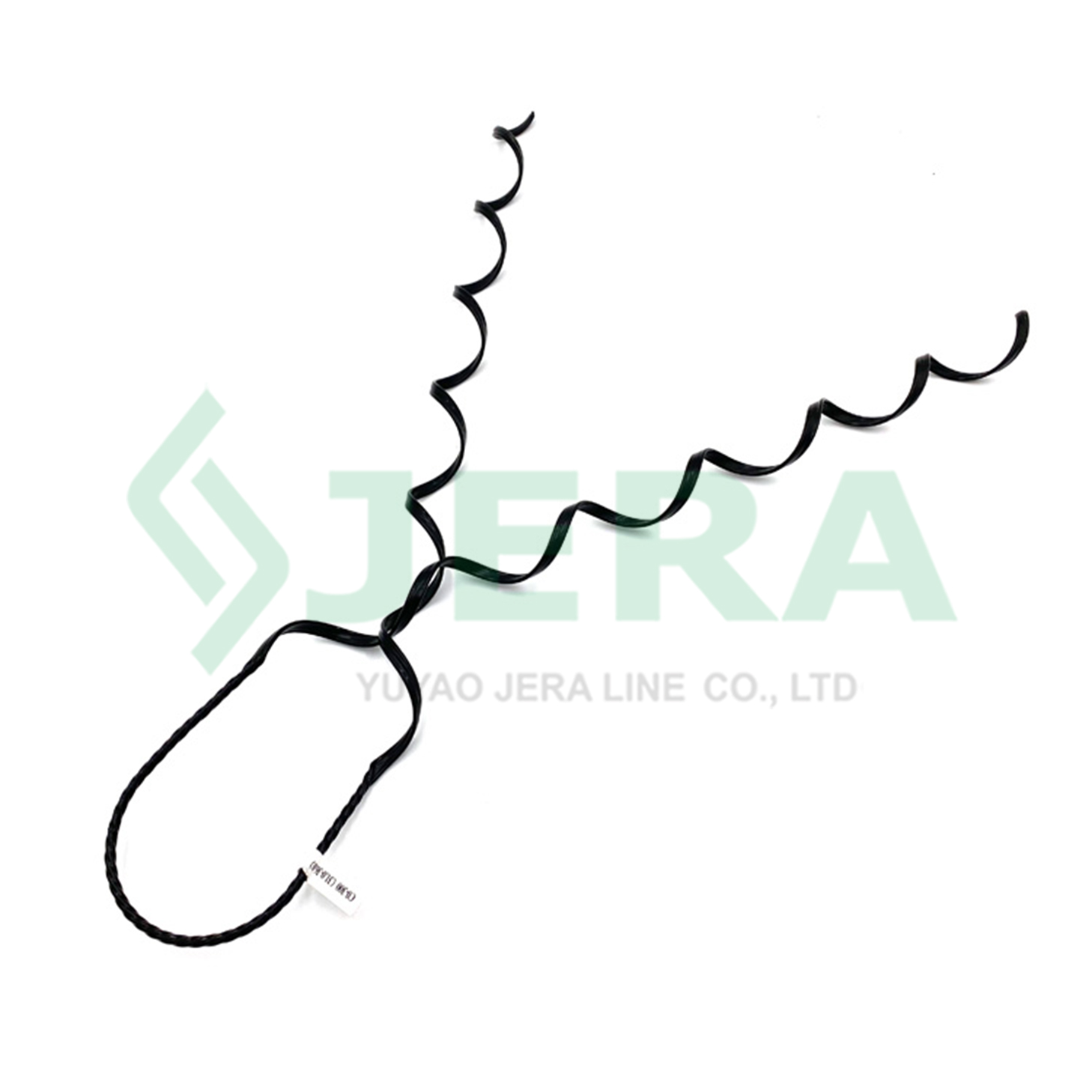

Spiral Formed Wire CO300 is applied with electrical cable size 31-36mm diameter. It’ s usually applied in pairs, and installed in opposite to each other. Can be installed as both top and side on insulator as coated side tie or coated top tie.

We apply European fundamental test standards, when inspecting the quality of our production operations.For electrical power cable related products, they are mentioned in EN 50483-4, NFC 33020, and IEC 61238-1.

read more

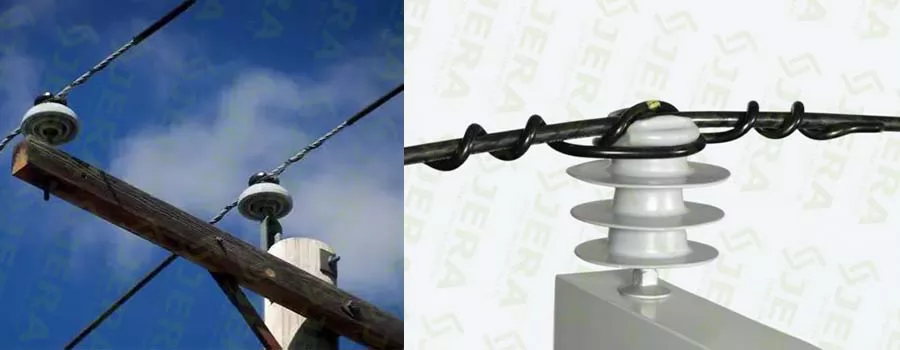

APPLICATION

formed wire top tie

Jera line is a direct factory, we produce a wide range product for low voltage line construction, our product includes insulation piercing connectors, low voltage tension clamps, suspension clamps, anchor brackets, stainless steel banding, dead end guy grips, bolt mechanical lugs, cable connectors etc.

We have introduced plenty of engineering know-how, to provide you with the ultimate in confidence when choosing our solution. Our products were designed to be convenient for quick application.

read more

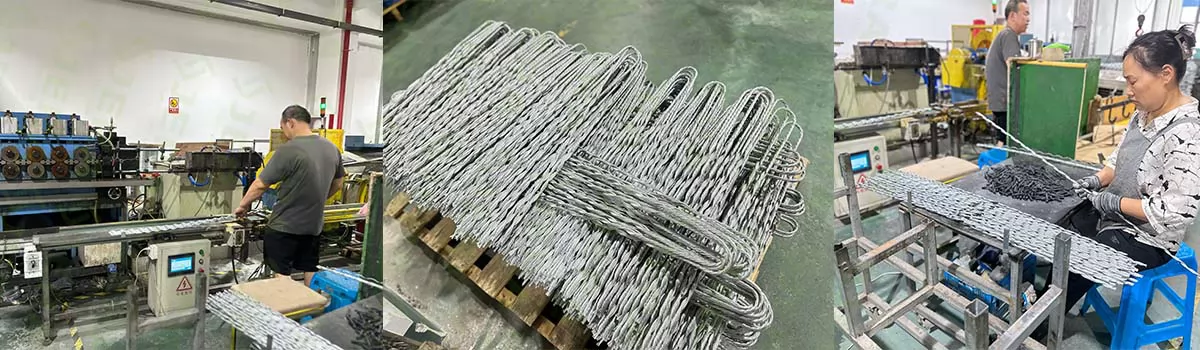

Manufacturing

    app

Watch Our Factory Video

Technical specification

Type

Applied cable diameter, mm

Material

MBL,KN

Mark color

CO300

31 – 36

Hot dip galvanized steel wire,Polymer

3.5

Grey



PRODUCT VIDEO
