Polymer tension insulator PTI-1-400-JERA LINE

Polymer tension insulator PTI-1-400

Medium voltage polymer silicone tension type insulator, 24KV, high tension load 70KN, IEC 61466-1 complied

Features

High Mechanical strength
Reliable electrical properties
One person can easily install the insulator, lightweight
UV resistance material, durable
Corrosion resistance, can be used in hash environment
Comply to IEC 61466-1
Direct factory in China

DESCRIPTION

TEST

REVIEW

Application

The overhead line Polymer Tension Insulator PTI-1-400 is primarily used in power transmission and distribution networks due to its high performance and durability. Here are the key applications:

Applications:

● Overhead Power Lines:Used to support and insulate high-voltage conductors in overhead transmission lines, especially in tension or suspension locations.

● Long Span Installations:Ideal for insulator strings in long-span situations where mechanical strength and weather resistance are critical.

● Tension Guy Insulator:Employed as tension insulators in guyed transmission towers to withstand mechanical loads and environmental stresses.

● Switching and Substation Applications:Can be used in equipment and substations requiring tension insulators to support conductors or busbars.

Technical specification

Product code	Material	Rated Voltage	Mechanical Strength	Silicone colour	Power frequency withstand	Lighting impulse withstand voltage	Dry arcing distance	Creepage distance
PTI-1-400	Polymer	24KV	70	Grey	Dry: 75KV Wet: 65KV	125KV	220mm	550mm

Components and materials

JERA LINE has more than 10 year in power cable line accessories, with own laboratory and R&D department, the overhead line polymer insulator is made out of polymer, silicone and aluminum material. with high mechanical strength, durable, and corrosion resistance advantages, suitable for long time usage.

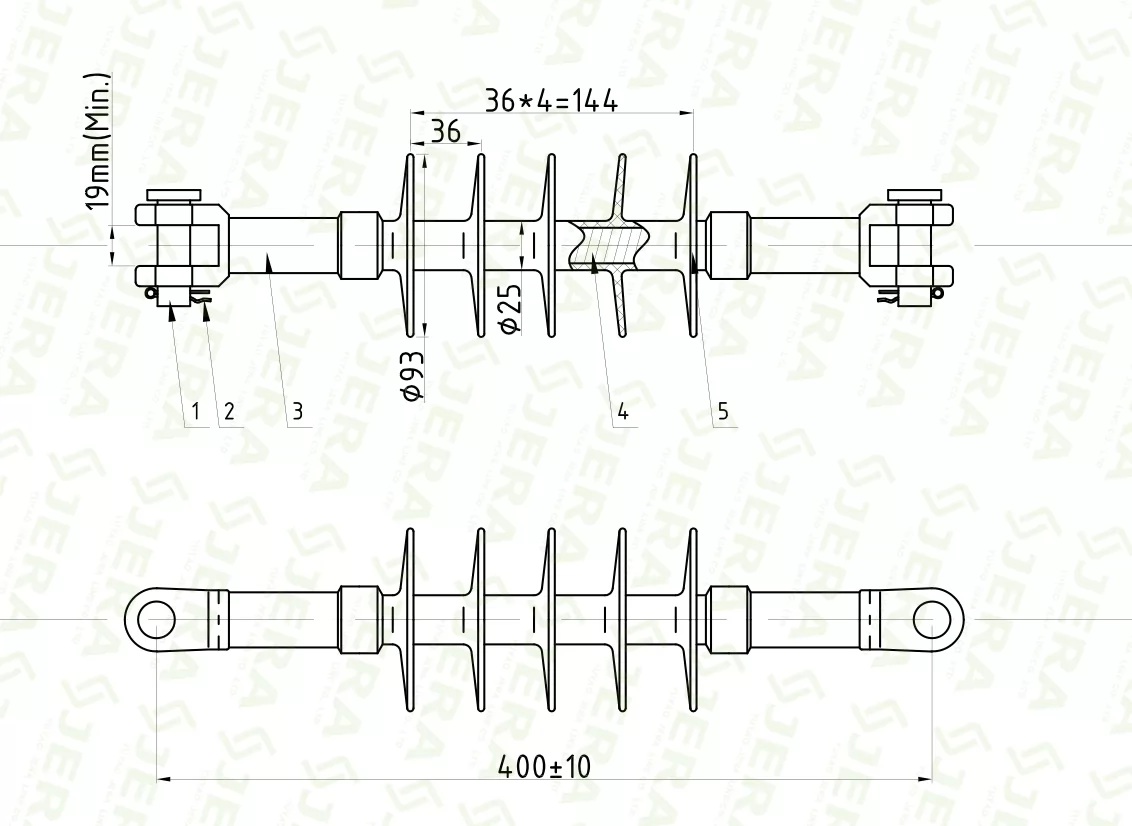

Dimensions

Test

The lightweight high tension polymer insulator PTI-1-400, is complied with international standard IEC 61109 (Insulators - Ceramic, Glass, Polymer).

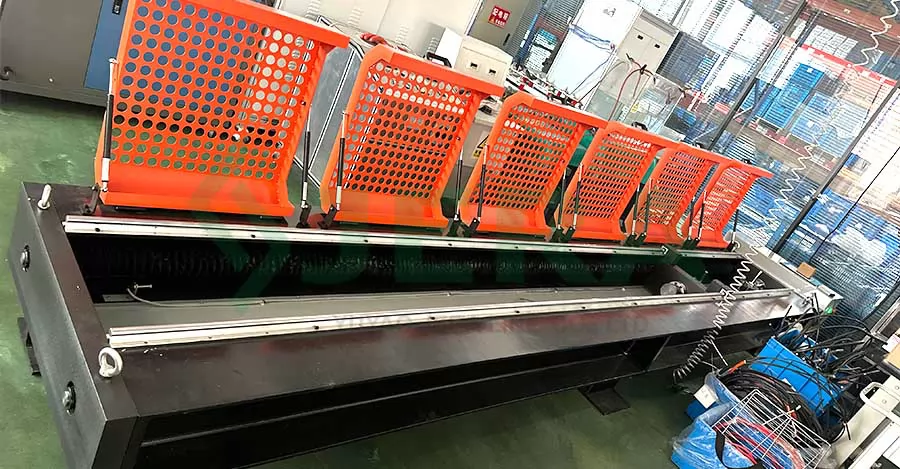

The tests are including Mechanical load test, electrical testing, visual and dimensional inspection and environmental test and so on.

In Jera Line laboratory, there are testing equipment, which can conductor these tests as routine factory tests. to ensure its reliability, safety, and performance under operational conditions.
